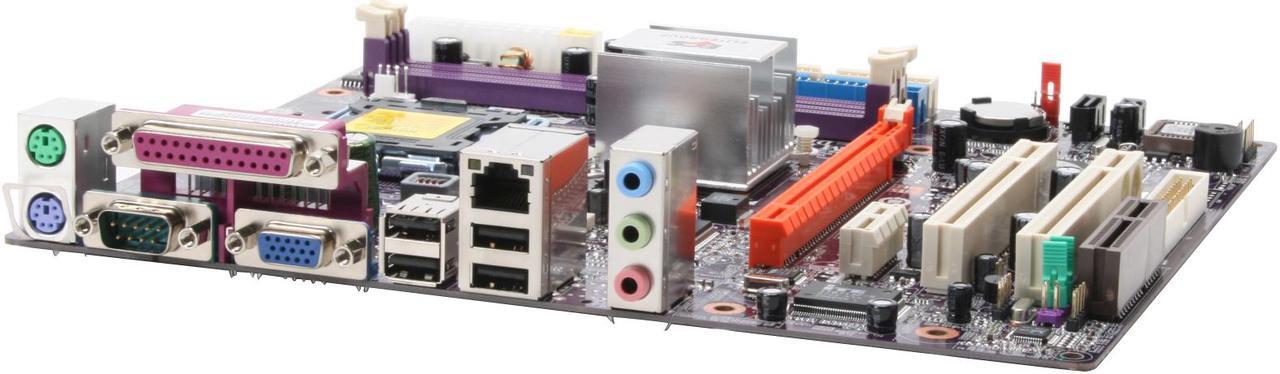

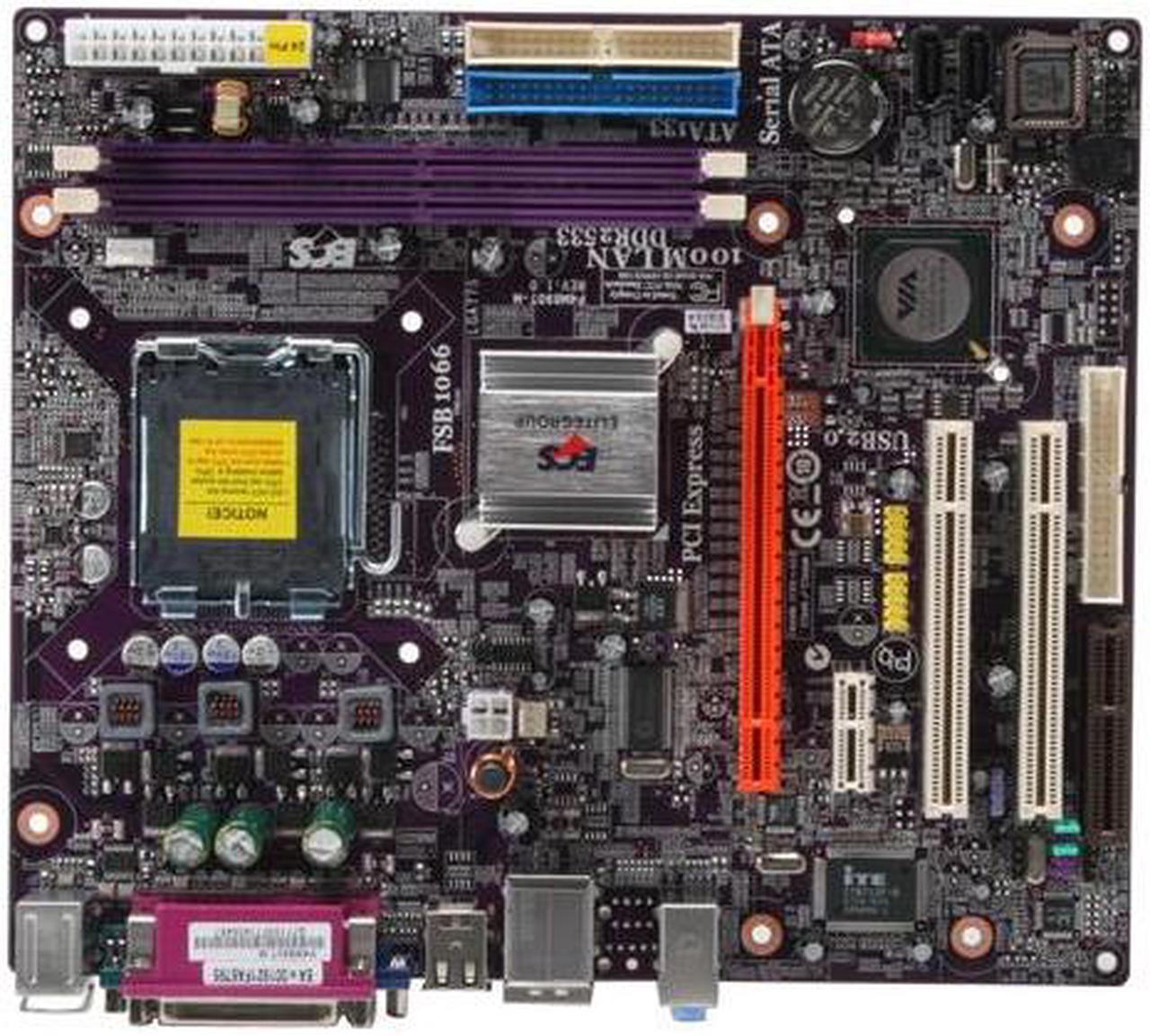

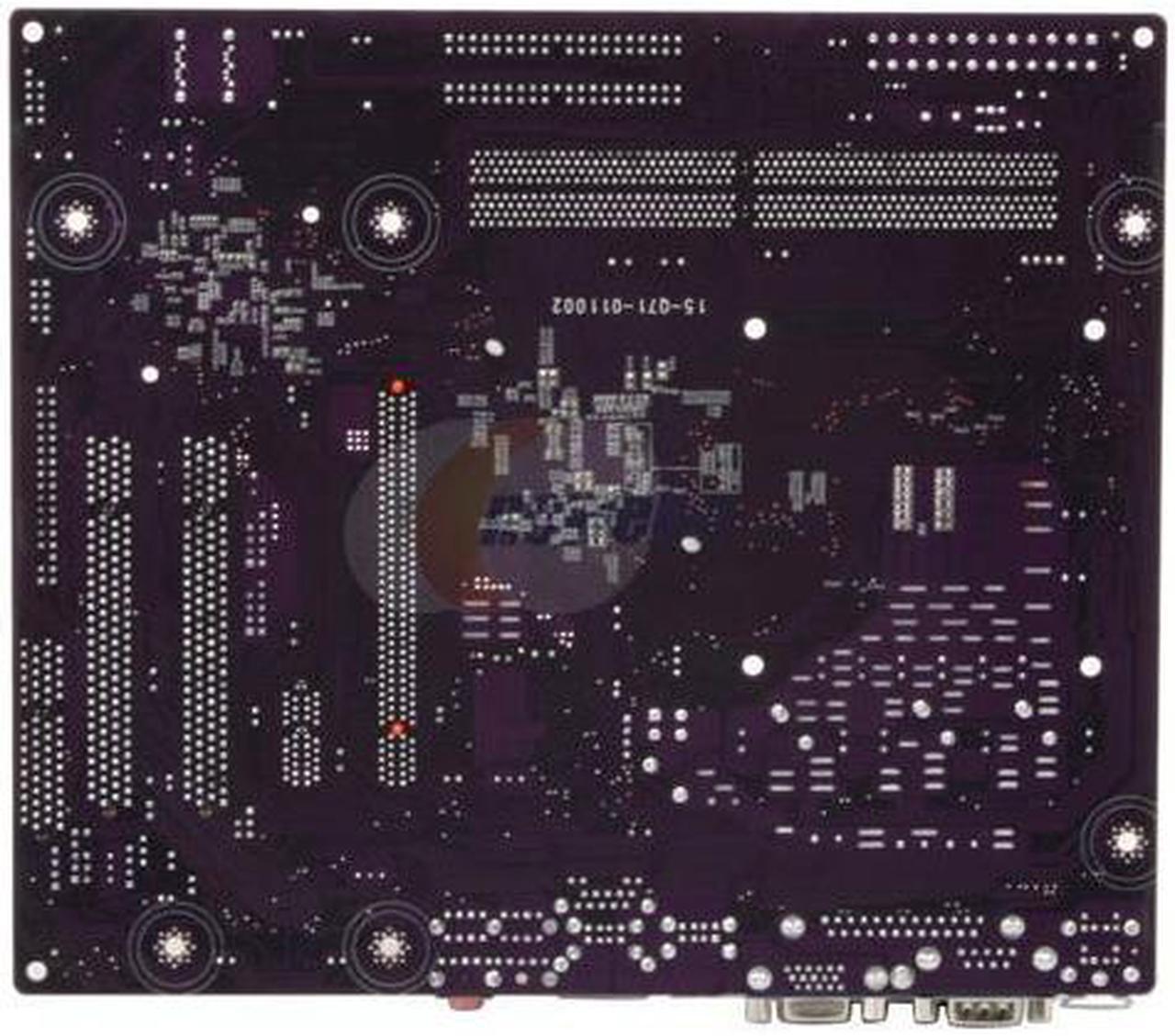

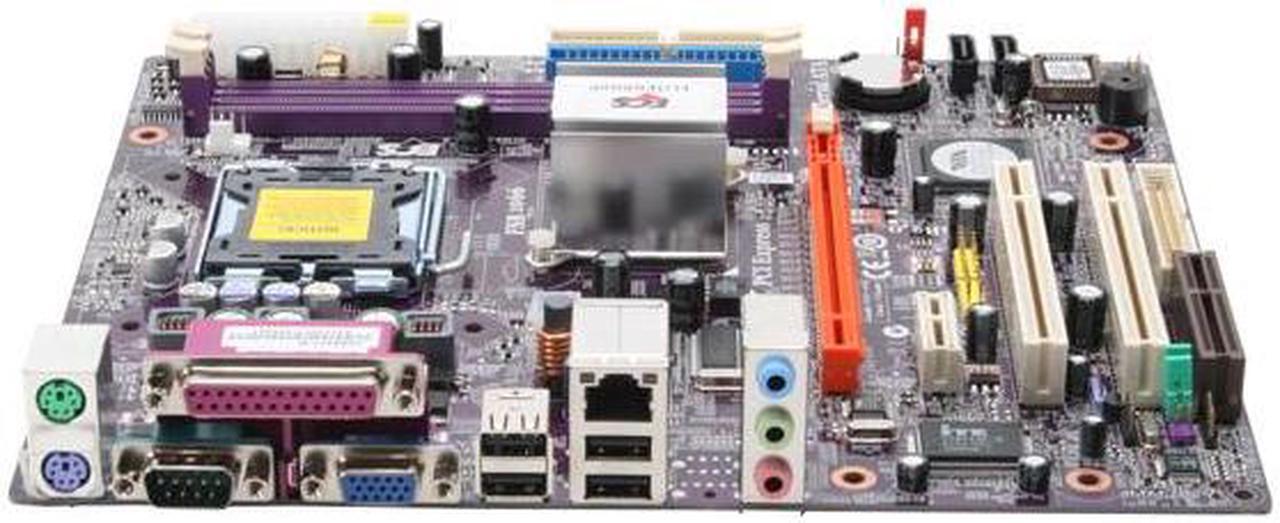

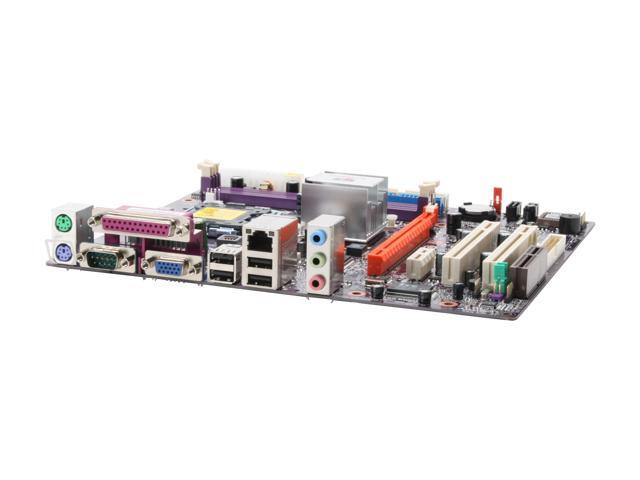

Main image of ECS P4M890T-M (V1.0) LGA 775 VIA P4M890 Micro ATX Intel Motherboard

Alt view image 2 of 7 - ECS P4M890T-M (V1.0) LGA 775 VIA P4M890 Micro ATX Intel Motherboard

Alt view image 3 of 7 - ECS P4M890T-M (V1.0) LGA 775 VIA P4M890 Micro ATX Intel Motherboard

Alt view image 4 of 7 - ECS P4M890T-M (V1.0) LGA 775 VIA P4M890 Micro ATX Intel Motherboard

Alt view image 5 of 7 - ECS P4M890T-M (V1.0) LGA 775 VIA P4M890 Micro ATX Intel Motherboard

Alt view image 6 of 7 - ECS P4M890T-M (V1.0) LGA 775 VIA P4M890 Micro ATX Intel Motherboard

Alt view image 7 of 7 - ECS P4M890T-M (V1.0) LGA 775 VIA P4M890 Micro ATX Intel Motherboard

Shop All ECS (EliteGroup) Products

ECS P4M890T-M (V1.0) LGA 775 VIA P4M890 Micro ATX Intel Motherboard

Name: ECS P4M890T-M (V1.0) LGA 775 Micro ATX Intel Motherboard
Brand: ECS (EliteGroup)
SKU: N82E16813135042
Rating: 5 (3 reviews)

(3) Write a Review

VIA P4M890
Core 2 Duo / Pentium D / Celeron D
DDR2 533

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (3)

Learn more about the ECS (EliteGroup) P4M890T-M (V1.0)

Model
Brand	ECS
Model	P4M890T-M (V1.0)

Supported CPU
CPU Socket Type	LGA 775
CPU Type	Core 2 Duo / Pentium D / Celeron D
FSB	1066/800 MHz
Supported CPU Technologies	Hyper-Threading Technology

Chipsets
Chipset	VIA P4M890
South Bridge	VIA VT8237R Plus

Onboard Video
Onboard Video Chipset	S3 Graphics UniChrome Pro IGP

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR2 533
Maximum Memory Supported	4GB

Expansion Slots
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots
Other Slots	1 x CNR

Storage Devices
PATA	2 x ATA100 4 Dev. Max
SATA 1.5Gb/s	2 x SATA 1.5 Gb/s
SATA RAID	0/1

Onboard Audio
Audio Chipset	Realtek ALC655
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	VIA VT6103L
Max LAN Speed	100Mbps

Rear Panel Ports
Back I/O Ports	2 x PS/2 / 4 x USB 2.0/1.1
PS/2	2
COM	1
LPT	1
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.6"
Power Pin	24 Pin

Packaging

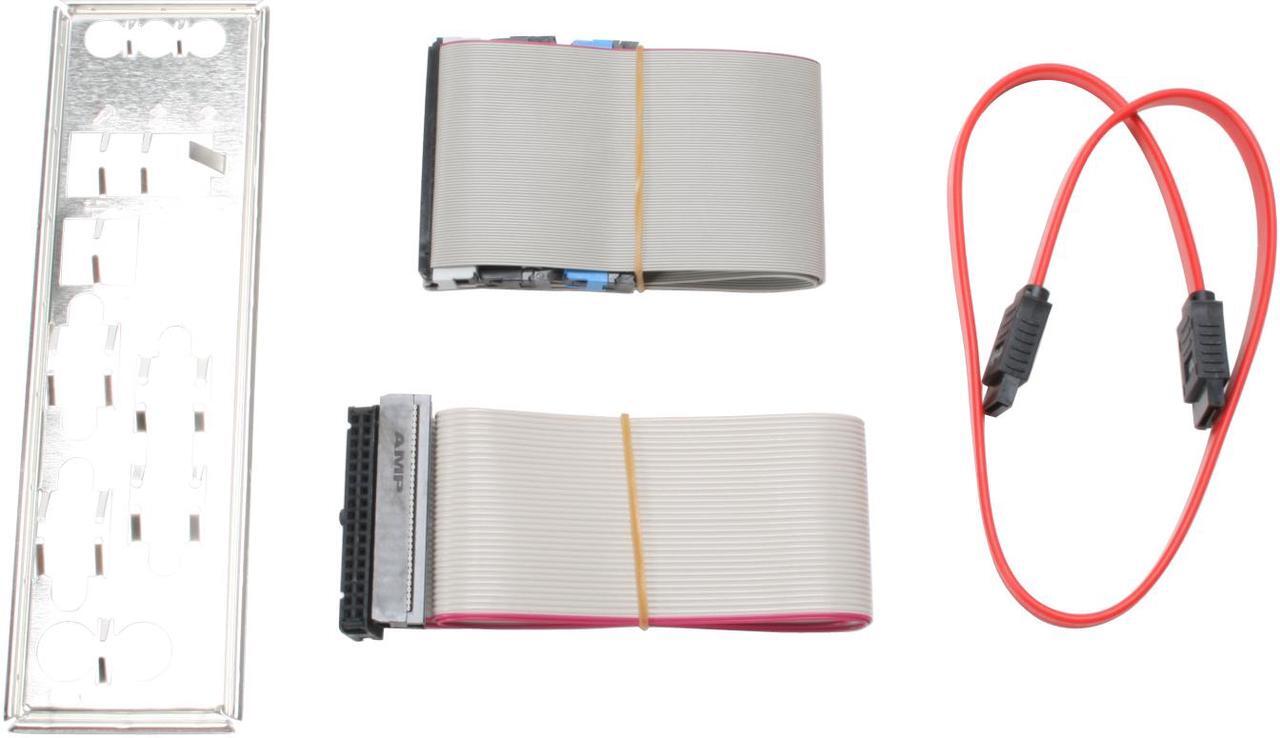

Package Contents	P4M890T-M (V1.0) Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable

Additional Information
Date First Available	April 30, 2007
