| Brand | ECS |
|---|---|
| Model | PT890T-A V1.0 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Pentium D / Celeron D |
| FSB | 1066/800 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | VIA PT890 |
|---|---|
| South Bridge | VIA VT8237A |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 4GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 4 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA 1.5Gb/s | 2 x SATA 1.5 Gb/s |
| SATA RAID | 0/1 |
| Audio Chipset | VIA VT1708A |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | VIA VT6103L |
|---|---|
| Max LAN Speed | 10/100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

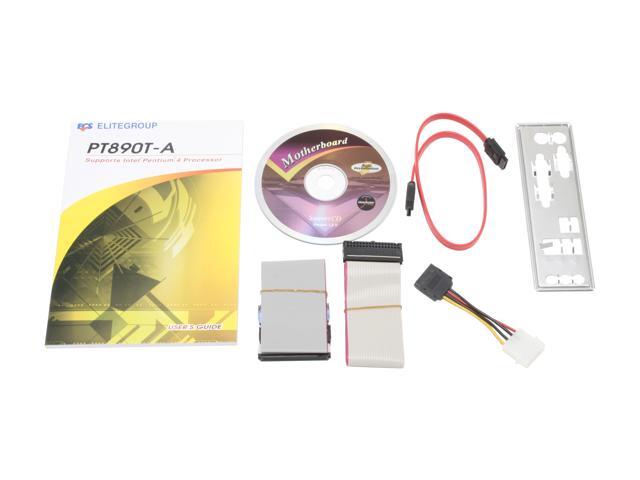

| Package Contents | PT890T-A V1.0 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Date First Available | January 15, 2007 |
|---|
Pros: inexpensive, works fine
Cons: had trouble with LAN drivers, got them to work eventually. Very limited overclocking, couldn't get my E4300 to clock over 1.9Ghz without extreme instability. WindowsXP setup had issue with pci.sys, was never resolved.
Overall Review: I'm not using the SATA ports or onboard sound, front USB connectors are covered by my 8800GTS.
