Brand | ECS |
---|---|
Model | NF650iSLIT-A (V1.0) |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
FSB | 1333Mhz (OC) |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | NVIDIA nForce 650i SLI |
---|---|
South Bridge | NVIDIA MCP51 |
Onboard Video Chipset | None |
---|
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR2 800 |
Maximum Memory Supported | 8GB |
Channel Supported | Dual Channel |
PCI Express x16 | 2 x PCI Express x16 slot (SLI mode: x8+x8, single PCI-E is x8 mode) |
---|---|
PCI Express x1 | 2 x PCI Express x1 |
PCI Slots | 3 x PCI Slots |
PATA | 2 x ATA100 4 Dev. Max |
---|---|
SATA 3Gb/s | 4 x SATA 3Gb/s |
SATA RAID | NV RAID 0/1/0+1/5 JBOD |
Audio Chipset | Realtek ALC883 |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Marvell 88E1116 |
---|---|
Max LAN Speed | 10/100/1000Mbps |
PS/2 | 2 |
---|---|
COM | 1 |
USB 1.1/2.0 | 4 x USB 2.0 |
S/PDIF Out | 1 x Optical, 1 x Coaxial |
Audio Ports | 6 Ports |
Onboard USB | 2 x USB 2.0 connectors support 4 ports |
---|
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 24 Pin |

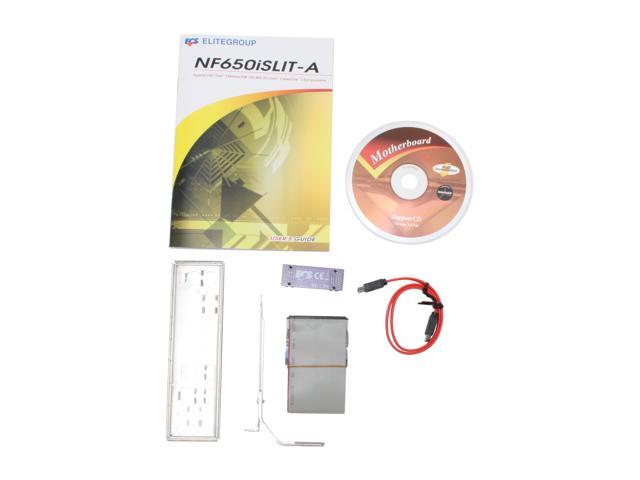

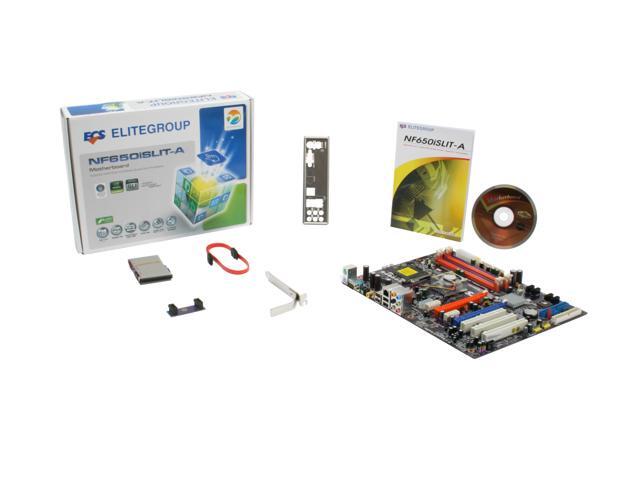

Package Contents | NF650iSLIT-A (V1.0) Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable SLI Bridge SLI Retention Bracket |
---|
Windows Vista | Certified for Windows Vista |
---|
Date First Available | March 08, 2007 |
---|
