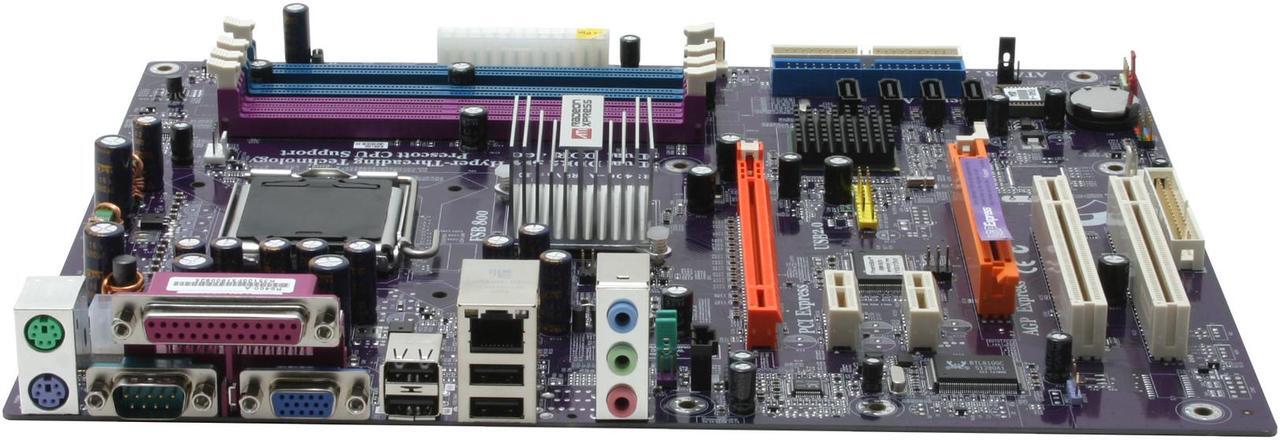

ECS RS400-A (1.0) LGA 775 ATI Radeon Xpress 200 ATX Intel Motherboard
- ATI Radeon Xpress 200
- Pentium 4 Prescott / Celeron
- DDR 400/DDR2 667
Overview
Specs
Reviews (55)
The ECS RS400-A motherboard offers great value for money, ideal for value-minded users. Based on the ATI Radeon Xpress 200 chipset and featuring an integrated ATI Radeon X300-based 2D/3D onboard video component for enhanced graphics, it can be kicked up even further with a PCI-E graphic card (for the PCI-E X16 slot). It also features an AGP Express slot for compatibility with older generation AGP graphic cards. The AGP Guardian technology prevents your graphic card from getting burnt out and ensures 100% protection.
This versatile board features a Dual Channel DDR2 667 architecture (2 GB max capacity) with full support for faster Intel Pentium 4 800 MHz FSB HT processors for memory and power to deliver powerful performance. The on-board Realtek 8100C LAN and ALC655 audio chipsets eliminate the need for external add-on cards, and give you great sound for the money. The board's equipped with four expansion slots (2 x PCI-E x1 + 2 x PCI) for major add-ons. 4 USB 2.0 ports provide fast data transfer up to 480 Mbps.
Introducing Radeon Xpress 200 for Intel ProcessorsBuilt for the PCI Express architecture, ATI’s Radeon Xpress 200 chipset for Intel processors delivers leading graphics performance, bandwidth and advanced functionality. The integrated Radeon X300-based graphics processor completely supports Microsoft Windows XP Media Center Edition and pumps out high-performance graphics for value-oriented desktop PCs.
Integrated Radeon X300-based Graphics CoreThe integrated ATI’s Radeon X300-based graphics core incorporates SmartShader and SmoothVision support for compatibility with the latest game titles. The Radeon Xpress 200 is ideal for media-intensive applications and digital content creation, viewing and editing.
PCI Express x16 Graphics InterfaceThe latest PCI Express x16 graphics interface delivers over 3.5 times the bandwidth of AGP 8X to support the latest high-performance graphics cards.
AGP Express InterfaceThe AGP Express interface supports AGP 8X/4X video cards onto the motherboard so you can continue to use your existing hardware. It incorporates the ECS AGP Guardian design for 100% protection against card burn-up.
Serial ATA with RAIDThe revolutionary Serial ATA interface provides scalable performance for storage devices. SATA technology enables easy-to-install, high-performance and low-power hard drives. Four SATA ports support RAID 0 and RAID 1 for better performance and data security respectively.
Onboard LAN SupportThe RS400-A provides an onboard 10/100Mbps solution for your network or broadband connection without having to buy an extra LAN card.
Introducing Radeon Xpress 200 for Intel ProcessorsBuilt for the PCI Express architecture, ATI’s Radeon Xpress 200 chipset for Intel processors delivers leading graphics performance, bandwidth and advanced functionality. The integrated Radeon X300-based graphics processor completely supports Microsoft Windows XP Media Center Edition and pumps out high-performance graphics for value-oriented desktop PCs.
Integrated Radeon X300-based Graphics CoreThe integrated ATI’s Radeon X300-based graphics core incorporates SmartShader and SmoothVision support for compatibility with the latest game titles. The Radeon Xpress 200 is ideal for media-intensive applications and digital content creation, viewing and editing.
PCI Express x16 Graphics InterfaceThe latest PCI Express x16 graphics interface delivers over 3.5 times the bandwidth of AGP 8X to support the latest high-performance graphics cards.
AGP Express InterfaceThe AGP Express interface supports AGP 8X/4X video cards onto the motherboard so you can continue to use your existing hardware. It incorporates the ECS AGP Guardian design for 100% protection against card burn-up.
Serial ATA with RAIDThe revolutionary Serial ATA interface provides scalable performance for storage devices. SATA technology enables easy-to-install, high-performance and low-power hard drives. Four SATA ports support RAID 0 and RAID 1 for better performance and data security respectively.
Onboard LAN SupportThe RS400-A provides an onboard 10/100Mbps solution for your network or broadband connection without having to buy an extra LAN card.Warranty & Returns
