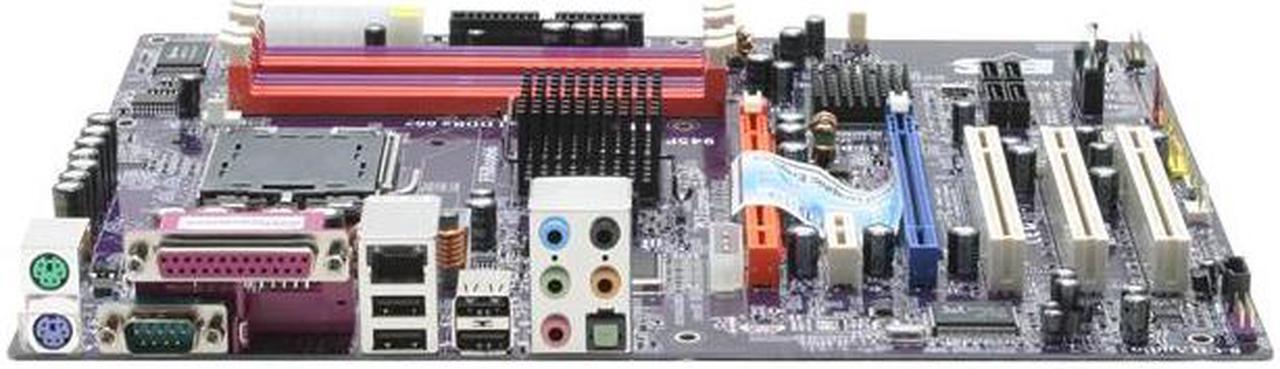

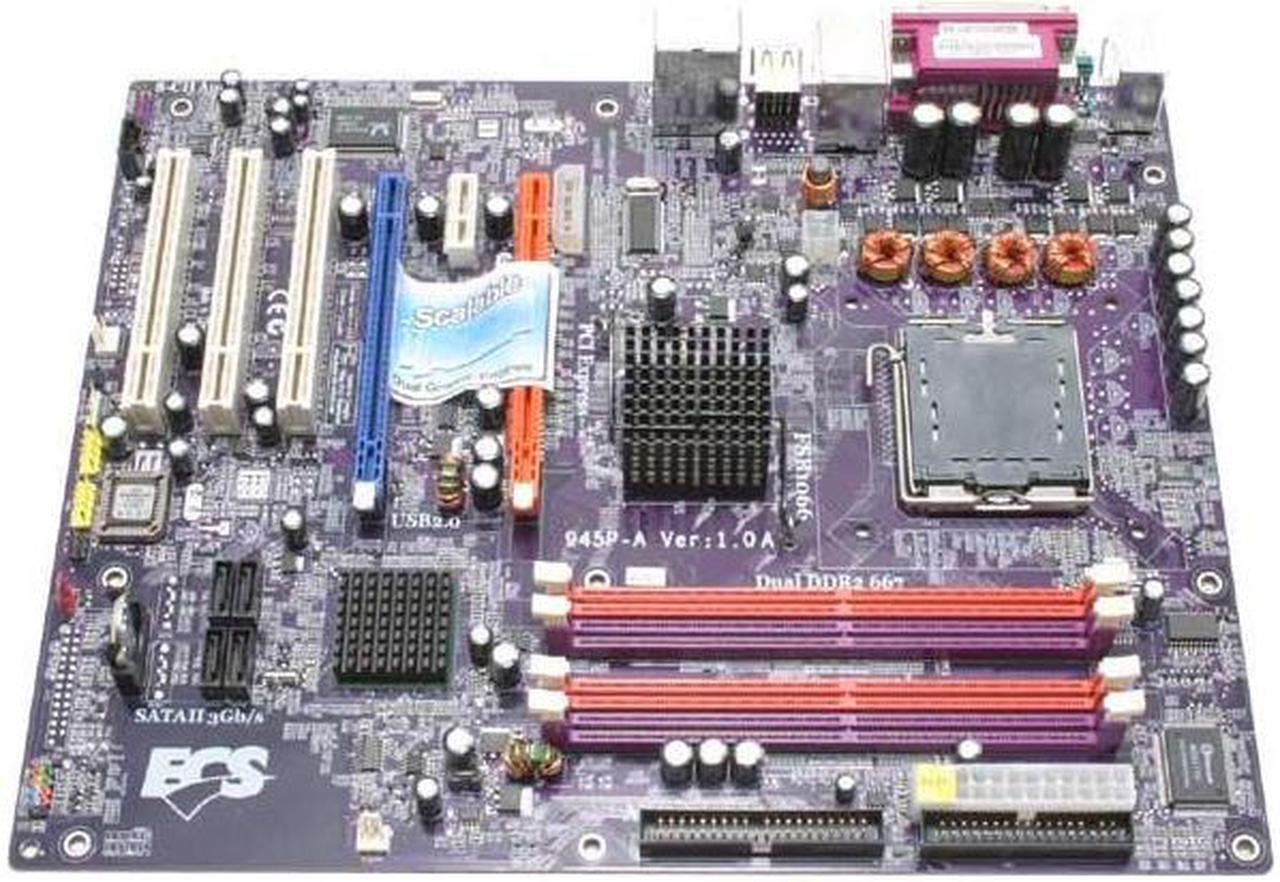

ECS 945P-A (1.0) LGA 775 Intel 945P ATX Intel Motherboard
- Intel 945P
- Pentium D / Pentium 4 HT / Celeron D
- DDR2 667
Specs
Reviews (10)
Learn more about the ECS (EliteGroup) 945P-A (1.0)
| Brand | ECS |
|---|---|
| Model | 945P-A (1.0) |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium D / Pentium 4 HT / Celeron D |
| FSB | 1066/800 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 945P |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 667 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | Realtek ALC880 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8110S |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Features | Dual core 64bit support, 8-Channel Audio, Dual Channel DDR2 667 |
|---|

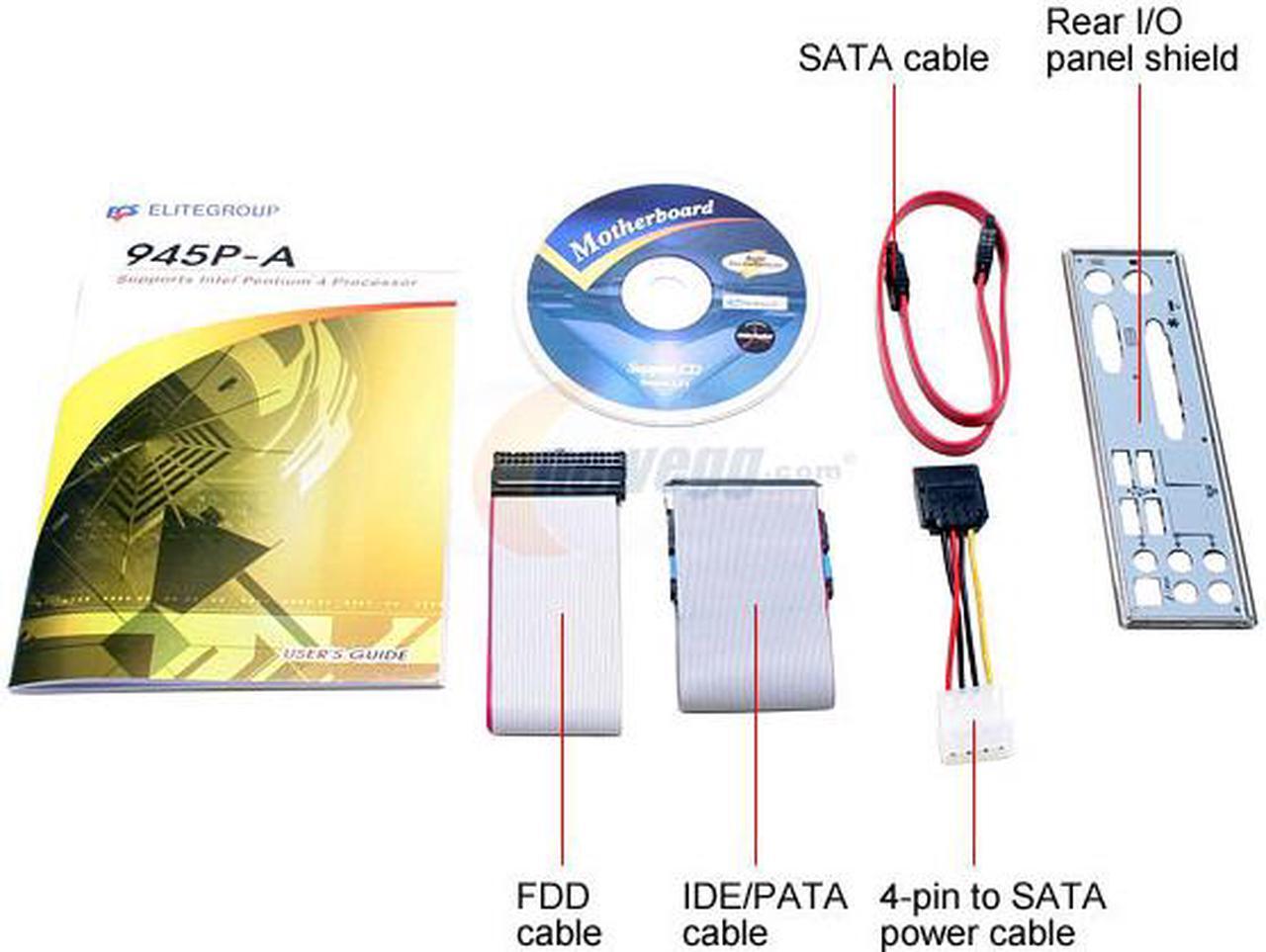

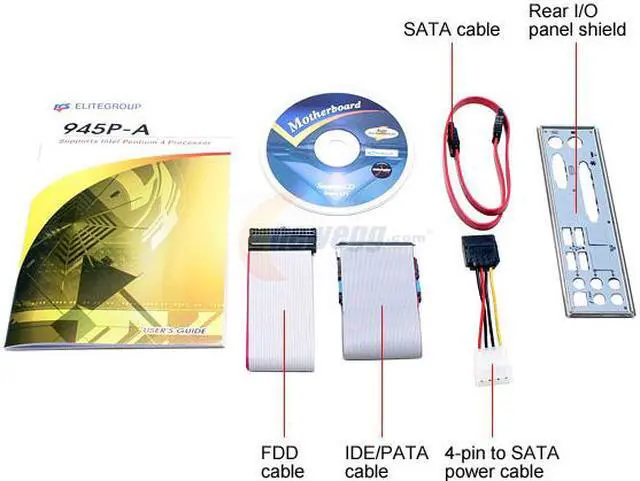

| Package Contents | 945P-A (1.0) Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Date First Available | August 18, 2005 |
|---|
