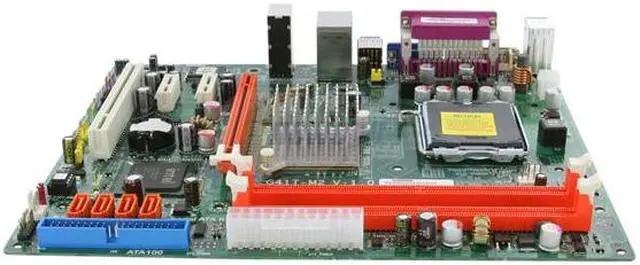

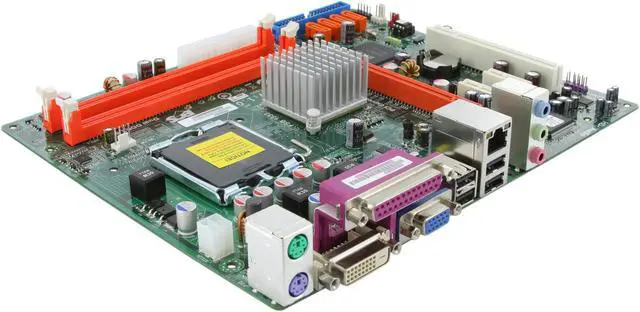

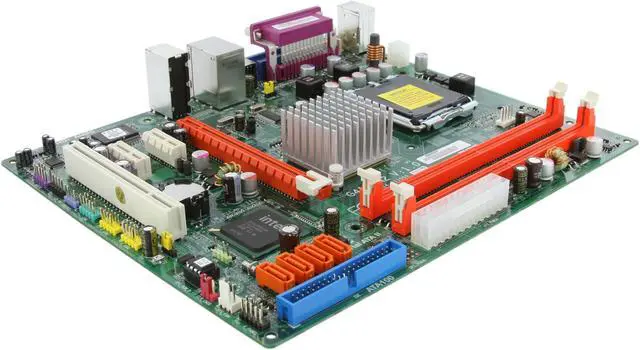

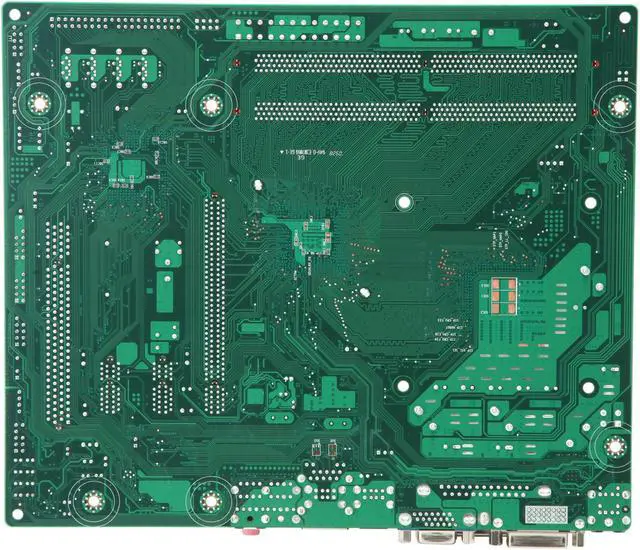

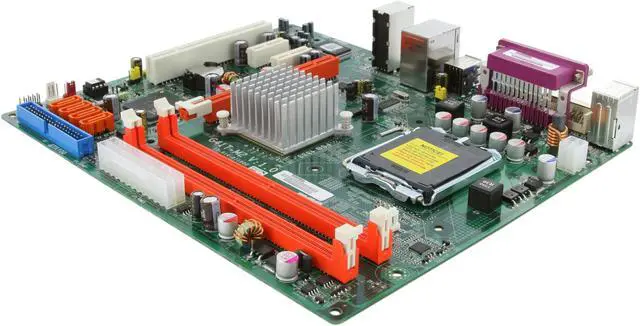

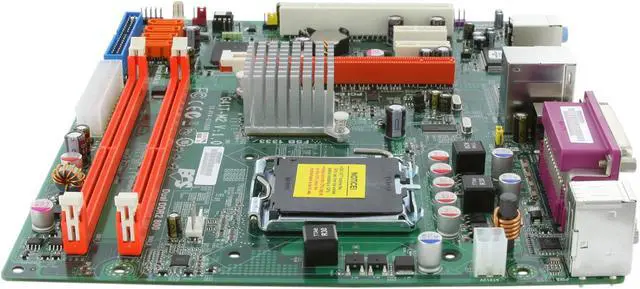

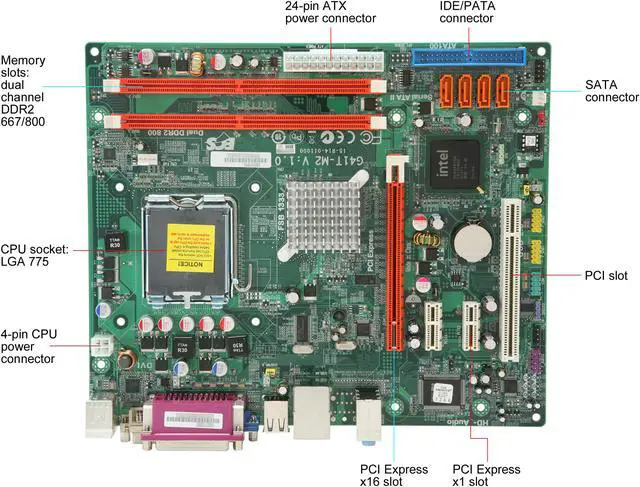

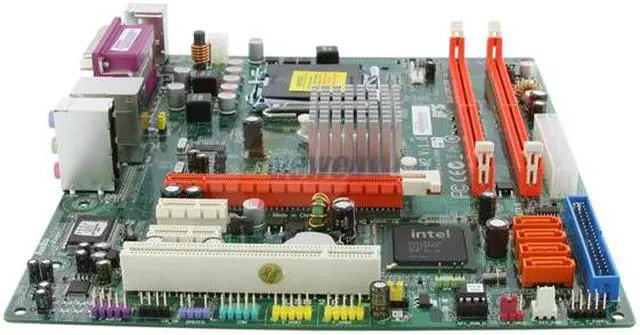

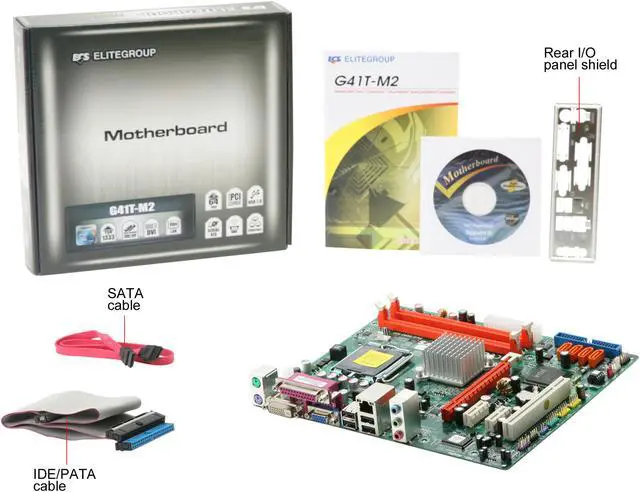

ECS G41T-M2(1.0) LGA 775 Intel G41 Micro ATX Intel Motherboard
- Intel G41
- Core 2 Quad / Duo / Pentium Dual-Core / Celeron
- DDR2 667/800
Specs
Reviews (20)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) G41T-M2(1.0)
| Brand | ECS |
|---|---|
| Model | G41T-M2(1.0) |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Duo / Pentium Dual-Core / Celeron |
| FSB | 1333/1066 MHz |
| Chipset | Intel G41 |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | Intel GMA X4500 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 667/800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 headers support additional 4 USB Ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Power Pin | 24 Pin |
| Windows Vista | 9.6" x 8.03" |
|---|
| First Listed on Newegg | September 02, 2009 |
|---|
