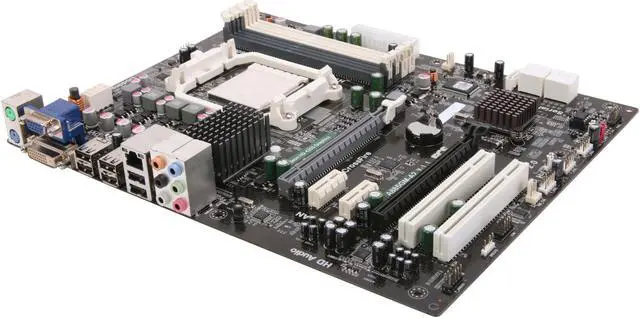

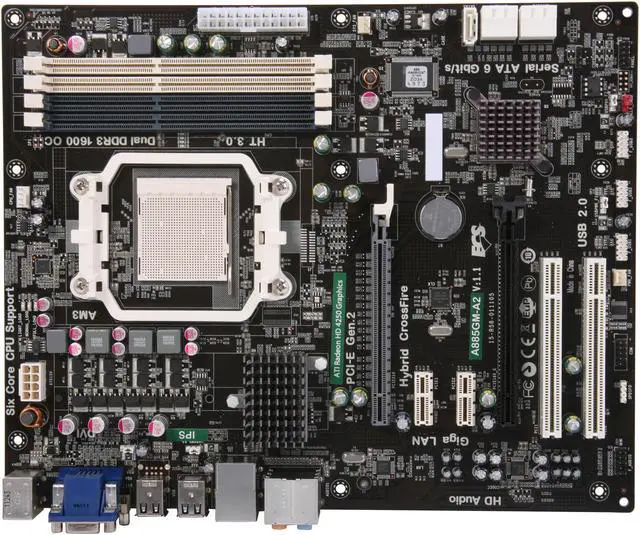

ECS A885GM-A2 (V1.1) AM3 AMD 880G ATX AMD Motherboard

(98) Write a Review
  • AMD 880G
  • Phenom II / Athlon II / Sempron
  • DDR3 1600(OC)/1333/1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (98)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) A885GM-A2 (V1.1)

Model
Brand ECS
Model A885GM-A2 (V1.1)
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron
FSB 2600 MHz
Chipsets
Chipset AMD 880G
South Bridge AMD SB850
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600(OC)/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 (x16, x4)
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
Serial ATA (SATA) 5 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 4250
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 2 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub + DVI
USB 1.1/2.0 6 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features SATA 6Gb/s

eOC - Easy Over Clock Utility

ATI Hybrid Graphics Technology

eDLU - Drivers Live Update Utility

eBLU - BIOS Live Update Utility
Additional Information
First Listed on Newegg November 15, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
