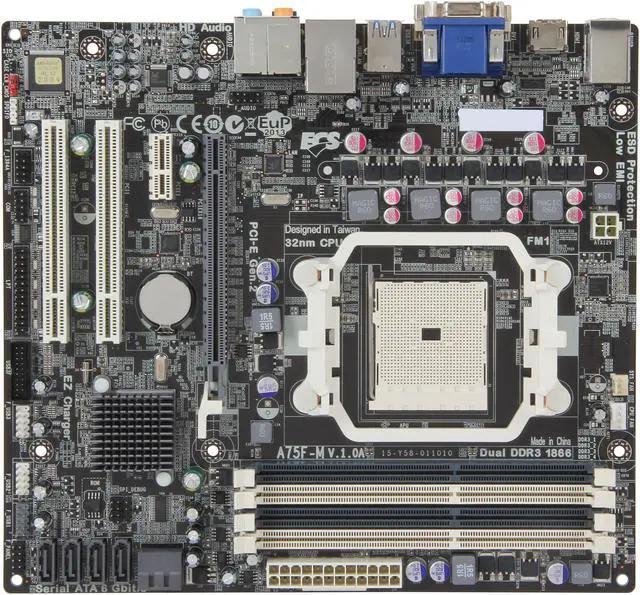

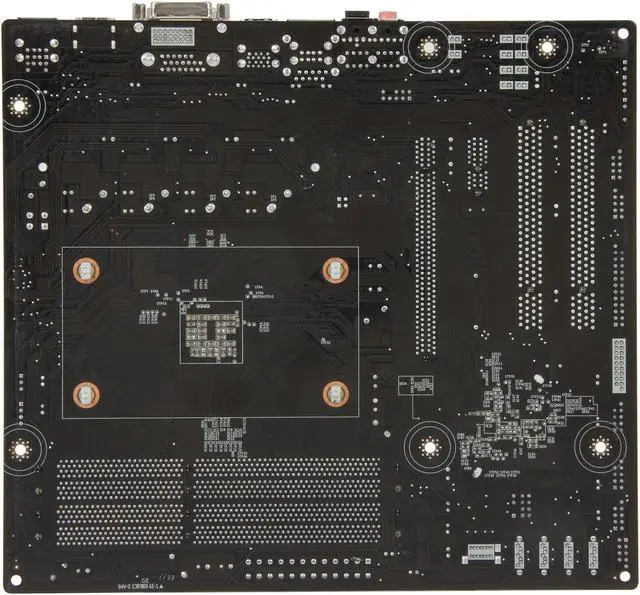

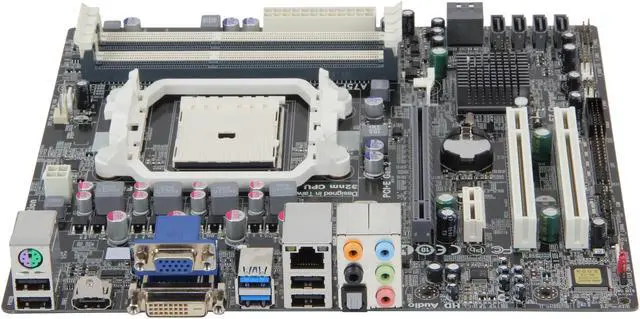

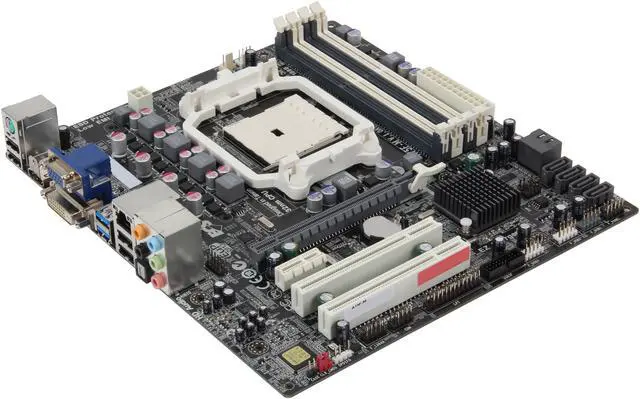

ECS A75F-M FM1 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard

(7) Write a Review
  • AMD A75 (Hudson D3)
  • A4 / A6 / A8 / E2 APU
  • DDR3 1333/1600/1866* *Duo to limitation of AMD chipset spec, it supports up to 1866 MHz for motherboards with a single DIMM per channel
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (7)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) A75F-M

Model
Brand ECS
Model A75F-M
Supported CPU
CPU Socket Type FM1
CPU Type A4 / A6 / A8 / E2 APU
Chipsets
Chipset AMD A75 (Hudson D3)
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333/1600/1866*
*Duo to limitation of AMD chipset spec, it supports up to 1866 MHz for motherboards with a single DIMM per channel
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 4 x USB 2.0/1.1 / 5 x Audio Jacks
PS/2 1 x PS/2 keyboard/mouse port
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 6 x USB 2.0
Other Connectors 1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x 3-pin SYS_FAN connector
1 x COM header
1 x Front panel audio header
1 x Case Open header
1 x Speaker header
1 x Clear CMOS header
1 x SPDIF out header
1 x LPT header
1 x SPI_DEBUG header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.66"
Power Pin 24 Pin
Features
Features Extra 109% Performance Gained - AMD Dual Graphics

Support A Series APU( CPU + GPU)

ECS GUI UEFI BIOS

3X Current Supply for ECS EZ Charger

Support AMD Steady Video Technology

CyberLinkMedia Suite Bundled
Additional Information
First Listed on Newegg April 09, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
