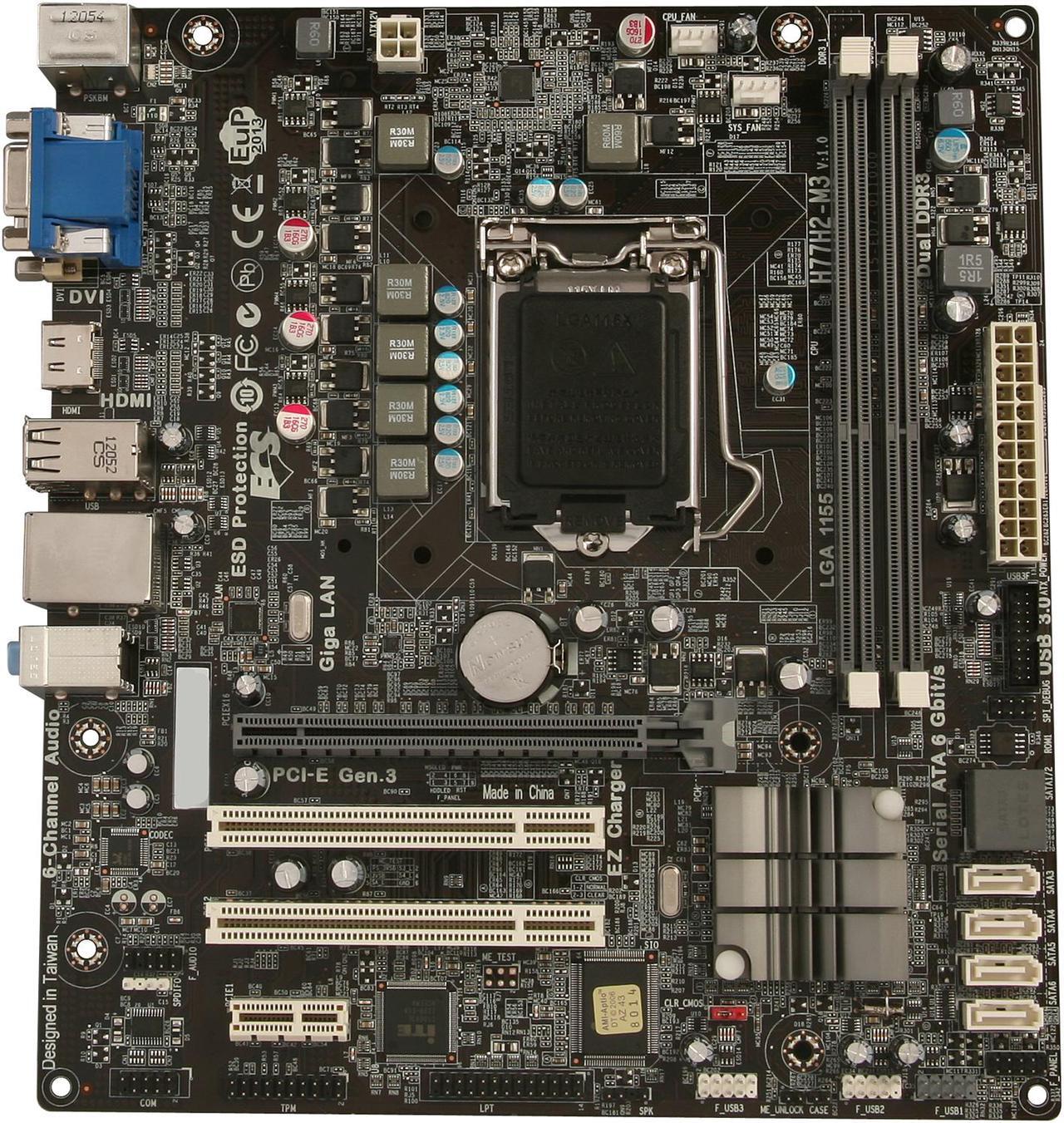

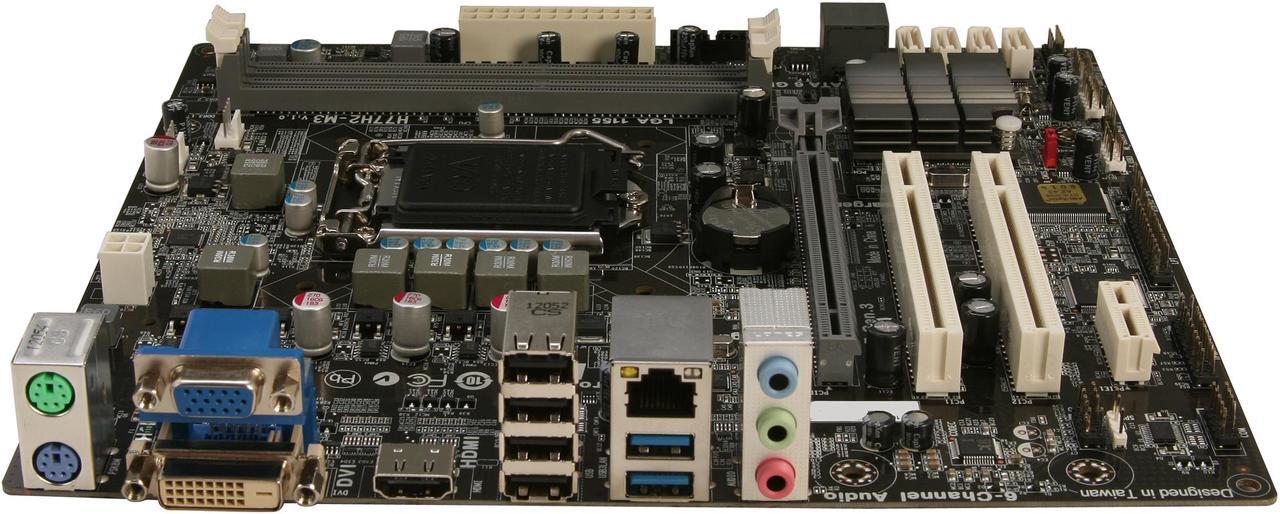

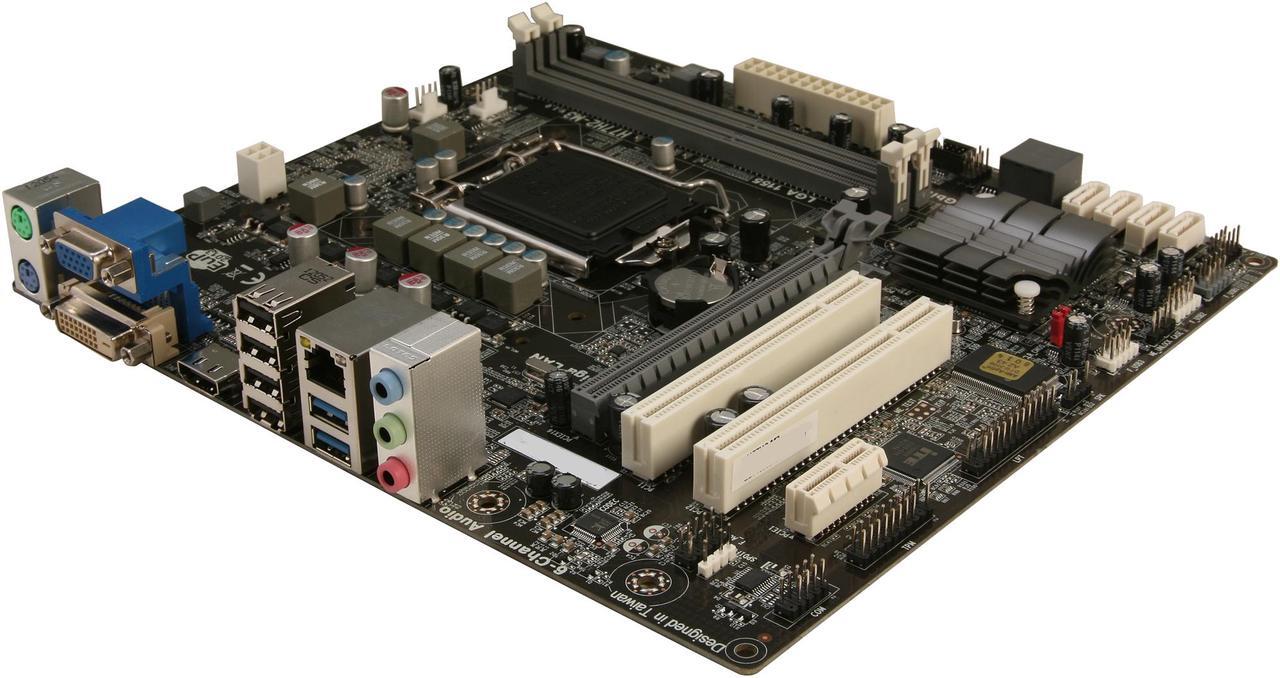

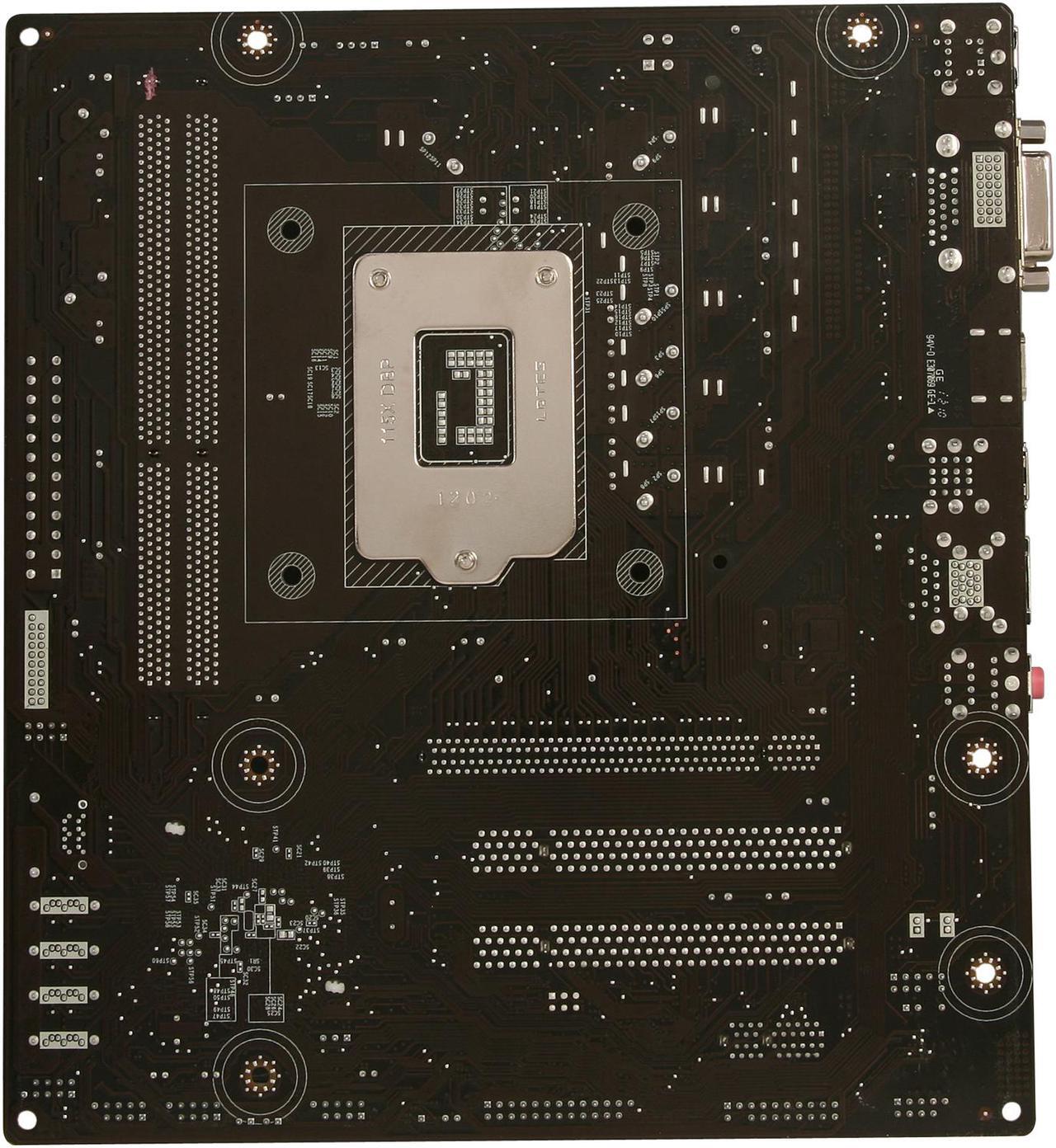

ECS H77H2-M3(1.0) LGA 1155 Intel H77 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard
- Intel H77
- Core i7 / i5 / i3 (LGA1155)
- DDR3 1600/1333
Specs
Reviews (15)
Learn more about the ECS (EliteGroup) H77H2-M3(1.0)
| Brand | ECS |
|---|---|
| Model | H77H2-M3(1.0) |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1155) |
| Chipset | Intel H77 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1600/1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA 3Gb/s | 4 x SATA 3Gb/s |
|---|---|
| SATA 6Gb/s | 2 x SATA 6Gb/s |
| Audio Channels | 6 Channels |
|---|
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply connector 1 x 4-pin ATX Power Supply Connector 1 x 4pin CPU_FAN connectors 1 x 4-pin SYS_FAN connector 1 x COM header 1 x TPM header 1 x LPT header 1 x Front panel switch/LED header 1 x Front panel audio header 1 x Case Open header 1 x Speaker header 1 x Clear CMOS header 1 x SPDIF out header 1 x Me_Unlock header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.66" |
| Power Pin | 24 Pin |
| Features | M.I.B. III XTU Utility Mutli-language BIOS Intel Rapid Storage Technology Support 22nm processors 3D Support GPU OC eDLU - Drivers Live Update Utility eBLU - BIOS Live Update Utility eSF(ECS Smart Fan Utility) |
|---|
| Date First Available | May 24, 2012 |
|---|
