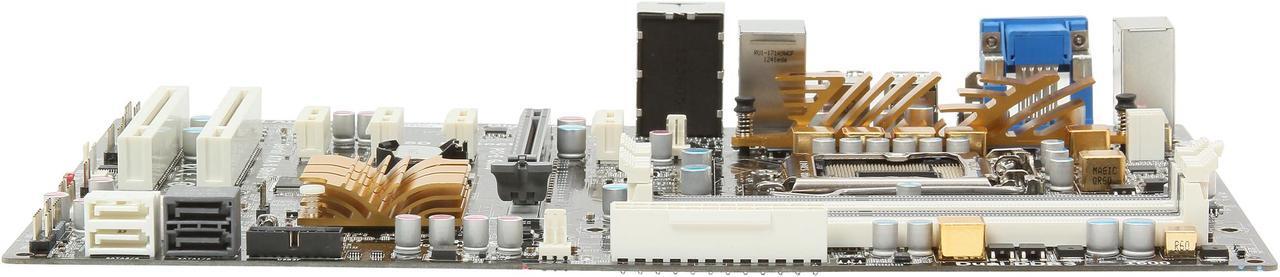

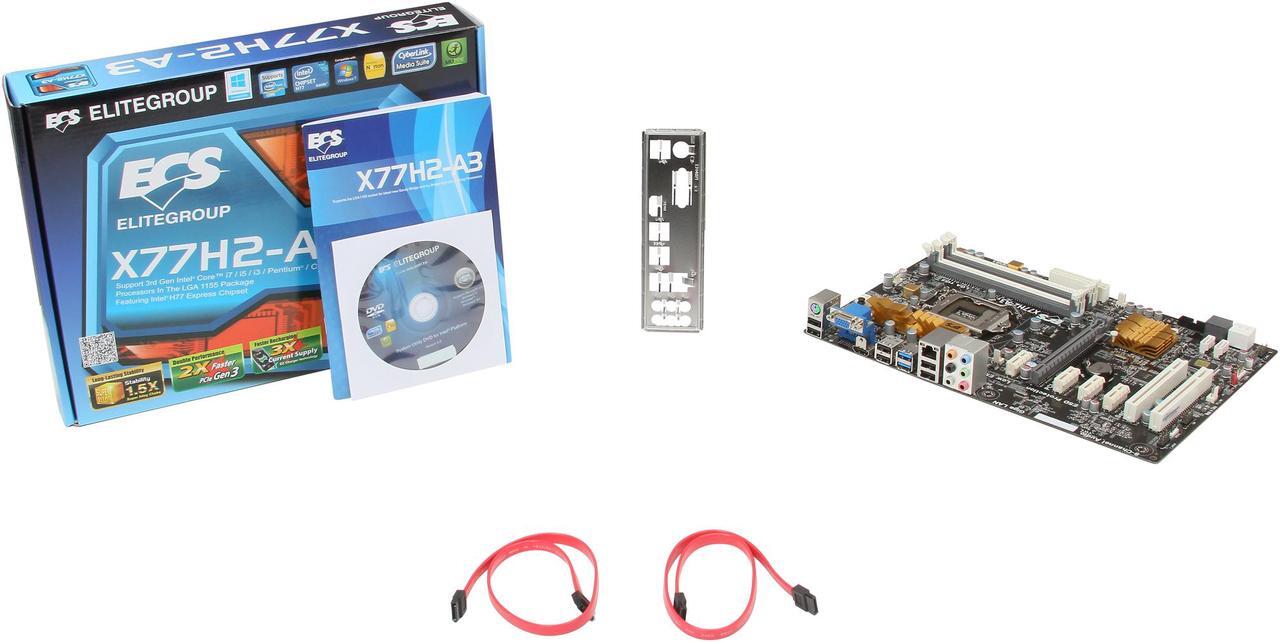

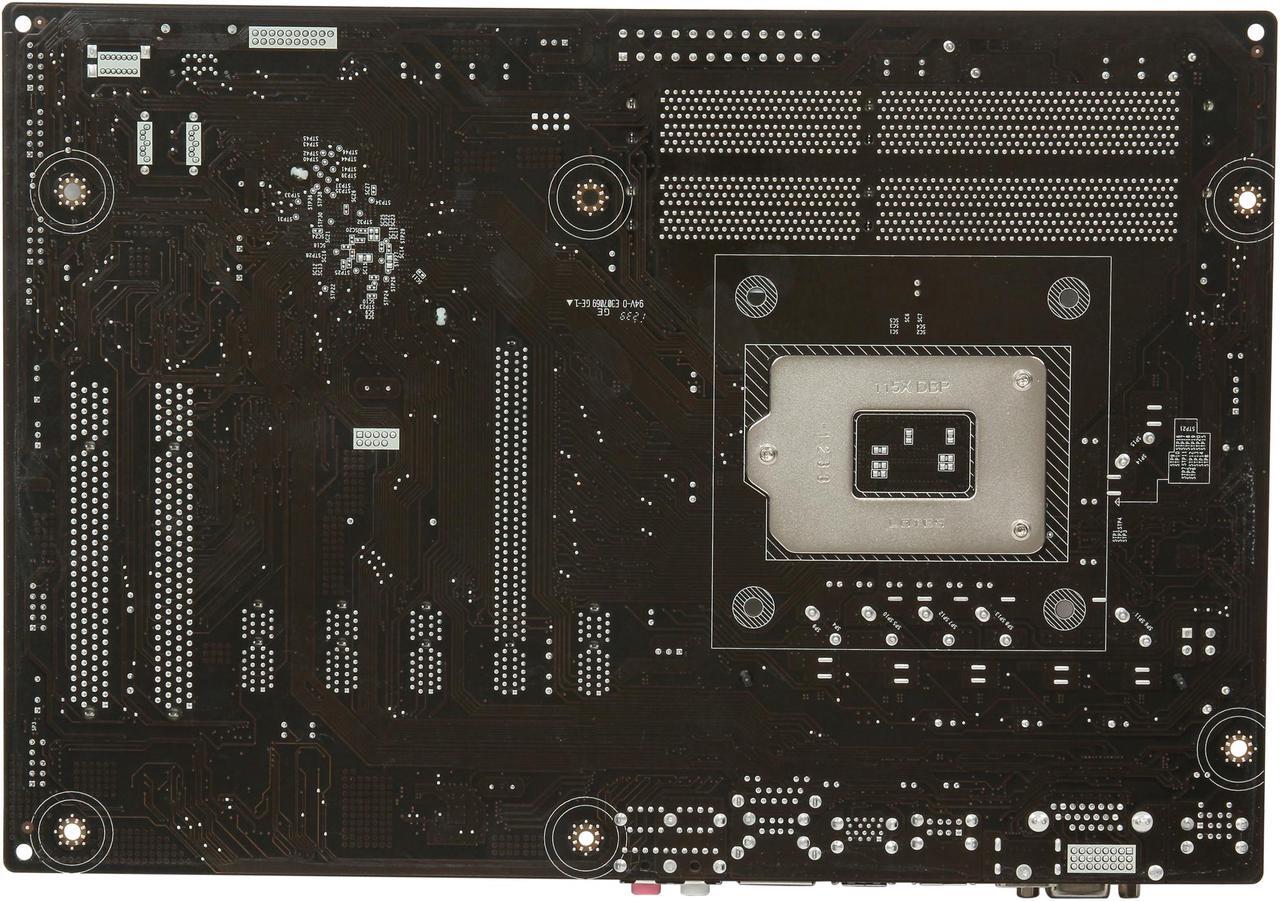

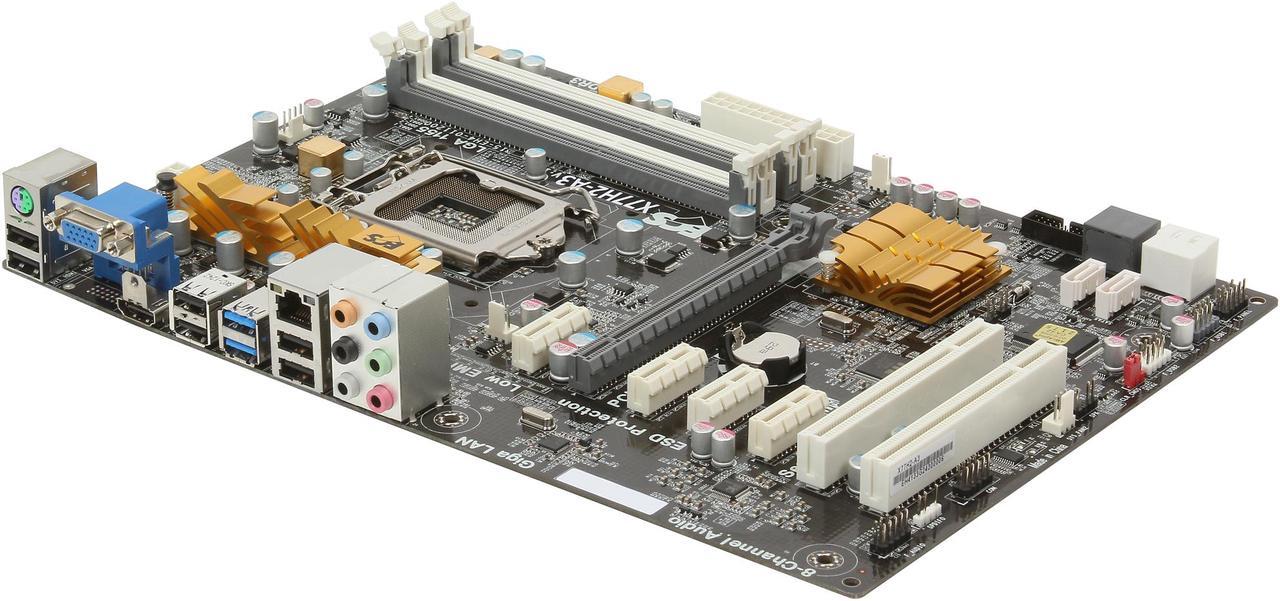

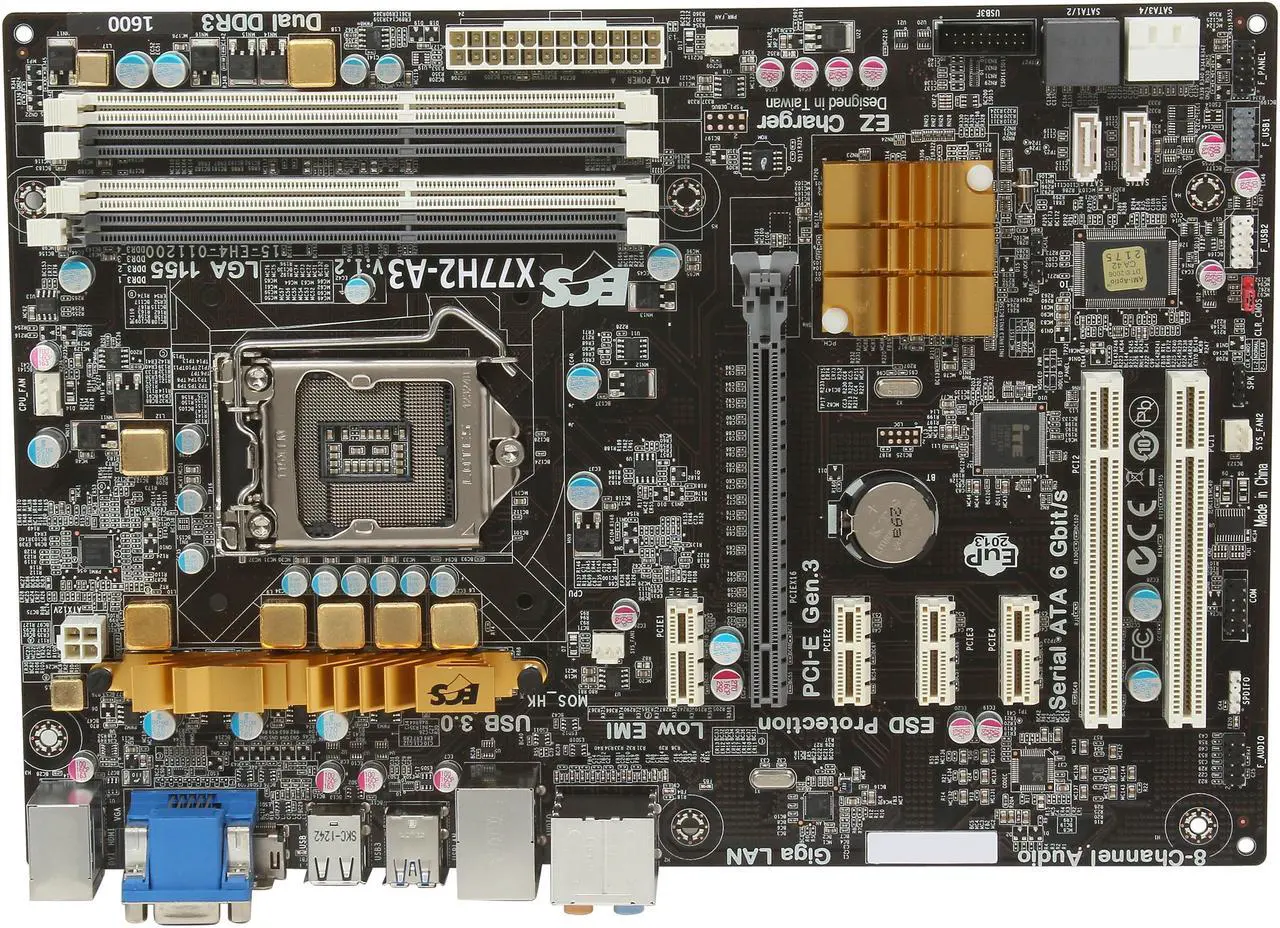

ECS X77H2-A3 v1.2 LGA 1155 Intel H77 HDMI USB 3.0 ATX Intel Motherboard with UEFI BIOS

(16) Write a Review
  • Intel H77
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 1600/1333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (16)

Learn more about the ECS (EliteGroup) X77H2-A3 v1.2

Model
Brand ECS
Model X77H2-A3 v1.2
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
Chipsets
Chipset Intel H77
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 4 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps

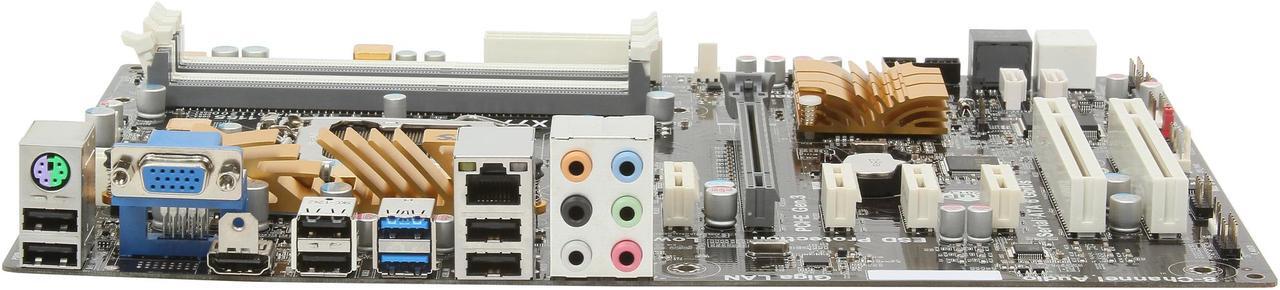

Rear Panel Ports
Back I/O Ports 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 6 x USB 2.0/1.1
PS/2 1 x PS/2 keyboard/mouse port
Video Ports D-Sub
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 6 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Other Connectors 1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX Power Supply Connector
1 x 4-pin CPU_FAN connector
2 x 3-pin SYS_FAN connector
1 x 3-pin PWR_FAN connector
1 x COM header
1 x Case Open header
1 x SPDIF out header
1 x Front panel switch/LED header
1 x Front panel audio header
1 x Clear CMOS header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.27"
Additional Information
Date First Available January 17, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
