Question 1

Does this show cpu temperature in bios?

Accepted Answer

Is the Bios updated if I purchase to recognize an i3 chip,and ddr3-1600 ram?
The First (and only) reviewer says it wont work because of Bios issues...and manufacturer says they are checking the stock sent to newegg.
So if I buy and it doesn't work who pays to ship it back?

Question 2

does this one support 3rd generation i5-xxxx?

Accepted Answer

Hi Kyler,
It should work fine according to the ECS specs:

º LGA1155 socket for new 2nd & 3rd Generation Intel® Core™ Family/ Pentium® /Celeron® Processors
º DMI 20Gb/s
º Intel ® Secure Key (Intel 3rd gen CPU i5 or above)
º Intel ® OS Guard (Windows 8)
º AES New Instructions (AES-NI) (Intel 3rd gen CPU i5 or above)
º Supports Intel® 22nm CPU
º Supports Intel® 32nm CPUs

I hope this helps.

Question 3

Does this motherboard support memory speeds of 1600 Mhz for Sandy Bridge (Intel second generation) processors (such as the i5-2400) which natively only support 1333Mhz?

Accepted Answer

If you go check the specs tab it states plainly that it does support 1600 but only with Ivy Bridge (3rd Gen). All speeds 1066, 1333 & 1600 are supported on Ivy Bridge but only 1066 & 1300 on Sandy Bridge.

Question 4

Does this motherboard allow you to control CPU fan speed?

Accepted Answer

according to the website:
eSF(ECS Smart Fan Utility)
ECS Smart Fan Utility provides smart and user friendly way to adjust fan speed depending on PCs system loading and temperature. It offers five modes to adjust fan speed within safe range without entering BIOS for smart, easy and silent environment.

Question 5

I have a SATA III SSD. Does this motherboard support SATA II or SATA III speeds? I ask because the motherboard also has a H61 chipset; I am unclear whether this chipset supports SATA III.

Accepted Answer

If you go check the specs tab it clearly says it supports SATA 3GB/s. Also confirmed on the manufacturer product page. I have this in an HTPC build with an AData Premier SATAIII 6GB/s SSD. Cant tell a difference between 3 & 6. From restart via XBMC command, round trip was 24 seconds to restart/shutdown and post/reboot back into Windows and load XBMC.

Question 6

Is the Bios updated if I purchase to recognize an i3 chip,and ddr3-1600 ram?

The First (and only) reviewer says it wont work because of Bios issues...and manufacturer says they are checking the stock sent to newegg.

So if I buy and it doesn't work who pays to ship it back?

Accepted Answer

Motherboard does not support 1600, it may work but will throttle back to run like 1333 in most cases. Most manufacturer help desk techs will not suggest running non-supported hardware.
I run 1333 with and i5-3330.
Processor must support video unless you have additional GPU.
i3 should be supported but make sure to be aware of the graphics processing needs.
If you  do purchase, you will be responsible for all open package returns unless they are faulty. If this is a concern; look to purchase a board that is known to support your hardware needs.
Best not to gamble.

Brand	ECS
Model	H61H2-M3 (V2.0)

CPU Socket Type	LGA 1155
CPU Type	Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1066/1333/1600(with Ivy Bridge)
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

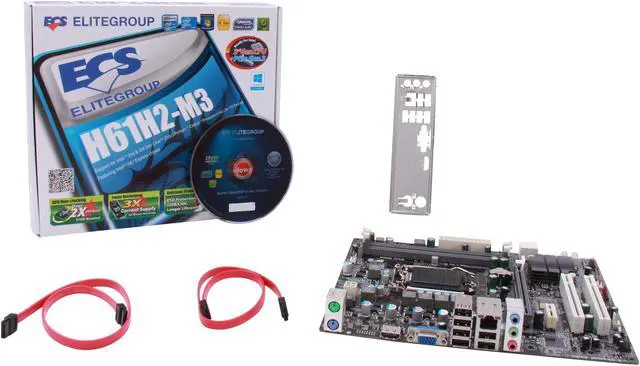

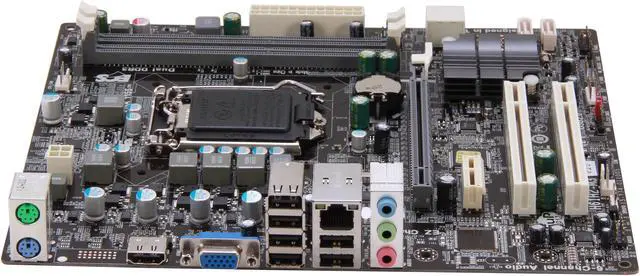

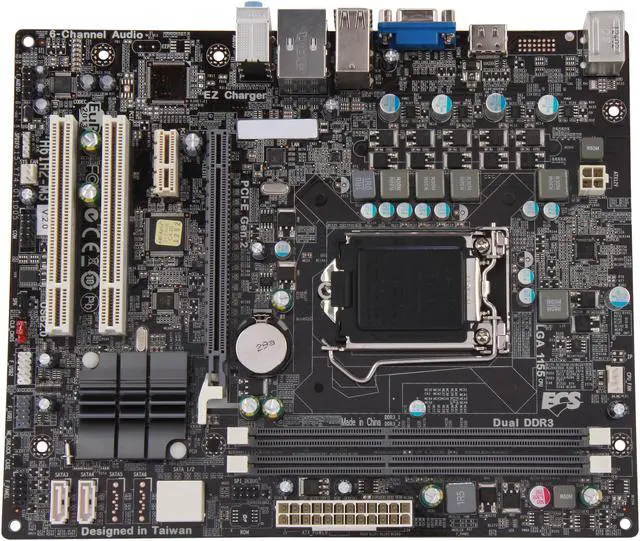

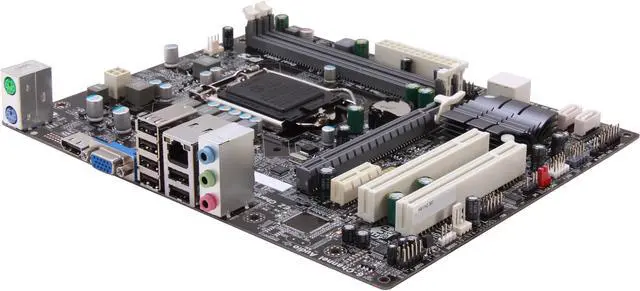

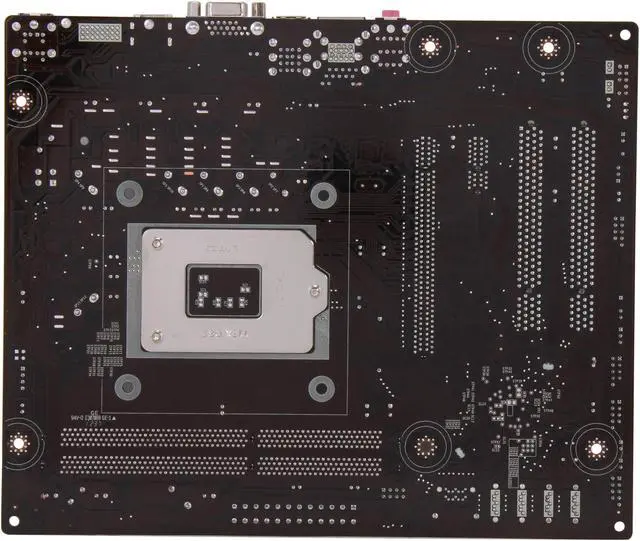

ECS H61H2-M3 (V2.0) LGA 1155 Intel H61 HDMI Micro ATX Intel Motherboard

Learn more about the ECS (EliteGroup) H61H2-M3 (V2.0)

Customer Reviews of the ECS (EliteGroup) H61H2-M3 (V2.0)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x HDMI / 2 x PS/2 / 6 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 1.1/2.0	6 x USB 2.0
Audio Ports	3 Ports

Onboard USB	4 x USB 2.0
Other Connectors	1 x 24-pin ATX Power Supply connector 1 x 4-pin ATX 12V connector 1 x 4pin CPU_FAN connectors 1 x 3-pin SYS_FAN connector 1 x COM header 1 x Case open header 1 x SPDIF out header 1 x Front panel switch/LED header 1 x Front panel audio header 1 x Speaker header 1 x Clear CMOS header

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 7.87"
Power Pin	24 Pin

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

Item#: N82E16813135347
