Question 1

can this be used with and amd socket am3 b73 chip?

Accepted Answer

That's what I used on it, but unlike other boards it will not recognize any extra masked cores. In another board the 3 core chip had 4 cores.
The board was good for an internet/Netflix type machine- Not a gamer even after adding a video card. In the end it was free after the rebate.

Question 2

whats the min needed for a power supply? dont see specs for that anywhere

Accepted Answer

I do not know. It is up to what CPU You are going to use. Cd rom ,hard drive . memory etc. I always use the best power more power than better. But  You can always try if You have old spare power supply-- the rest  it up to You. Start from CPU , how much power  it needs to operate properly  . St

Question 3

is it compatible with amd phenom x4 9550 processor ?

Accepted Answer

I cant say for sure because Im using an AMD FX-4300 in this motherboard that I purchased from Newegg of course. I imagine if you go to ECS's website for support there would be a compatibility list. Also you could go to AMD's site to find compatible motherboards for that CPU. The manual that came with this board only says Phenom II but doesn't specify exact models. It does say it supports only up to 100 watt CPU's. I hope I helped a little.
Its been a good system for me just using it to convert VHS tapes to digital and using the onboard video.

Question 4

Is there a way to add compatibility for a Radeon R9 270X?

Accepted Answer

i see no reason that card shouldnt work there may be a bios update or something in bios settings to get it working but it should certainly work and if it doesnt i would get a replacement board

Question 5

Im using an Amd FX 8320 with this, and has anyone gotten the error code "cmos settings wrong"? I resetted the cmos, tried different sticks of ram, processor, and powersupply. It gives me one short beep. Then 30 seconds later another short beep. 30 seconds later another short beep, and with that one the screen turns black. Has anyone else had this problem and does anyone have a suggestion to solve it?

Accepted Answer

what brands and memory speeeds r u using?r u using the onboard video?try to update or flash the bios.try a video card.i havent had this error.but will give u possibilities of what could be going on.what size power supply.im using a phenom processor,16 gb of team memory,nvidia gtx 650 video card.power supply is a apevia 450 watt.

Question 6

Can I use just one Memory Stick of 8GB size populating only one Memory Slot/Bank?

Accepted Answer

Of course because it can use two 8GB sticks equalling 16GB which is the max it can use.

Question 7

i have two questions, one being that will this fit in a dell optiplep 760 case and the other is if a nvidia geforce 8800 gts vidoe card will fit on this thing?

Accepted Answer

Just a little bit of research and I'm going to give you a No, and a Yes.  Dell is weird, and they build their computers on the other side of the case.  So looking from the front, their Mobo is on the left....most others are on the right.  Can you flip this one around and mount it in the case?  Probably not, it would be upside down and nothing would really match up.  do a google search for images of the case.
So the GeForce 8800 isn't too huge, I think any standard case it would work pretty well.  If you're going for a smaller case, it would be pretty tight between your vid card and your hard drive.

Question 8

Will this work with an AMD FX-6300 Vishera 3.5GHz (4.1GHz Turbo)?

Accepted Answer

if you already have the proc. and mobo give it a try.
if you have the proc. only and are looking for a mobo to purchase, i would go with a better mobo.
i ran an athlon II quad-core that i picked up used for $50 and currently have a sempron single core installed in mine. both worked/are working with no problems.

Question 9

I was wondering what resolutions the on-board graphics were capable of?

Accepted Answer

The minimum is 640x480. Haven't tried the maximum with the onboard graphics but it defaulted to that when first starting it up.

Question 10

Does this board accept Sata 6.0 Gb/s?

Accepted Answer

No It only goes up to Sata 2.0 otherwise known as Sata GB/s
Hope this answered you question about this motherboard i use this motherboard in my internet pc it is also good for video editing if pared with 8 gigs of ram & an amd quad core cpu and a good cpu cooler

Brand	ECS
Model	A960M-MV(1.0A)

CPU Socket Type	AM3+
CPU Type	FX / Phenom II / Athlon II / Sempron 100 Series

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1866(OC)/1600(OC)/1333/1066
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1

Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

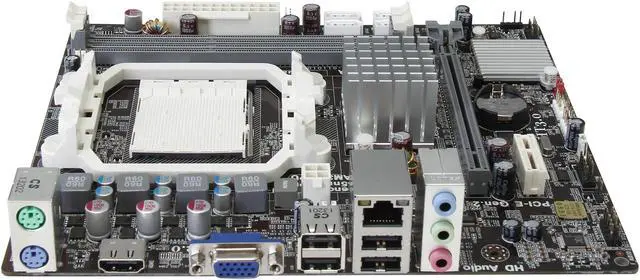

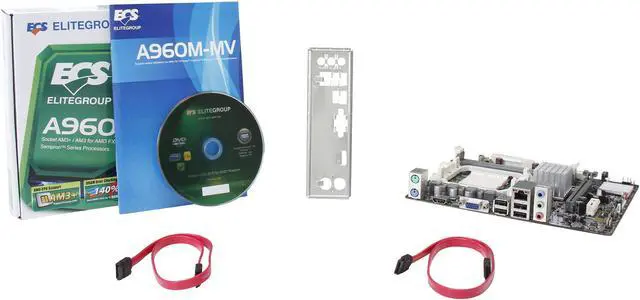

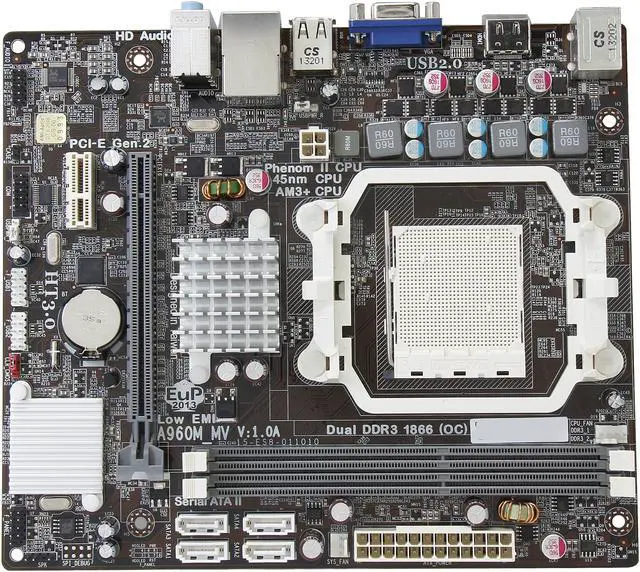

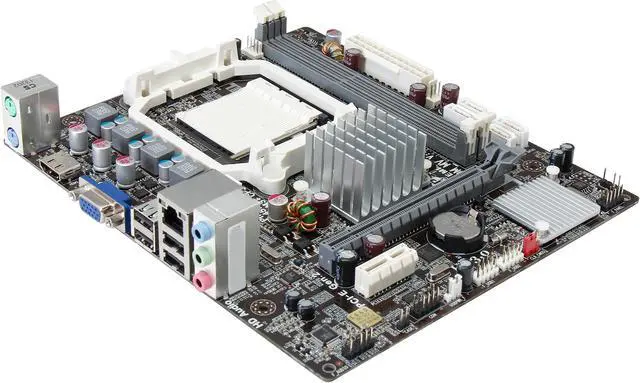

ECS A960M-MV(1.0A) AM3+ AMD 760G HDMI Micro ATX AMD Motherboard

Learn more about the ECS (EliteGroup) A960M-MV(1.0A)

Customer Reviews of the ECS (EliteGroup) A960M-MV(1.0A)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x D-Sub / 1 x HDMI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub
HDMI	1 x HDMI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Onboard USB	4 x USB 2.0
Other Connectors	1 x 24-pin ATX Power Supply connector 1 x 4-pin 12V Connector 1 x 4pin CPU_FAN connectors 1 x 3-pin SYS_FAN connector 1 x SPK header 1 x Front panel header 1 x Front audio header 1 x Clear CMOS header 1 x Serial port header 1 x Chassis intrusion header

Form Factor	Micro ATX
Dimensions (W x L)	8.27" x 7.09"
Power Pin	24 Pin

Onboard LAN
LAN Chipset	Realtek 8105E
Max LAN Speed	100Mbps

Item#: N82E16813135349
