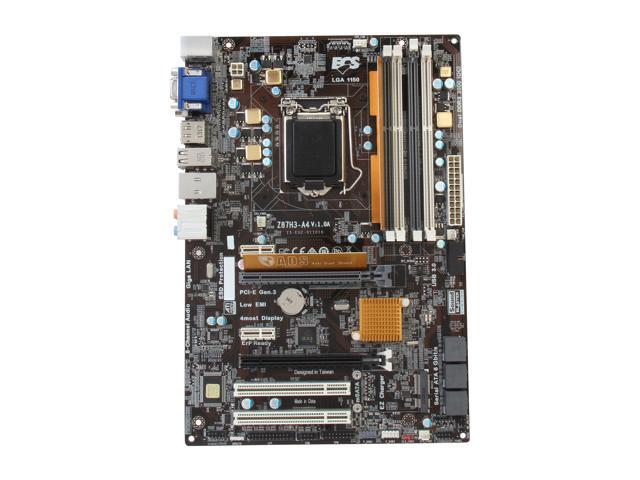

ECS Z87H3-A4(1.0) LGA 1150 Intel Z87 HDMI USB 3.0 ATX Intel Motherboard
- Intel Z87
- 4th-Gen Intel Core i7 / i5/ i3 (LGA1150)
- DDR3 3000+ (OC)/ 2800 (OC)
Learn more about the ECS (EliteGroup) Z87H3-A4(1.0)
| Brand | ECS |
|---|---|
| Model | Z87H3-A4(1.0) |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | 4th Generation Intel Core i7/i5/i3/Pentium/Celeron (LGA1150) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z87 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 3000+ (OC)/ 2800 (OC) / 2667 (OC) / 2400 (OC) / 2133(OC) / 1800(OC) / 1600 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111G |
|---|---|
| Max LAN Speed | 1Gbps |

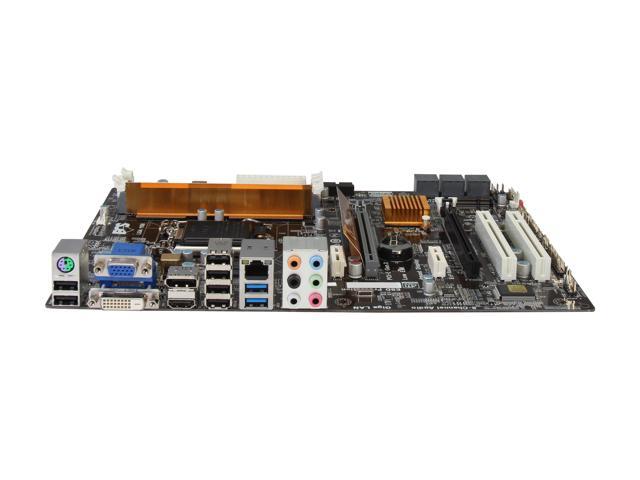

| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| USB 3.0 | 4 x USB 3.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 X 24-pin ATX Power Supply connector 1 X 4-pin 12V Power connector 1 X 4-pin CPU_FAN connector with smart fan 1 X 3-pin SYS_FAN connector with smart fan 1 X 3-pin NB_FAN connector 1 X 3-pin PWR_FAN connector 1 X Speaker header Support EZ charger (grey color) 1 X Serial port header (COM) 1 X mSATA connector |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.27" |
| Power Pin | 24 Pin |
| Features | 2-Way multi-graphics solution Supports 3 independent displays Supports Intel K Series unlock CPU Up to 95W Thermal Design Power support Applied 100% Solid capacitor design to maximize component reliability Supports ECS Durathon Technology to ensure the stability, reliability and performance of system. (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs) Introduced ECS Hyper Alloy Choke to offer 150% higher stability than other products ESD Protection prevent computers from electrostatic discharge damage to enhance its durability and lifespan ECS EZ charger provide fast way to charge your smart devices, even if the PC is off Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment Supports EZ BIOS for tweaking BIOS in Graphical interface within a multi language environment ECS MIB III - A friendly interface for overclocking Microsoft Windows 8 Certified VRD 12.5 Ready Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports Sound Blaster Cinema technology to deliver cinema-quality picture and sound to home environments Supports Intel Smart Response Technology, Smart Connect Technology & Rapid Start Technology ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF |
|---|
| First Listed on Newegg | June 01, 2013 |
|---|
