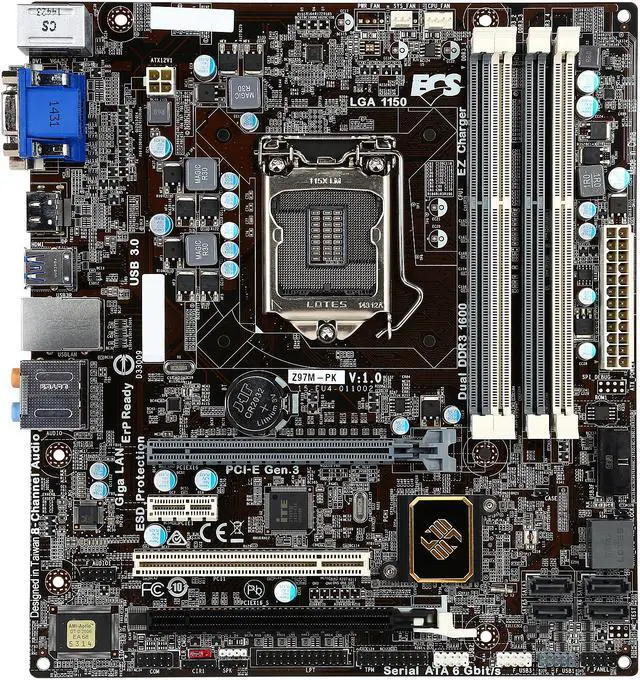

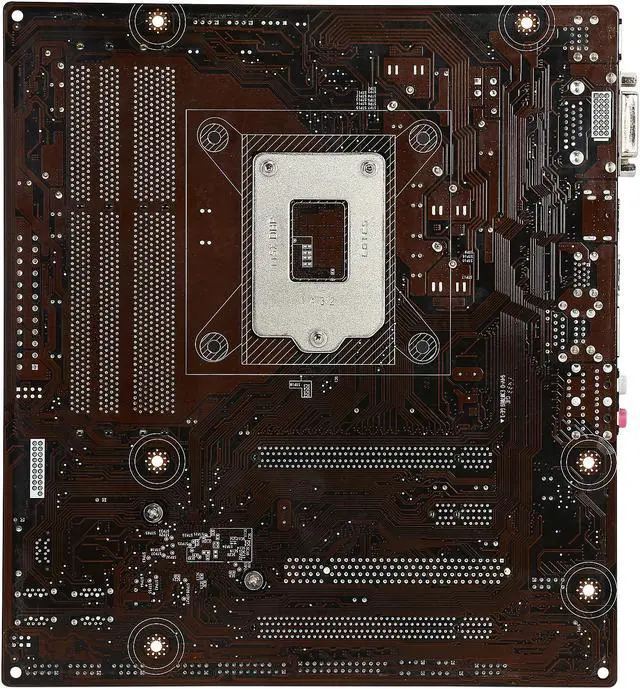

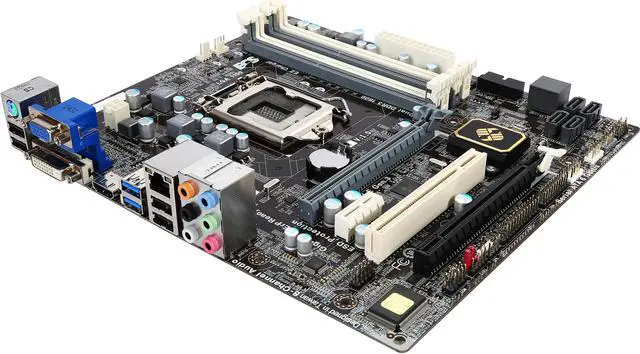

ECS Z97M-PK LGA 1150 Intel Z97 HDMI USB 3.0 Micro ATX Intel Motherboard
- Intel Z97
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
- DDR3 1600
Learn more about the ECS (EliteGroup) Z97M-PK
| Brand | ECS |
|---|---|
| Model | Z97M-PK |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z97 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Express x1 | 1 x PCI Express 2.0 x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111G |
|---|---|
| Max LAN Speed | 1Gbps |

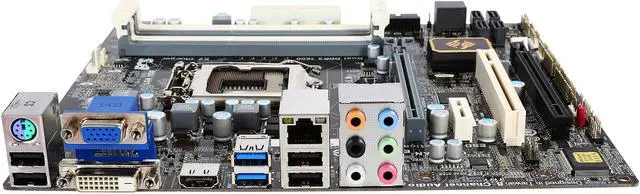

| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-I port 1 x D-Sub (VGA) port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 1 x Audio port (Line-in, 4x Line-out, Mic in) |
| Onboard USB | 1 x USB 3.0 header, support additional 2 USB ports 3 x USB 2.0 header, support additional 6 USB ports |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply connector 1 x 4-pin 12V Power connector 1 x 4-pin CPU_FAN connector with smart fan 1 x 3-pin SYS_FAN connector with smart fan 1 x Front Panel switch/LED header 1 x Front panel audio header Support EZ charger (gray color) 1 x CLR_CMOS header 1 x CIR header 1 x Serial port header (COM) 1 x Parallel port header (LPT) 1 x TPM header 1 x Chassis intrusion header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.61" x 8.66" |
| Power Pin | 24 Pin |

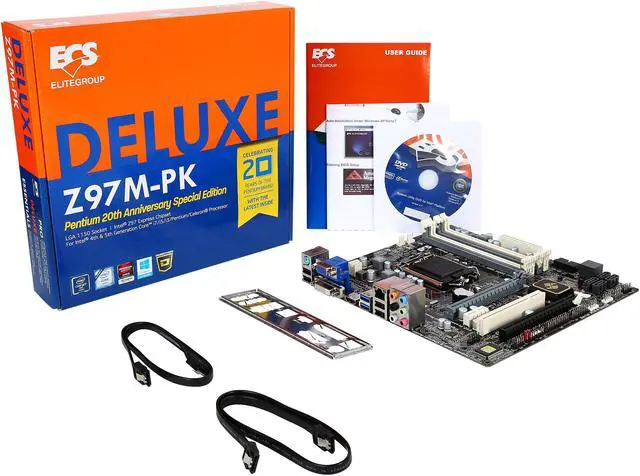

| Features | 2-Way multi-graphics solution Supports 3 independent displays Supports Intel K Series unlock CPU Applied 100% Solid capacitor design to maximize component reliability ECS Durathon Technology ensure the stability, reliability and performance of system. ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment ECS MIB III - A friendly interface for overclocking Microsoft Windows 8 Certified Intel 22nm 4th generation Multi-Core CPU support Intel VRD 12.5 Ready Supports DirectX 11.1 to enhance graphical performance Supports AMD CrossFire to expand your system’s graphics capabilities. Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports HDMI 1.4a Technology ( resolution up to 1920 x 1200 ) and HDCP function Supports Intel Smart Response, Smart Connect and Rapid Start Technology ECS Intelligent EZ Utility: eBLU, eDLU, eSF Free Bundle: CyberLink Media Suite GRAPHICS - Supports DirectX 11 .1 - Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider - Supports HDMI 1.4a & Premium Audio - Supports Full HD 1080P Blu-ray / HD-DVD Playback SYSTEM BIOS - AMI BIOS with 64 MB SPI Flash ROM - Supports M.I.B III Utility - F7 hot key for boot up devices option - Triple Display - Support ECS EZ BIOS - Plug and Play, STR (S3) / STD (S4), Hardware monitor, Multi Boot - Multi-Language BIOS - Audio, LAN, can be disabled in BIOS - Dual-Monitor function OS Support - Windows 7 32-bit - Windows 7 64-bit - Windows 8 64-bit Certifications - CE/FCC Certification - ErP/EuP Certification - WHCK Certification Bundled Software - ECS Intelligent EZ Utility: eBLU, eDLU, eSF - Free Bundle: CyberLink Media Suite |
|---|
| First Listed on Newegg | May 10, 2016 |
|---|
