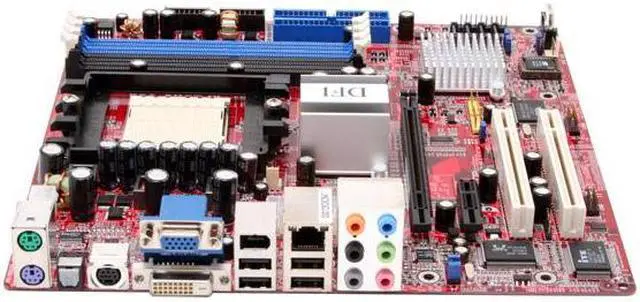

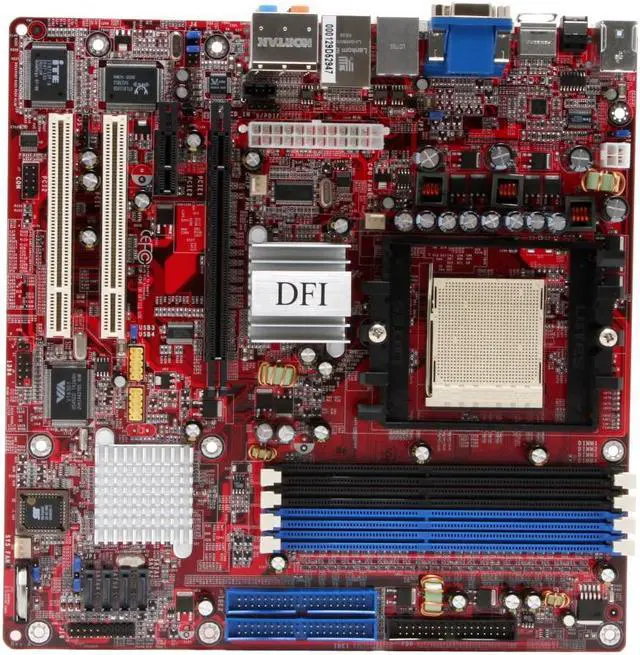

DFI RS482 INFINITY 939 ATI Radeon Xpress 200 Micro ATX AMD Motherboard

(93) Write a Review
  • ATI Radeon Xpress 200
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (93)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the DFI RS482 INFINITY

Model
Brand DFI
Model RS482 INFINITY
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset ATI Radeon Xpress 200
South Bridge ATI SB450
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset ATI Radeon X300-based 2D/3D
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek RTL8110SB
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
Video Ports D-Sub + DVI + TV-Out
S-Video 1
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Onboard 1394 1 x 1394a connector supports 1 port
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Packaging

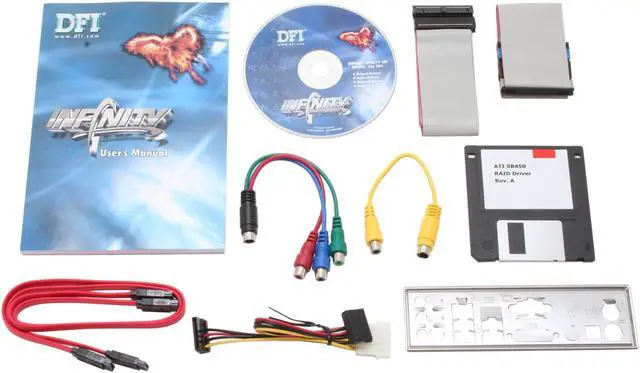

Package Contents RS482 INFINITY
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
4-pin to SATA Power Cable
Floppy Drive Diskette
HDTV Cable
S-Video to Composite Cable
Additional Information
First Listed on Newegg March 06, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 1 year
