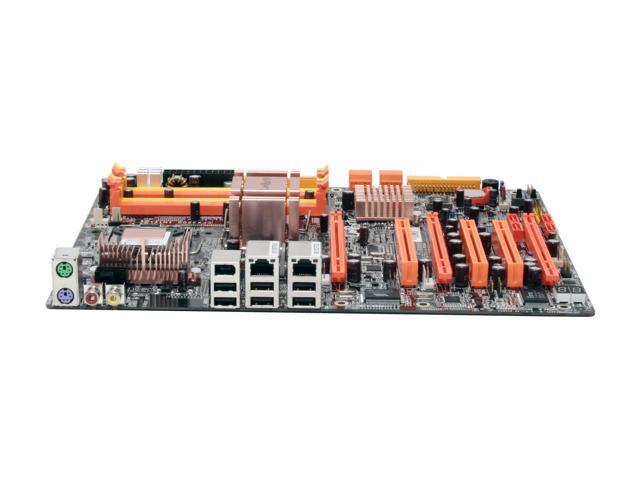

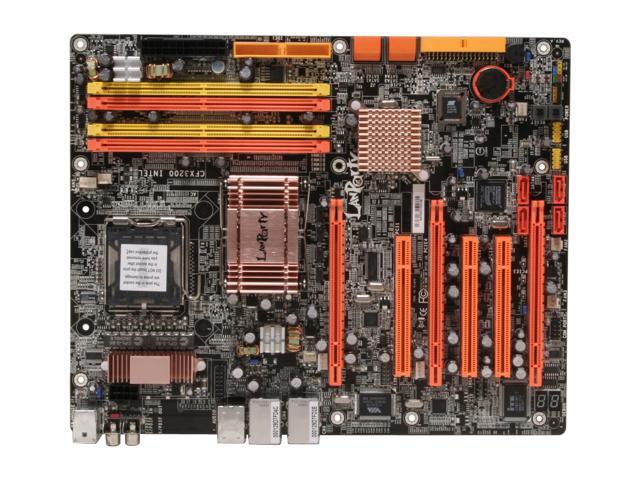

DFI ICFX3200-T2R/G LGA 775 ATI CrossFire Xpress 3200 IE ATX Intel Motherboard

OUT OF STOCK.
  • ATI CrossFire Xpress 3200 IE
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 800
Specs
Reviews

Learn more about the DFI ICFX3200-T2R/G

Model
Brand DFI
Model ICFX3200-T2R/G
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset ATI CrossFire Xpress 3200 IE
South Bridge ATI SB600
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 3 x (2+1 Configuration: 2 Graphics + 1 Physics)
- 2 ATI CrossFire graphics cards (each operates at x8 bandwidth).
- 1 ATI Physics graphics card operates at x2 bandwidth.
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 8 x SATA 3Gb/s
SATA RAID 4x by ATI SB600
4x by Promise PDC40719
RAID 0, RAID 1 and RAID 0+1 by ATI SB600
RAID 0, RAID 1, RAID 0+1 and RAID 5 by Promise PDC40719
Additional RAID Controller Promise PDC40719
Onboard Audio
Audio Chipset Realtek ALC885
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8052
Second LAN Chipset Marvell 88E8053
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Coaxial
S/PDIF In 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Free Heatsink Cooler

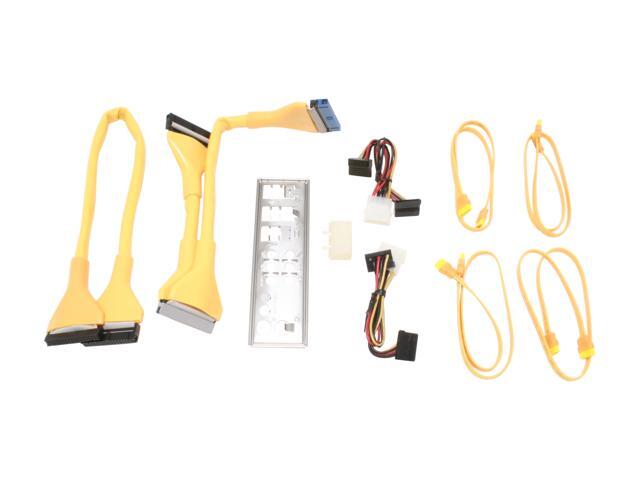

Packaging
Package Contents ICFX3200-T2R/G
Driver Disk
User Manual
Floppy Drive Diskette
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
4 x SATA Cable
2 x 4-pin to SATA Power Cable
Karajan Audio Module
Additional Information
Date First Available January 12, 2007
