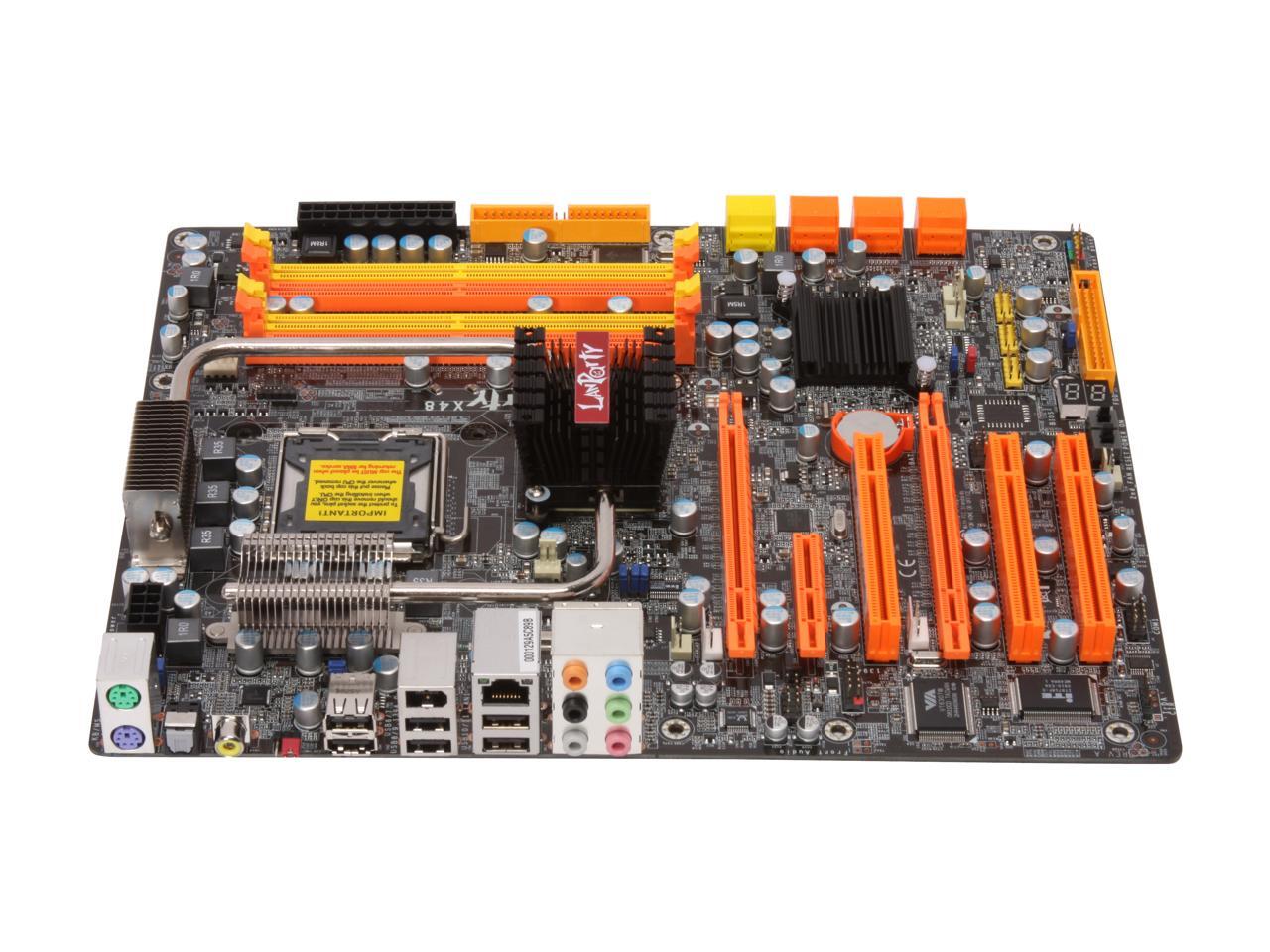

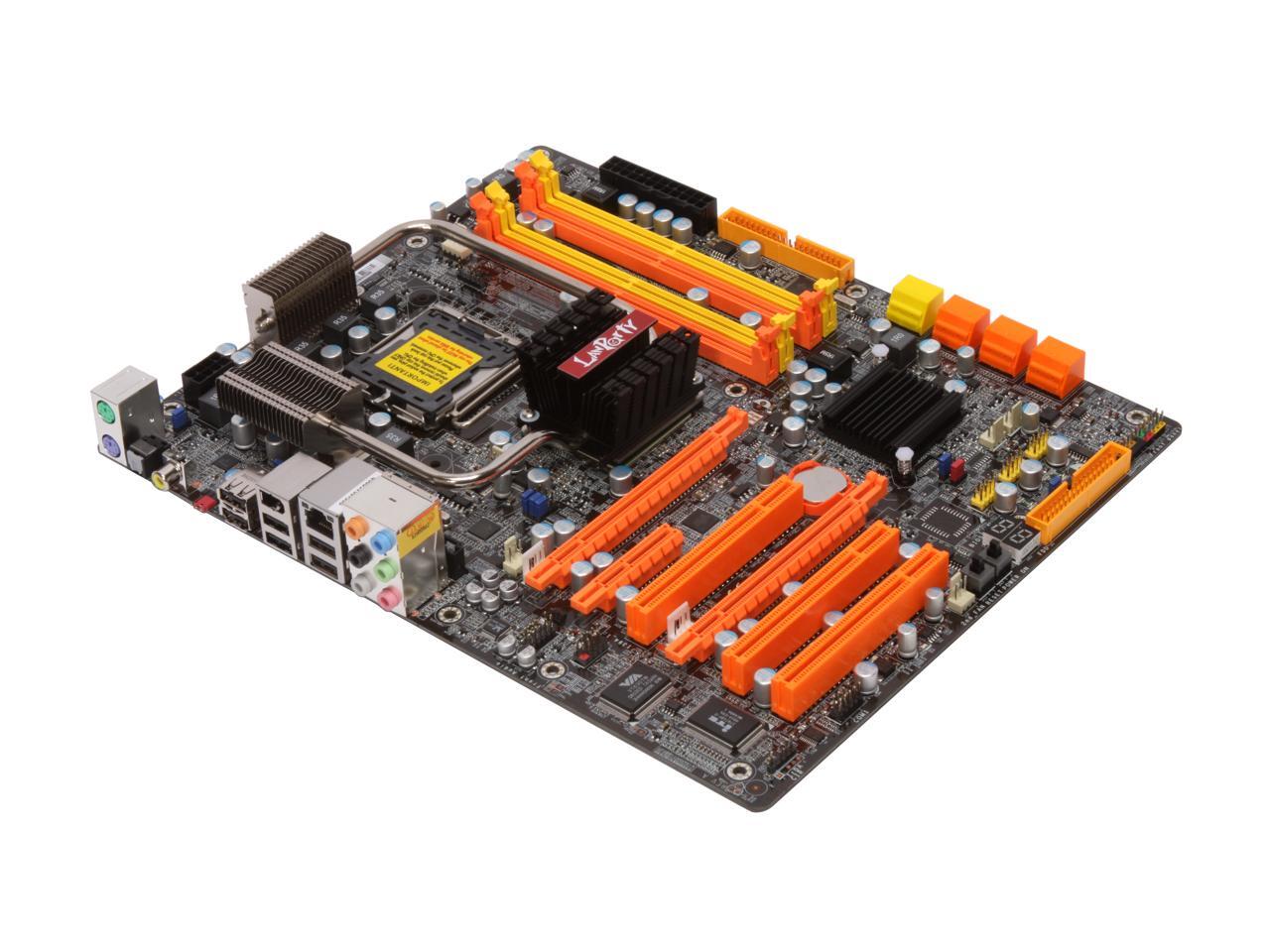

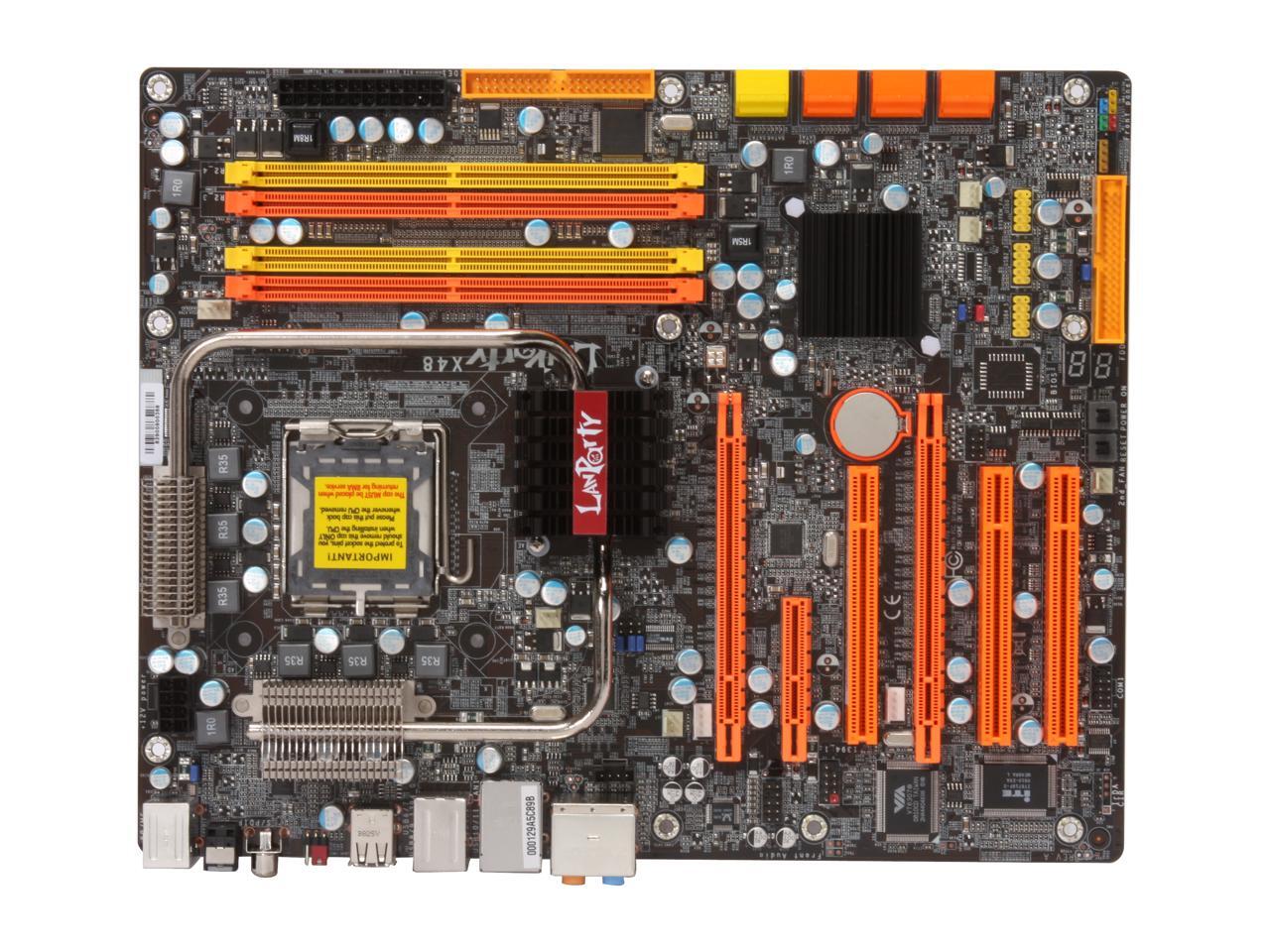

DFI LP DK X48-T2RSB PLUS LGA 775 Intel X48 ATX Intel Motherboard
OUT OF STOCK.
- Intel X48
- Core 2 Quad / Core 2 Duo
- DDR2 1066/1200(O.C)
Specs
Reviews
Learn more about the DFI LP DK X48-T2RSB PLUS
| Brand | DFI |
|---|---|
| Model | LP DK X48-T2RSB PLUS |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Duo |
| FSB | 1600/1333 MHz |
| Chipset | Intel X48 |
|---|---|
| South Bridge | Intel ICH9R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4×240pin |
|---|---|
| Memory Standard | DDR2 1066/1200(O.C) |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 6 x SATA 3Gb/s |
| SATA RAID | 0/1/0+1/5 |
| Additional RAID Controller | JMicron JMB363 Supports 2 SATA 3Gb/s devices (RAID 0, 1) |
| Audio Chipset | Realtek ALC885 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8053 |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.64" |
| Power Pin | 24 Pin |
| Date First Available | August 21, 2008 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-226-7500
- Support Website
- View other products from DFI
LOADING...
LOADING...

















Pros: Board has nice cooling built it, alot of nice features, and its an X48 board for a decent price not to mention the bios has a blue TON of OC options
Cons: I had 2 aftermarket cpu coolers laying around, a arctic cooler freezer pro 7 and a Theraltake big Typhoon. Both required modification to use with this board. The NB heatsink is too tall. So I had to grind the hold down bracket to use the TT big Typhoon.
Overall Review: I have this board Q9400@3.5 Ghz 2GB Gskill 1066 and it runs very nicely. If you plan on using Big cpu coolers then plan on modding something to make it fit
