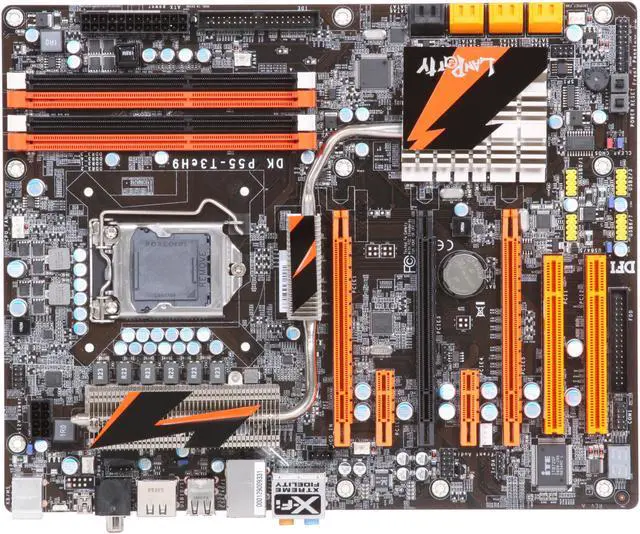

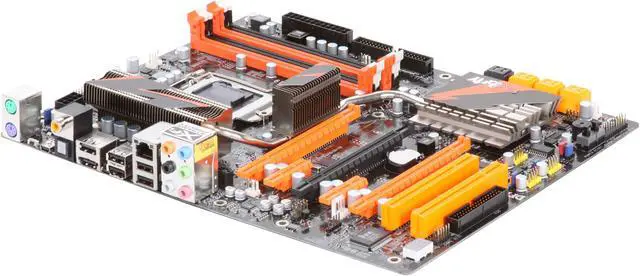

DFI LANParty DK P55-T3eH9 LGA 1156 Intel P55 ATX Intel Motherboard

OUT OF STOCK.
  • Intel P55
  • Core i7 (LGA1156) / i5 (LGA1156)
  • DDR3 1800(O.C)/1600(O.C.)/1333/1066
Specs
Reviews

Learn more about the DFI LANParty DK P55-T3eH9

Model
Brand DFI
Model LANParty DK P55-T3eH9
Supported CPU
CPU Socket Type LGA 1156
CPU Type Core i7 (LGA1156) / i5 (LGA1156)
Supported CPU Technologies Supports Intel Turbo Boost Technology
Chipsets
Chipset Intel P55
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1800(O.C)/1600(O.C.)/1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 3 PCI Express x16 (Gen 2) slots (x8/x4/x8 or x16/x4/none)
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 8 x SATA 3Gb/s
SATA RAID 0/1/0+1/5
Onboard Audio
Audio Chipset Realtek ALC885
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel 82578DC
Max LAN Speed 10/100/1000Mbps

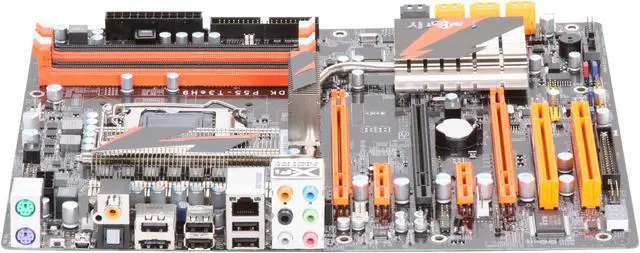

Rear Panel Ports
PS/2 2
USB 1.1/2.0 6 USB 2.0/1.1 ports (one shared with Power eSATA)
1 BIOSecure mini-USB port
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 connectors for 8 additional external USB2.0 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features 9 Phase digital PWM
Supports 2-way SLI or CrossFireX

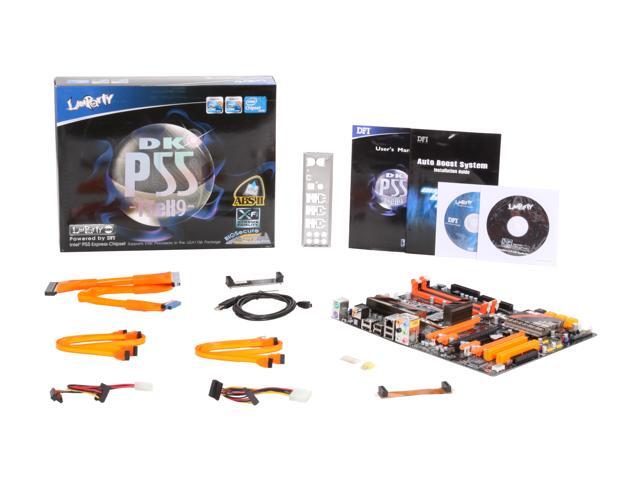

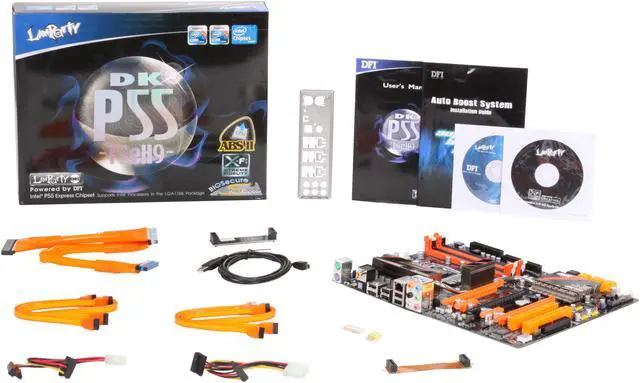

Packaging
Package Contents LANParty DK P55-T3eH9
User's Manual
Auto Boost Installation Guide
1 Parallel IDE flat cable
1 SPI Link cable
2 SATA + power cable
I/O shield
DVD Driver
X-Fi CD Driver
Smart Connector(Front panel+USB)
Mini Jumpers
ATI Crossfire bridge
SLI bridge
Additional Information
Date First Available October 16, 2009
