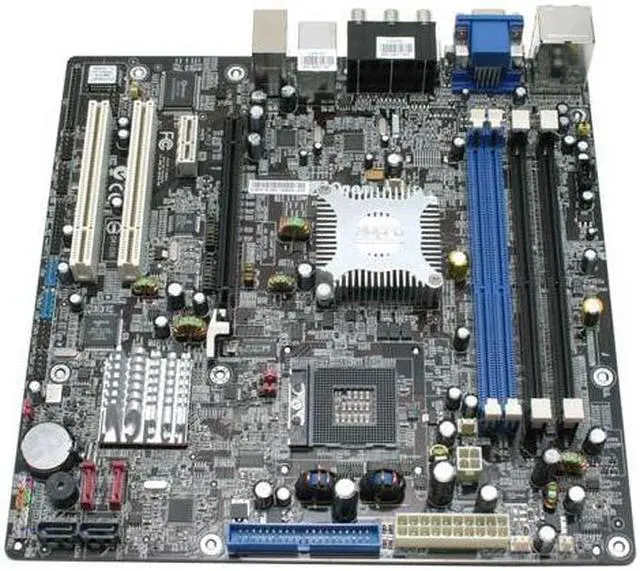

AOpen i915GMm-HFS Socket 479 Intel 915GM Micro ATX Intel Motherboard
- Intel 915GM
- Pentium M (Dothan / Banias)
- DDR2 533 / DDR 400
Specs
Reviews (20)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the AOpen i915GMm-HFS
| Brand | AOpen |
|---|---|
| Model | i915GMm-HFS |
| CPU Socket Type | Socket 479 |
|---|---|
| CPU Type | Pentium M (Dothan / Banias) |
| Chipset | Intel 915GM |
|---|---|
| South Bridge | Intel ICH6M |
| Onboard Video Chipset | Intel GMA 900 |
|---|
| Number of Memory Slots | 2x184pin + 2x240pin |
|---|---|
| Memory Standard | DDR2 533 / DDR 400 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1 |
|---|---|
| Additional RAID Controller | Silicon Image Serial ATA II Control Chipset |
| Audio Chipset | Realtek ALC880 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell |
|---|---|
| Second LAN Chipset | Marvell |
| Max LAN Speed | 2 x 1Gbps |
| Back I/O Ports | 4 x USB 2.0/1.1 |
|---|---|
| Video Ports | D-Sub + DVI + TV-Out |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 2 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 20 Pin |
| Features | Include 1 x PS/2 Keyboard Connector and 1 x CPU Cooler |
|---|
| First Listed on Newegg | April 12, 2005 |
|---|
