Brand | BIOSTAR |
---|---|

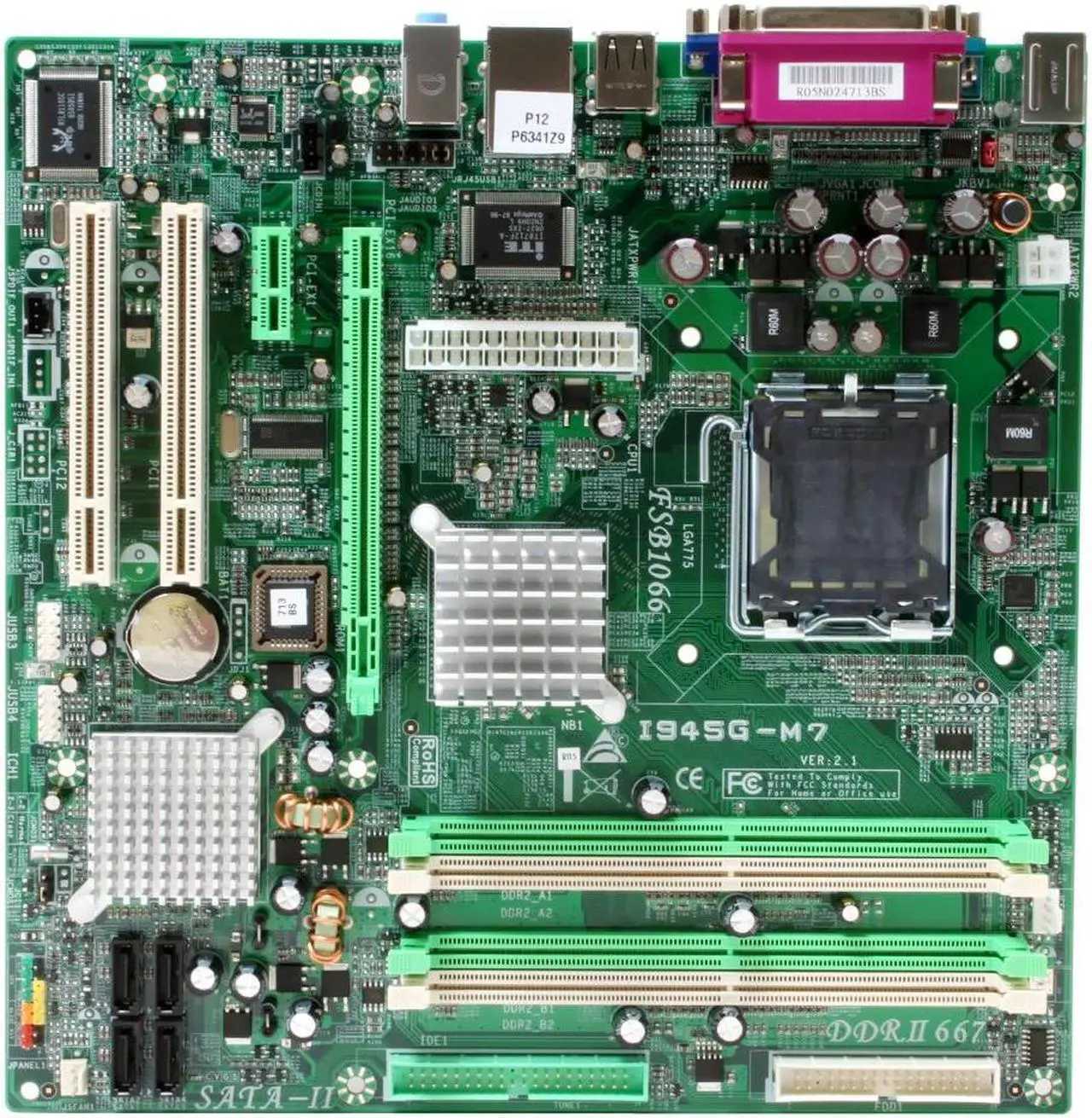

Model | I945G-M7 V2.X |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Core 2 Duo / Pentium D / Celeron D |
FSB | 1066/800 MHz |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | Intel 945G |
---|---|
South Bridge | Intel ICH7 |
Onboard Video Chipset | Intel GMA 950 |
---|
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR2 667 |
Channel Supported | Dual Channel |
PCI Express x16 | 1 x PCI Express x16 |
---|---|
PCI Express x1 | 1 x PCI Express x1 |
PCI Slots | 2 x PCI Slots |
PATA | 1 x ATA100 2 Dev. Max |
---|---|
SATA 3Gb/s | 4 x SATA 3Gb/s |
Audio Chipset | Realtek ALC655 |
---|---|
Audio Channels | 6 Channels |
LAN Chipset | Realtek RTL8110SC |
---|---|
Max LAN Speed | 1Gbps |

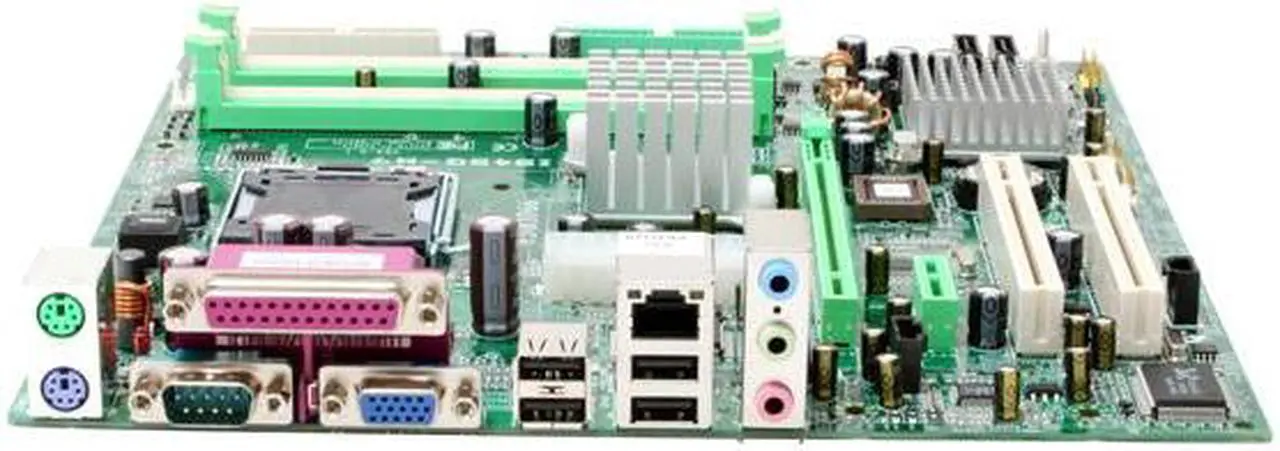

Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
---|---|
PS/2 | 2 |
COM | 1 |
LPT | 1 |
Video Ports | D-Sub |
USB 1.1/2.0 | 4 x USB 2.0 |
Audio Ports | 3 Ports |
Onboard USB | 2 x USB 2.0 connectors support 4 ports |
---|
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 9.6" x 9.6" |
Power Pin | 24 Pin |

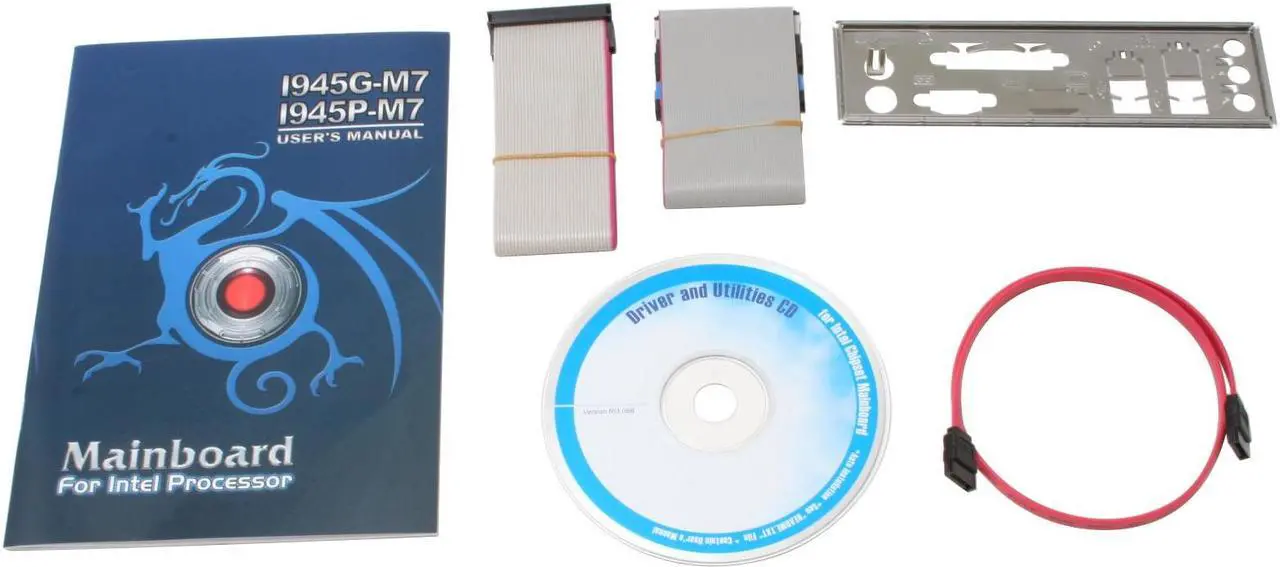

Package Contents | I945G-M7 V2.X Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable Power Cable |
---|
Date First Available | October 26, 2006 |
---|
