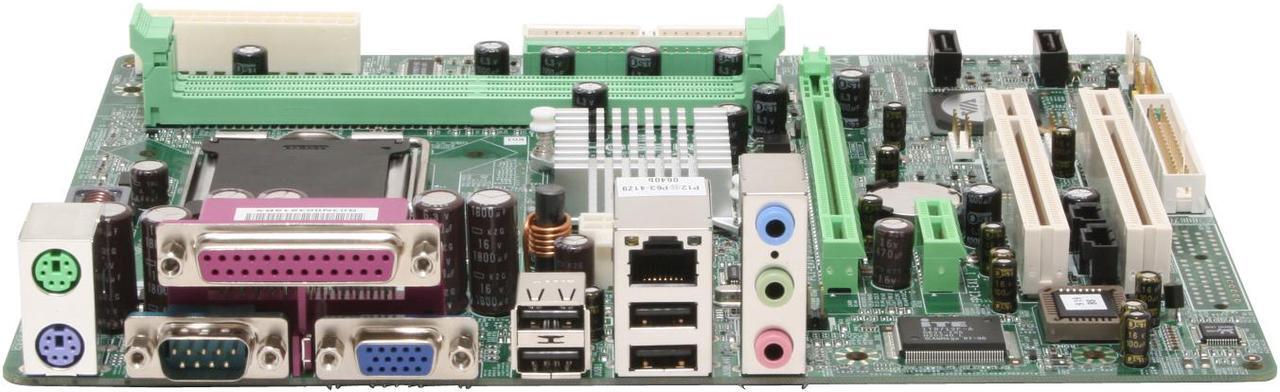

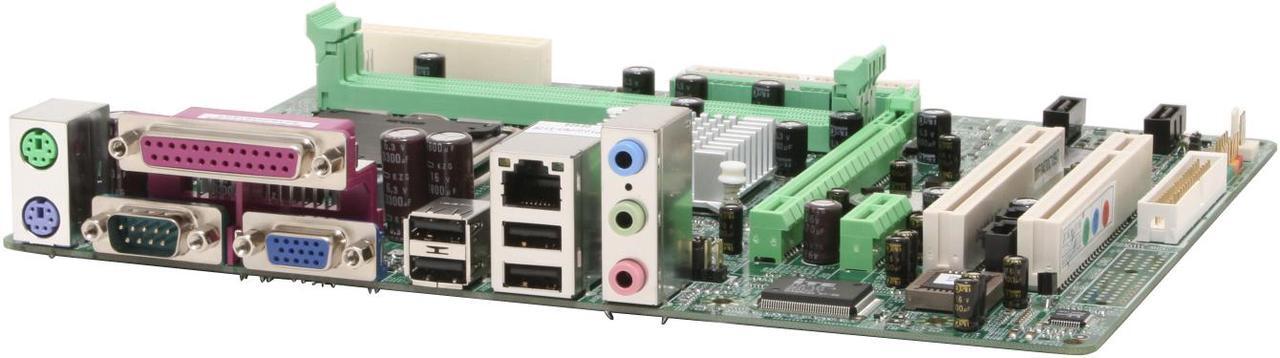

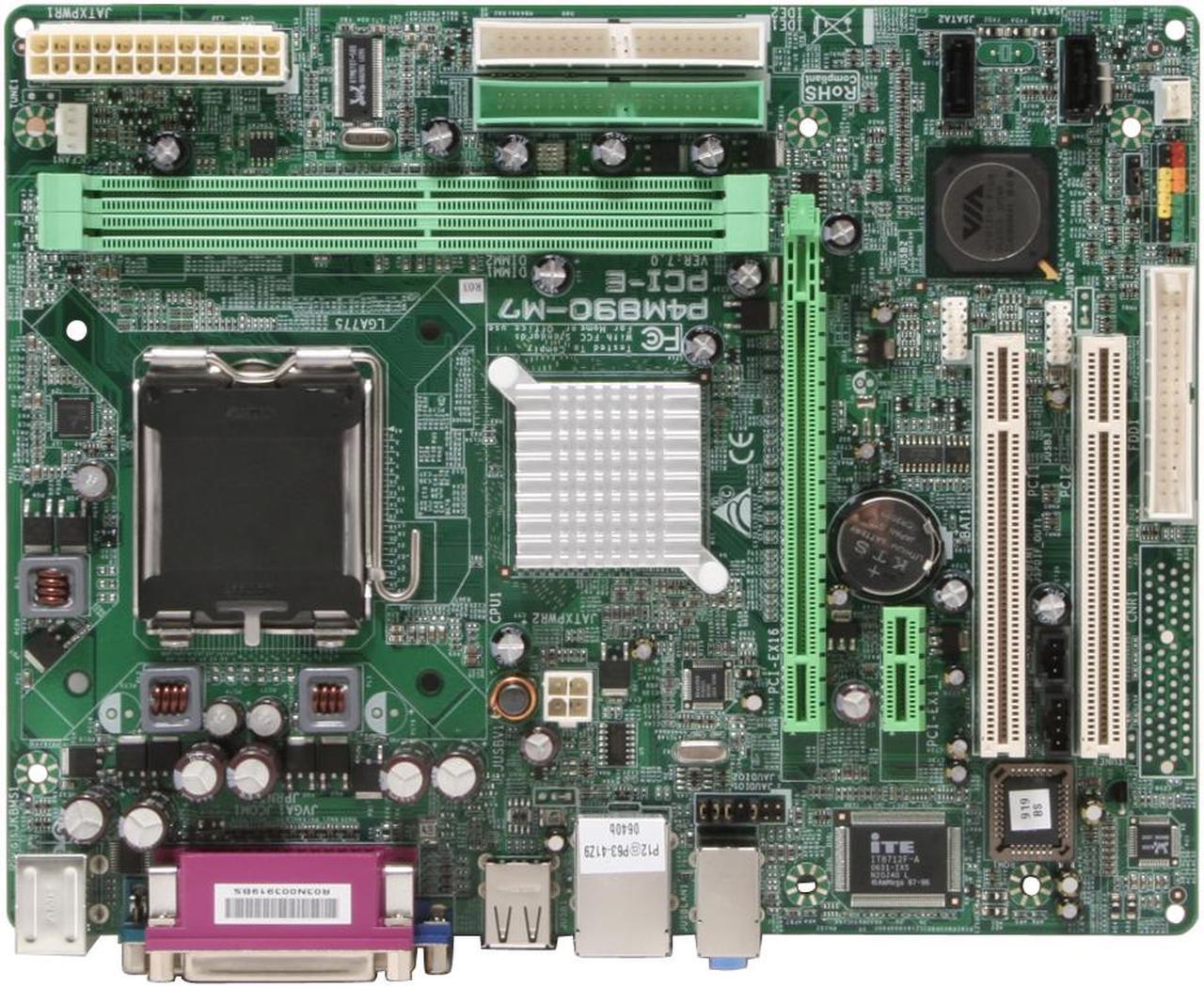

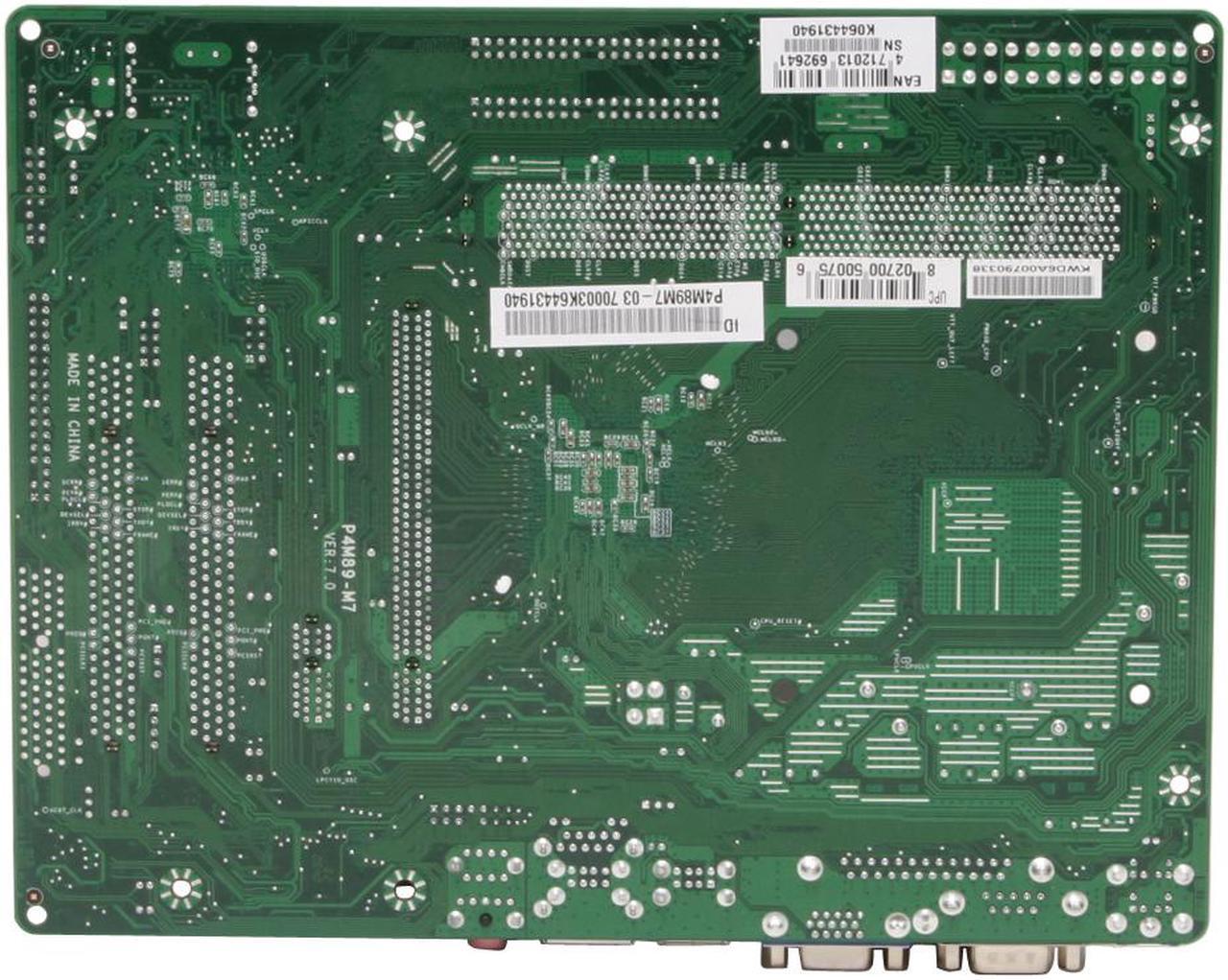

BIOSTAR P4M890-M7 PCI-E LGA 775 VIA P4M890 Micro ATX Intel Motherboard

(20) Write a Review
  • VIA P4M890
  • Core 2 Duo / Pentium D / Celeron D
  • DDR2 533
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (20)

Learn more about the Biostar P4M890-M7 PCI-E

Model
Brand BIOSTAR
Model P4M890-M7 PCI-E
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Pentium D / Celeron D
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset VIA P4M890
South Bridge VIA8237R+
Onboard Video
Onboard Video Chipset VIA UniChrome Pro
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 533
Maximum Memory Supported 4GB
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA 1.5Gb/s 2 x SATA 1.5 Gb/s
SATA RAID 0/1
Onboard Audio
Audio Chipset Realtek ALC658
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8201CL PHY
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.5"
Power Pin 24 Pin
Packaging
Package Contents P4M890-M7 PCI-E
Driver Disk
User Manual

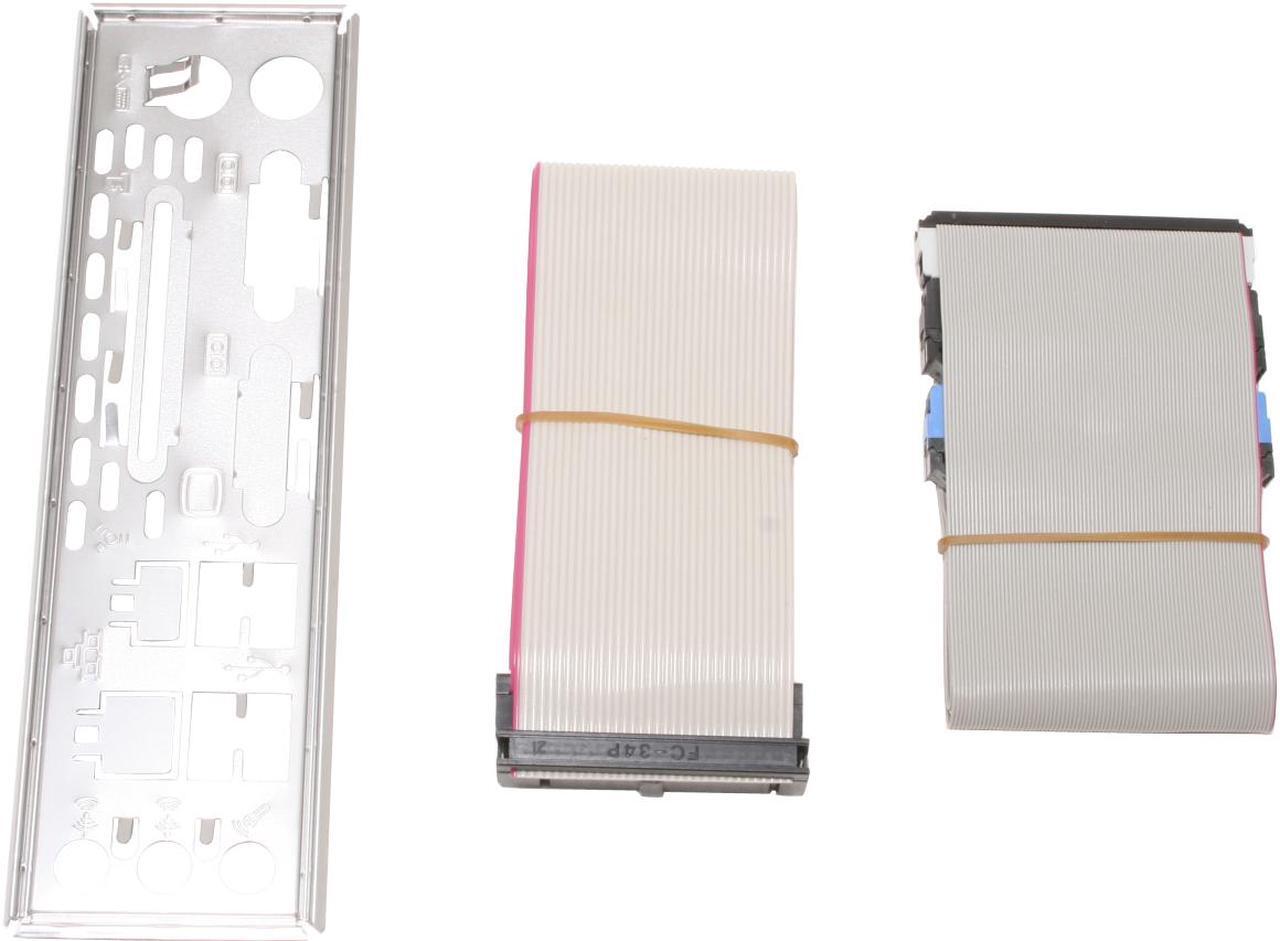

Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
Additional Information
Date First Available December 01, 2006
