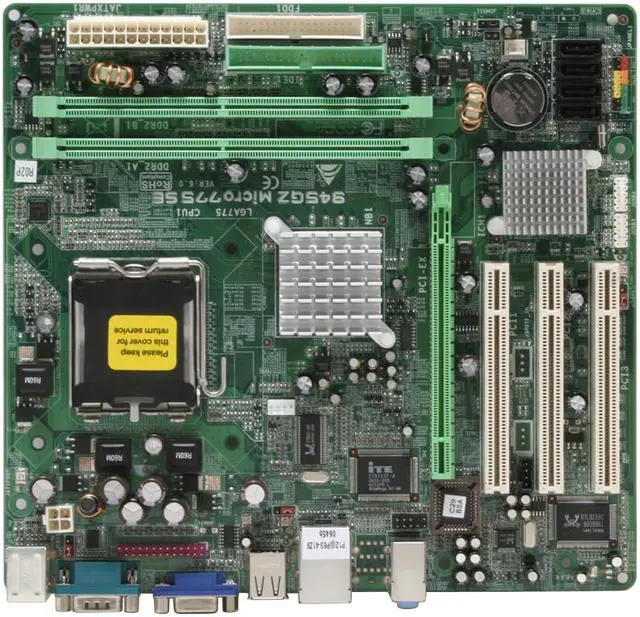

BIOSTAR 945GZ Micro 775 SE LGA 775 Intel 945GZ Micro ATX Intel Motherboard
- Intel 945GZ
- Core 2 Duo / Pentium D / Celeron D
- DDR2 533
Specs
Reviews (10)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar 945GZ Micro 775 SE
| Brand | BIOSTAR |
|---|---|
| Model | 945GZ Micro 775 SE |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Pentium D / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 945GZ |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | Intel GMA 950 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 (signals at x4) |
|---|---|
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | Realtek ALC861VD |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8100C |
|---|---|
| Max LAN Speed | 100Mbps |

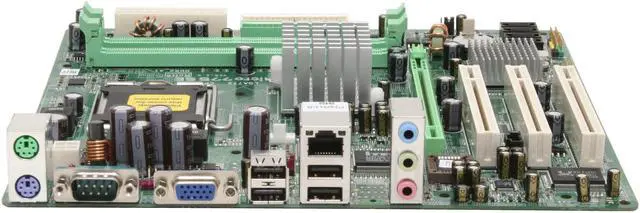

| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 conectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.3" x 8.6" |
| Power Pin | 24 Pin |

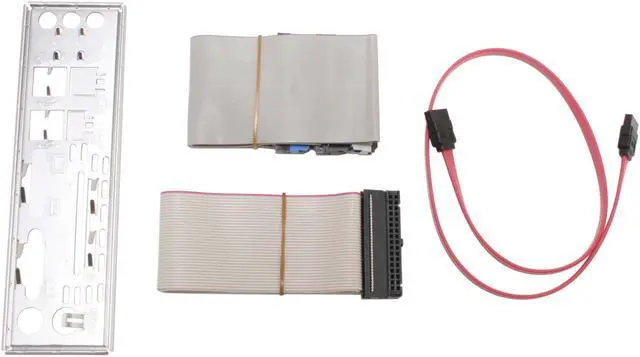

| Package Contents | 945GZ Micro 775 SE Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable |
|---|
| First Listed on Newegg | February 07, 2007 |
|---|
