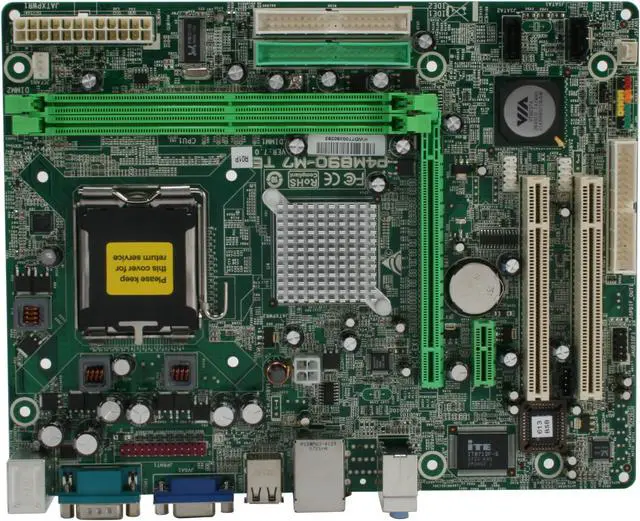

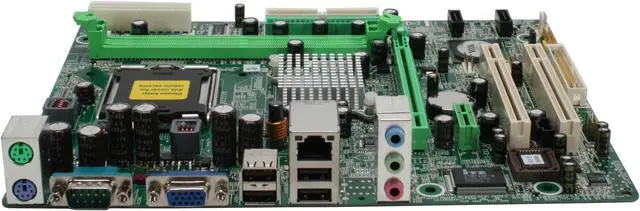

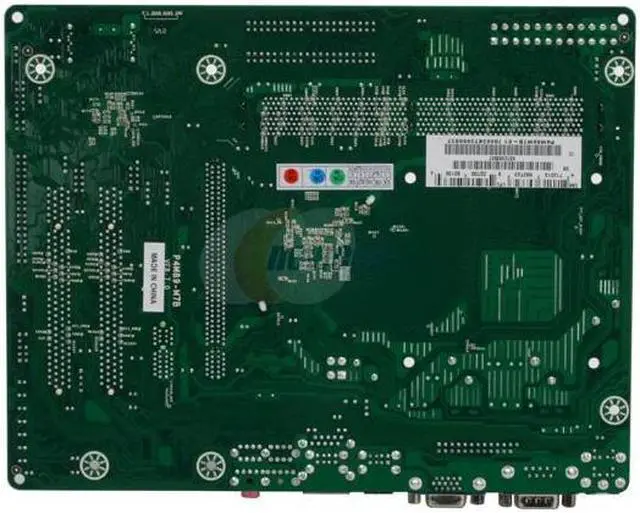

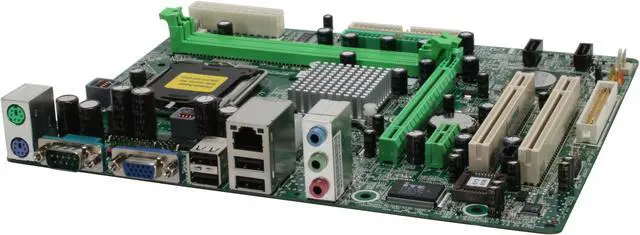

BIOSTAR P4M890-M7 TE LGA 775 VIA P4M890 Micro ATX Intel Motherboard
- VIA P4M890
- Core 2 Duo / Pentium D / Celeron D
- DDR2 533
Specs
Reviews (23)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar P4M890-M7 TE
| Brand | BIOSTAR |
|---|---|
| Model | P4M890-M7 TE |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Pentium D / Celeron D |
| FSB | 1066/800 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | VIA P4M890 |
|---|---|
| South Bridge | VIA VT8237A |
| Onboard Video Chipset | VIA S3 UniChrome |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 4GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201CL PHY |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.5" |
| Power Pin | 24 Pin |
| First Listed on Newegg | August 31, 2007 |
|---|
