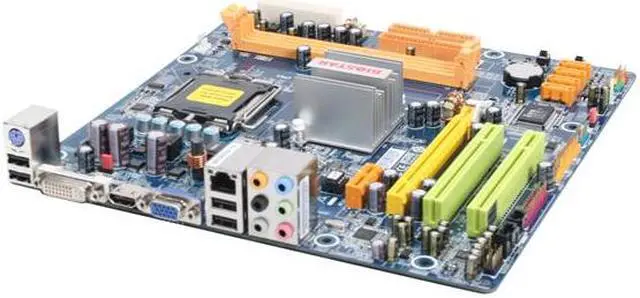

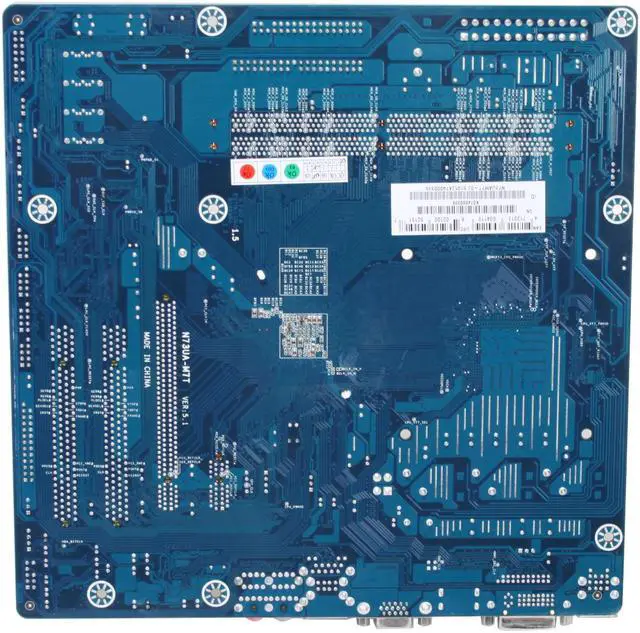

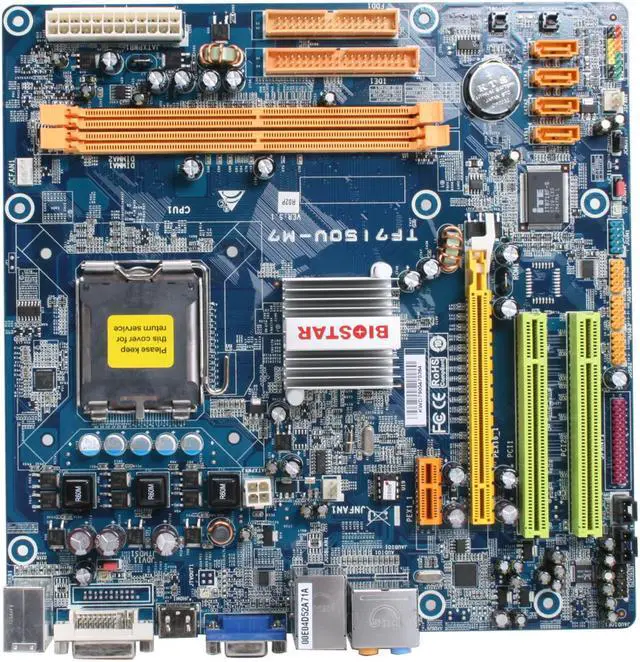

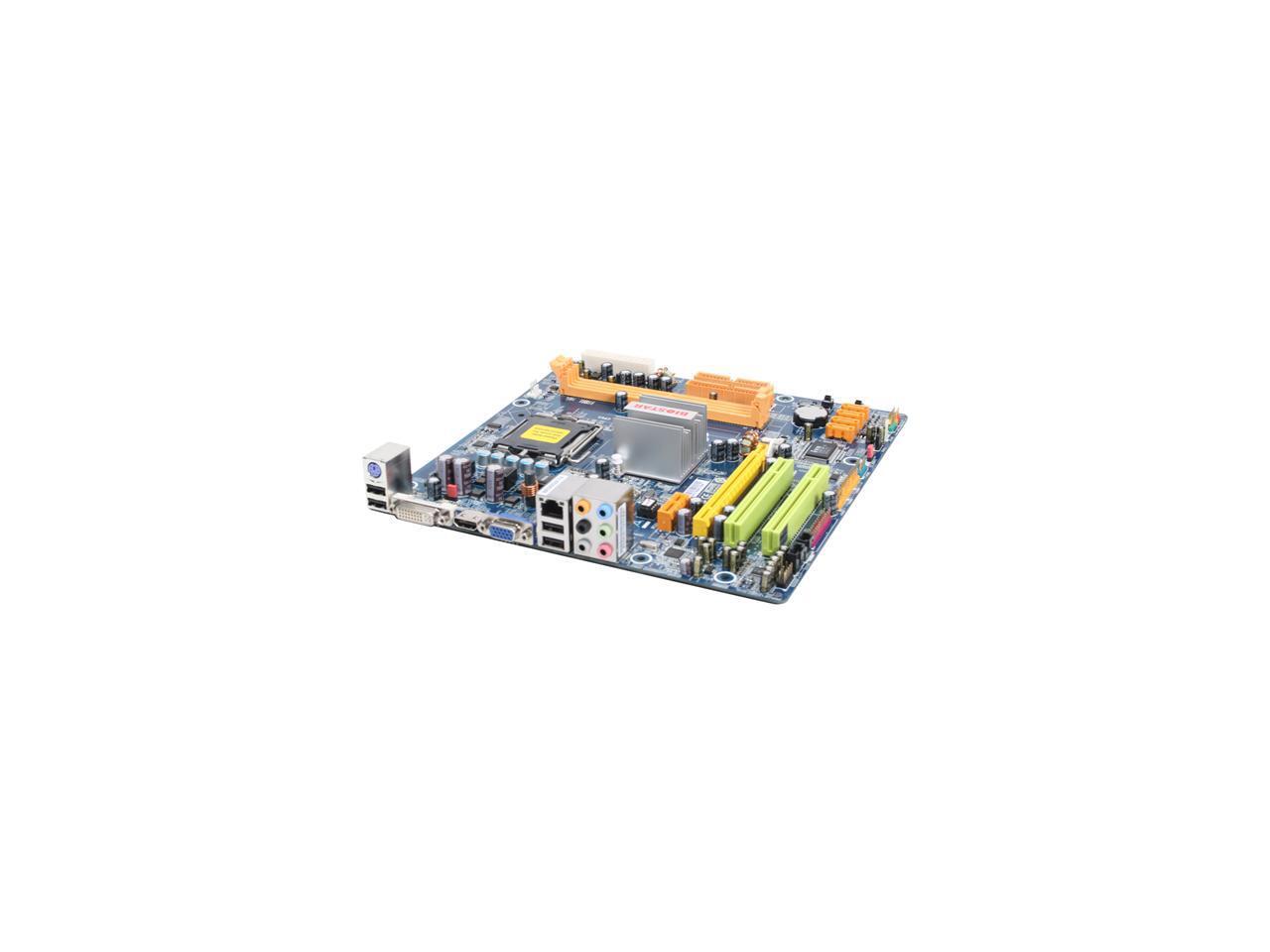

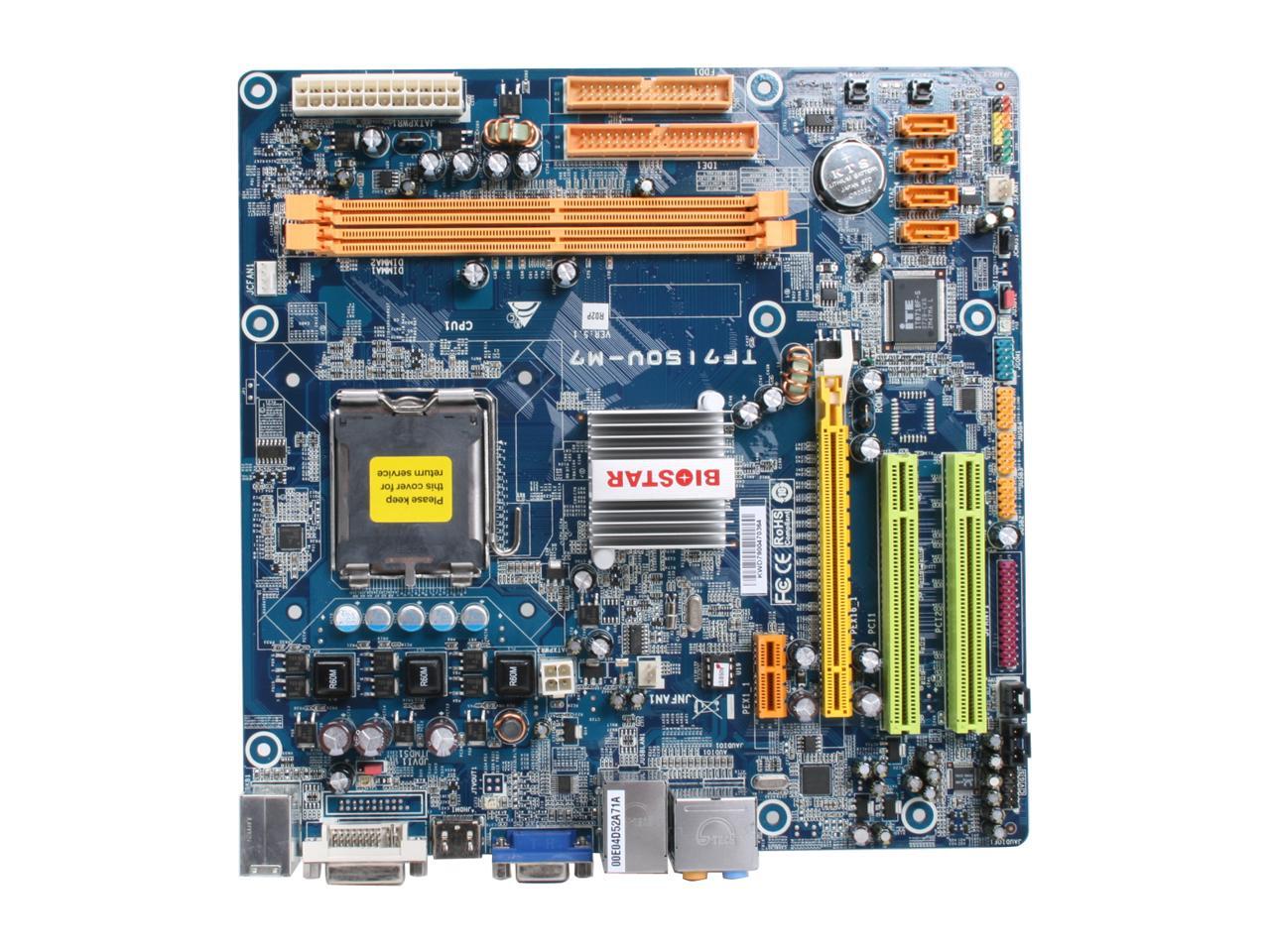

BIOSTAR TForce TF7150U-M7 LGA 775 NVIDIA GeForce 7150 HDMI Micro ATX Intel Motherboard

BIOSTAR TForce TF7150U-M7 LGA 775 NVIDIA GeForce 7150 HDMI Micro ATX Intel Motherboard

Name: BIOSTAR TForce TF7150U-M7 LGA 775 NVIDIA GeForce 7150 HDMI Micro ATX Intel Motherboard
Brand: Biostar
SKU: N82E16813138096
Rating: 4 (19 reviews)

(19) Write a Review

OUT OF STOCK.

NVIDIA GeForce 7150
Quad-core / Core 2 Extreme / Core 2 Duo / Pentium D / Pentium 4 / Celeron 400 Series / Celeron D
DDR2 800

Specs

Reviews

Learn more about the Biostar TForce TF7150U-M7

Model
Brand	BIOSTAR
Model	TForce TF7150U-M7

Supported CPU
CPU Socket Type	LGA 775
CPU Type	Quad-core / Core 2 Extreme / Core 2 Duo / Pentium D / Pentium 4 / Celeron 400 Series / Celeron D
FSB	1333/1066 MHz

Chipsets
Chipset	NVIDIA GeForce 7150
South Bridge	nForce 630i

Onboard Video
Onboard Video Chipset	NVIDIA GeForce 7150

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR2 800
Maximum Memory Supported	4GB

Expansion Slots
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA 3Gb/s	4 x SATA 3Gb/s
SATA RAID	0/1/0+1/5

Onboard Audio
Audio Chipset	Realtek ALC888
Audio Channels	8+2-Channel HD Audio

Onboard LAN
LAN Chipset	Realtek 8111B
Max LAN Speed	10/100/1000Mbps

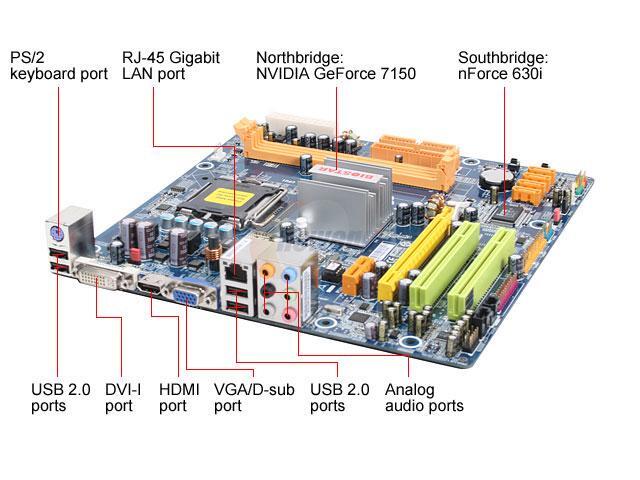

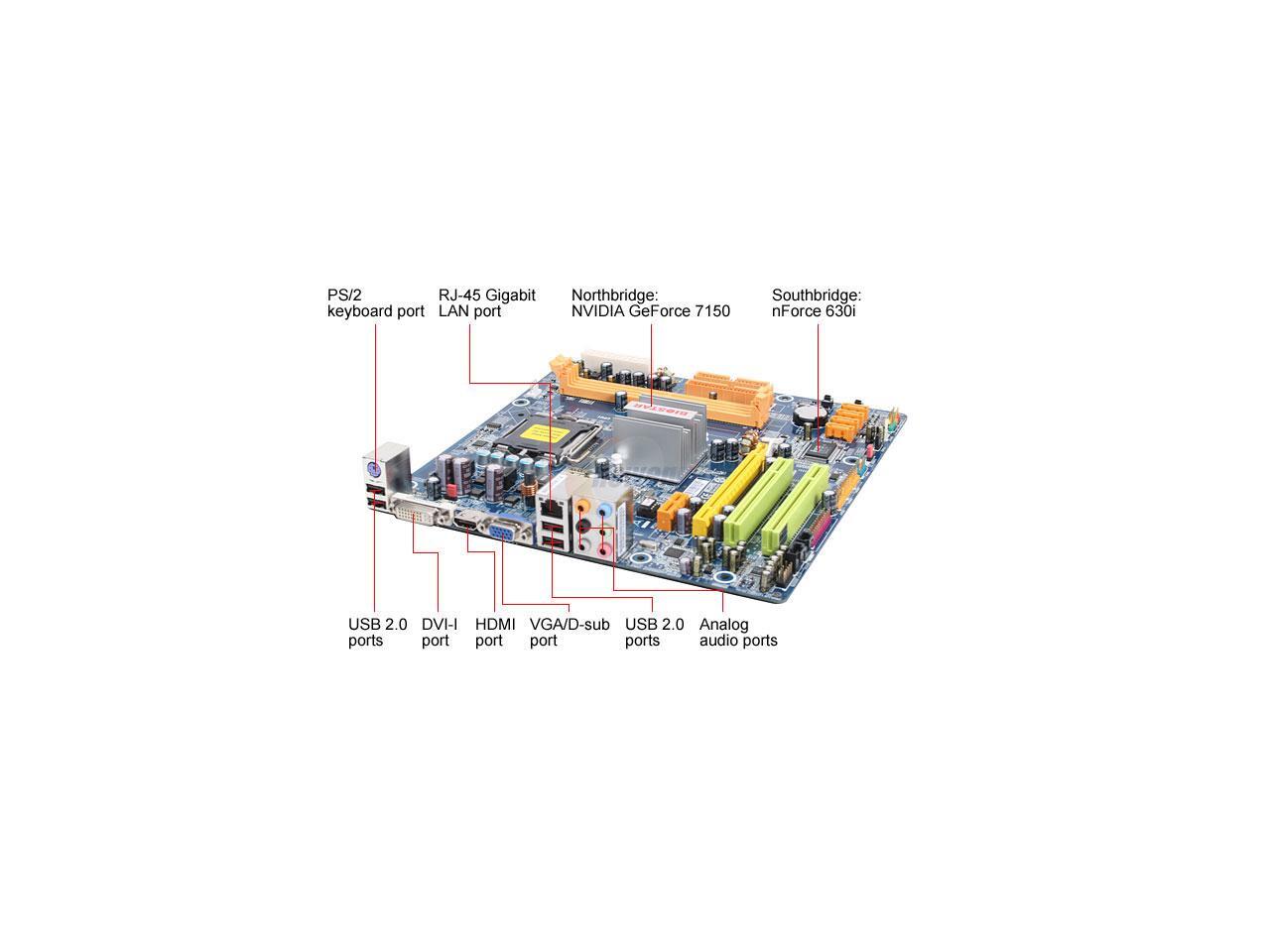

Rear Panel Ports
PS/2	1
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	6 x USB 2.0

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	24 Pin

Packaging

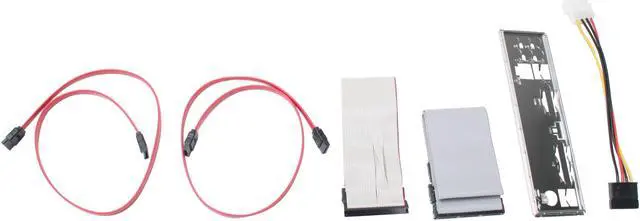

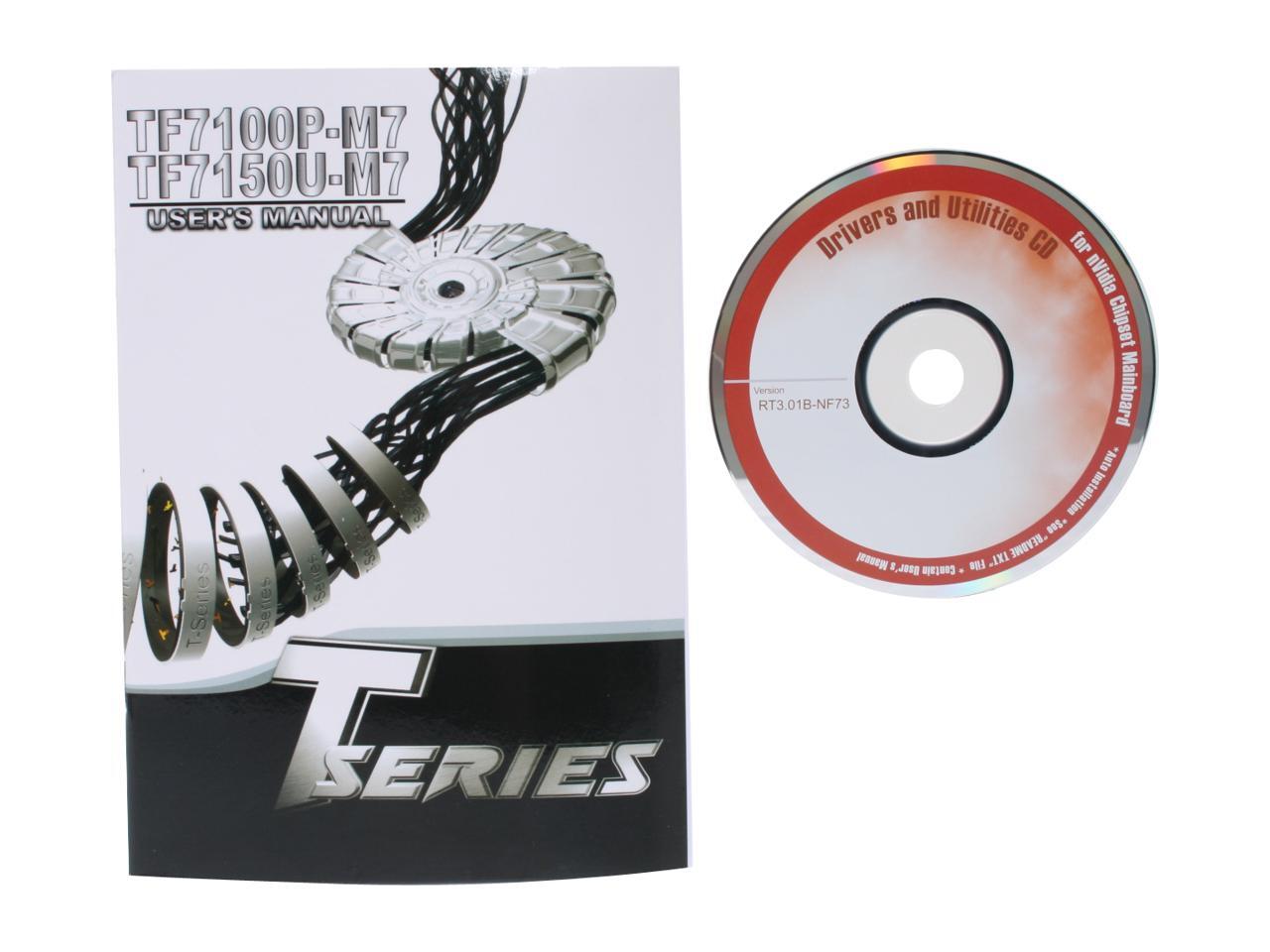

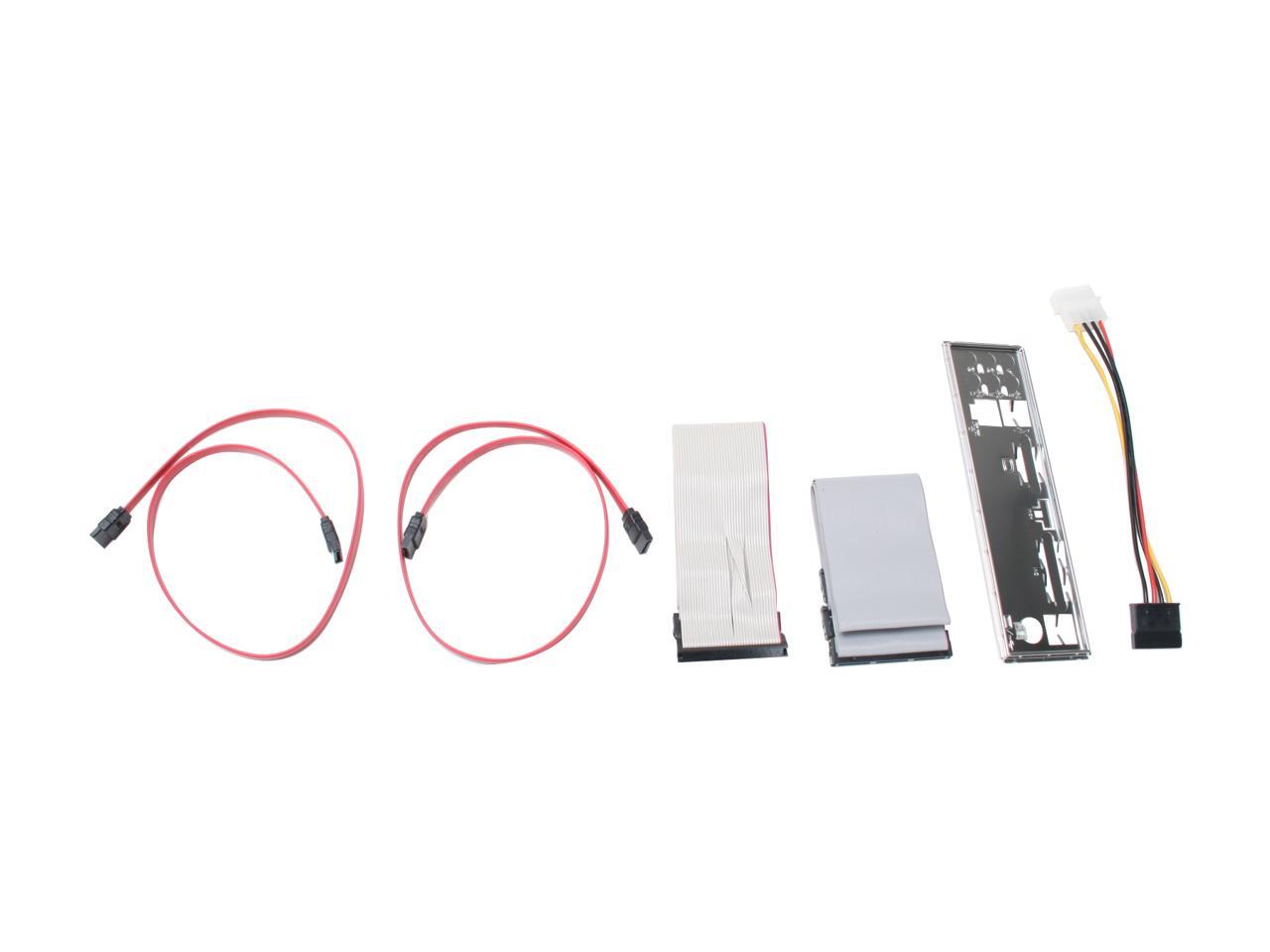

Package Contents	TForce TF7150U-M7 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable

Additional Information
Date First Available	October 30, 2007
