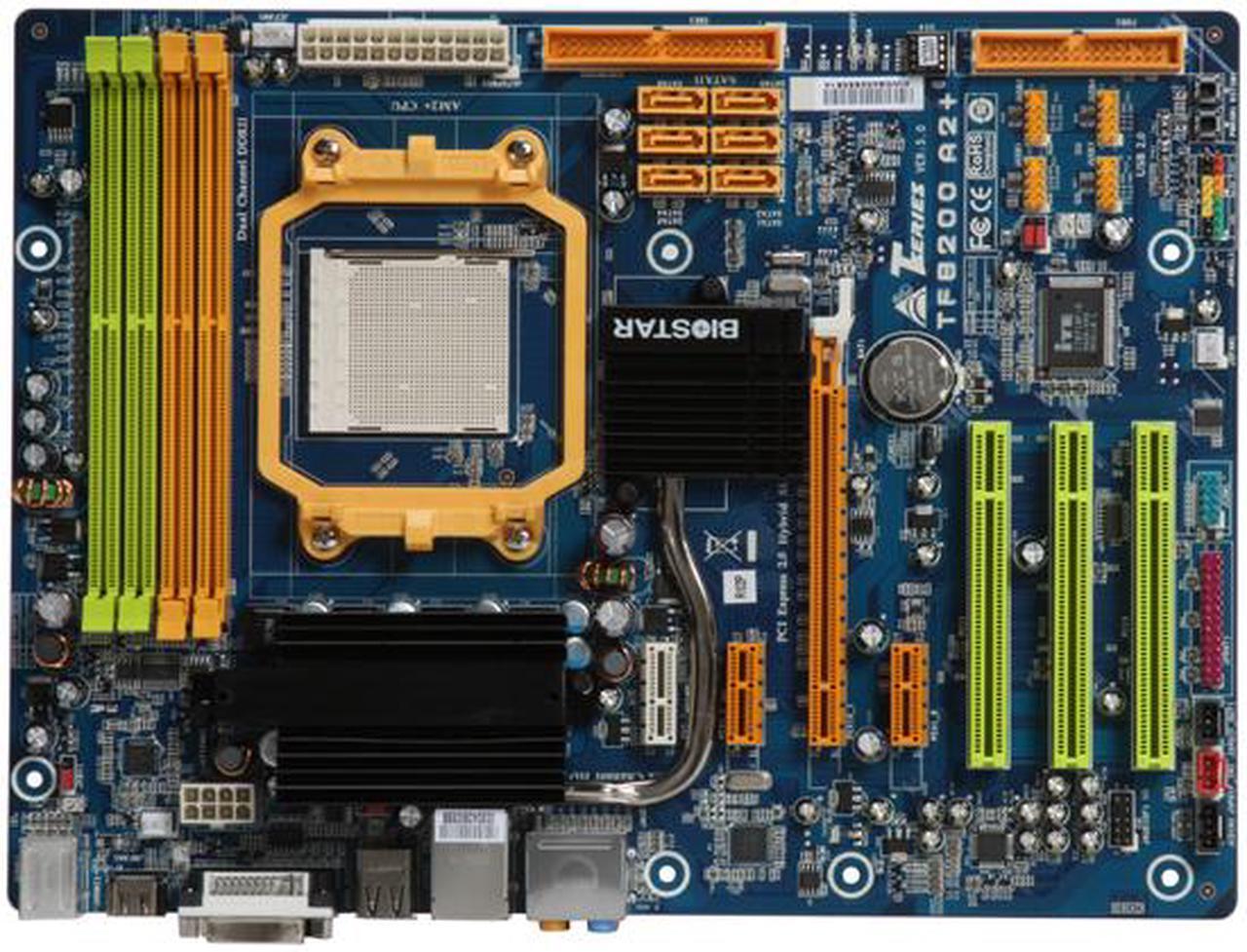

BIOSTAR TForce TF8200 A2+ AM2+/AM2 NVIDIA GeForce 8200 HDMI ATX AMD Motherboard
- NVIDIA GeForce 8200
- Phenom / Athlon 64 X2 / Athlon 64 / Sempron
- DDR2 1066
Specs
Reviews (186)
Learn more about the Biostar TForce TF8200 A2+
| Brand | BIOSTAR |
|---|---|
| Model | TForce TF8200 A2+ |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom / Athlon 64 X2 / Athlon 64 / Sempron |
| FSB | 2600 MHz |
| Chipset | NVIDIA GeForce 8200 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| Other Slots | 1 x M.D.V. Slot |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 6 x SATA 3Gb/s |
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | NVIDIA GeForce 8 series |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |

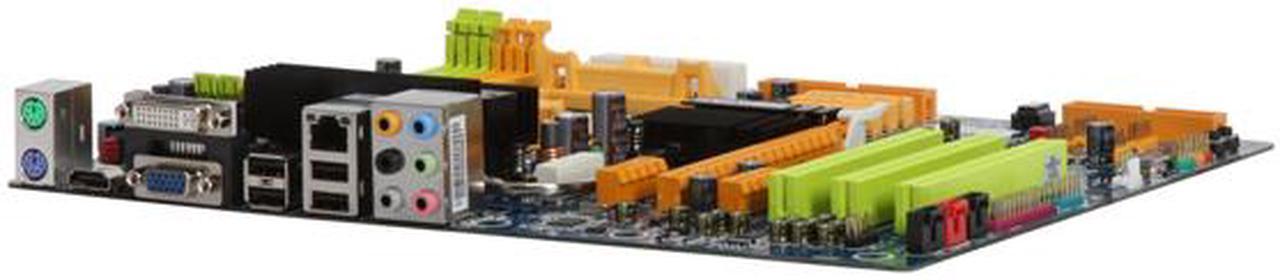

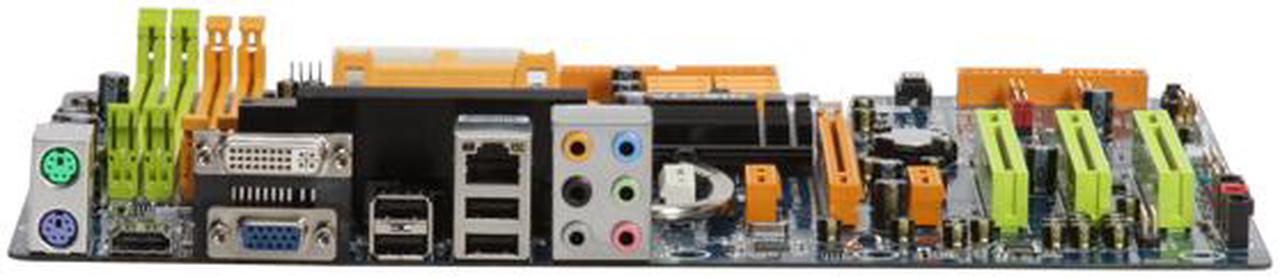

| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 Header |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

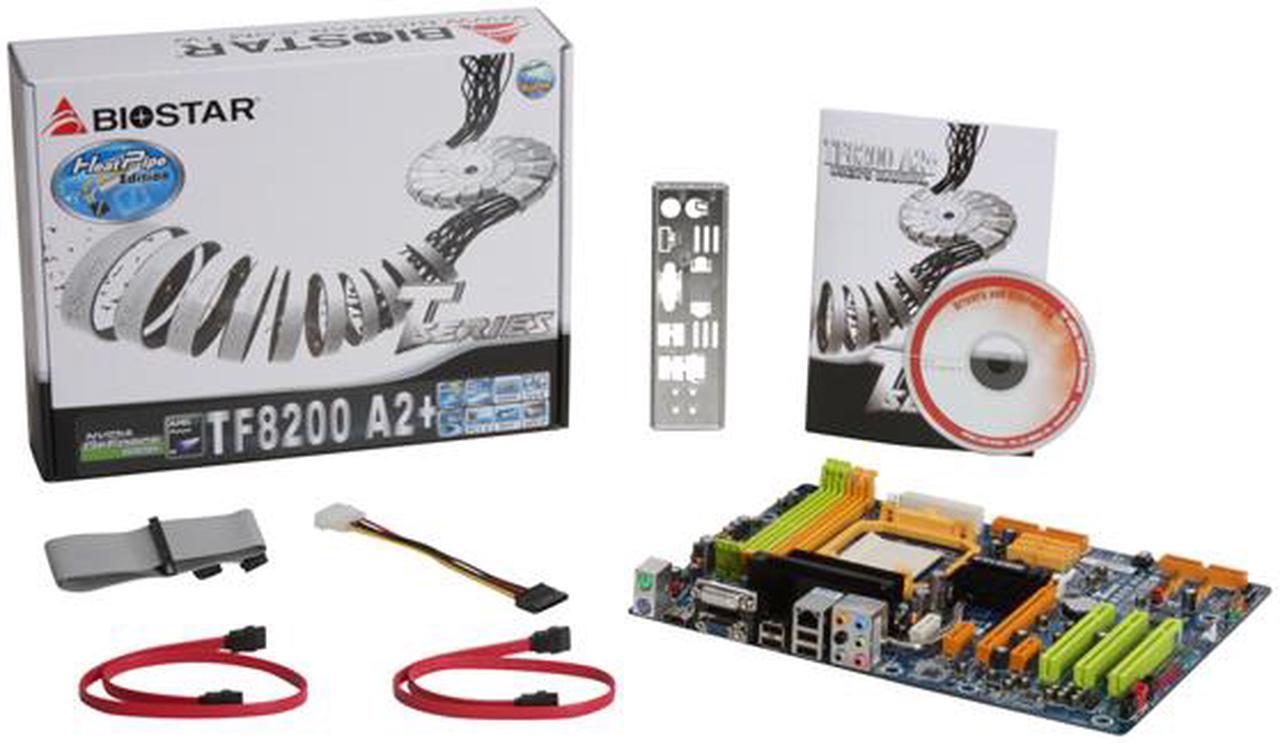

| Package Contents | TForce TF8200 A2+ Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Date First Available | May 19, 2008 |
|---|
