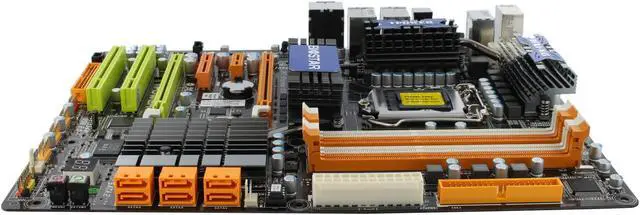

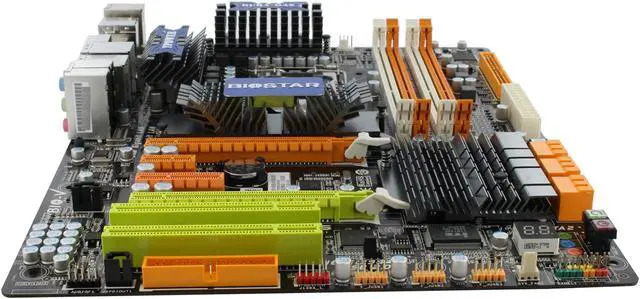

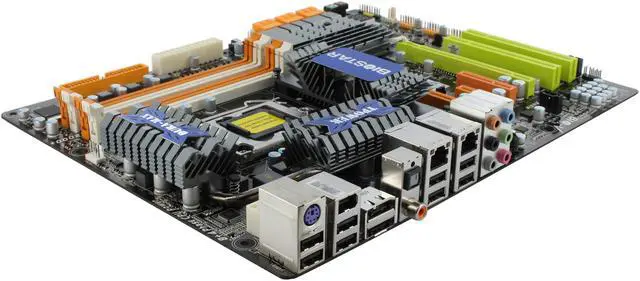

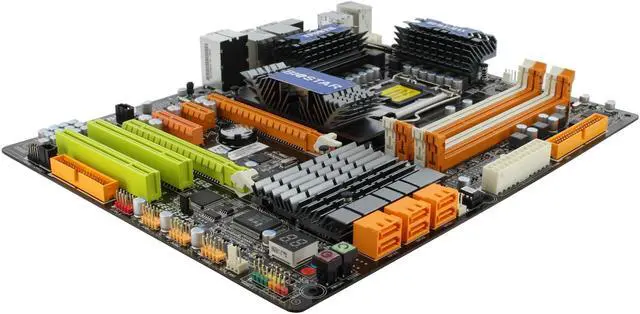

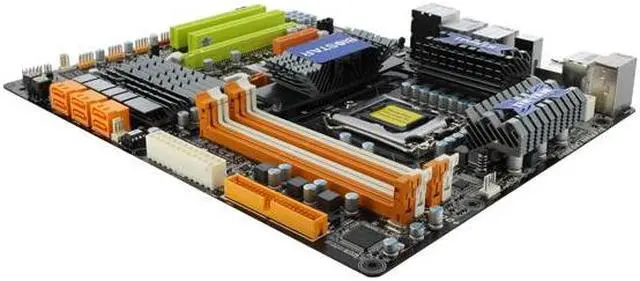

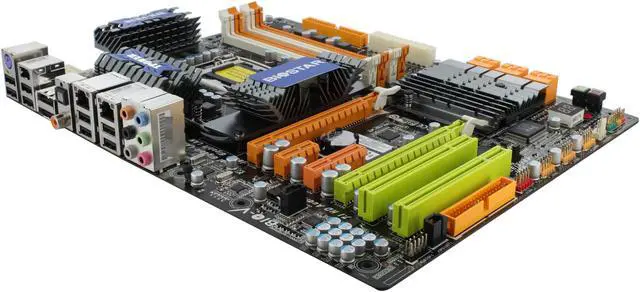

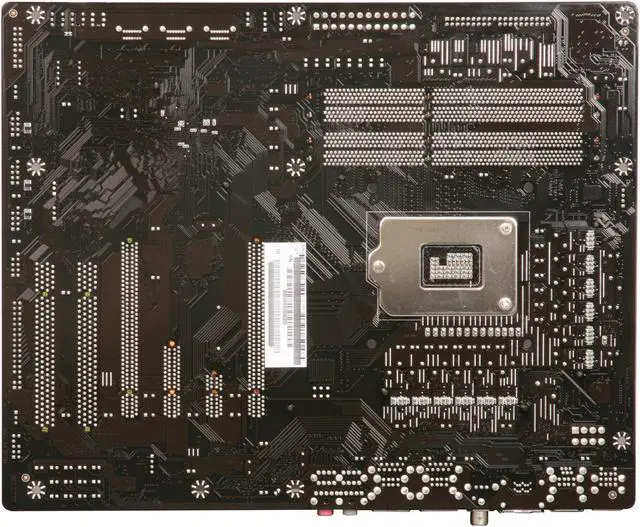

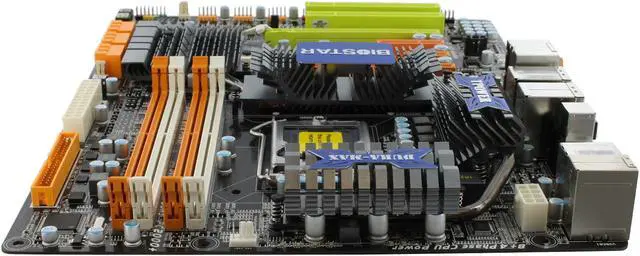

BIOSTAR TPOWER i55 LGA 1156 Intel P55 ATX Intel Motherboard
- Intel P55
- Core i7 (LGA1156)/i5 (LGA1156)
- DDR3 800/1066
Learn more about the Biostar TPOWER i55
| Brand | BIOSTAR |
|---|---|
| Model | TPOWER i55 |

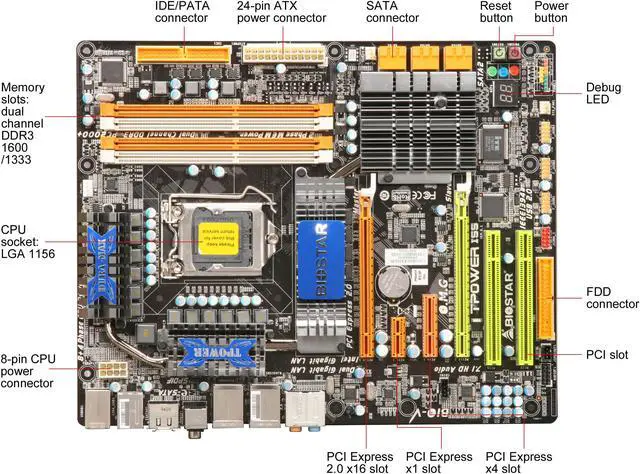

| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Core i7 (LGA1156) / i5 (LGA1156) |
| Chipset | Intel P55 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 800/1066/1333/1600(O.C.)/2000(O.C.)/2600(O.C.) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI-E x16 2.0 Slot (CFX x8 or SLI x8) |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/5/10 |
|---|
| Audio Chipset | Realtek ALC888S |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel 82578DC |
|---|---|
| Second LAN Chipset | Realtek 8111DL |
| Max LAN Speed | 2 x 1Gbps |

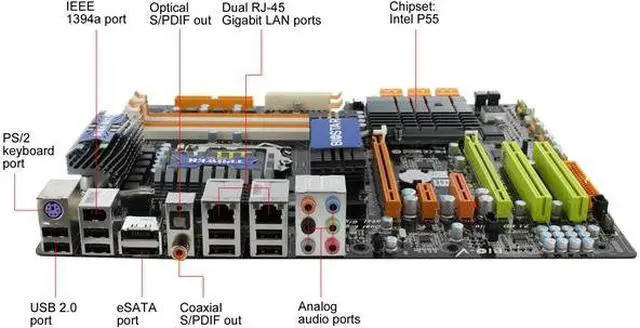

| PS/2 | 1 |
|---|---|
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 2 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB header (support 6 ports) |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Other Connectors | 1 x Floppy Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CD-IN Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 1 x North Bridge FAN Header 2 x System FAN Header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | 8 + 4 phase power design Support ATI CrossfireX technology Support NVIDIA SLI technology Dura-MAX high quality components 100% X.D.C Japanese solid capacitor Clean-Tone2 Audio Technology Heat-pipe Solution Toverclock UTILITY GPU (Green Power Utility) for Dynamic CPU power consumption control |
|---|

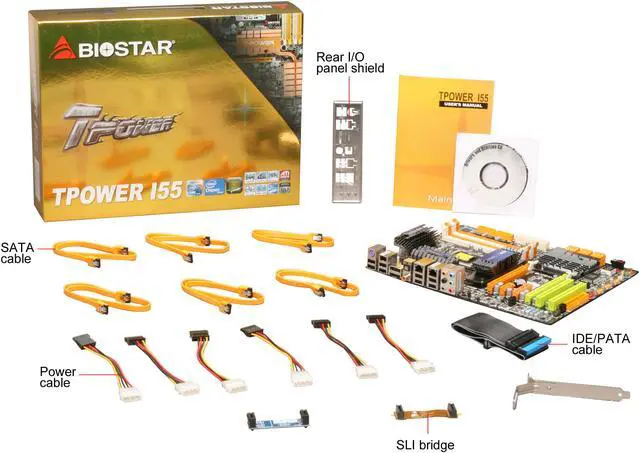

| Package Contents | BIOSTAR TPOWER i55 Motherboard SLI Bridge, SLI bracket, CrossFireX Bridge, IO shield 6 x SATA & 6 x SATA Power cables IDE Cable Driver CD and Manual |
|---|
| First Listed on Newegg | September 04, 2009 |
|---|
