BIOSTAR T5 XE LGA 1156 Intel P55 ATX Intel Motherboard
OUT OF STOCK.
- Intel P55
- Core i7 (LGA1156) / i5 (LGA1156)
- DDR3 800/1066/1333/1600(OC)/1866(OC)/2000(OC)
Specs
Reviews
Learn more about the Biostar T5 XE
| Brand | BIOSTAR |
|---|---|
| Model | T5 XE |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Core i7 (LGA1156) / i5 (LGA1156) |
| Chipset | Intel P55 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4×240pin |
|---|---|
| Memory Standard | DDR3 800/1066/1333/1600(OC)/1866(OC)/2000(OC) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (x16, x4) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 6 x SATA 3Gb/s |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB header (support 4 ports) |
|---|---|
| Other Connectors | 1 x Floppy Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CD-IN Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 2 x System FAN Header 1 x Serial Header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.66" |
| Power Pin | 24 Pin |
| Features | 4+2 phase power design Support ATI CrossfireX technology 100% X.D.C Japanese solid capacitor Clean-Tone2 Audio Technology Toverclocker UTILITY GPU (Green Power Utility) for Dynamic CPU power consumption control |
|---|

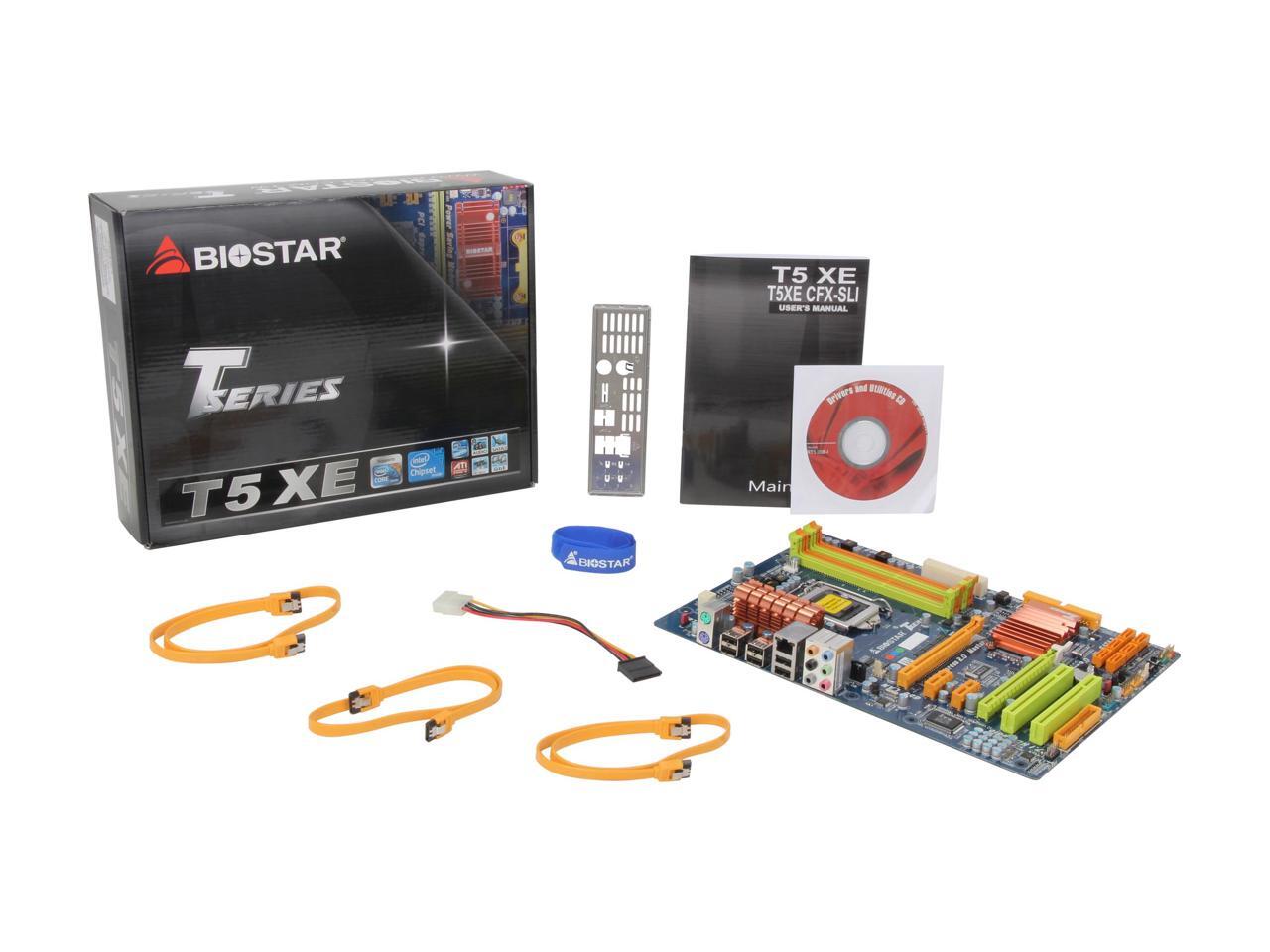

| Package Contents | BIOSTAR T5 XE Motherboard 3 x SATA Cable 1 x SATA Power Cable 1 x I/O Shield 1 x CD Driver 1 x User Manual |
|---|
| Date First Available | September 04, 2009 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 909-444-3785 menu 2
- Support Email: support@biostar-usa.com
- Support Website
- View other products from Biostar
LOADING...
LOADING...

















Pros: On board diagnostic lights, Price, Plenty of extra features through software, Free Shipping. Velcro cable strap.
Cons: It seems small and cramped to me. my heatsink/fan is almost touching my ram and the fan on my video card is almost touching the p55. When I say almost I mean I couldn't stick a flat head screwdriver between them. My power cable to the processor is stretched to the max.. The PCI express locking tabs are cheap,soft plastic and one snapped upon me moving it ever so slightly. So it looses an egg, but I'd buy another one.
Overall Review: Someone else said this board is picky about memory placement, but I was still left scratching my head for a few minutes. It wouldn't boot up the first time with 2 sticks of ram, no matter what configuration I used. Finally I was able to get it to boot with one stick. Then I added the second stick and it worked fine. USE THE ORANGE SLOTS FIRST. The onboard diagnostic lights were helpful. I don't overclock but there are plenty of features to do so. I sent biostar an email with a question and they responded within 12 hours, Kudos to them. core i7-860 2.8 this board Patriot G Series ‘Sector 5’ 8GB DDR3 1333 (PC3 10666) HD 4670 Radeon-Saphire Rosewill Green Series RG700-S12 700W
