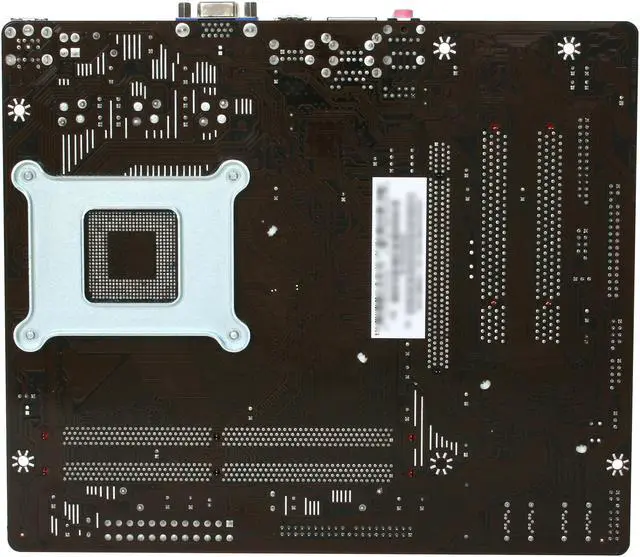

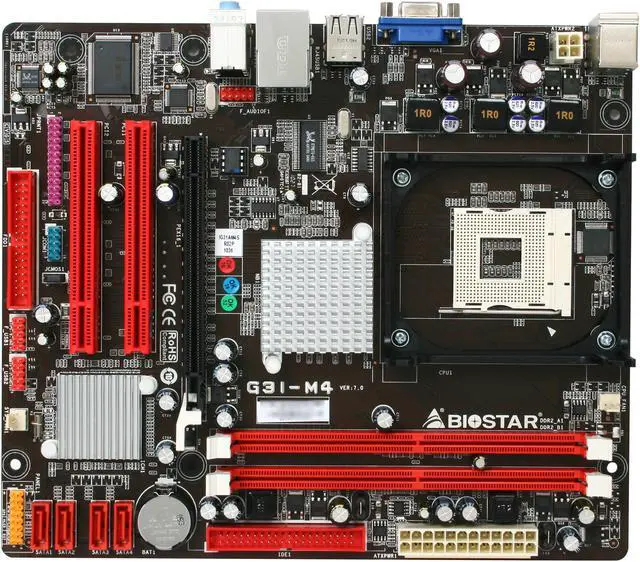

BIOSTAR G31-M4 Socket 478 Intel G31 Micro ATX Intel Motherboard

(32) Write a Review
  • Intel G31
  • Pentium 4 Prescott / Celeron D
  • DDR2 533/667/800 *Support DDR2 533MHz While Using FSB 533 CPU *Support DDR2 667/800MHz While Using FSB 800 CPU
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (32)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Biostar G31-M4

Model
Brand BIOSTAR
Model G31-M4
Supported CPU
CPU Socket Type Socket 478
CPU Type Pentium 4 Prescott / Celeron D
FSB 800/533 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel G31
South Bridge Intel ICH7
Onboard Video
Onboard Video Chipset Intel GMA 3100
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 533/667/800
*Support DDR2 533MHz While Using FSB 533 CPU
*Support DDR2 667/800MHz While Using FSB 800 CPU
Maximum Memory Supported 2GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek RTL8102EL
Max LAN Speed 100Mbps

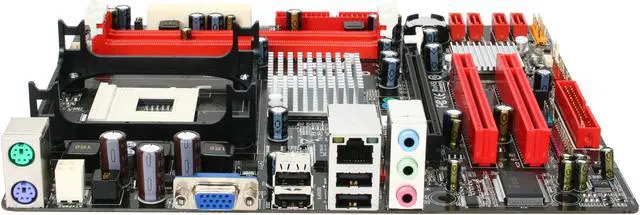

Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.25" x 7.87"
Power Pin 24 Pin
Features
Features Maximum CPU TDP (Thermal Design Power) : 95Watt
Additional Information
First Listed on Newegg February 04, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
