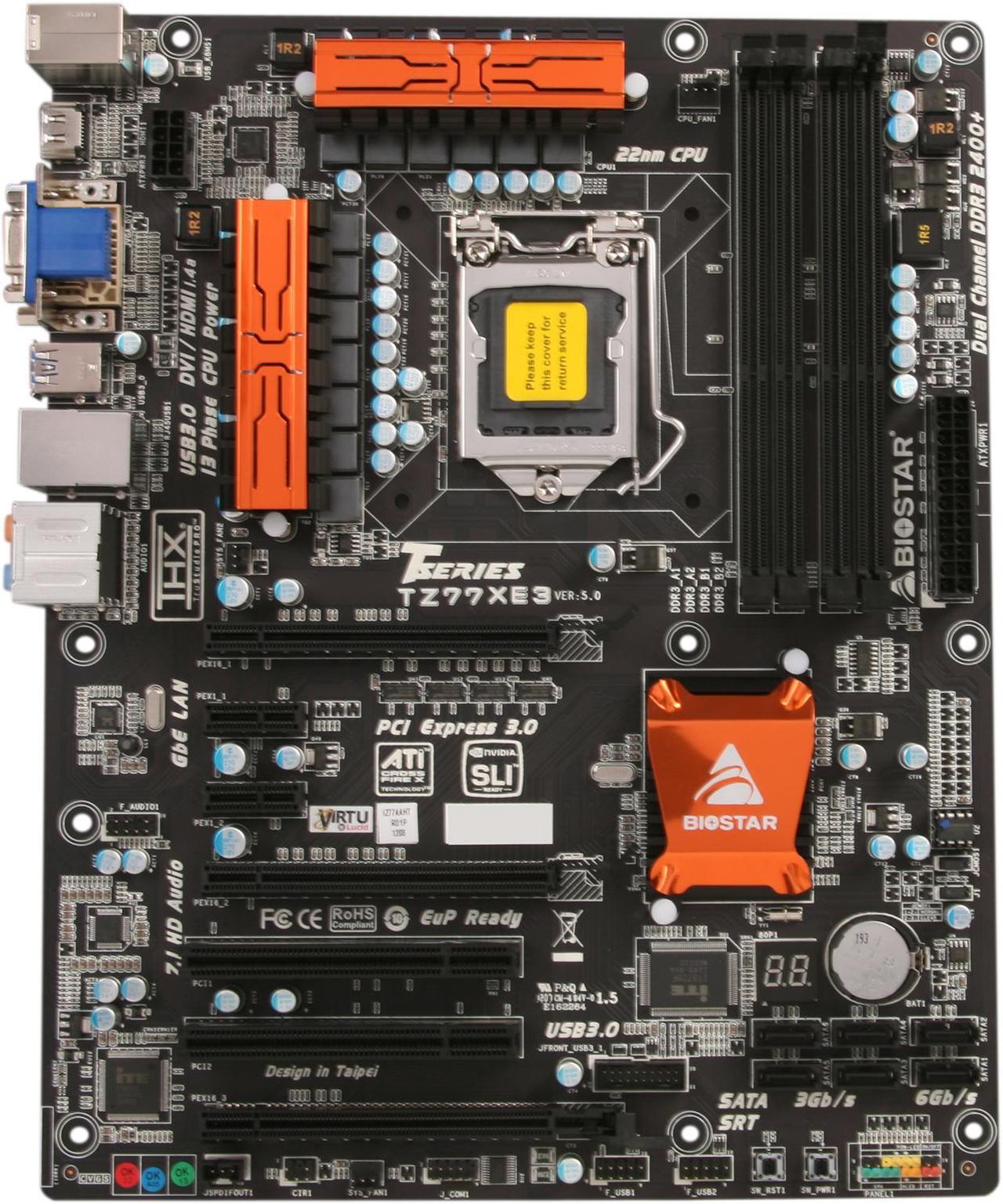

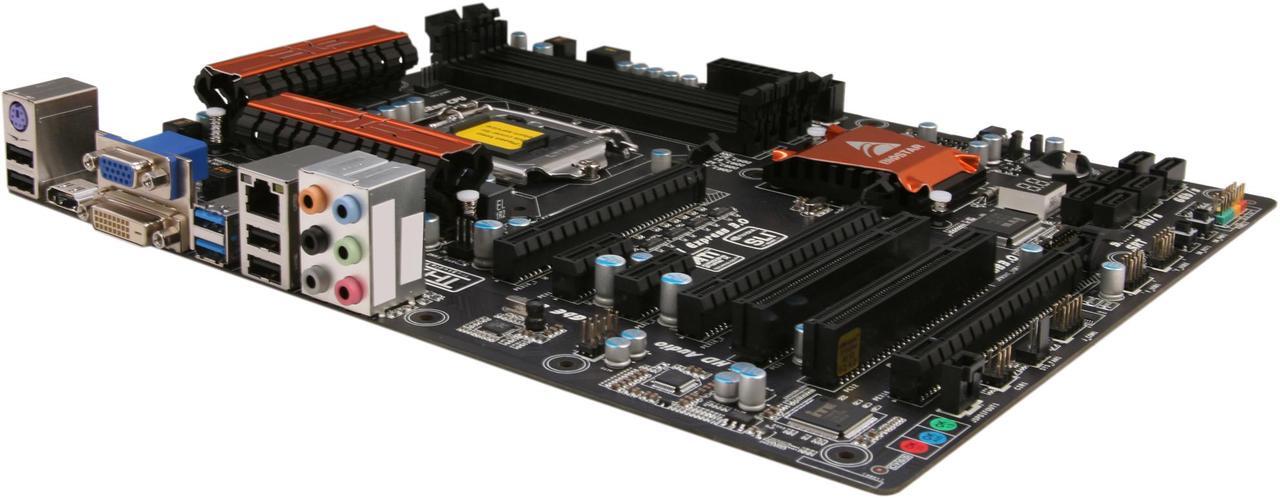

BIOSTAR TZ77XE3 LGA 1155 Intel Z77 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard with UEFI BIOS
- Intel Z77
- Core i7 / i5 / i3 (LGA1155)
- DDR3 2600(OC)/2400(OC)
Specs
Reviews (103)
Learn more about the Biostar TZ77XE3
| Brand | BIOSTAR |
|---|---|
| Model | TZ77XE3 |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 (LGA1155) |
| Chipset | Intel Z77 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2600(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 (SLi / CFX x8) |
|---|---|
| PCI Express 2.0 x16 | 1 @x4 |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA 3Gb/s | 4 x SATA 3Gb/s |
|---|---|
| SATA 6Gb/s | 2 x SATA 6Gb/s |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |

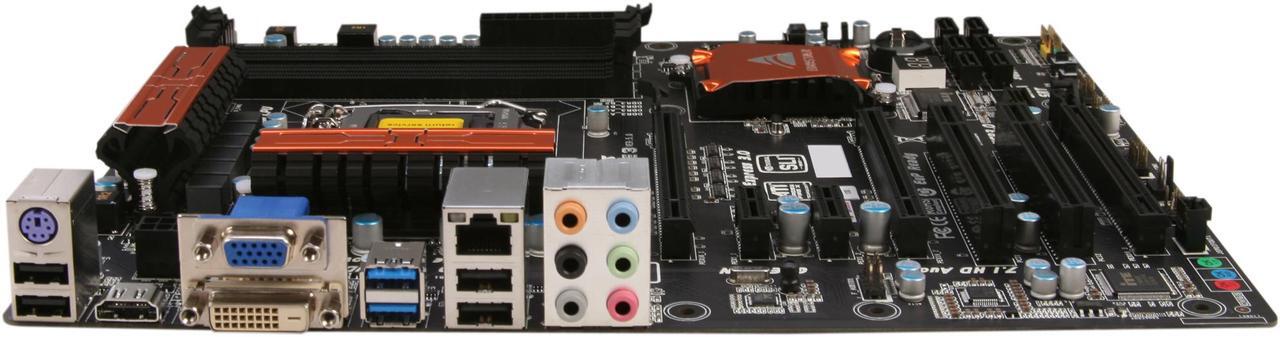

| Back I/O Ports | 1 x HDMI / 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 2 x System FAN Header 1 x Serial Header 1 x CIR Header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Maximum CPU TDP (Thermal Design Power) : 95Watt Support the Intel 3rd and 2nd generation Core i7 and Core i5 processors in the 1155 package Intel Z77 single chip architecture Support 4-DIMM DDR3-2600(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333 up to 32G maximum capacity Support SATA 6Gb/s 2X speed than current SATA 3G Support Intel Smart Response Technology Support USB 3.0 100% X.D.C solid capacitor BIOSTAR G.P.U (Green Power Utility) Technology for Energy Saving BIOSTAR Toverclocker utility |
|---|
| Date First Available | April 08, 2012 |
|---|
