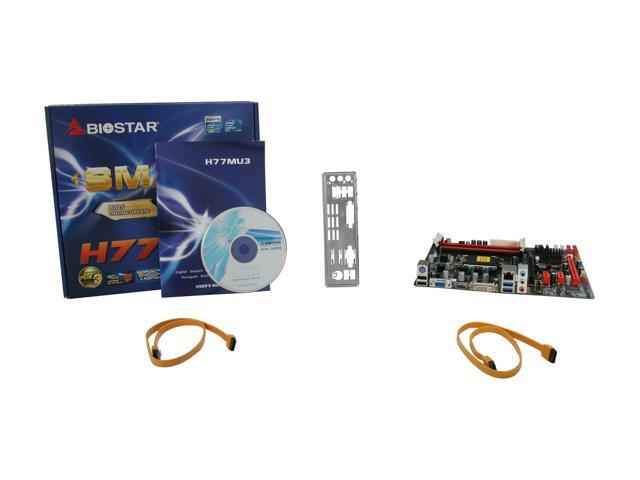

BIOSTAR H77MU3 LGA 1155 Intel H77 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

OUT OF STOCK.
  • Intel H77
  • Core i7 / i5 / i3 / Pentium (LGA1155)
  • DDR3 1600/1333/1066
Specs
Reviews

Learn more about the Biostar H77MU3

Model
Brand BIOSTAR
Model H77MU3
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 / Pentium (LGA1155)
Chipsets
Chipset Intel H77
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express 2.0 x16 1 @x4
PCI Express x1 2 x PCI Express x1
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Other Connectors 1 x Printer Header
1 x Front Audio Header
1 x Front Panel Header
1 x CPU FAN Header
1 x System FAN Header
1 x Serial Header
1 x CIR Header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.66"
Power Pin 24 Pin
Features
Features Maximum CPU TDP (Thermal Design Power) : 95Watt

Socket LGA 1155

Supported the Intel 3rd and 2nd generation Core i7 and Core i5 processors

Supported 4 DIMM of DDR3 1600/1333/1066MHz

Supported USB 3.0
Additional Information
Date First Available April 20, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
