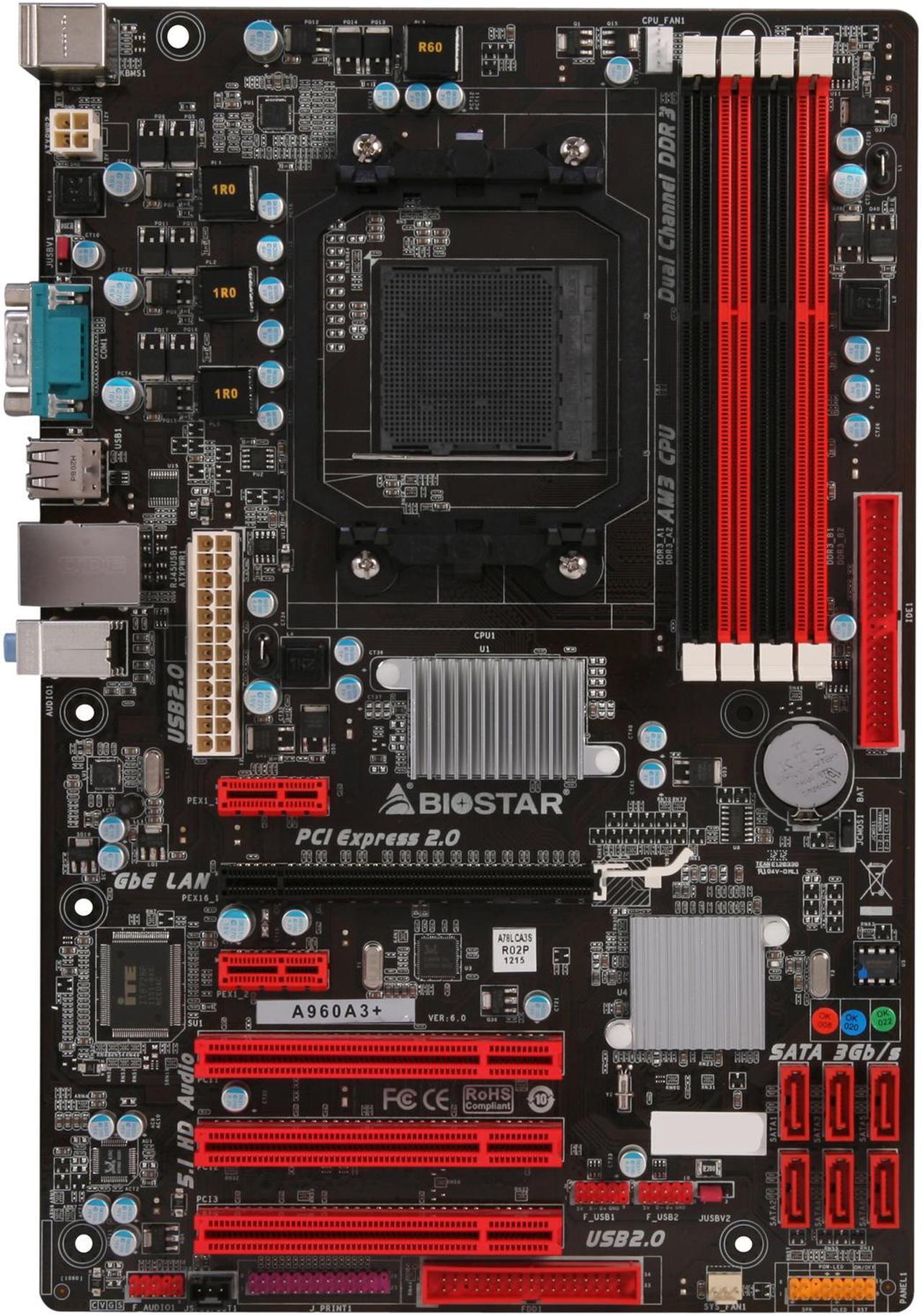

BIOSTAR A960A3+ AM3+ AMD RX881 + SB710 ATX AMD Motherboard

(22) Write a Review
  • AMD RX881 + SB710
  • FX / Phenom II / Athlon II / Sempron 100 Series
  • DDR3 800/1066/1333/1600(OC)/1866(OC)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (22)

Learn more about the Biostar A960A3+

Model
Brand BIOSTAR
Model A960A3+
Supported CPU
CPU Socket Type AM3+
CPU Type FX / Phenom II / Athlon II / Sempron 100 Series
FSB 2600 MHz
Chipsets
Chipset AMD RX881 + SB710
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 800/1066/1333/1600(OC)/1866(OC)
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111F
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Other Connectors 1 x Printer Header
1 x Floppy Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-OUT Header
1 x CPU FAN Header
1 x System FAN Header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.07"
Power Pin 24 Pin
Features
Features Socket AM3+

Supports AMD FX Series/Phenom II Series/Athlon II Series Processors

Hyper Transport Technology up to 5.2G

Supports AMD Cool'n'Quiet Technology

Maximum CPU TDP (Thermal Design Power) : 125Watt
Additional Information
Date First Available June 18, 2012
