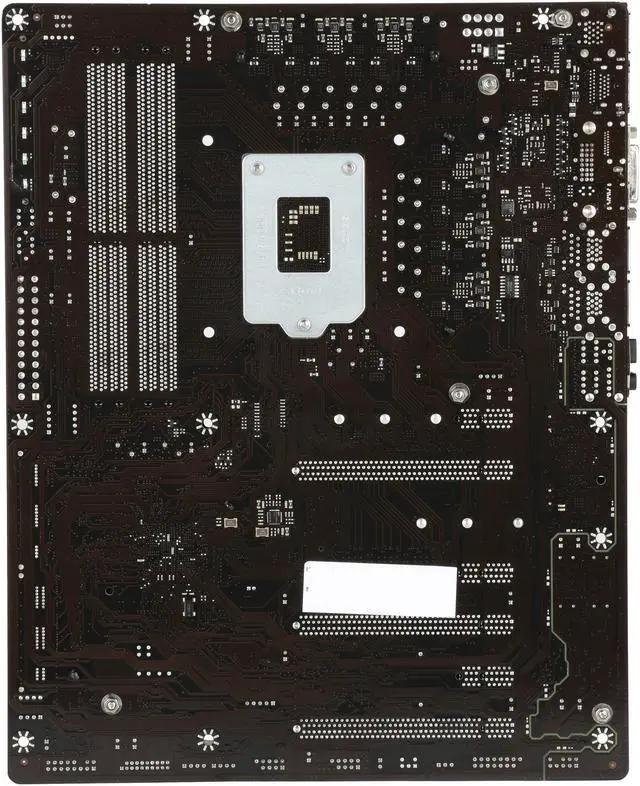

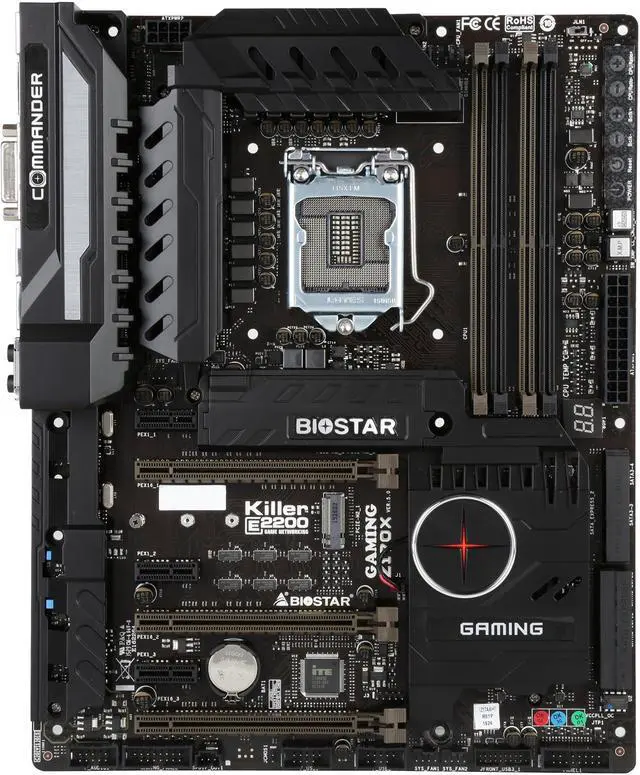

BIOSTAR GAMING Z170X LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel
- Intel Z170
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR4 3200(OC)/ 2133/ 1867
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar GAMING Z170X
| Brand | BIOSTAR |
|---|---|
| Model | GAMING Z170X |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Chipset | Intel Z170 |
|---|
| Onboard Video Chipset | By CPU model Supports DX12 Supports HDCP |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200(OC)/ 2133/ 1867 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCI-E x16 3.0 Slots (x16 or x8, x8 or x8, x4, x4) |
|---|---|
| PCI Express x1 | 3 x PCI-E x1 3.0 Slots |
| Other Slots | 1 x PCI-E M.2 Key A Slot (support Wi-Fi or WiGig) |
| SATA Express | 3 x SATA Express 16Gb/s Connector |
|---|---|
| M.2 | 2 x M.2 Key M 32Gb/s Connector |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC898 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Second LAN Chipset | Killer E2201 |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 1 |
|---|---|

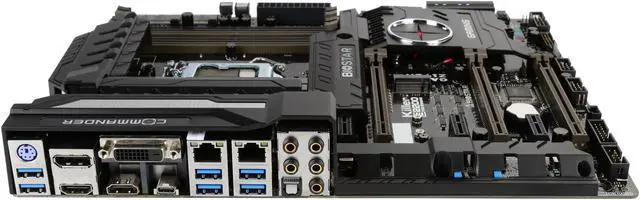

| Video Ports | 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz |
| HDMI | 2 x HDMI Connector, resolution up to 4096 x 2160 @60Hz, compliant with HDMI 2.0 |
| RJ45 | 2 x RJ45 |
| DisplayPort | 1 x DisplayPort Connector, resolution up to 4096 x 2304 @60Hz |
| USB 3.1 | 1 x USB 3.1 Type-C Port |
| USB 3.0 | 6 x USB 3.0 |
| S/PDIF Out | 1 x S/PDIF Out Port |
| Audio Ports | 5 Ports |
| Onboard USB | 1 x USB 3.0 Header 2 x USB 2.0 Headers |
|---|---|
| Other Connectors | 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 2 x CPU Fan Header 3 x System Fan Header 1 x GAMING_Panel Header 1 x LN2 Switch |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.01" x 9.61" |

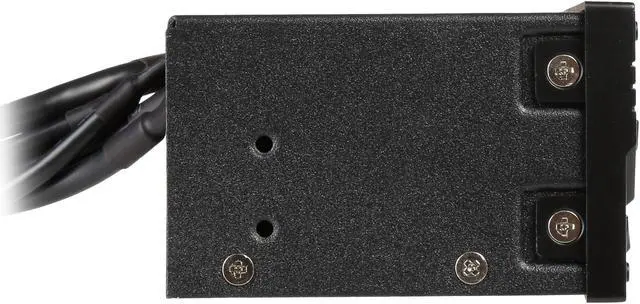

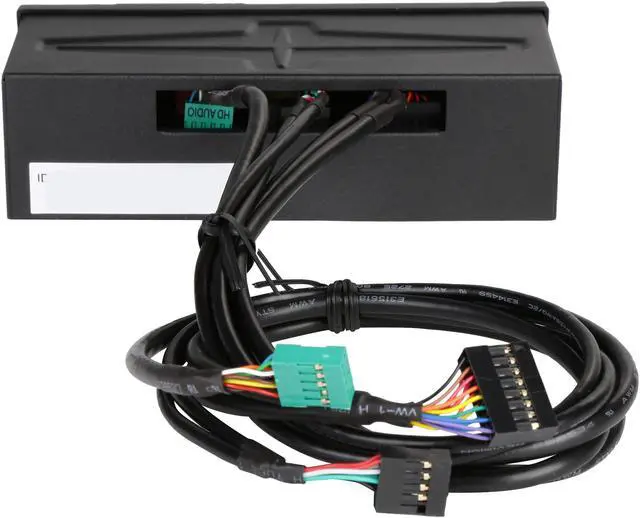

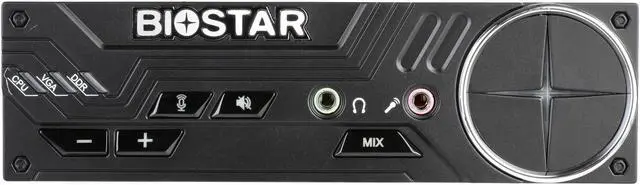

| Features | GAMING COMMANDER Supports 6th Generation Intel Core Processor, enables overclocking on Unlocked Intel Core Processors Intel Z170 single chip architecture Support 4-DIMM DDR4-3200(OC)/ 2133/ 1867 up to 64G maximum capacity BIOSTAR Hi-Fi 3D Technology inside Support USB 3.1 Type-C Support PCIe M.2 (32Gb/s) Support SATA Express (16Gb/s) Support HDMI 2.0 true 4K resolution Support DisplayPort GAMING COMMANDER: External GAMING Commander Box / Audio Control Software Utility MULTI GRAPHICS: AMD 3way CrossFireX H/W MONITORING: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU / System Fan Control System Voltage Monitoring OVERVOLTAGE: CPU Vcore/ Vring/ VSA/ VCC_IO/ VGT/ VCC_PLL_OC/ DDR/ DDR DIMMA CA Verf/ DDR DIMMB CA Verf/ DDR VPP/ PCH 1.0V OS SUPPORT: Support Windows 7 / 8.1(x64) / 10(x64) BUNDLE SOFTWARE: BullGuard Smart Ear 3D BIO-Remote2 Smart Speed LAN Intel Rapid Storage Technology(include Intel Smart Response Technology) FEATURES: Supports PURO Hi-Fi 3D Touch OC Supports 100% Solid capacitor Supports Rapid Debug3 Supports Charger Booster II Supports BIOS Online Update |
|---|

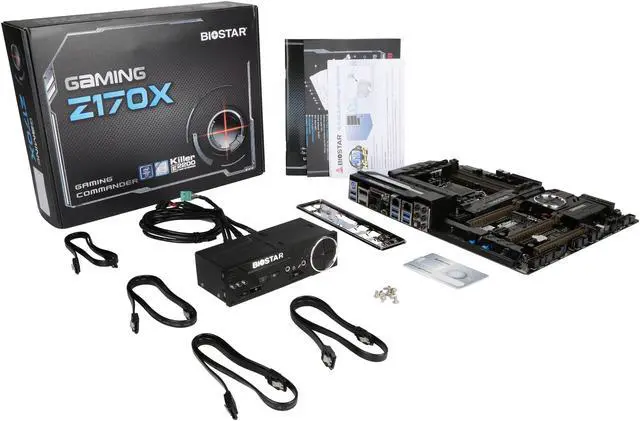

| Package Contents | ACCESSORIES: 4 x SATA Cable 1 x I/O Shield 1 x 4GB USB Flash Drive 1 x User Manual |
|---|
| First Listed on Newegg | July 29, 2016 |
|---|
