Brand | BIOSTAR |
---|---|
Model | H310MHD PRO |
CPU Socket Type | LGA 1151 (300 Series) |
---|---|
CPU Type | 8th Gen Intel Core i7 LGA 1151 Processor 8th Gen Intel Core i5 LGA 1151 Processor 8th Gen Intel Core i3 LGA 1151 Processor 8th Gen Intel Pentium LGA 1151 Processor 8th Gen Intel Celeron LGA 1151 Processor * Not backward compatible with older generation of LGA 1151 CPUs |
Chipset | Intel H310 |
---|
Number of Memory Slots | 2x288pin (DDR4) |
---|---|
Memory Standard | DDR4 2666/ 2400/ 2133/ 1866 |
Maximum Memory Supported | 32GB |
PCI Express 3.0 x16 | 1 x PCI-E 3.0 x16 Slot |
---|---|
PCI Express x1 | 2 x PCI-E 2.0 x1 Slot |
SATA 6Gb/s | 4 x SATA 6Gb/s |
---|
LAN Chipset | Realtek RTL8111H |
---|---|
Max LAN Speed | 10/100/1000Mbps |
PS/2 | 1 x PS/2 Mouse 1 x PS/2 Keyboard |
---|---|
Video Ports | 1 x DVI-D Connector, resolution up to 1920*1200@60Hz 1 x VGA Port, resolution up to 1920*1600@60Hz |
HDMI | 1 x HDMI Connector, resoltuion up to 4096*2160@24Hz, compliant with HDMI 1.4 |
RJ45 | 1 x RJ45 |
USB 3.1 | 2 x USB 3.1 Gen1 Port |
USB 1.1/2.0 | 4 x USB 2.0 |
Audio Ports | 3 Ports |
Onboard USB | 1 x USB 3.1 Gen1 Header 1 x USB 2.0 Header |
---|---|
Other Connectors | 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header |
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 9.0" x 7.0" |
Features | OS SUPPORT Support: Windows 10 (64-bit) Supports 8th Generation Intel Core Processor Intel H310 single chip architecture Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity Support USB 3.1 Gen1 Support HDMI display port Support GbE LAN |
---|

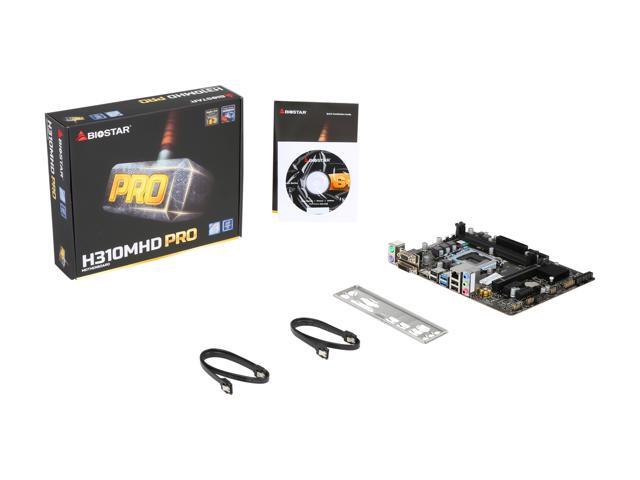

Package Contents | ACCESSORIES: 1 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
---|
Date First Available | April 27, 2018 |
---|
