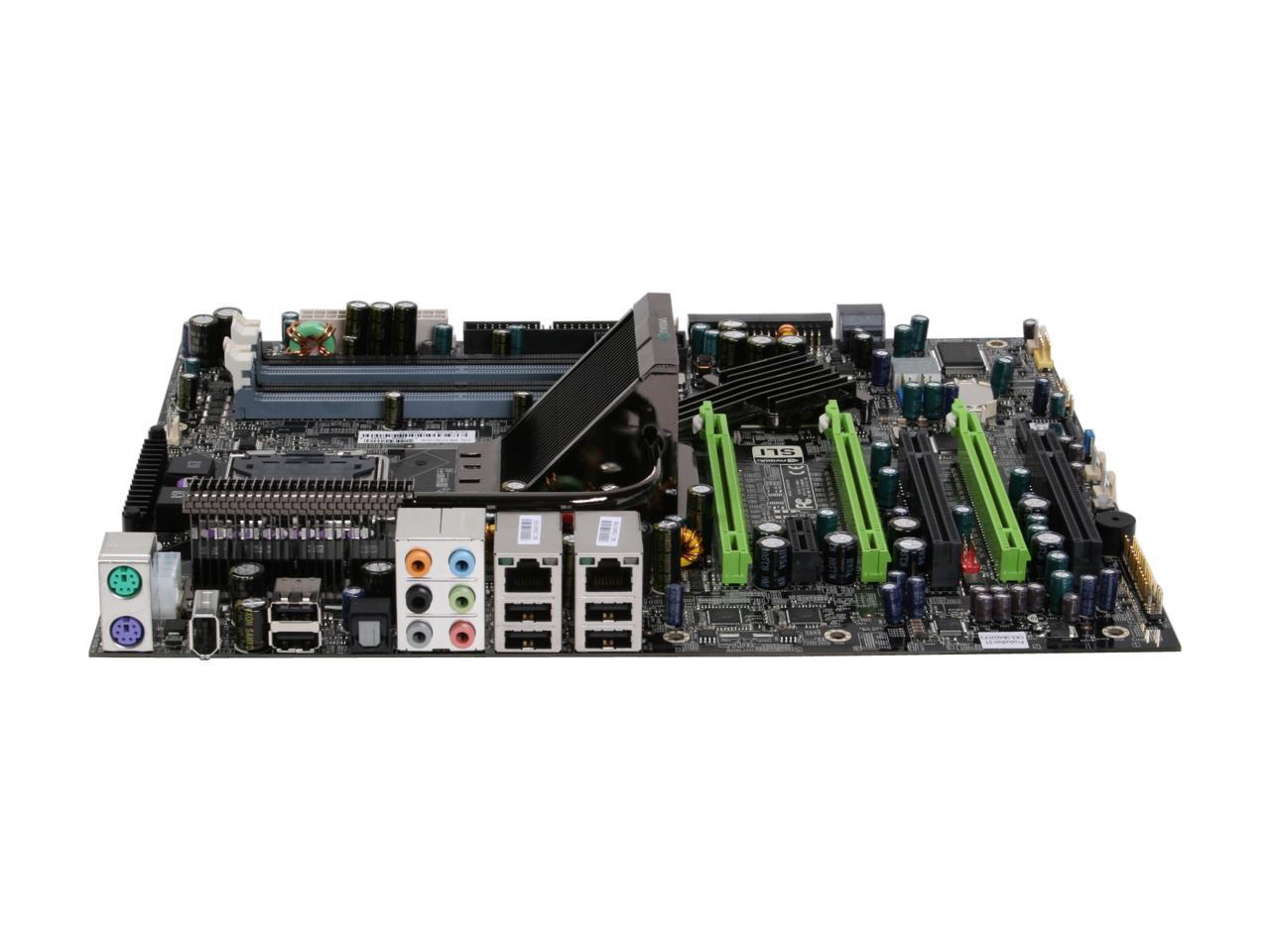

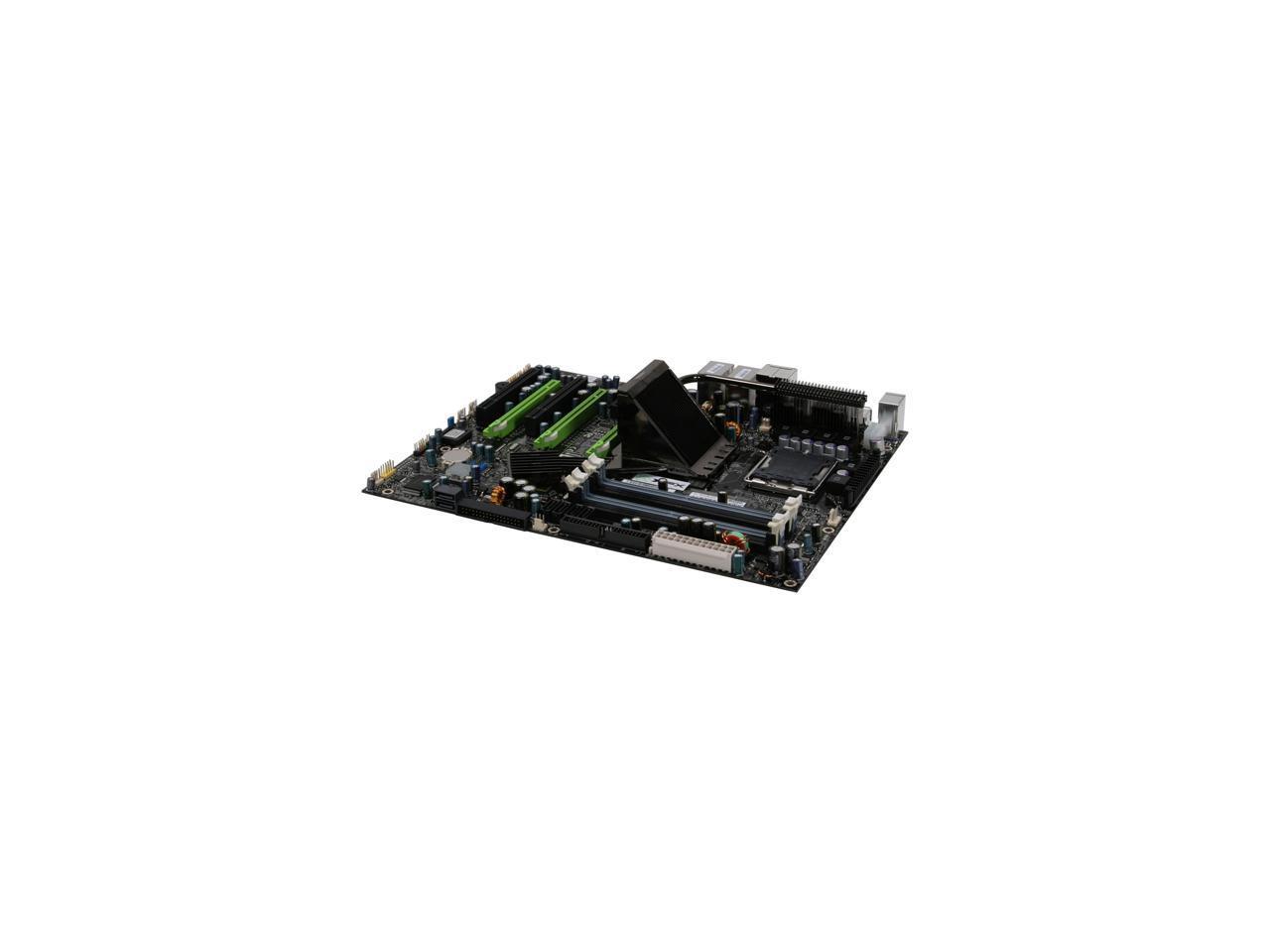

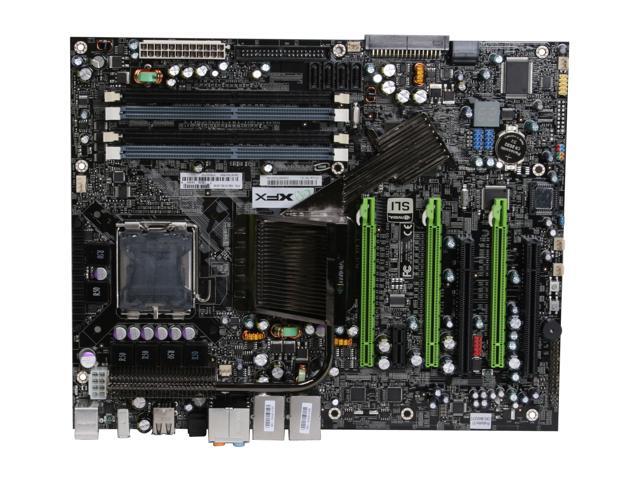

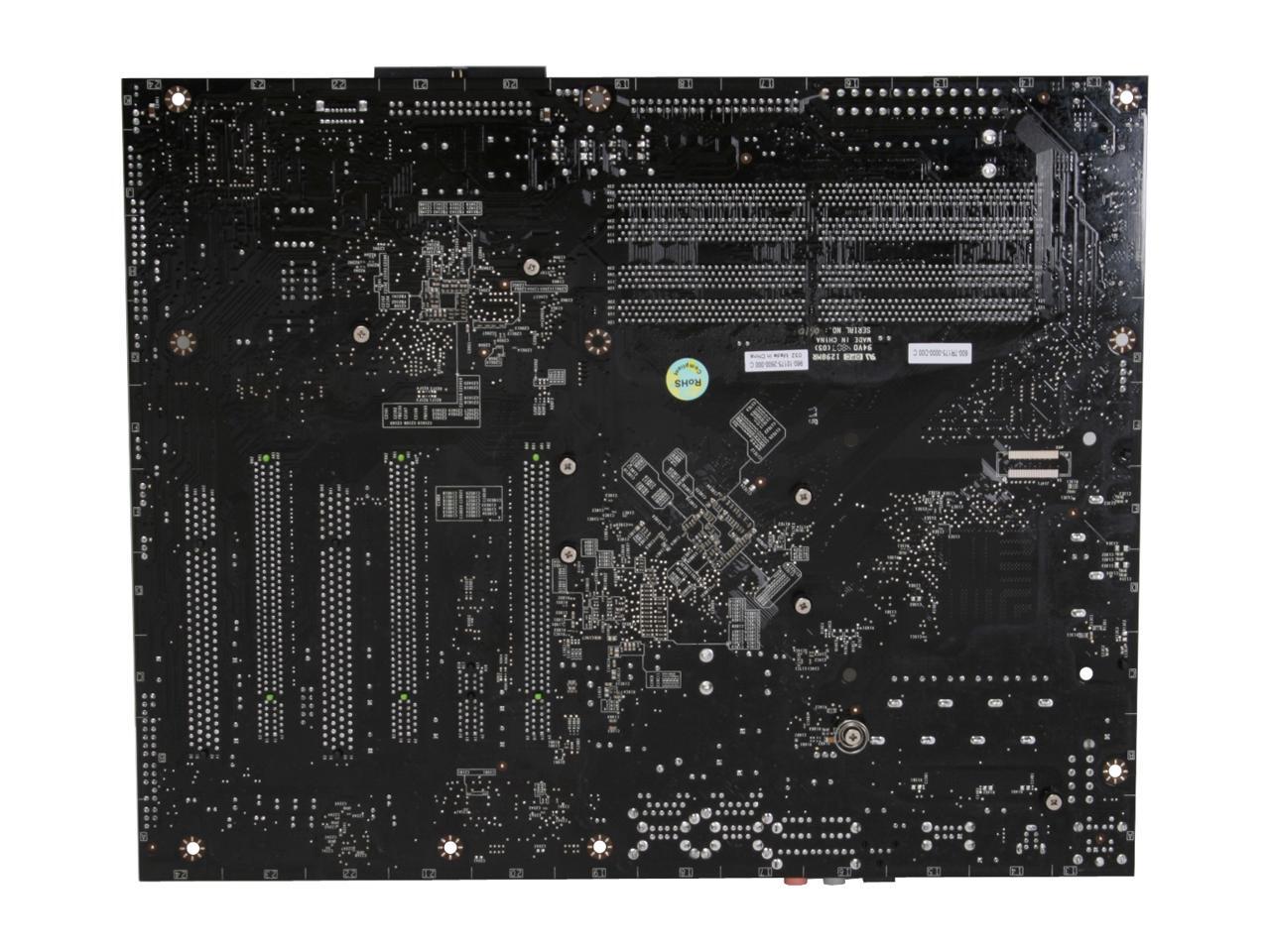

XFX MB-N780-ISH9 LGA 775 NVIDIA nForce 780i SLI Intel Motherboard 3-Way SLI Support

(336) Write a Review
See more "lga 775"
OUT OF STOCK.
  • NVIDIA nForce 780i SLI
  • Core 2 Duo / Core 2 Extreme / Core 2 Quad
  • DDR2 800 (up to DDR2 1200 with EPP 1.0)
Specs
Reviews

Learn more about the XFX MB-N780-ISH9

Model
Brand XFX
Model MB-N780-ISH9
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Core 2 Extreme / Core 2 Quad
FSB 1333/1066 MHz
Chipsets
Chipset NVIDIA nForce 780i SLI
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800 (up to DDR2 1200 with EPP 1.0)
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID NV RAID 0/1/0+1/5 JBOD
Onboard Audio
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF In 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Power Pin 24 Pin
Packaging

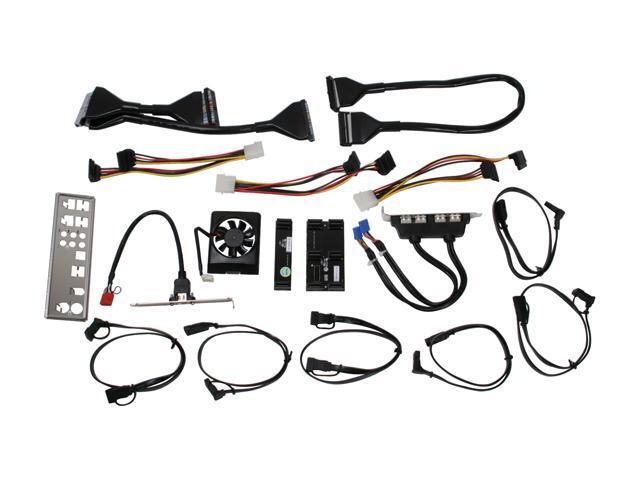

Package Contents MB-N780-ISH9
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
6 x SATA Cable
3 x 4-pin to SATA Power Cable
USB Bracket
IEEE 1394 Bracket
3-Way SLI Bridge & SLI Bridge
Fan
Additional Information
Date First Available December 20, 2007
