Images from RETAIL item, box contents may vary.

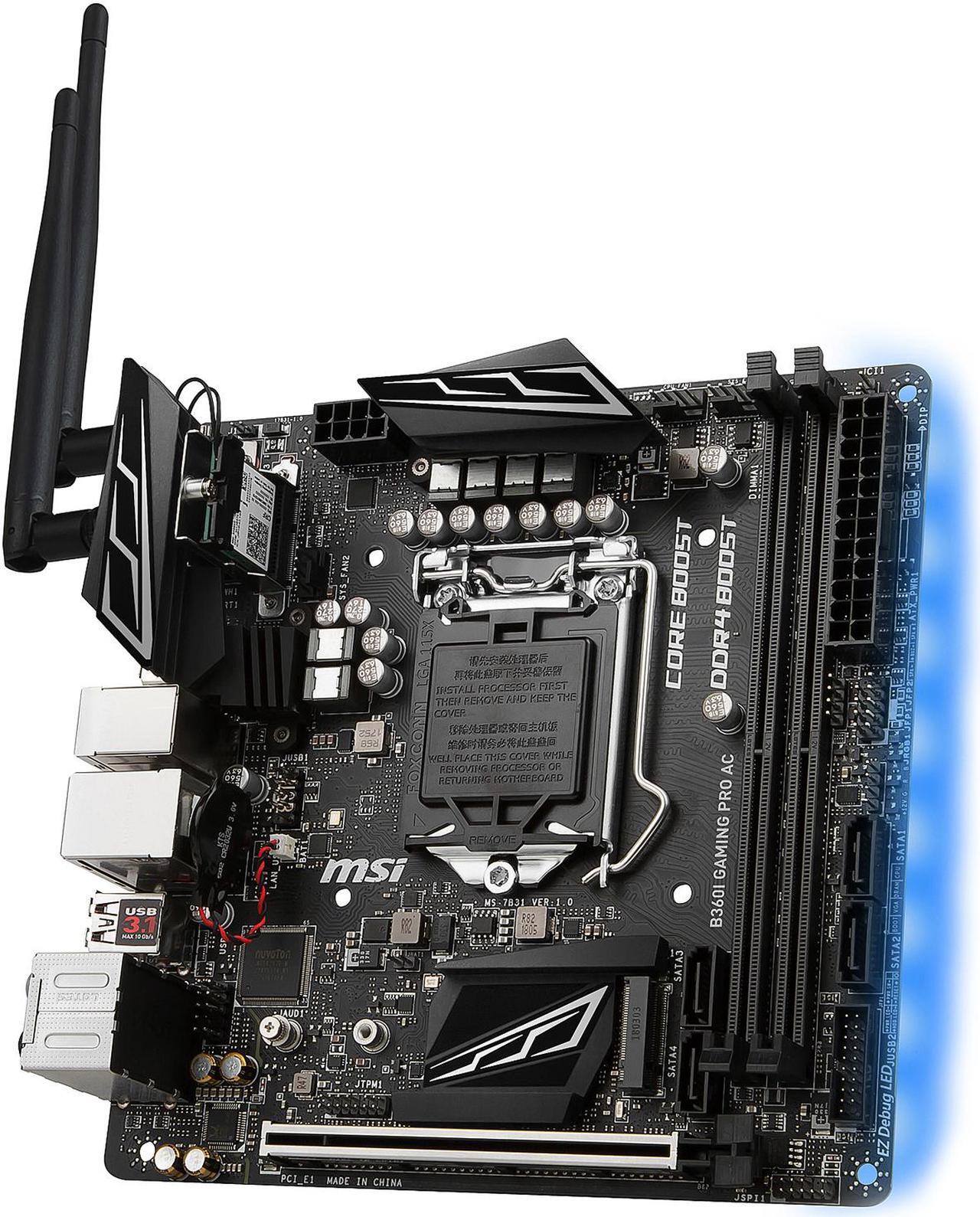

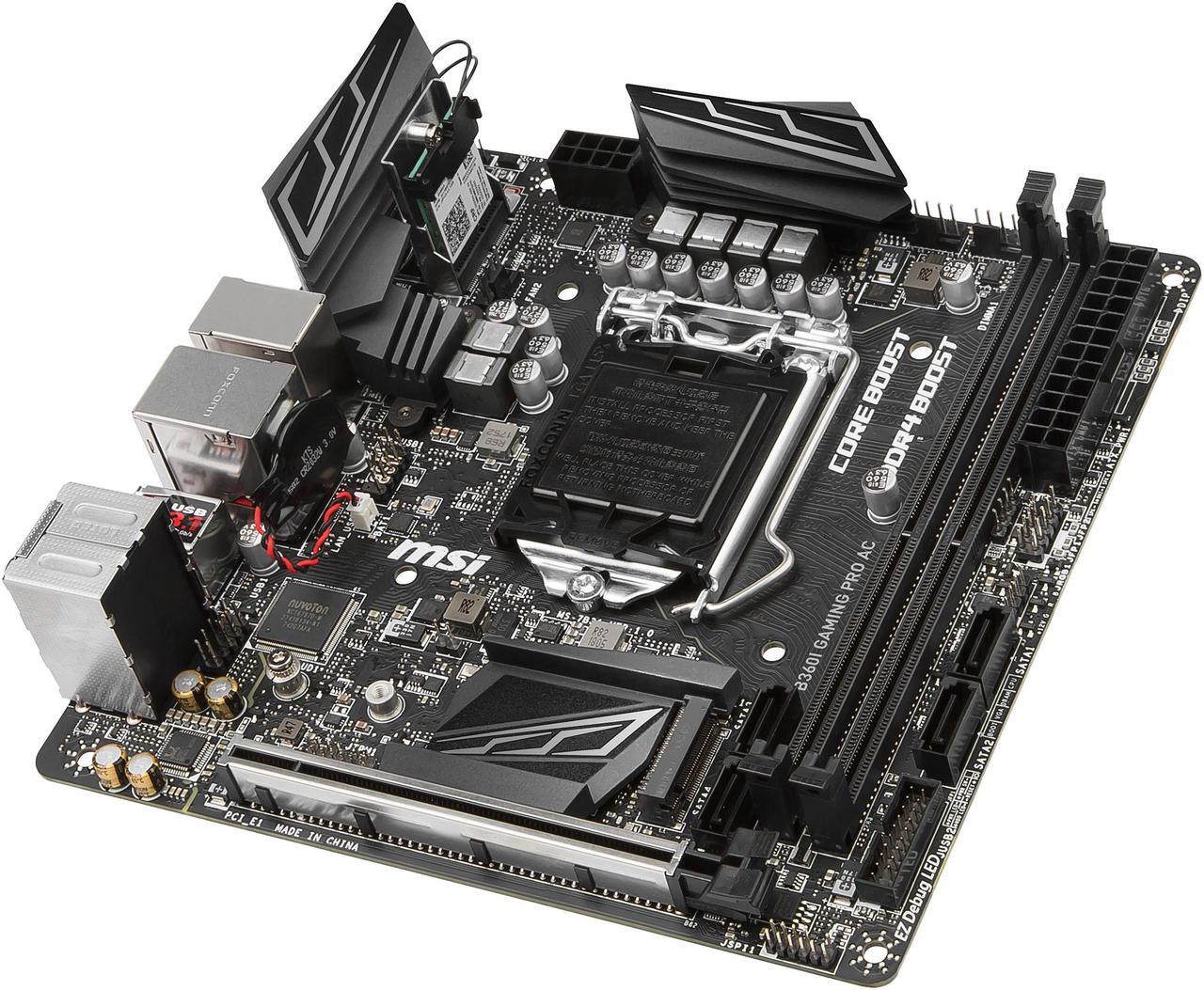

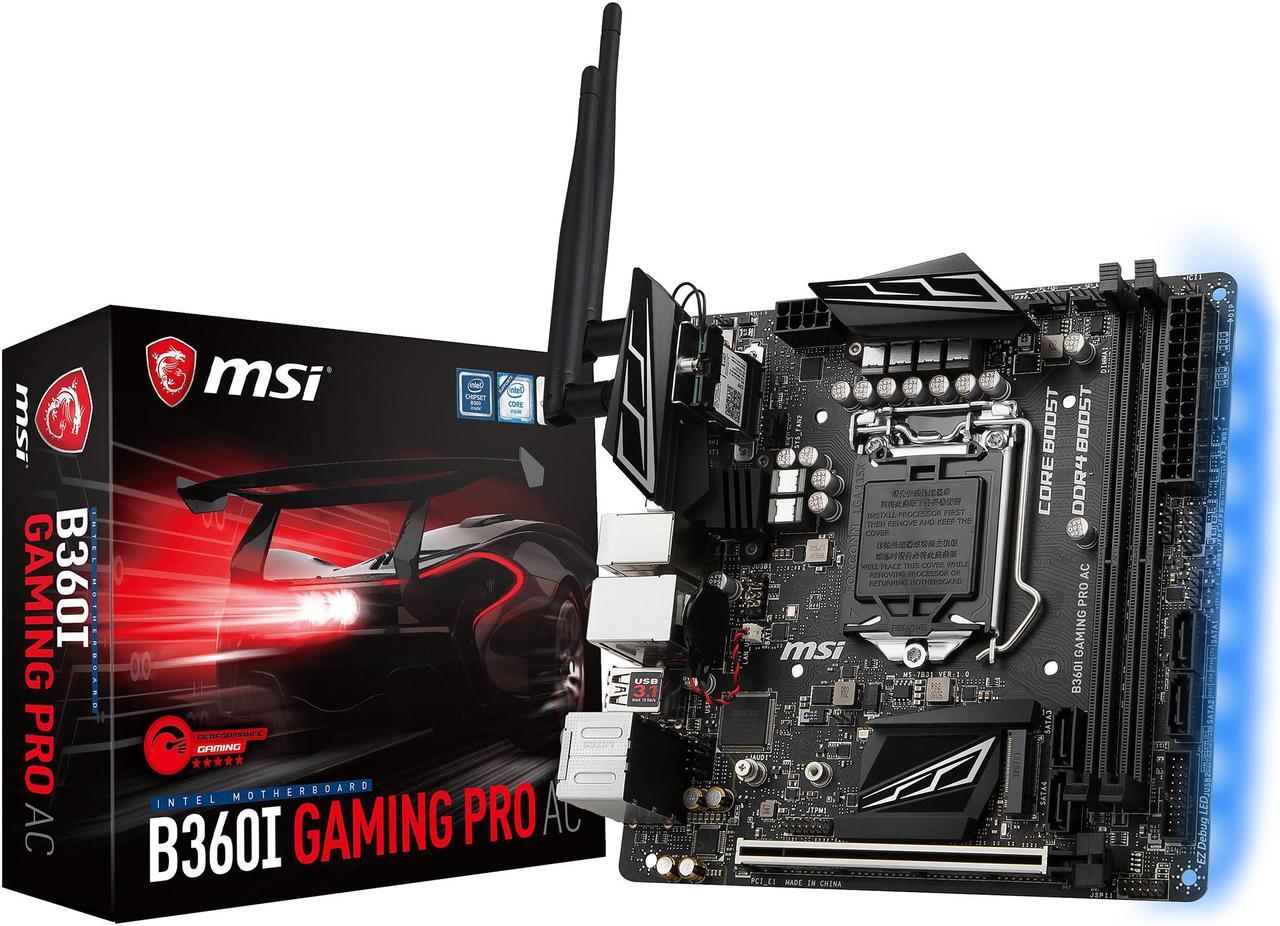

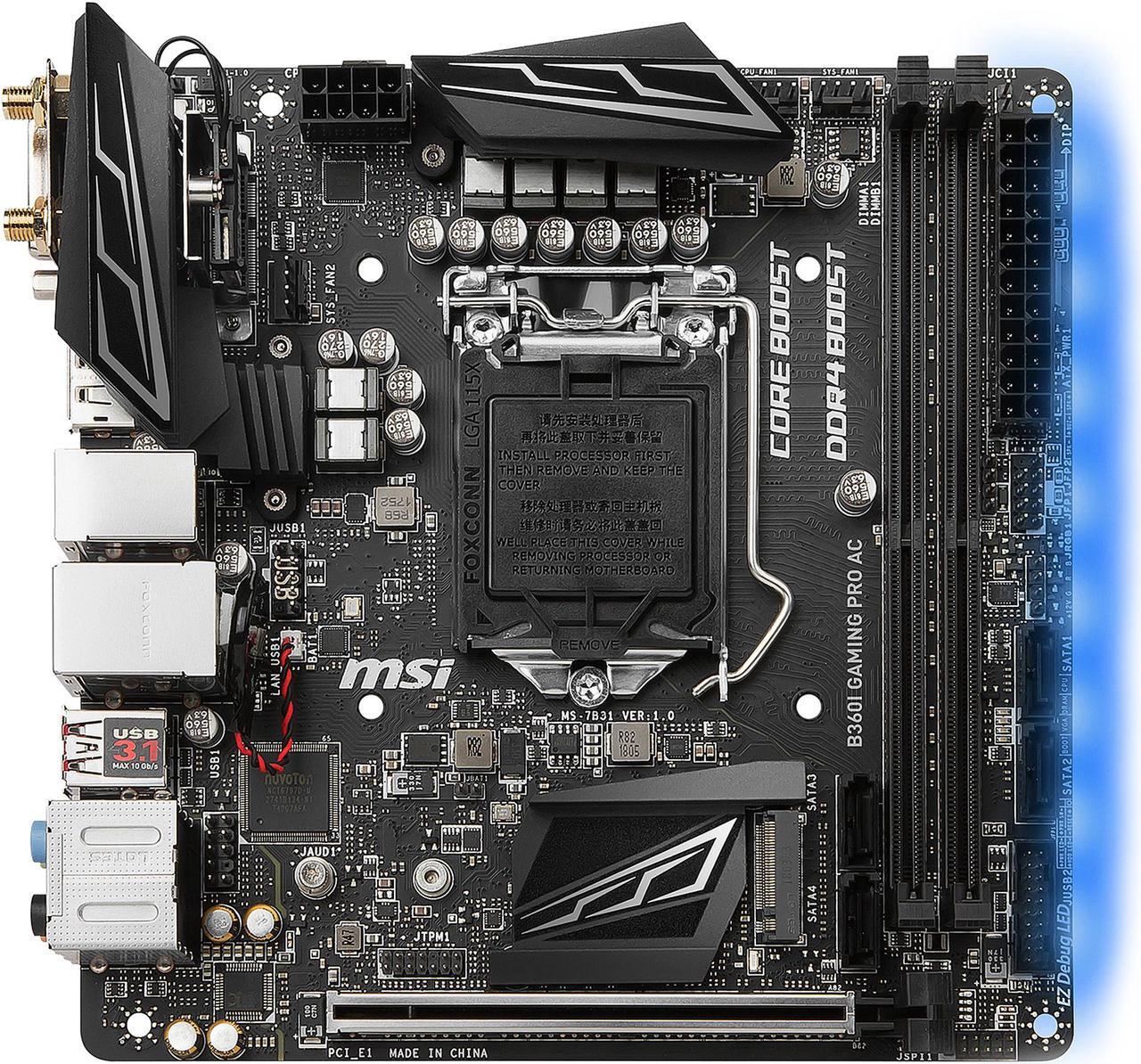

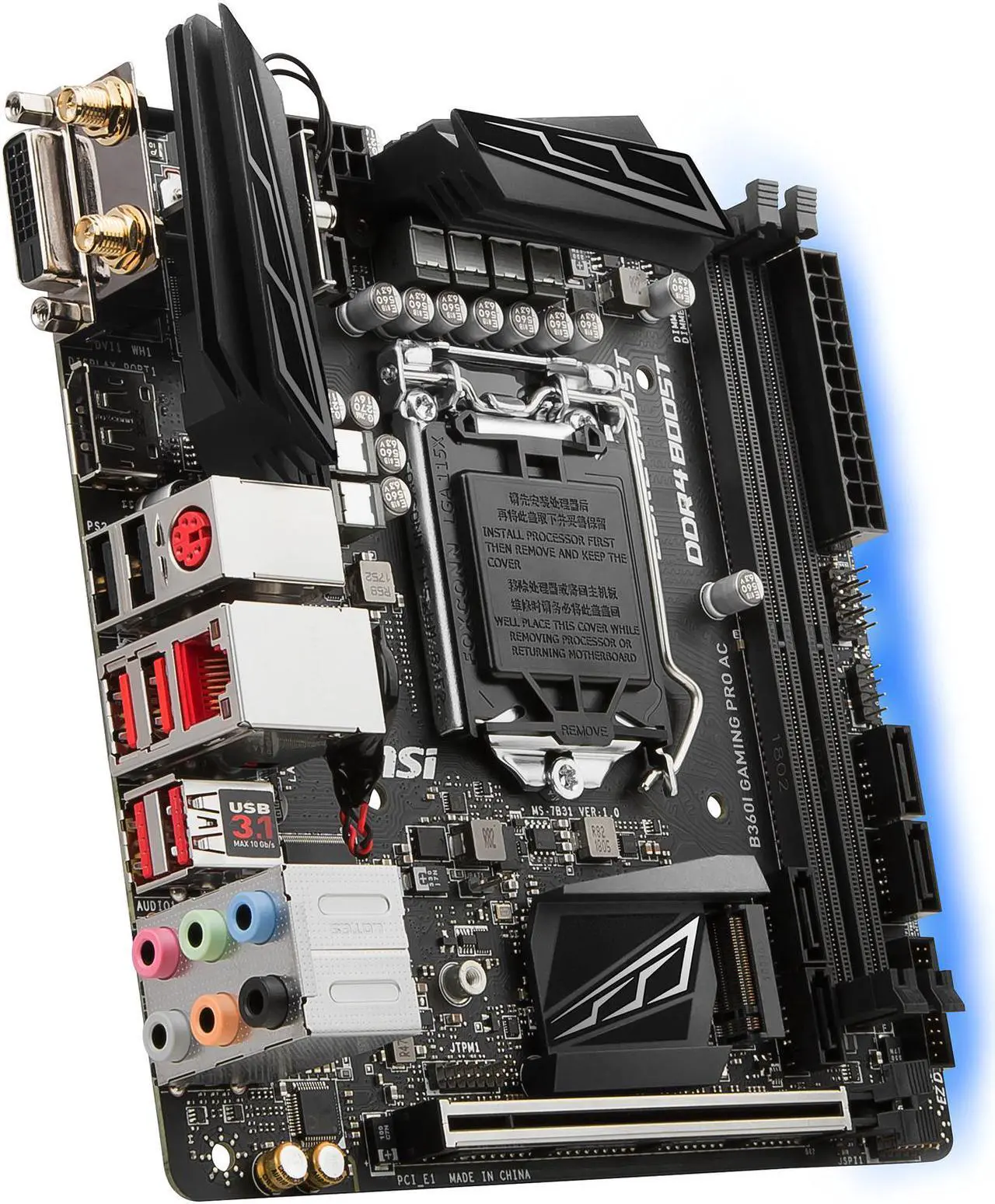

MSI B360I GAMING PRO AC LGA 1151 (300 Series) Intel B360 USB 3.1 Mini ITX Intel Motherboard
OPEN BOX Product Type
- Intel B360
- Supports 8th Gen Intel Core, Pentium Gold and Celeron Processors for Socket LGA1151
- DDR4 2666/ 2400/ 2133
Specs
Learn more about the MSI B360I GAMING PRO AC
| Brand | MSI |
|---|---|
| Model | B360I GAMING PRO AC |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports 8th Gen Intel Core, Pentium Gold and Celeron Processors for Socket LGA1151 * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel B360 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2666/ 2400/ 2133 * Please refer to www.msi.com for more information on compatible memory |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M): Support up to PCIe 3.0 x4 and SATA 6Gb/s* Supports 2260/2280 storage devices Intel Optane Memory Ready for M2_2 slot only** * M2_2 slot supports PCIe M.2 SSD only. ** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H-C |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Intel Wireless-AC 9462 card Supports Wi-Fi 802.11 a/b/g/n/ac, Dual Band, MU-MIMO, up to 433 Mbps speed. |
| Bluetooth | Bluetooth 5 |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x DVI-D |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports 2 x USB 3.1 Gen1 (SuperSpeed USB) ports (Type-A) |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x 5050 RGB LED strip 12V connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 8th Gen Intel Core, Pentium Gold and Celeron processors for Socket LGA 1151 Supports DDR4 Memory, up to 2666MHz MYSTIC LIGHT and Sync: Personalize your PC with 16.8 million colors / 10 effects controlled in one click with the Mystic Light APP or a mobile device Lightning Fast Game experience: 2 x TURBO M.2, Intel Optane Memory Ready. Intel Turbo USB 3.1 Gen2 Core Boost: With premium layout and optimized power design to support more cores and provide better performance AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability Intel Wireless Support: Uses smart MU-MIMO technology, delivering AC speeds up to 433 Mbps with lower CPU loading and better long-term usage VR Ready: Best virtual reality game experience without latency, reduces motion sickness In-Game Weapons: GAMING Hotkey, X-Boost EZ Debug LED: Easiest way to troubleshoot Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players |
|---|
| Date First Available | November 15, 2018 |
|---|
