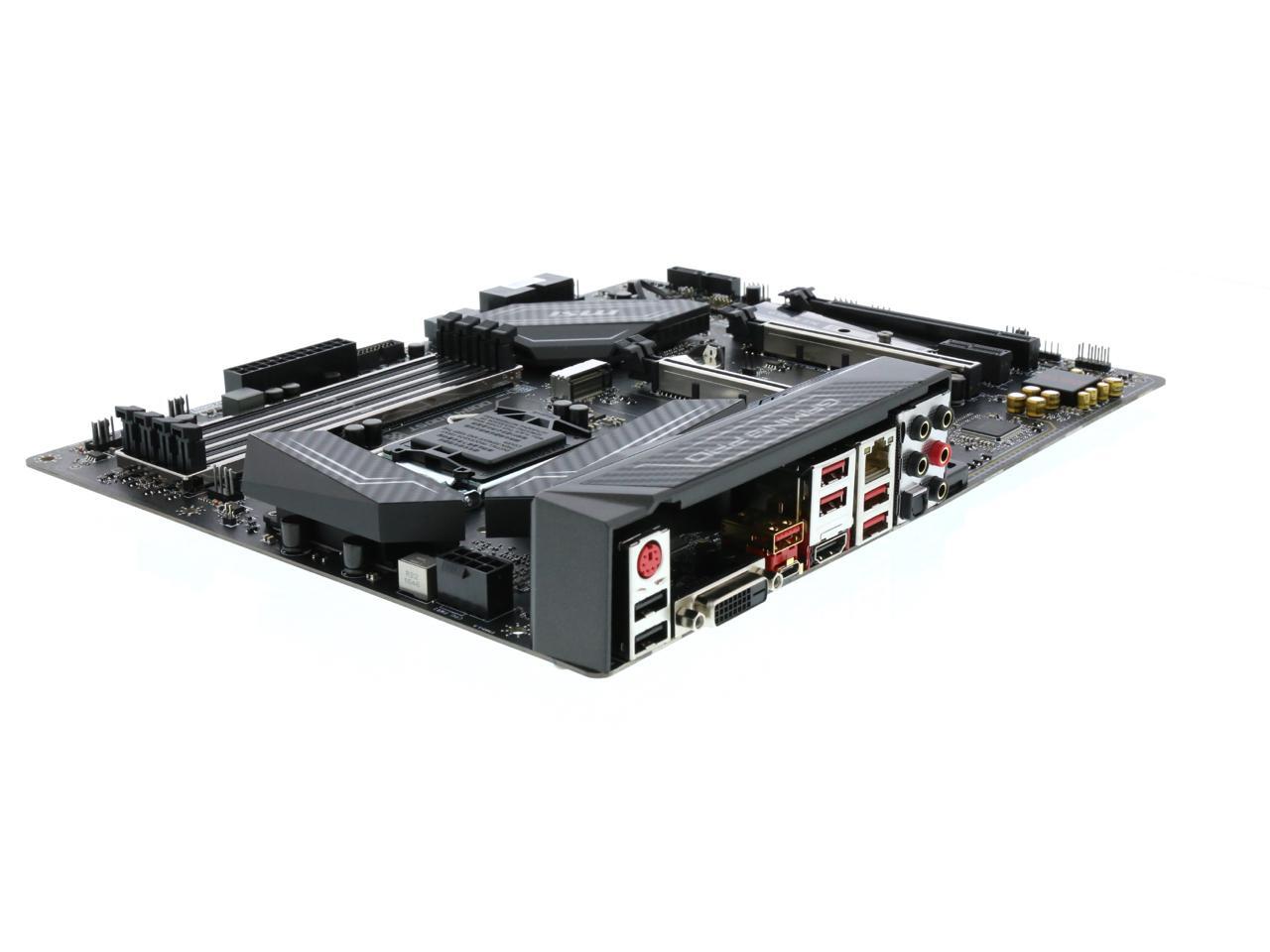

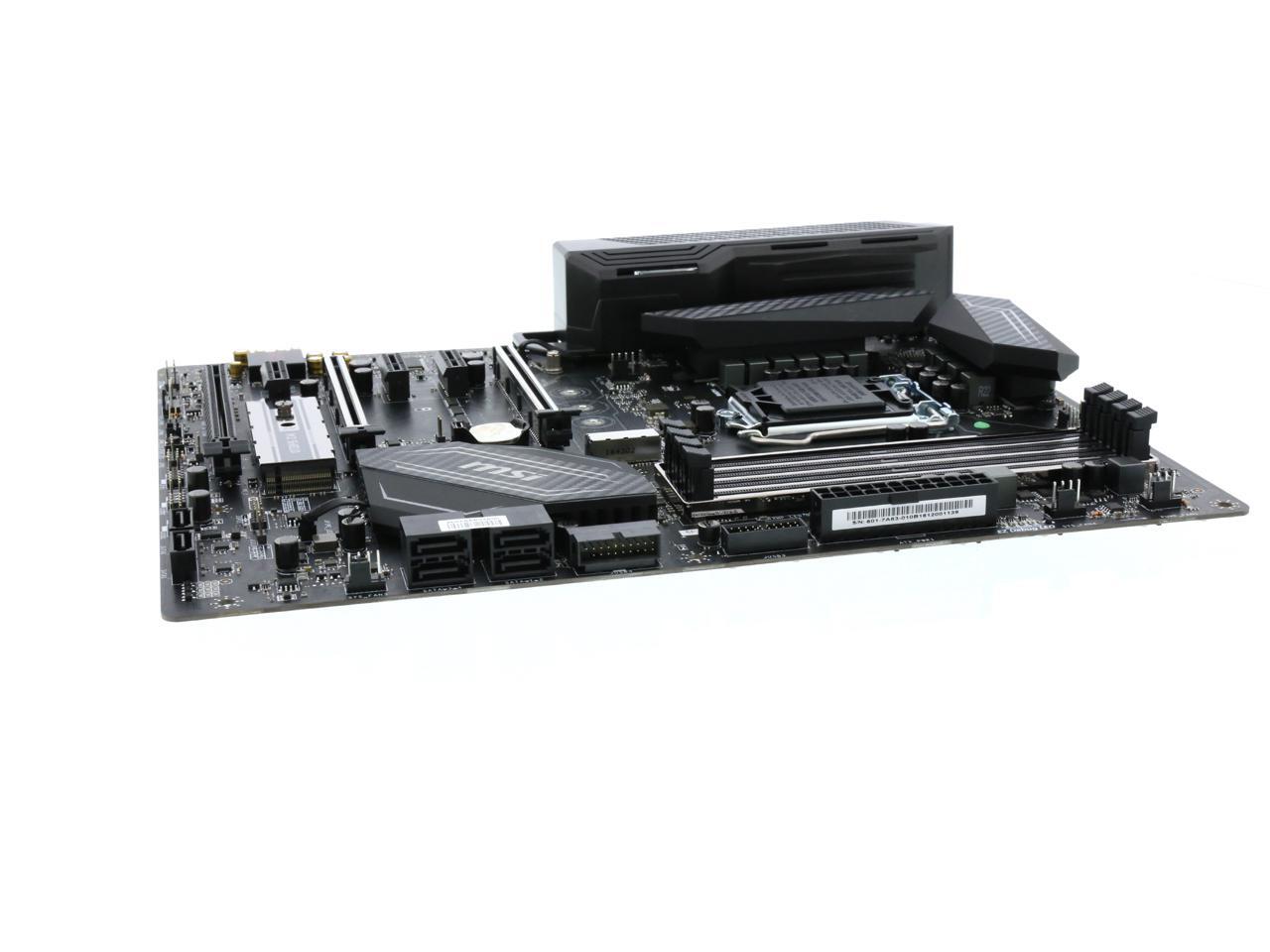

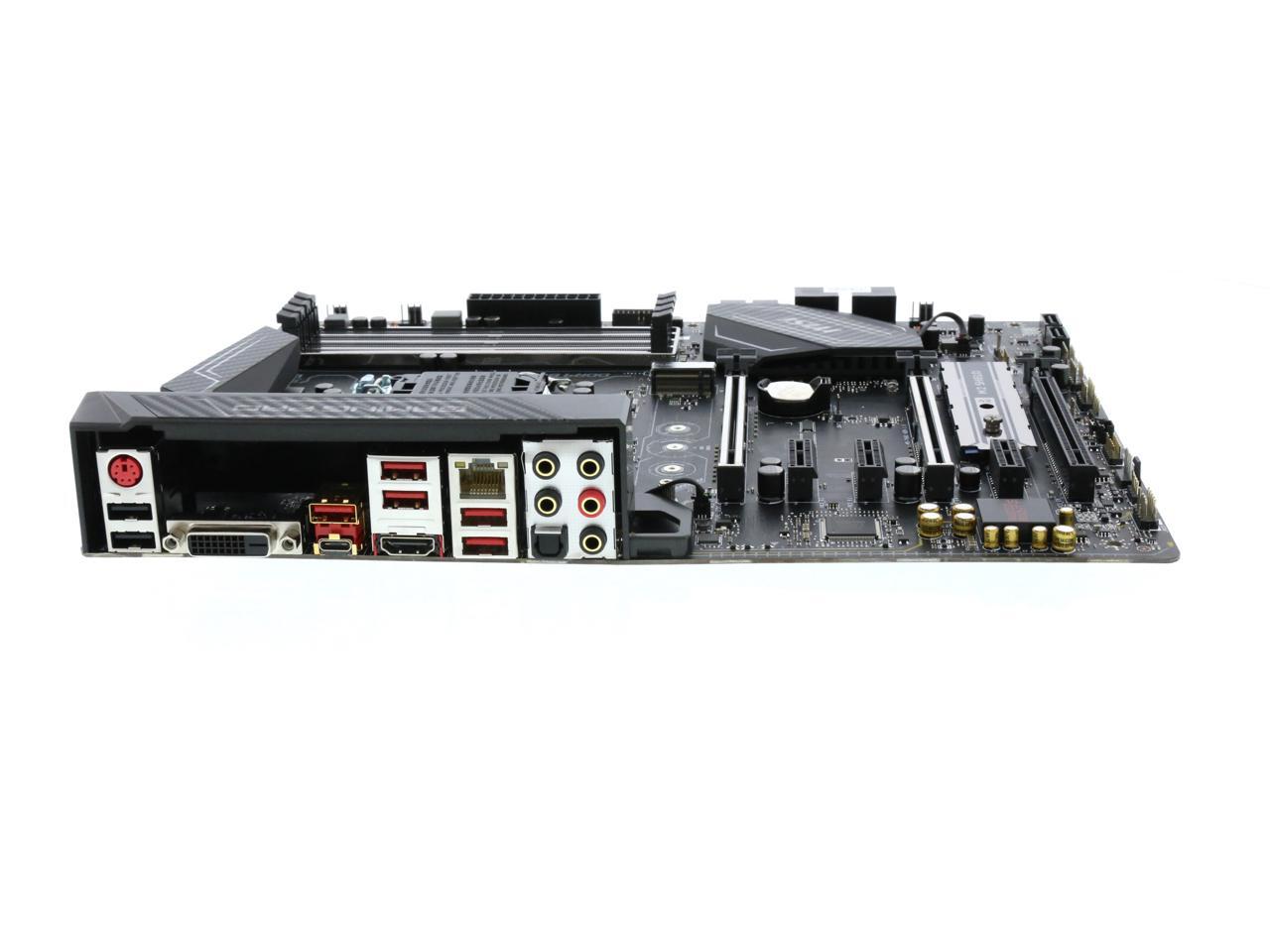

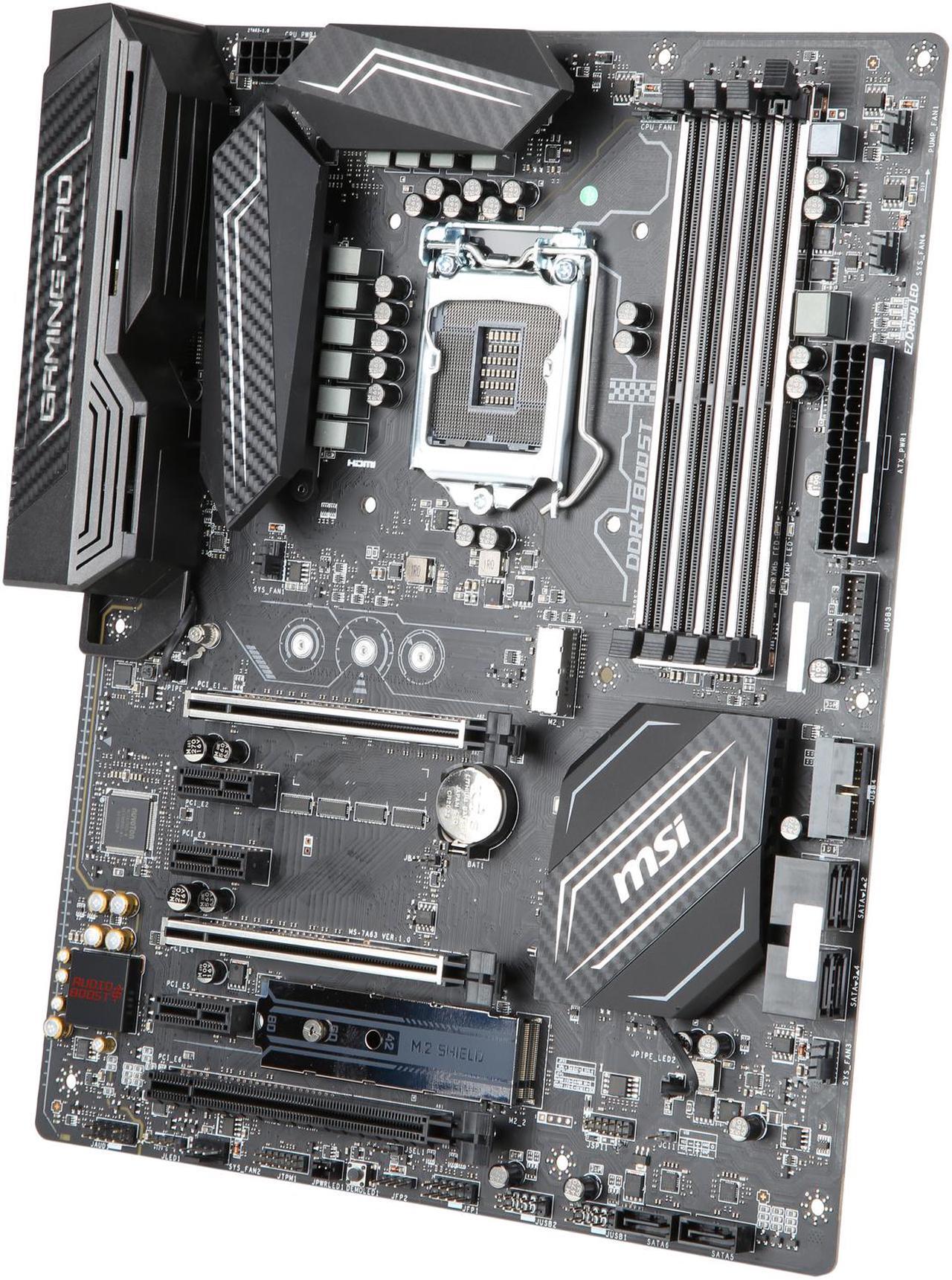

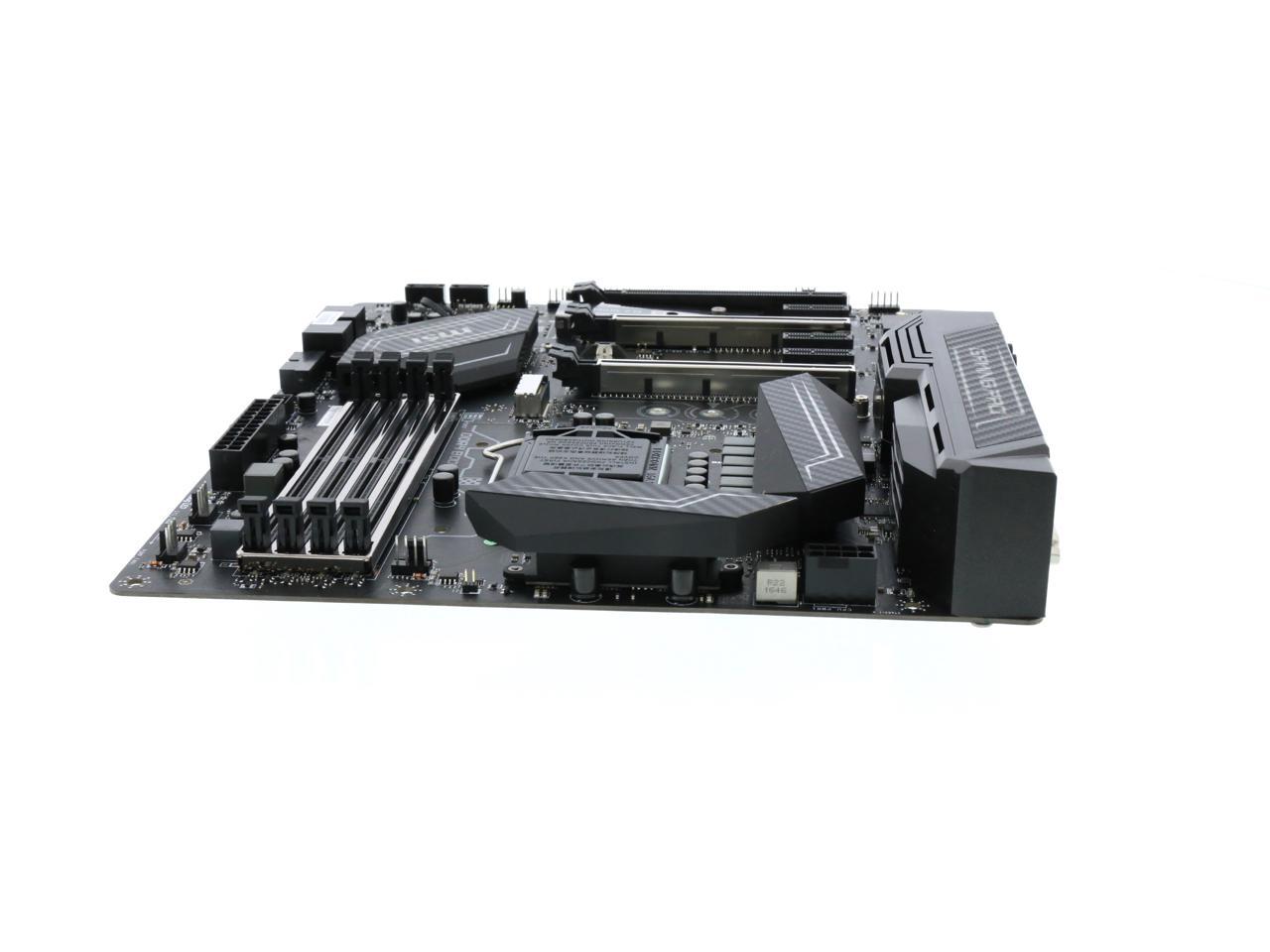

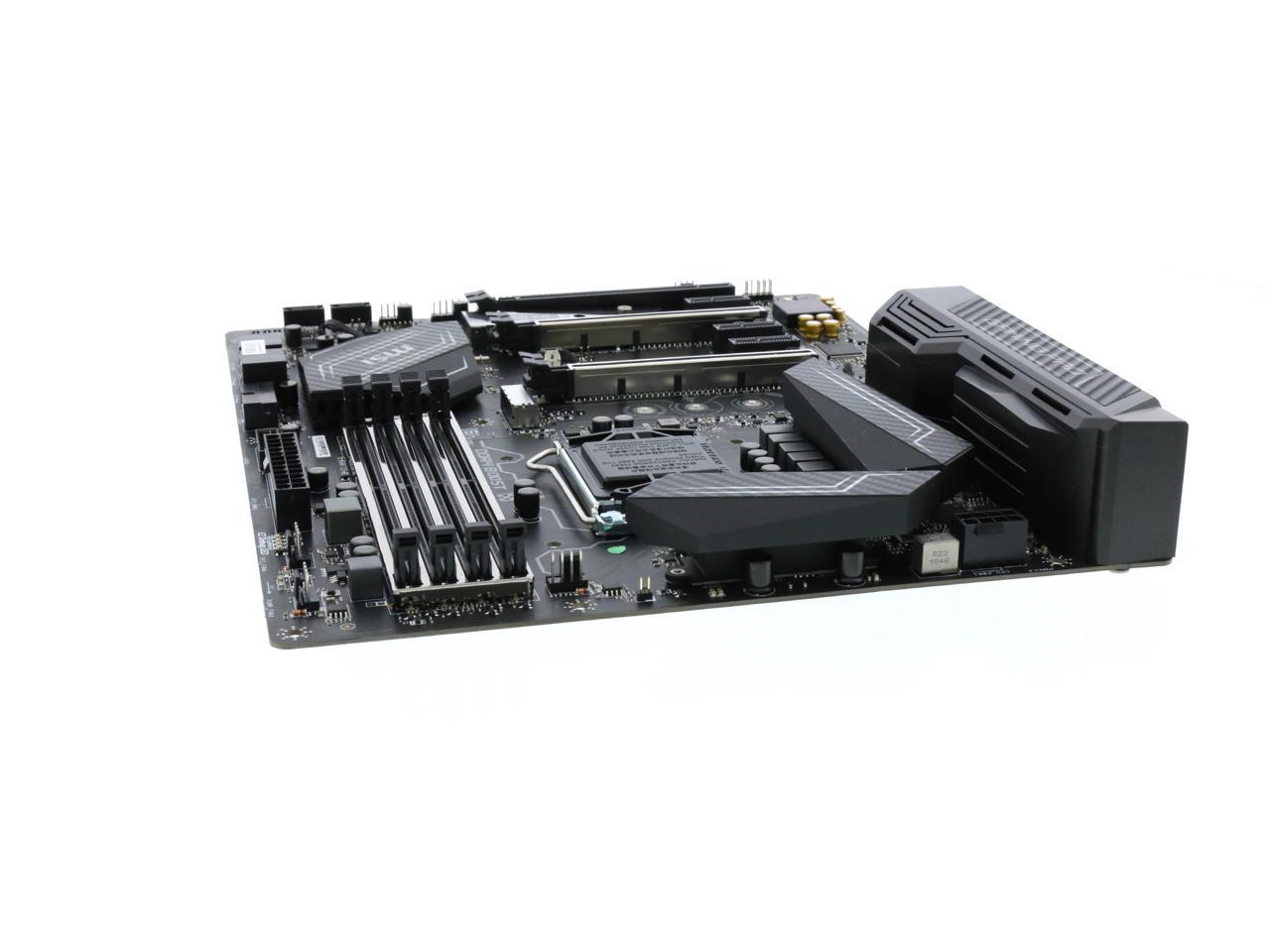

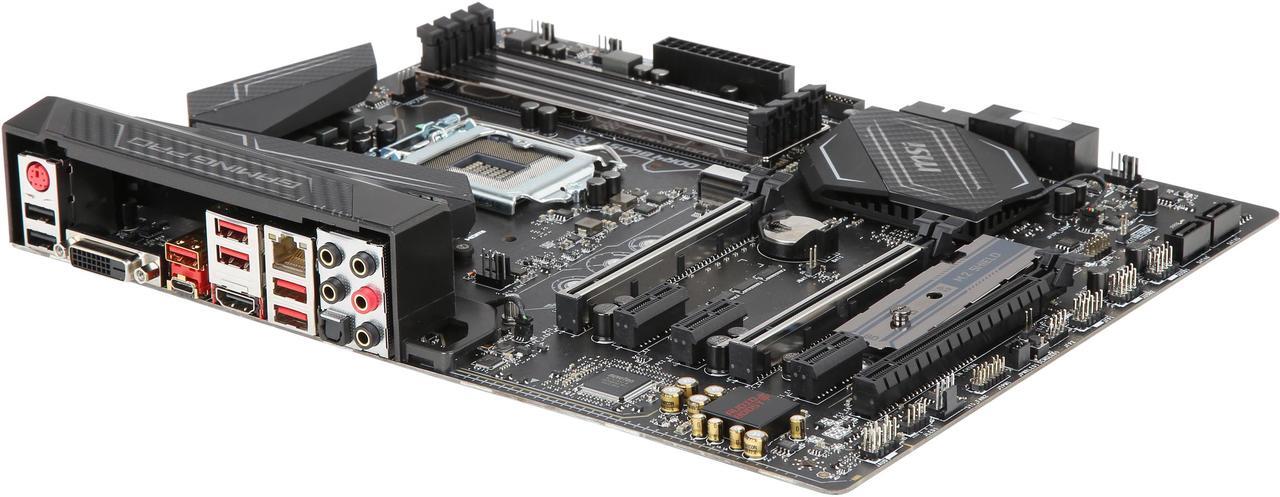

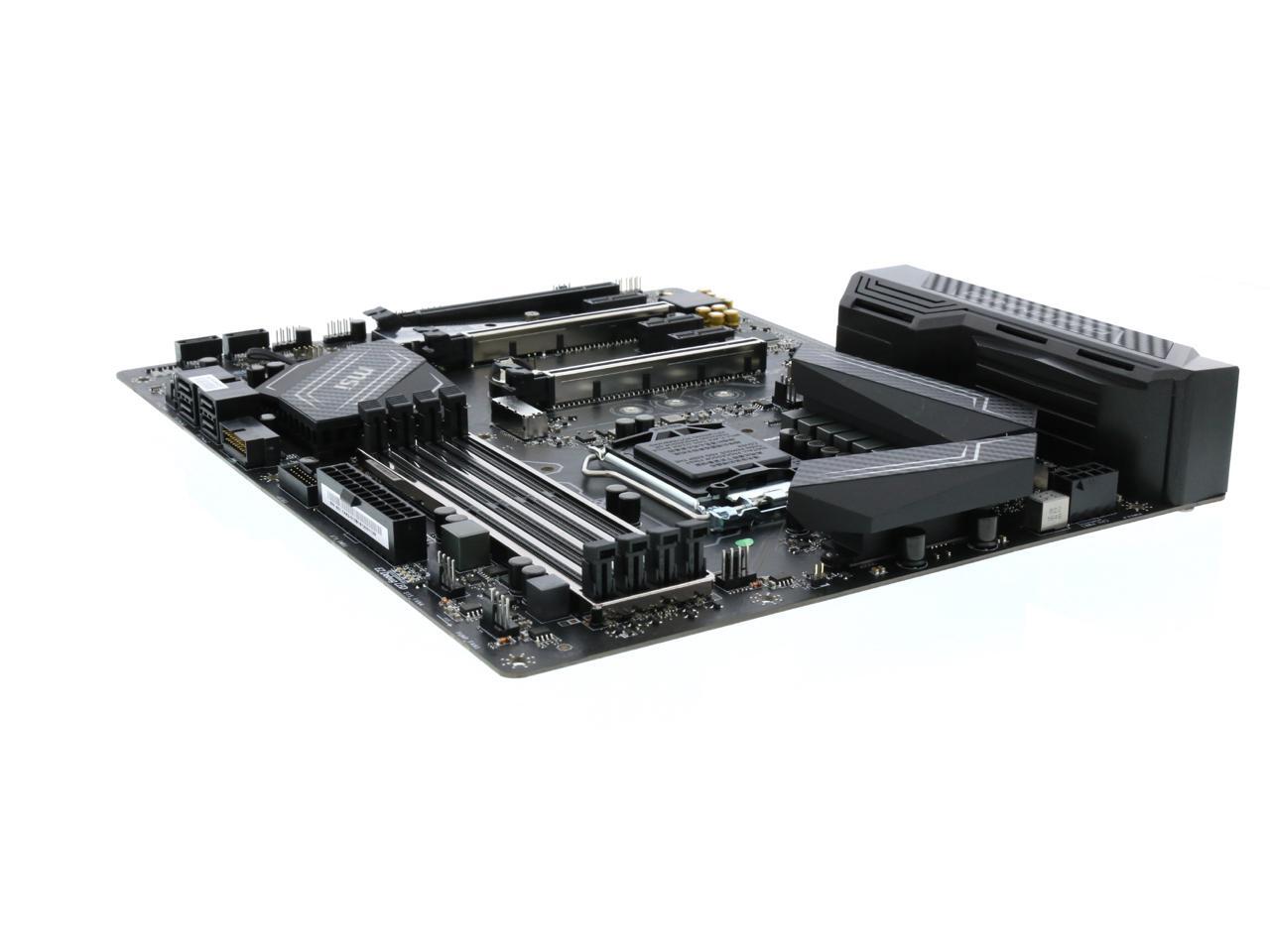

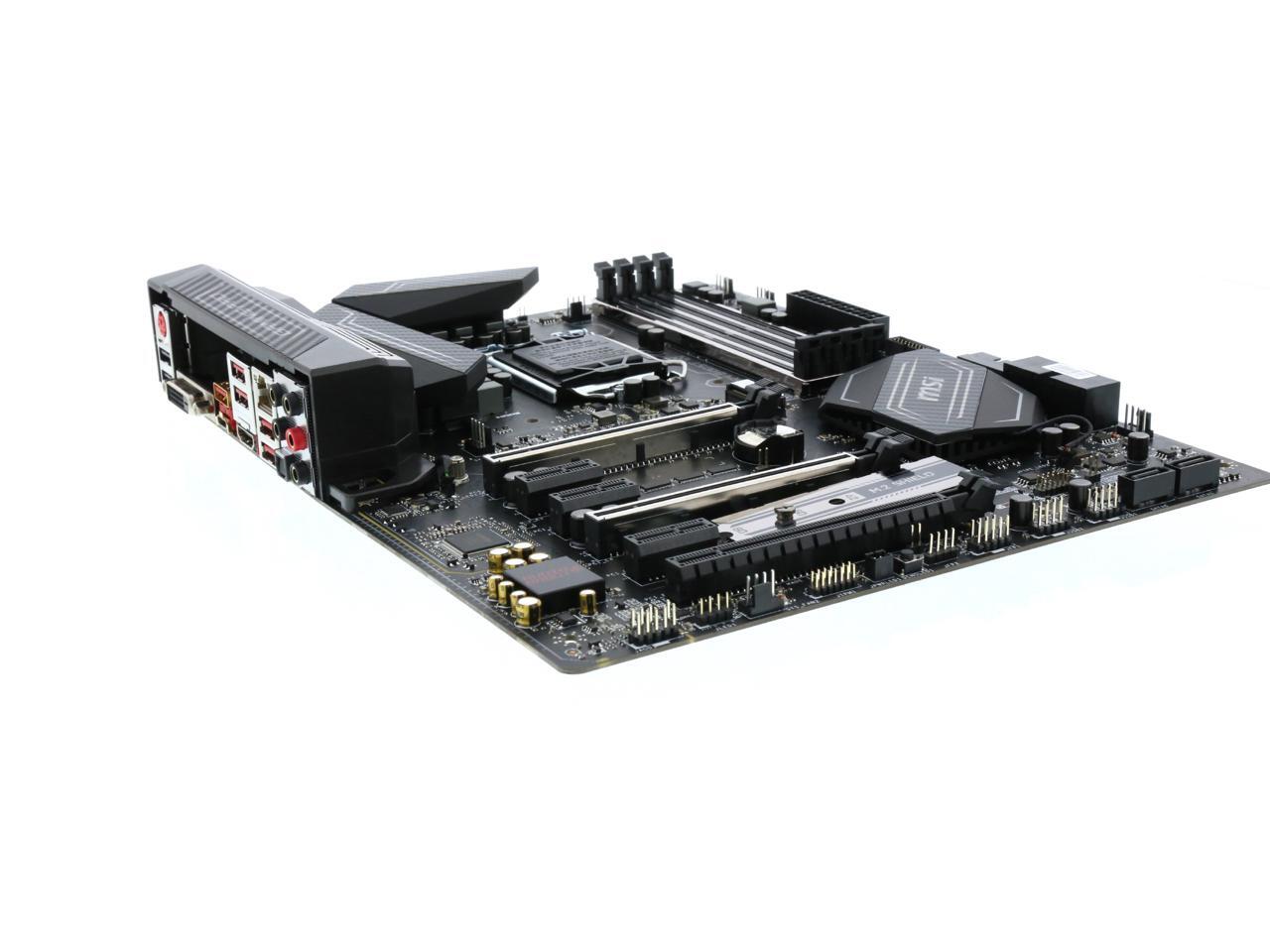

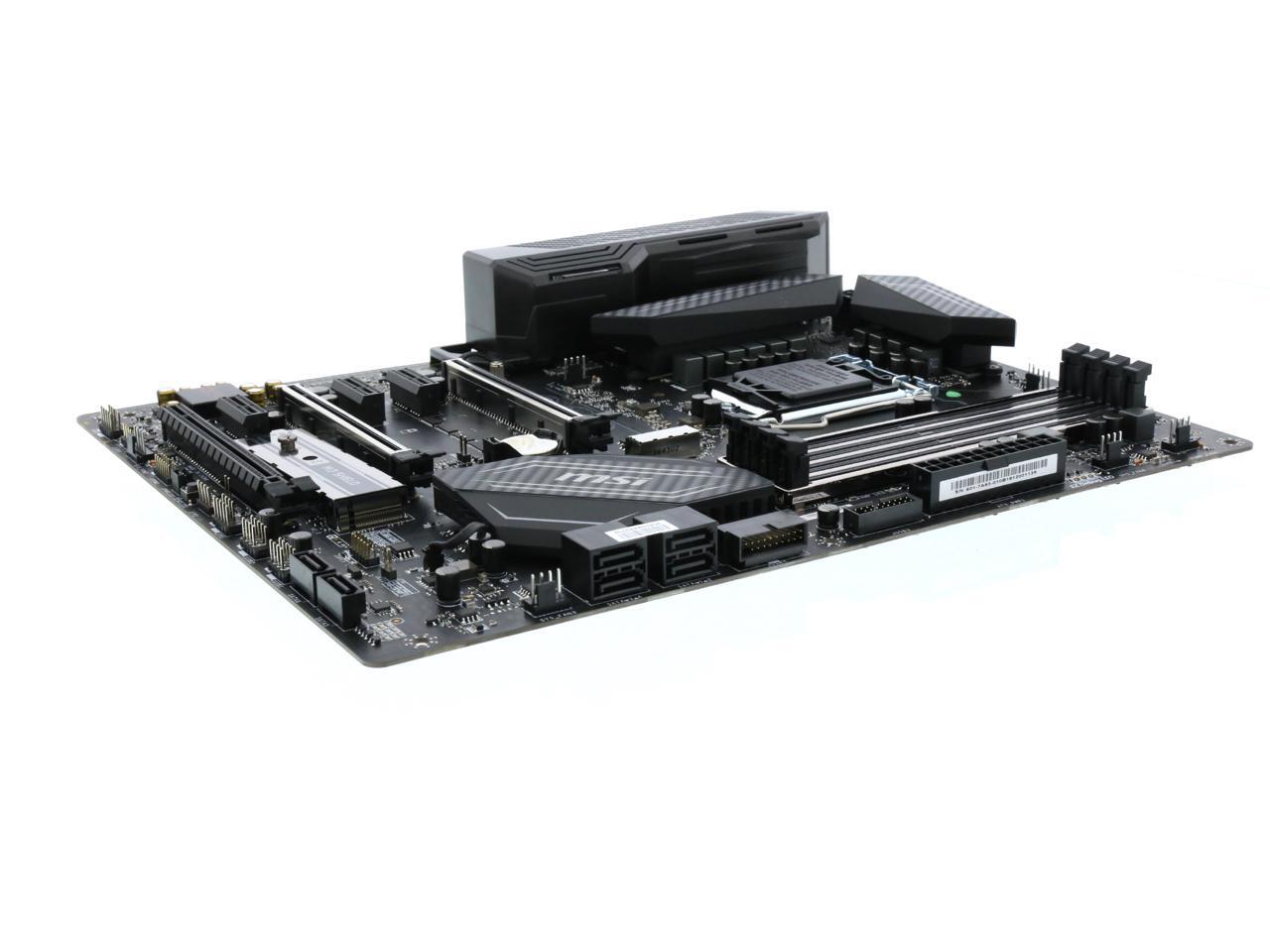

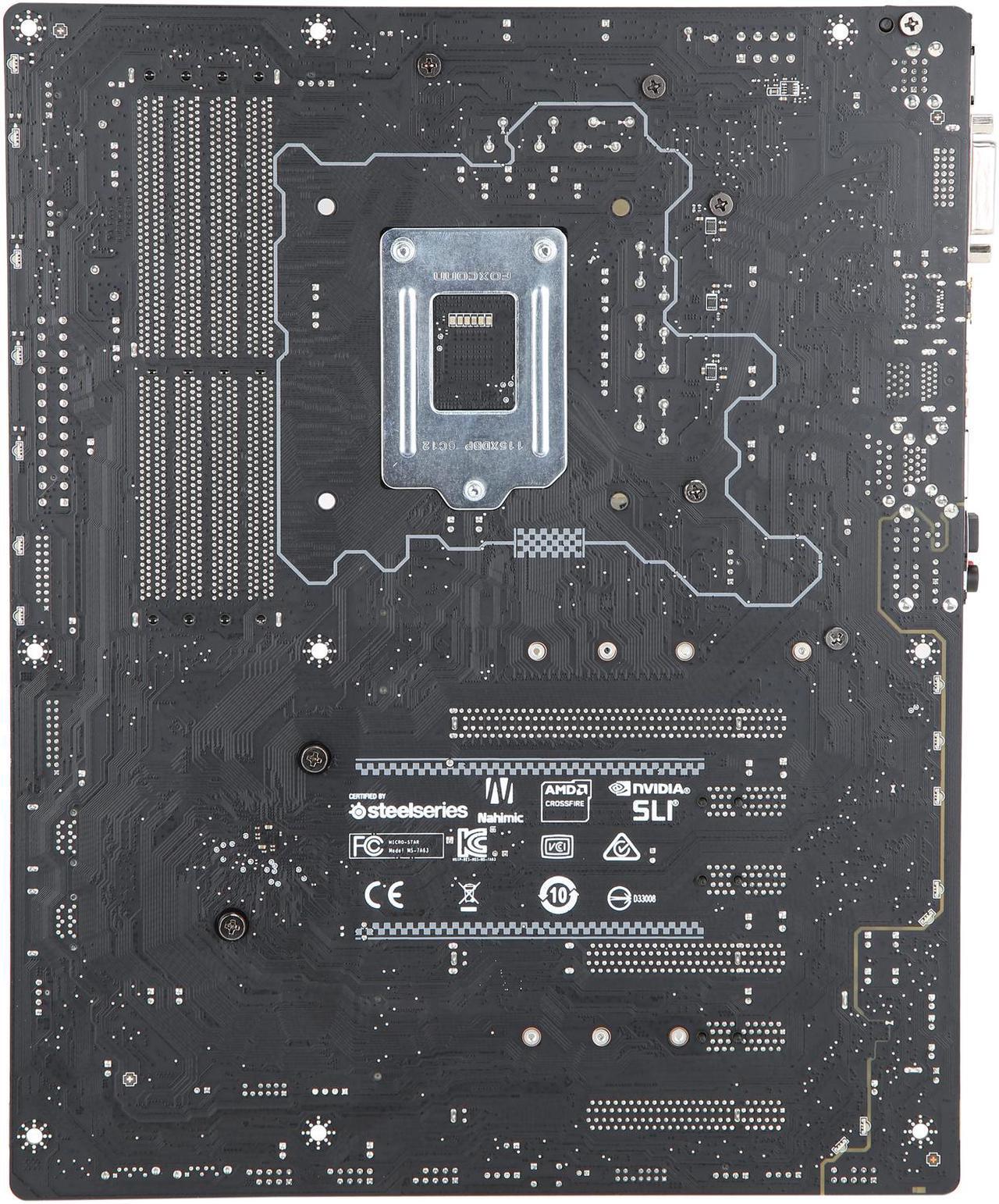

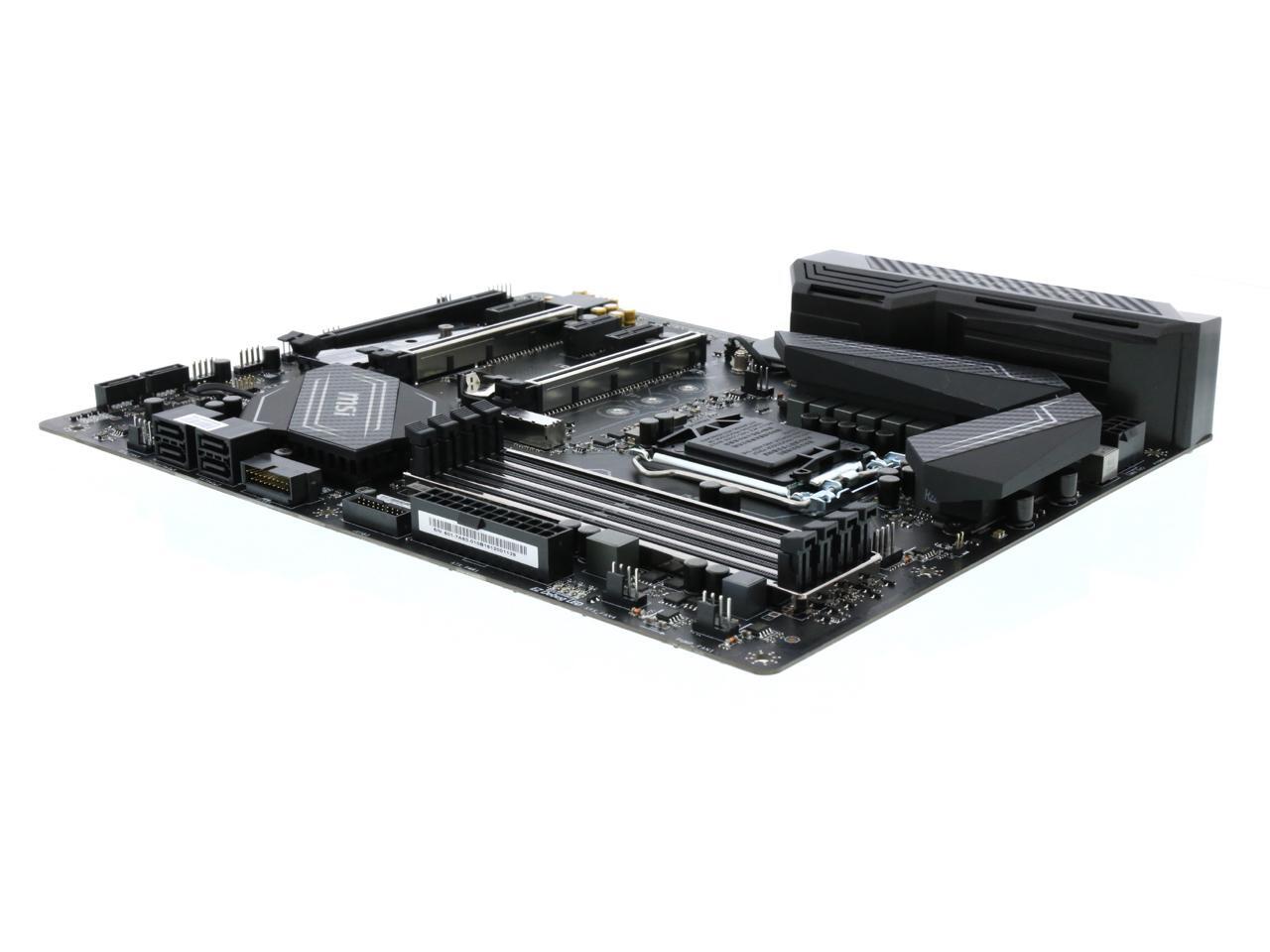

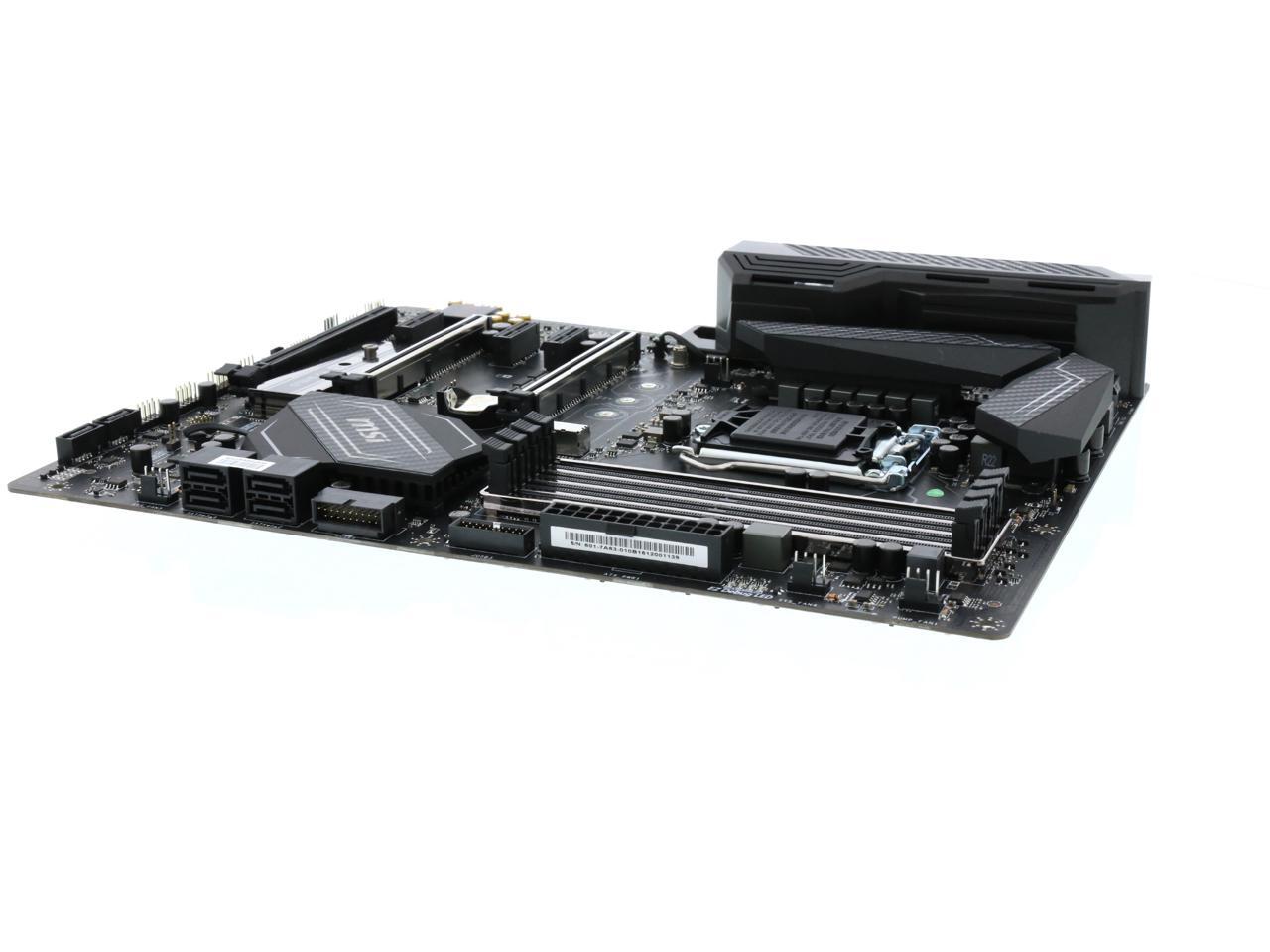

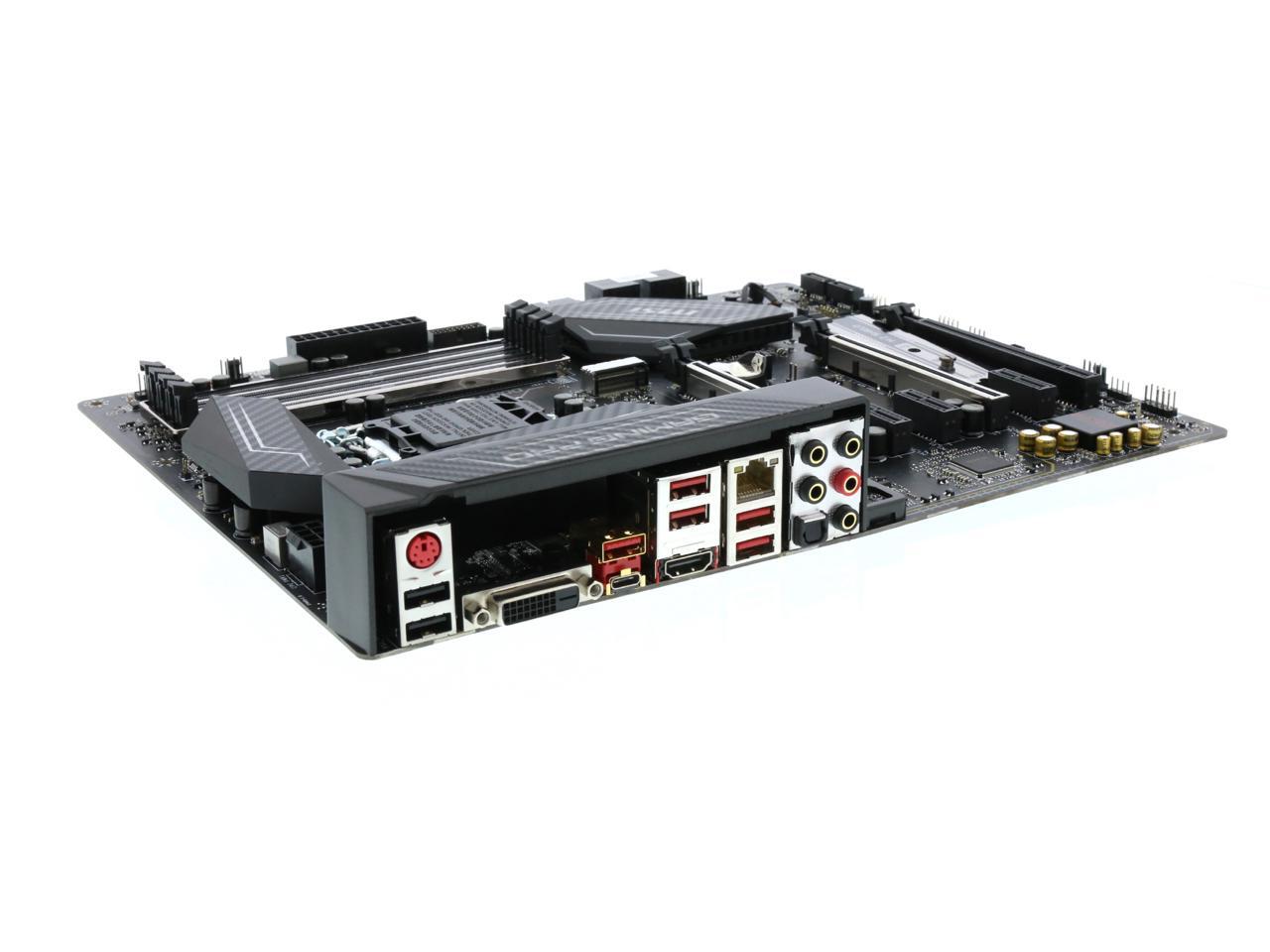

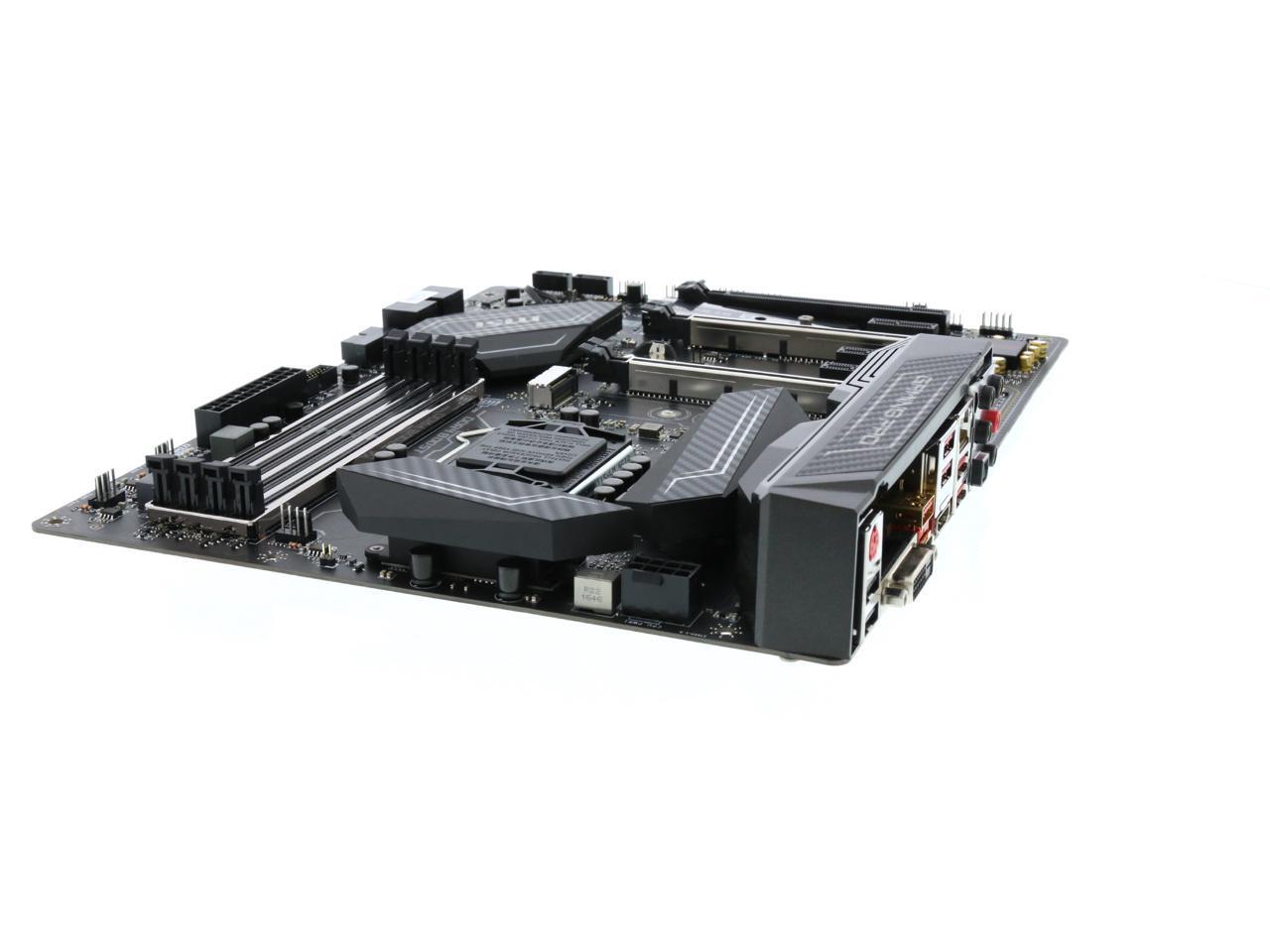

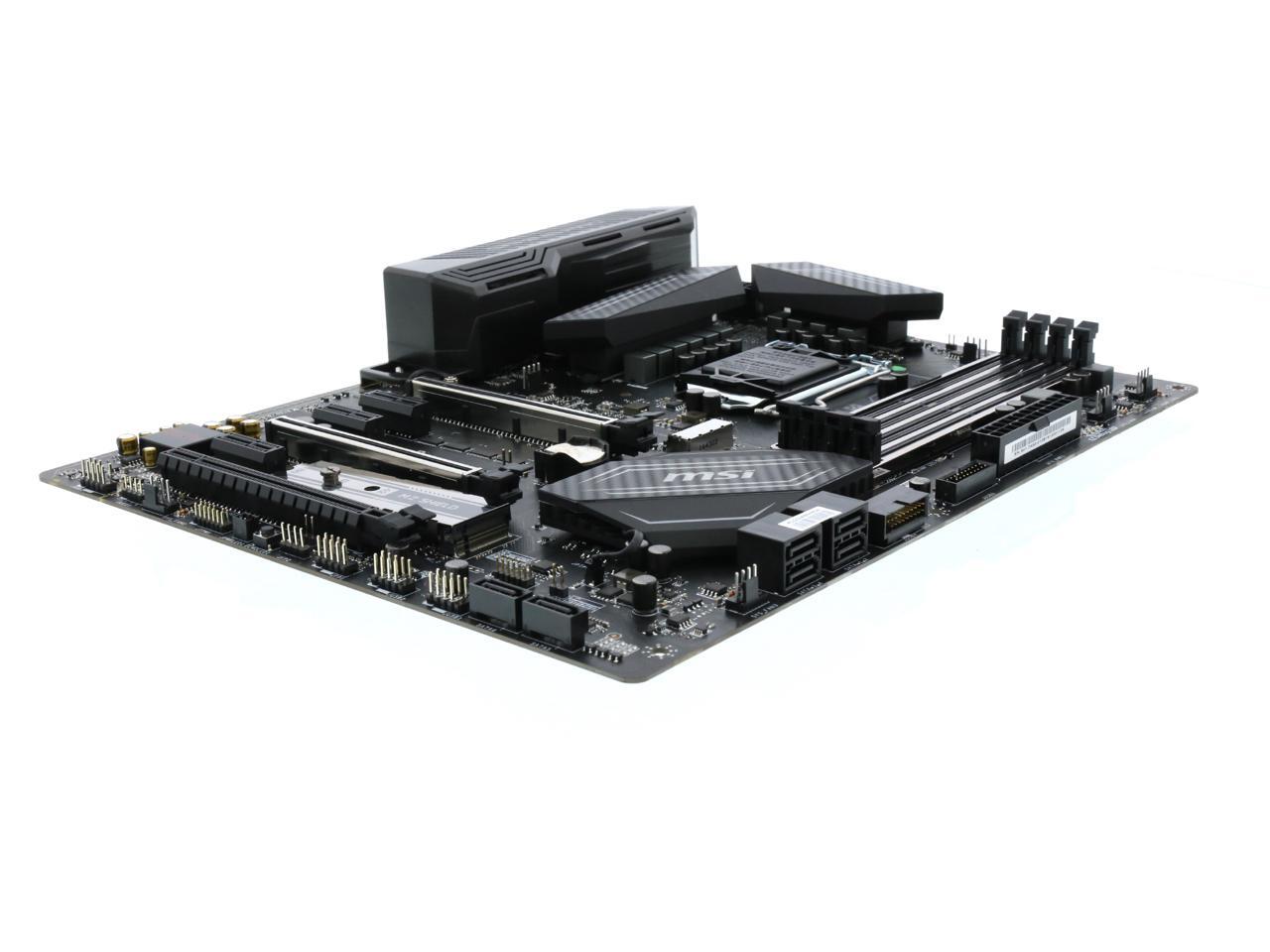

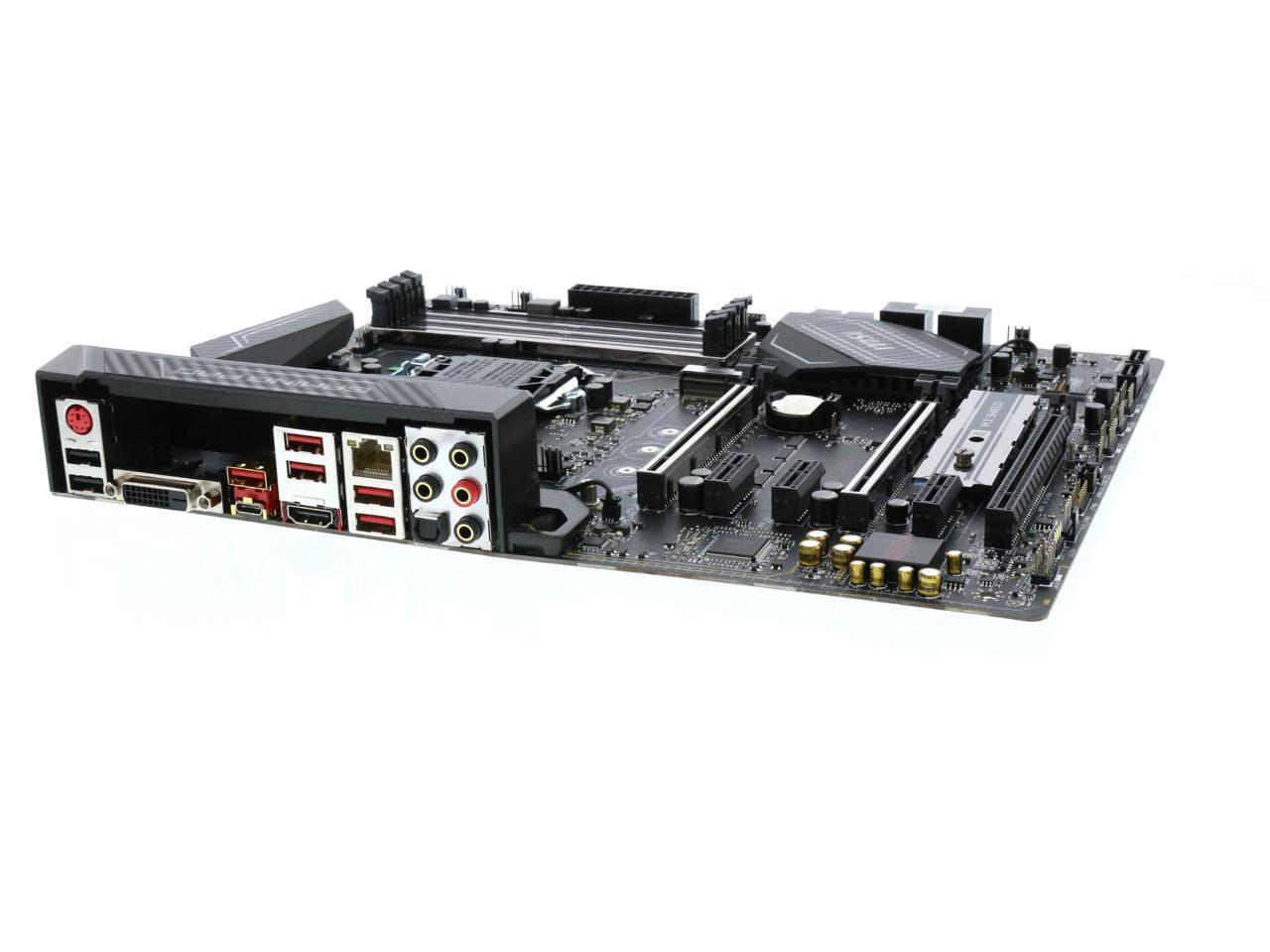

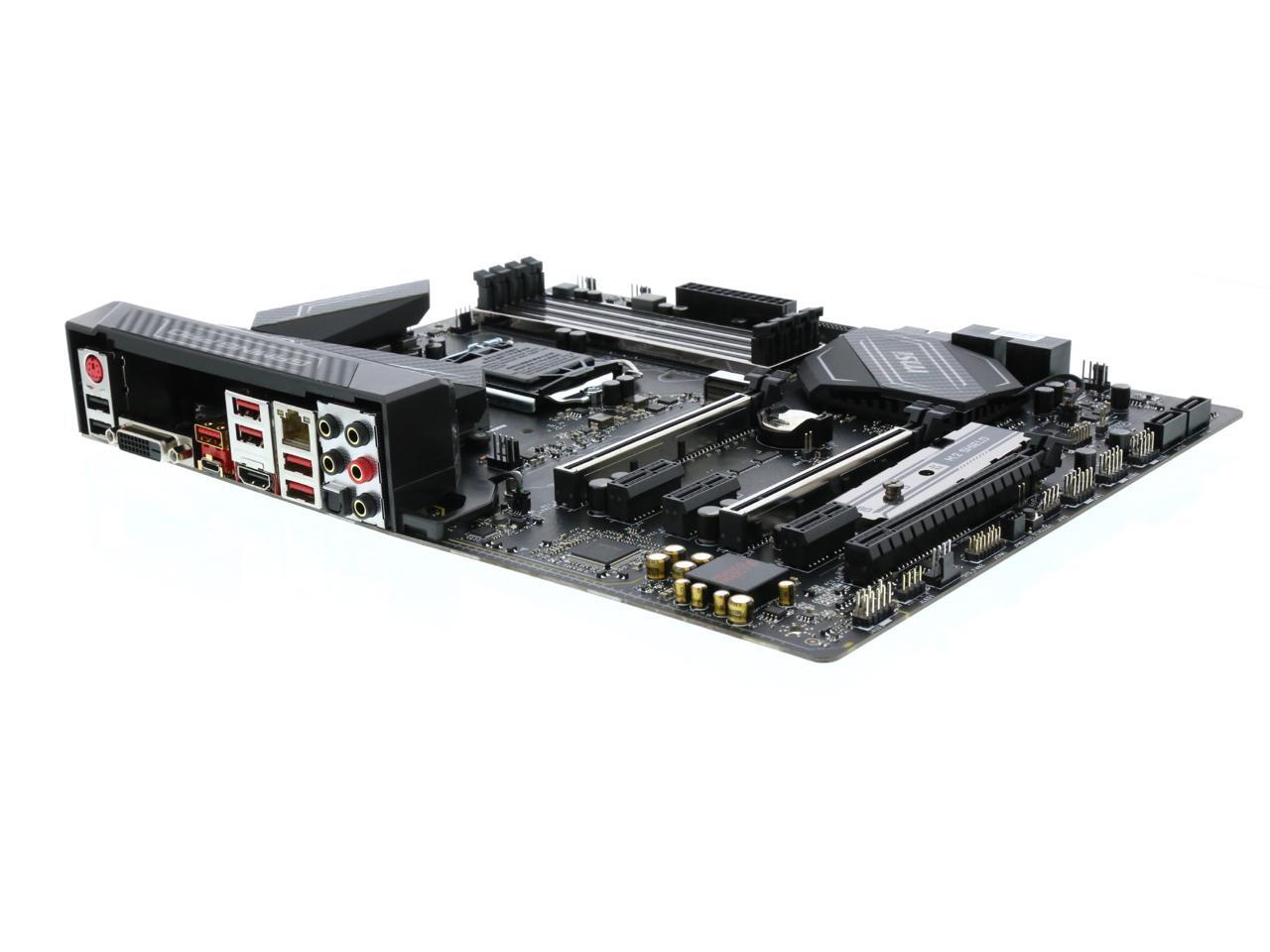

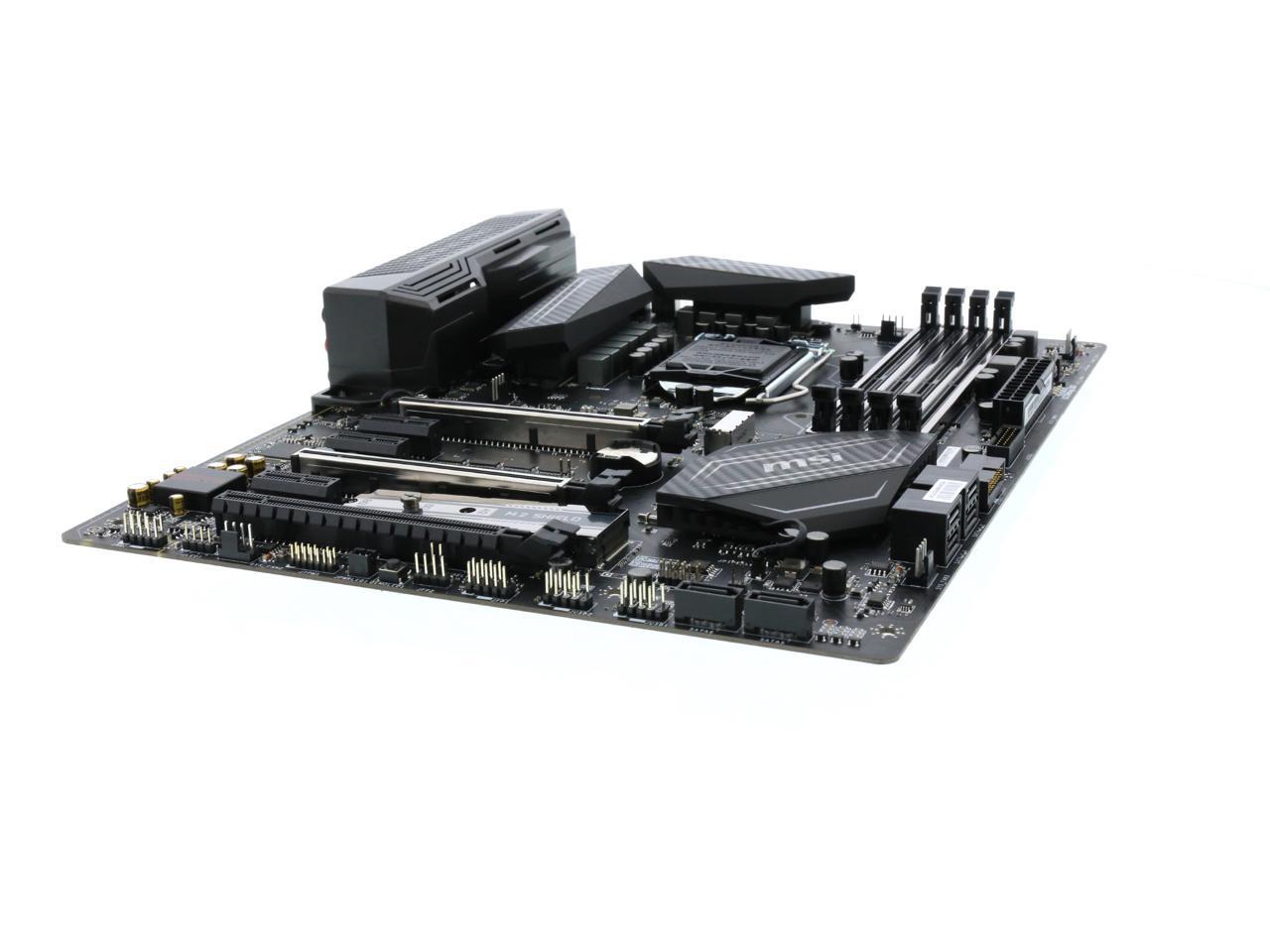

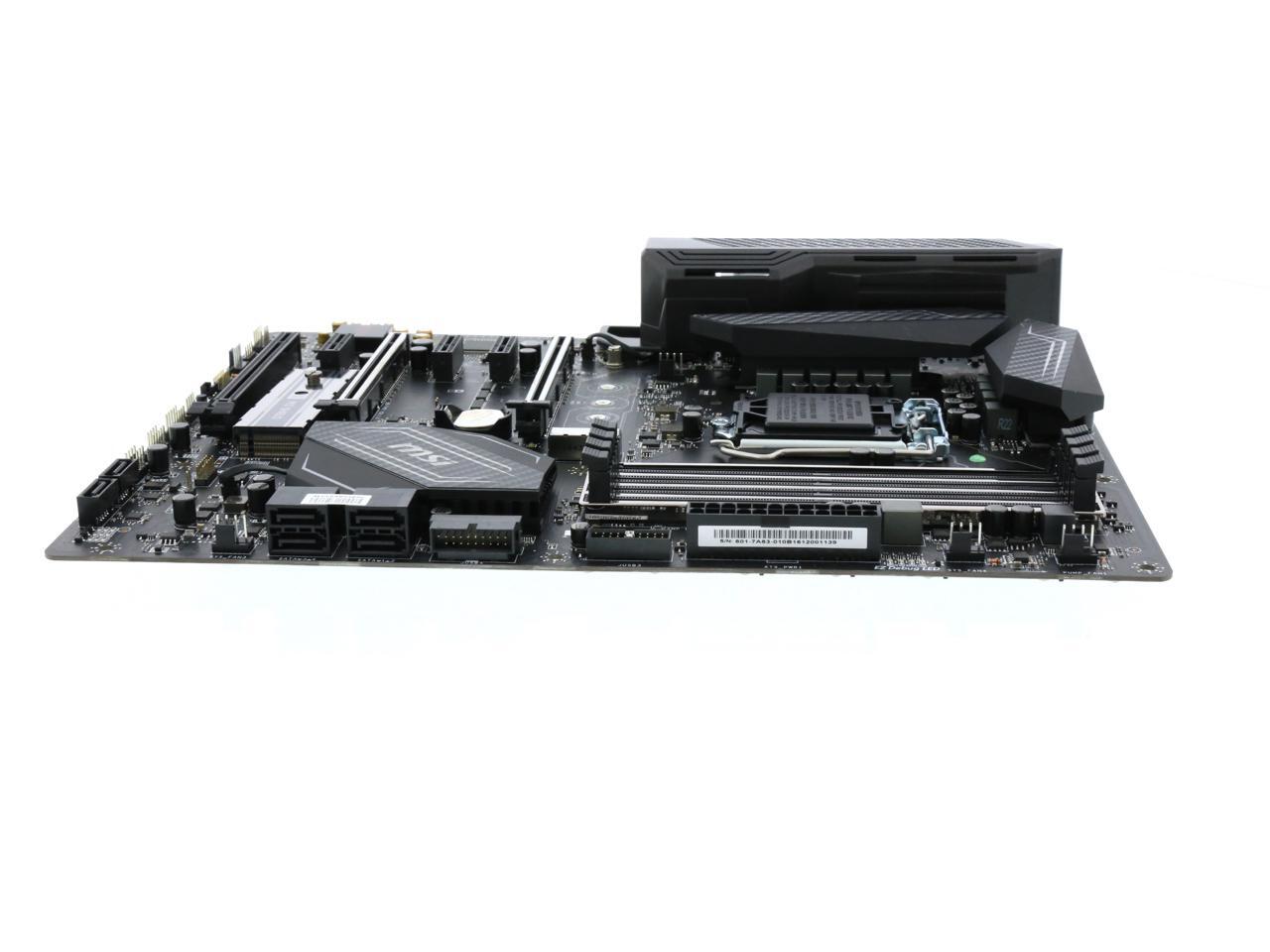

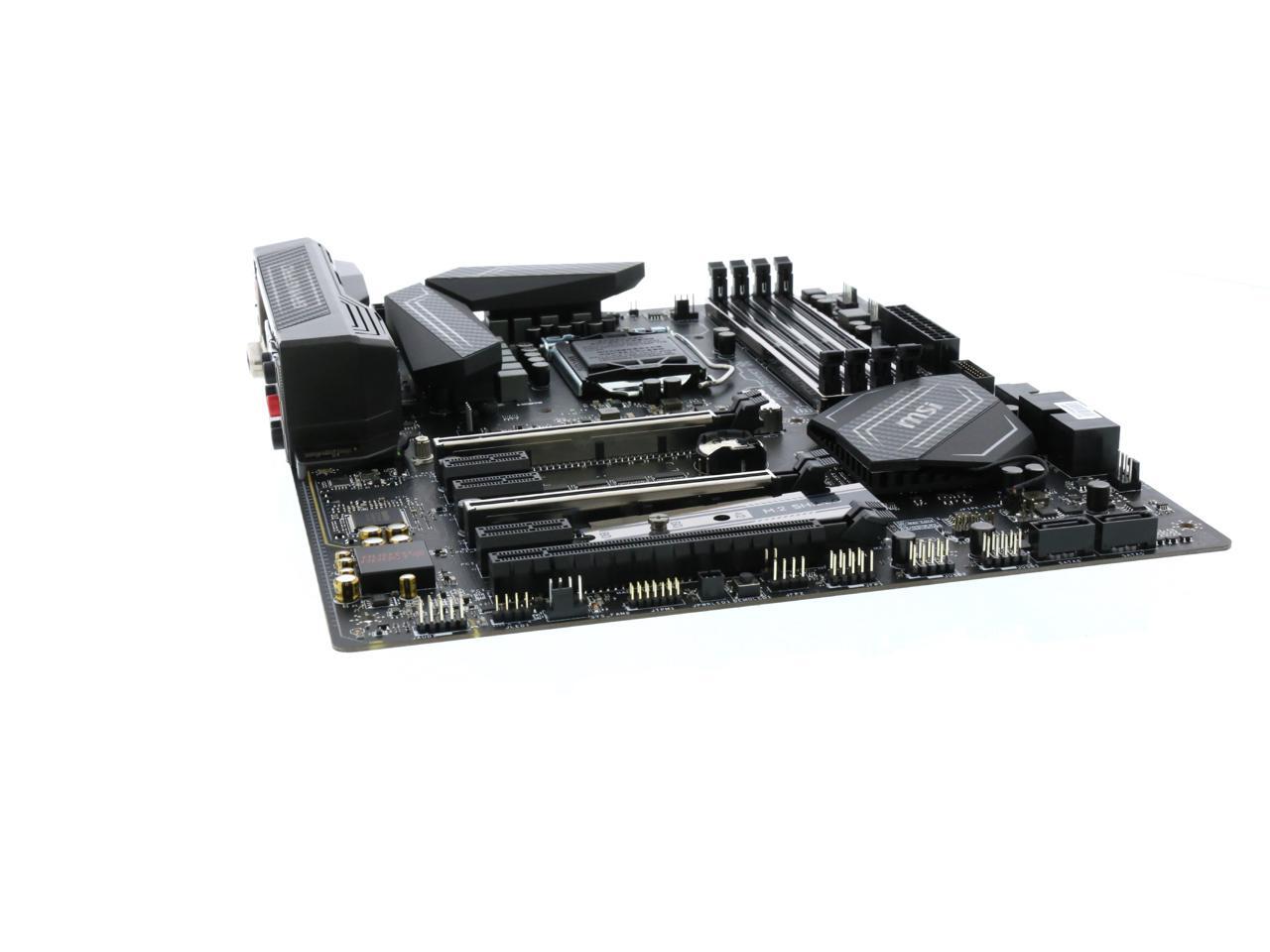

MSI Z270 GAMING PRO CARBON LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard
REFURBISHED Product Type
- Intel Z270
- Supports 6th/7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
- 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
- 6th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz
+
+
Specs
Reviews
Learn more about the MSI Z270 GAMING PRO CARBON

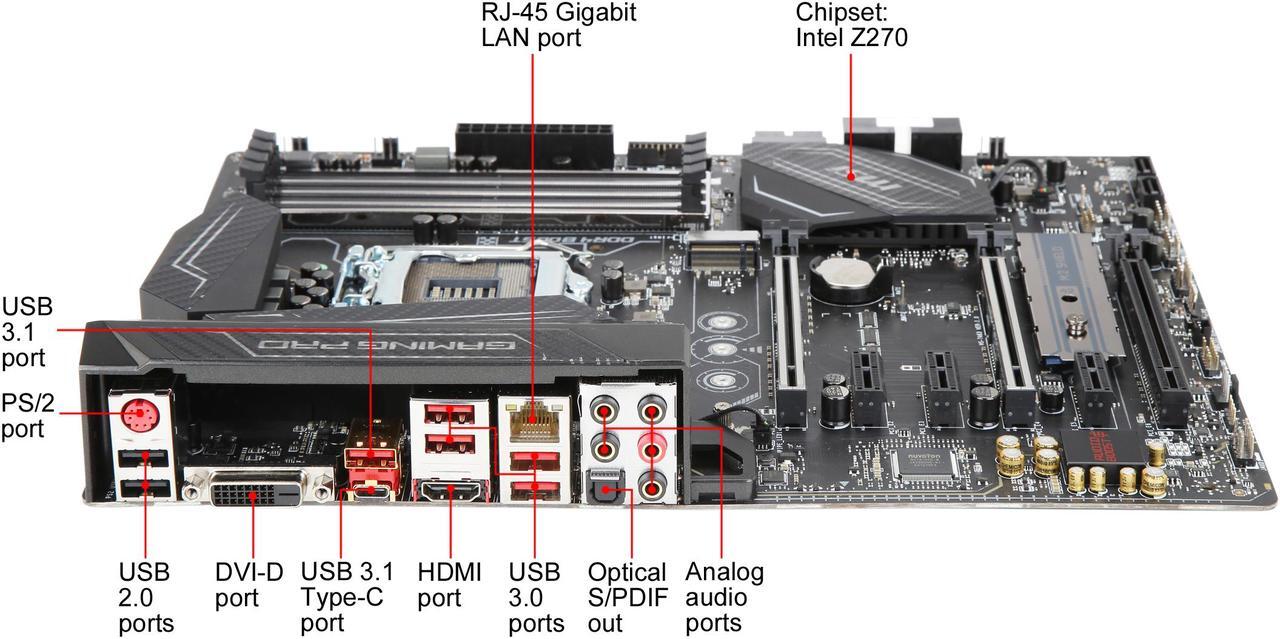

| Brand | MSI |
|---|---|
| Model | Z270 GAMING PRO CARBON |

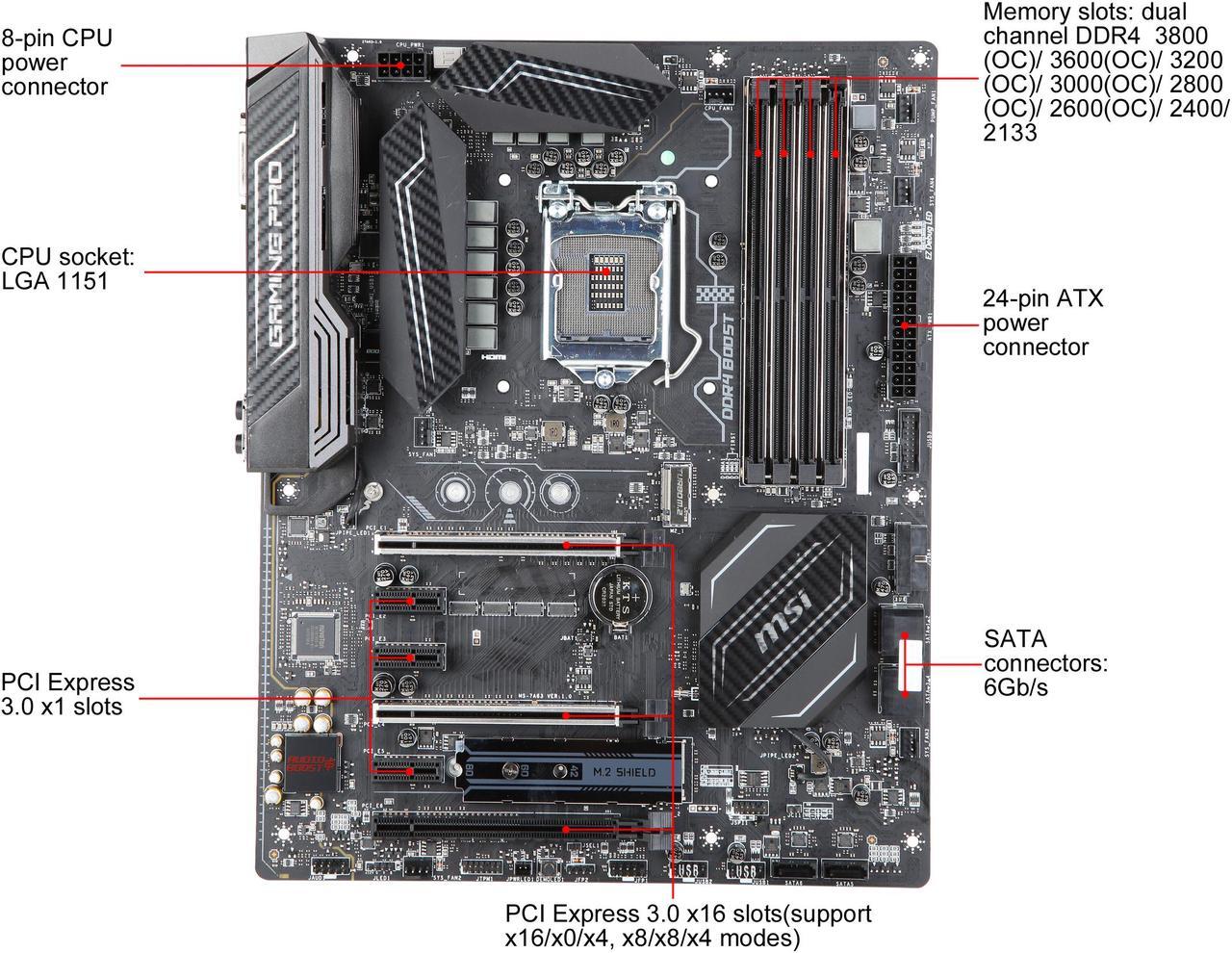

| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Supports 6th/7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151 * Not Compatible with Intel 8th Gen CPUs |
| Chipset | Intel Z270 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz* 6th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz* * Please refer www.msi.com for more information on compatible memory. |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) |
|---|---|
| PCI Express x1 | 3 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 6 x SATA 6Gb/s ports* * M.2 and SATA ports combination details please refer user manual. |
|---|---|
| M.2 | 2 x M.2 slots (Key M) - Support up to PCIe 3.0 x4 and SATA 6Gb/s - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card** - M2_1 slot supports 2242/2260/2280/22110 storage devices - M2_2 slot supports 2242/2260/2280 storage devices ** The Turbo U.2 Host Card is not included, please purchase separately. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 1 x USB 3.1 Gen2 Type-A port 1 x USB 3.1 Gen2 Type-C port 4 x USB 3.1 Gen1 Type-A ports |
| USB 1.1/2.0 | 2 x USB 2.0 Type-A ports |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x OFC audio jacks |
| Onboard USB | 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x RGB LED connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost VR Ready and VR Boost: Best virtual reality game experience without latency, reduces motion sickness Mystic Light and Mystic Light Sync: 16.8 milliom colors /17 effects controlled in one click with GAMING APP or mobile devices Lightning Fast Game experience: Twin Turbo M.2, Steel Armor, M.2 Shield. Intel Optane Memory Ready, Lightning USB 3.1 Gen2 Audio Boost 4 with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience GAMING LAN with LAN Protect, powered by Intel: The best online gaming experience with lowest latency and bandwidth management Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA SLI & AMD Crossfire In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster EZ Debug LED: Easiest way to troubleshoot Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players |
|---|
| Package Contents | MOTHERBOARD ONLY => NOTHING ELSE! NO ACCESSORIES WHATSOEVER! I/O SHIELD IS NOT INCLUDED! MOTHERBOARD COMES IN PLAIN NON-RETAIL BOX WITHOUT ANY ACCESSORIES! |
|---|
| Date First Available | June 02, 2025 |
|---|
