MSI PERFORMANCE GAMING Z270 GAMING PLUS LGA 1151 Intel Z270 USB 3.1 ATX Intel Motherboard

REFURBISHED Product Type
(2) Write a Review
  • Intel Z270
  • Supports 7th/6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
  • 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133
  • 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI Z270 GAMING PLUS

Model
Brand MSI
Series PERFORMANCE GAMING
Model Z270 GAMING PLUS
Supported CPU
CPU Socket Type LGA 1151
CPU Type Supports 7th/6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
* Not Compatible with Intel 8th Gen CPUs
Chipsets
Chipset Intel Z270
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133
6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133
* Please refer www.msi.com for more information on compatible memory.
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 2 x PCIe 3.0 x16 slots (supports x16/x4 mode)
PCI Express x1 4 x PCIe 3.0 x1 slots
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s ports*
* The SATA1 port will become unavailable when M.2 SATA SSD has been installed in M.2 slot.
M.2 1 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
- Supports 2242/2260/2280/22110 storage devices
- Intel Optane Memory Ready for all M.2 slots
** The Turbo U.2 Host Card is not included, please purchase separately.
Intel Optane Ready Yes
* Intel Optane Technology is only supported when using 7th Gen processors. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 1Gbps

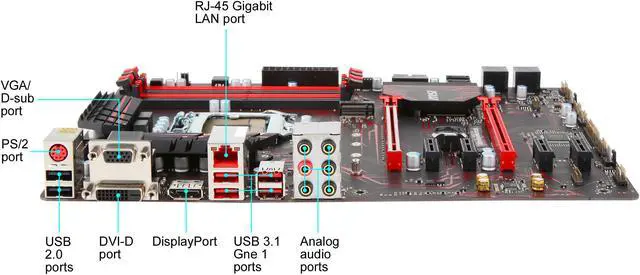

Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports 1 x VGA port
1 x DVI-D port
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort
USB 3.1 4 x USB 3.1 Gen1 Type-A ports
USB 1.1/2.0 2 x USB 2.0
Audio Ports 6 x OFC audio jacks
Internal I/O Connectors
Onboard USB 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x Clear CMOS jumper
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 8.9"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Supports 7th/6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket

Supports DDR4-3866+(OC) Memory

DDR4 Boost: Give your DDR4 memory a performance boost

VR Ready: Best virtual reality game experience without latency

Lightning Fast Game experience: Turbo M.2, Intel Optane Memory Ready

Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

GAMING LAN, powered by Intel: The best online gaming experience with lowest latency and bandwidth management

Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency

MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost

EZ Debug LED: Easiest way to troubleshoot

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players
