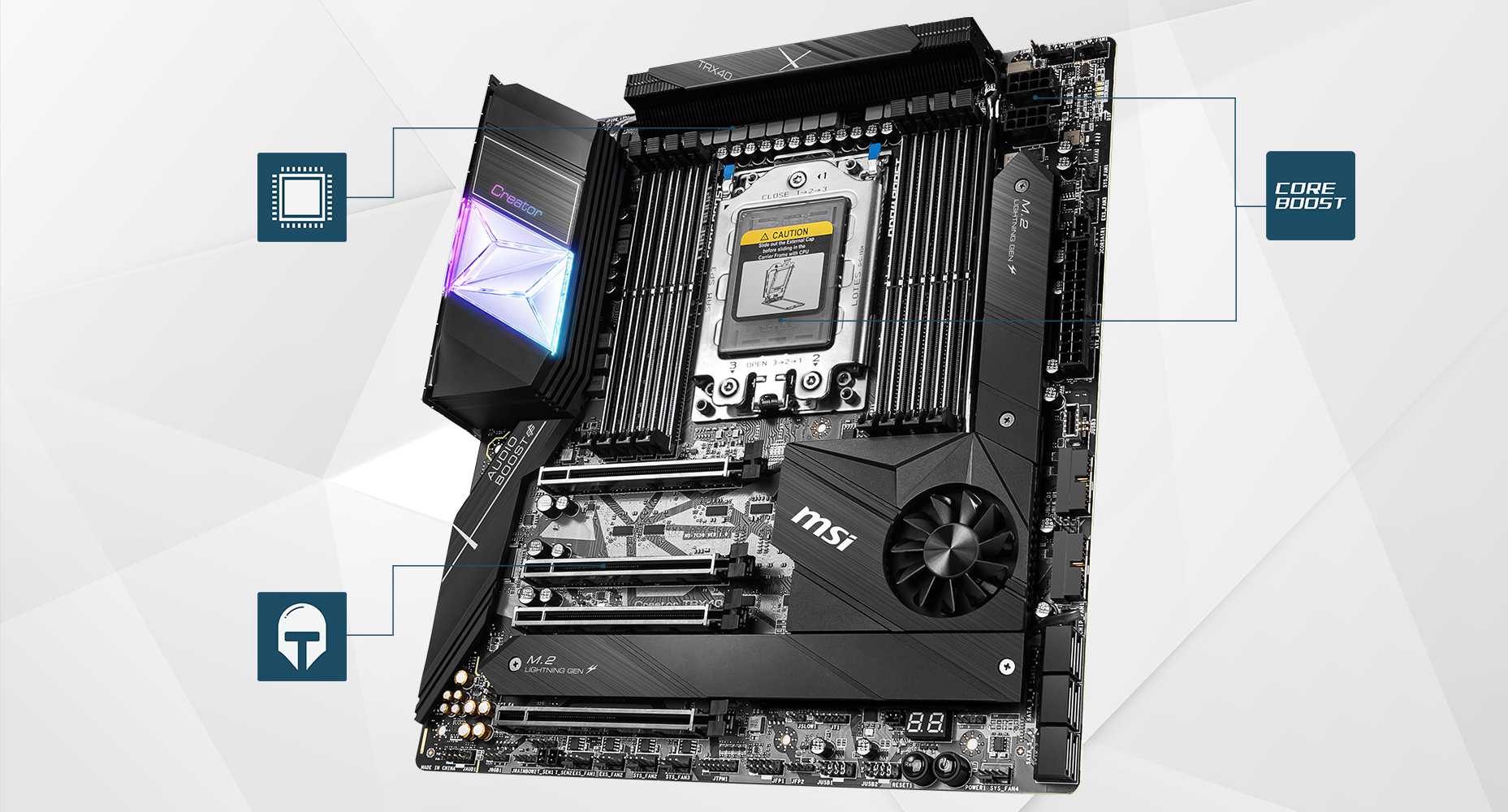

A selection of the highest quality power-delivery components including 70A digital power stages arranged in 16 phases lets the system run reliably even under extreme conditions.

Reinforced and shielded PCIe slots for strength and stability.

Dual 8-pin CPU power connectors and optimized power circuits let Creator unleash maximum performance.

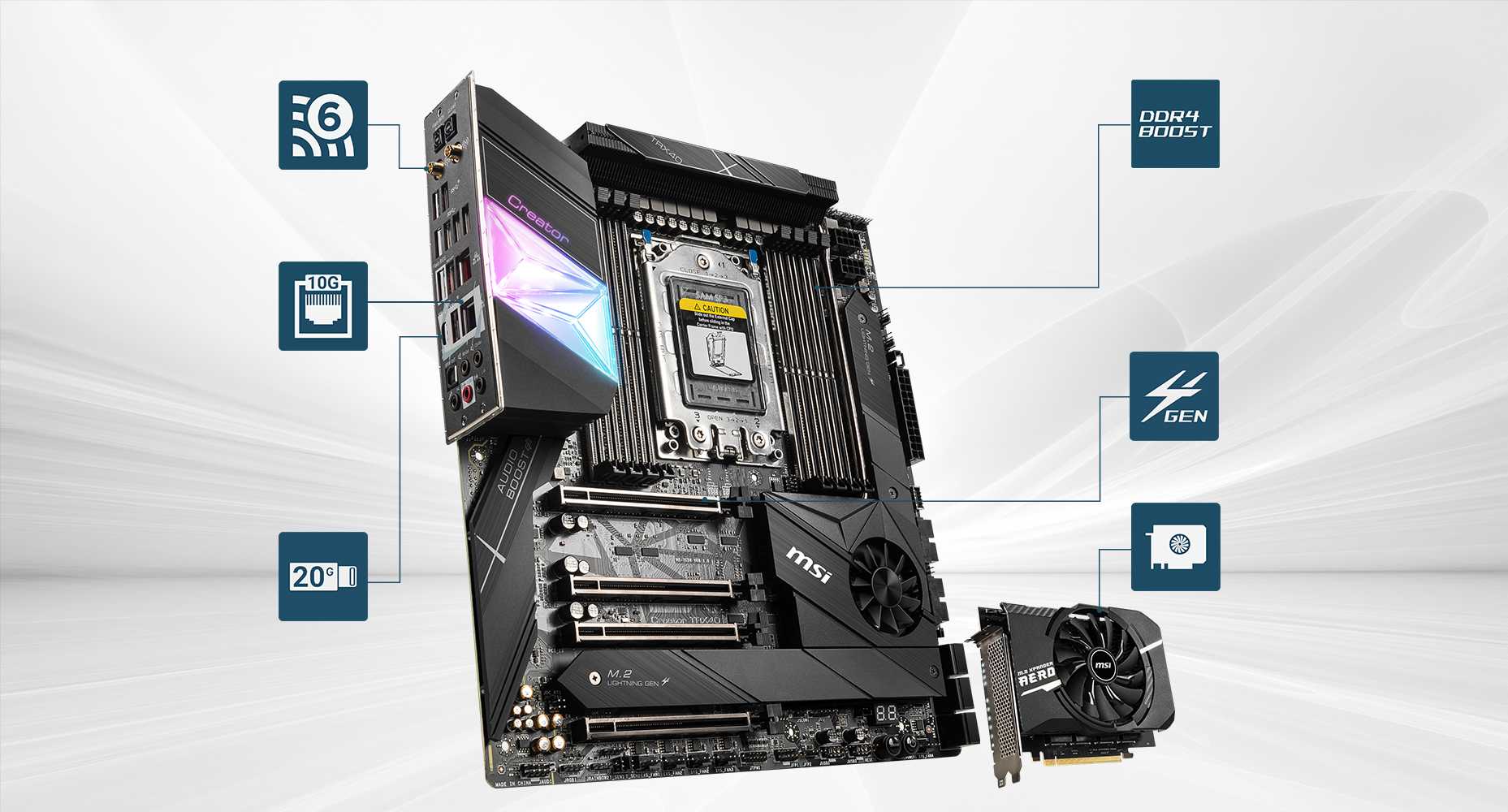

Featuring the latest wireless solution, delivering speeds up to 2,400Mbps and supports MU-MIMO and BSS color technology.

Connect to an ultra-fast LAN network.

Ultra-fast USB transfer speeds powered by the ASMedia ASM3242 USB 3.2 Gen2x2 controller.

The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from any other circuit. Shielded DIMM slots protect the point of connection from interference.

Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.

Add four extra Lightning Gen 4 M.2 slots for ultra-fast SSDs and sustain maximum Gen 4 speeds with the AERO heat sink design.


All-metal extended heat sink cover enlarges the heat dissipation surface.

Sustain maximum high-speed M.2 SSD data transfer with the M.2 SHIELD FROZR and prevent SSD thermal throttling with a double-sided thermal design.

A heat pipe redistributes heat across the MOS heat sinks to the chipset heat sink for expanded thermal dissipation.

Fan speed is automatically controlled by an AI tuning system that monitors chipset temperature and can power down temporarily in low-load situations to produce no fan noise.

The chipset, with its PCI-E Gen4 capabilities, is actively cooled to sustain massive data bandwidth. The airflow fan is built with a durable ball bearing core for long lasting operation.

- Dedicated 16 phases 70A digital CPU power
- Extended heat sink and heat pipe design, stacked fin array
- FROZR heat sink with double ball bearings
- Dual 8-pin power connectors
- 10G LAN + Intel® Gigabit LAN + Intel® WiFi 6
- Bandwidth management
- 7x Lightning Gen 4 M.2 with M.2 XPANDER-AERO Gen 4
- 6x SATA
- 19x total USB ports support
- Lightning USB 20G
- Front USB Type-C
- 9x PWM fan headers
- 3x dedicated thermal sensors
- 3x double-sided M.2 SHIELD FROZR

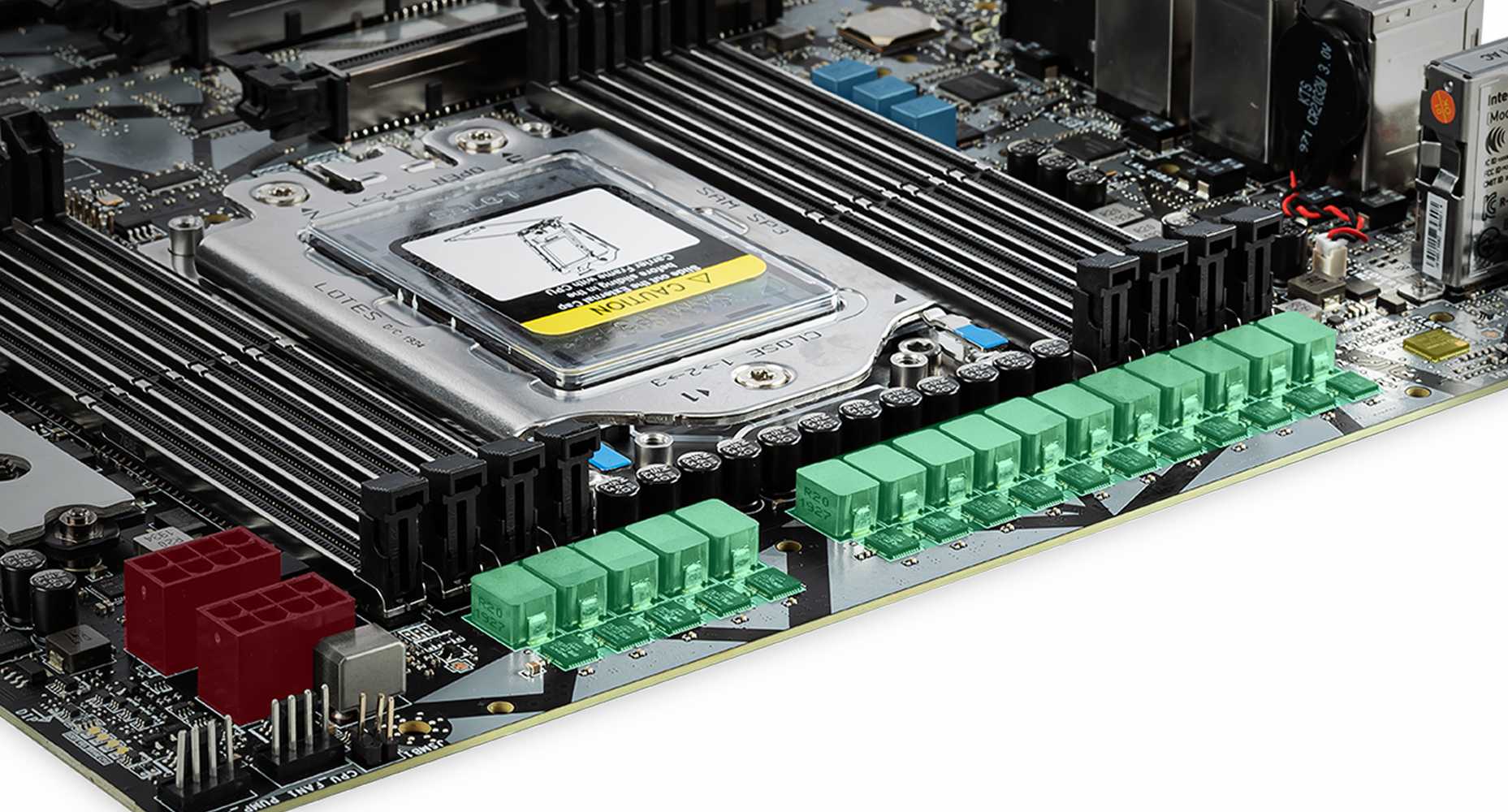

Creator TRX40 is built with 16 phases 70A digital power componentry on an efficient PCB layout and cooled with an extended heat sink Design to reliably drive the CPU even during heavy workloads.
- 2x 8-pin CPU power connectors
- 16 phases 70A digital power direct to processor
- 3 phases SOC power
- Digital PWM IC

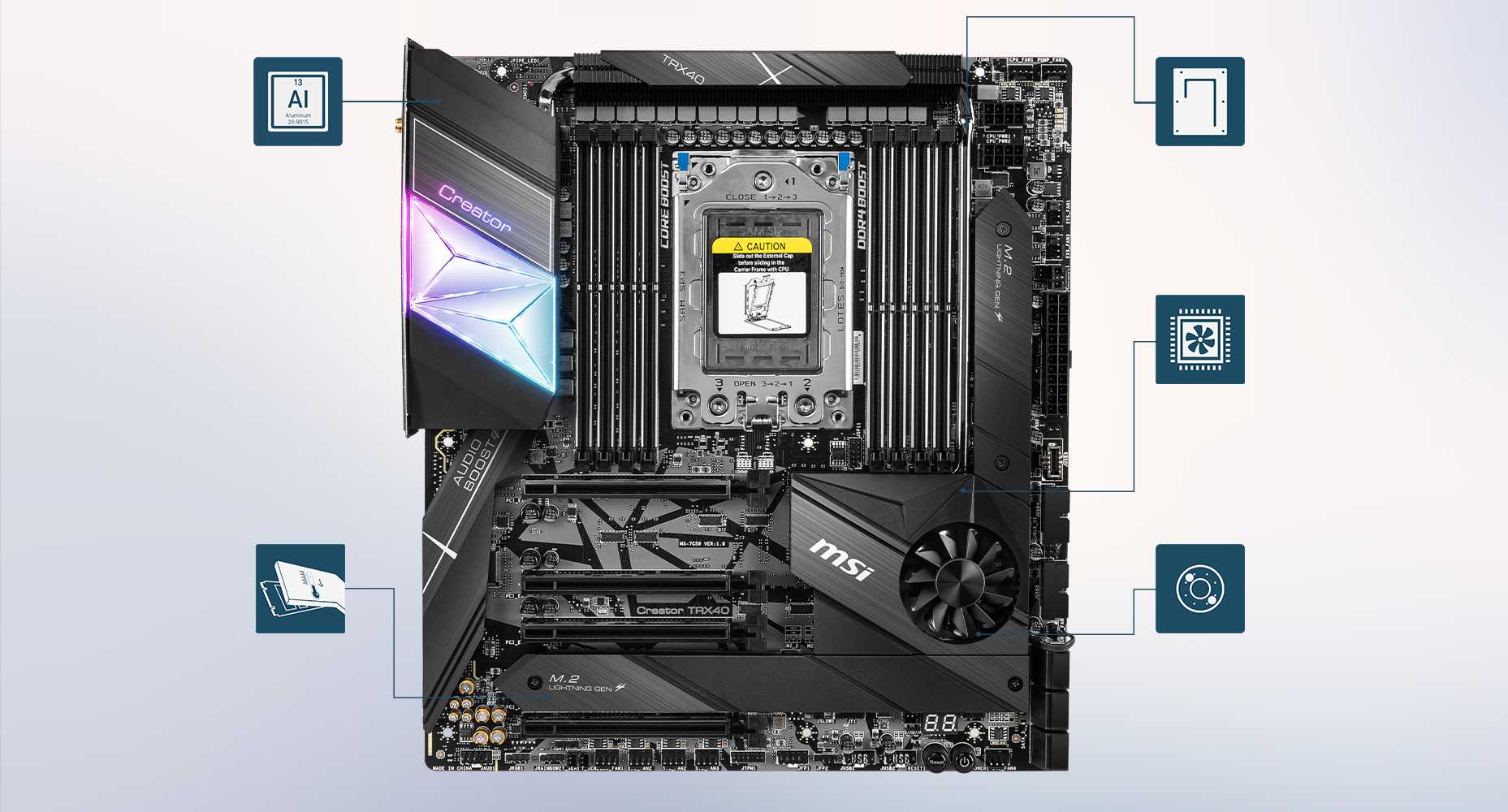

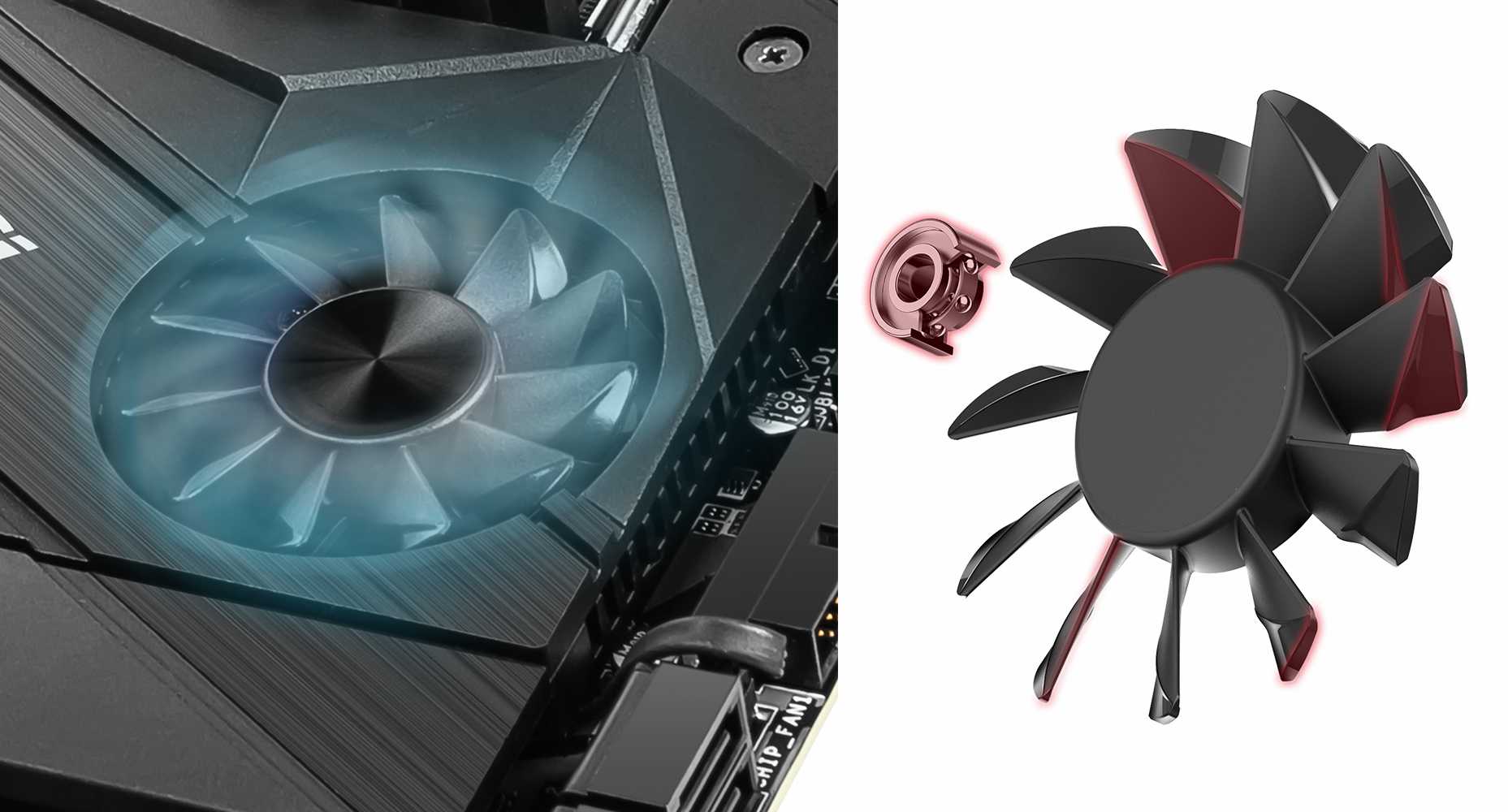

When it comes to high performance motherboards, controlling heat is essential. The chipset, with its PCI-E Gen4 capabilities, is actively cooled to sustain massive data bandwidth.
- Propeller Blade technology
- Double ball bearings
- Zero Frozr & Smart Fan Control

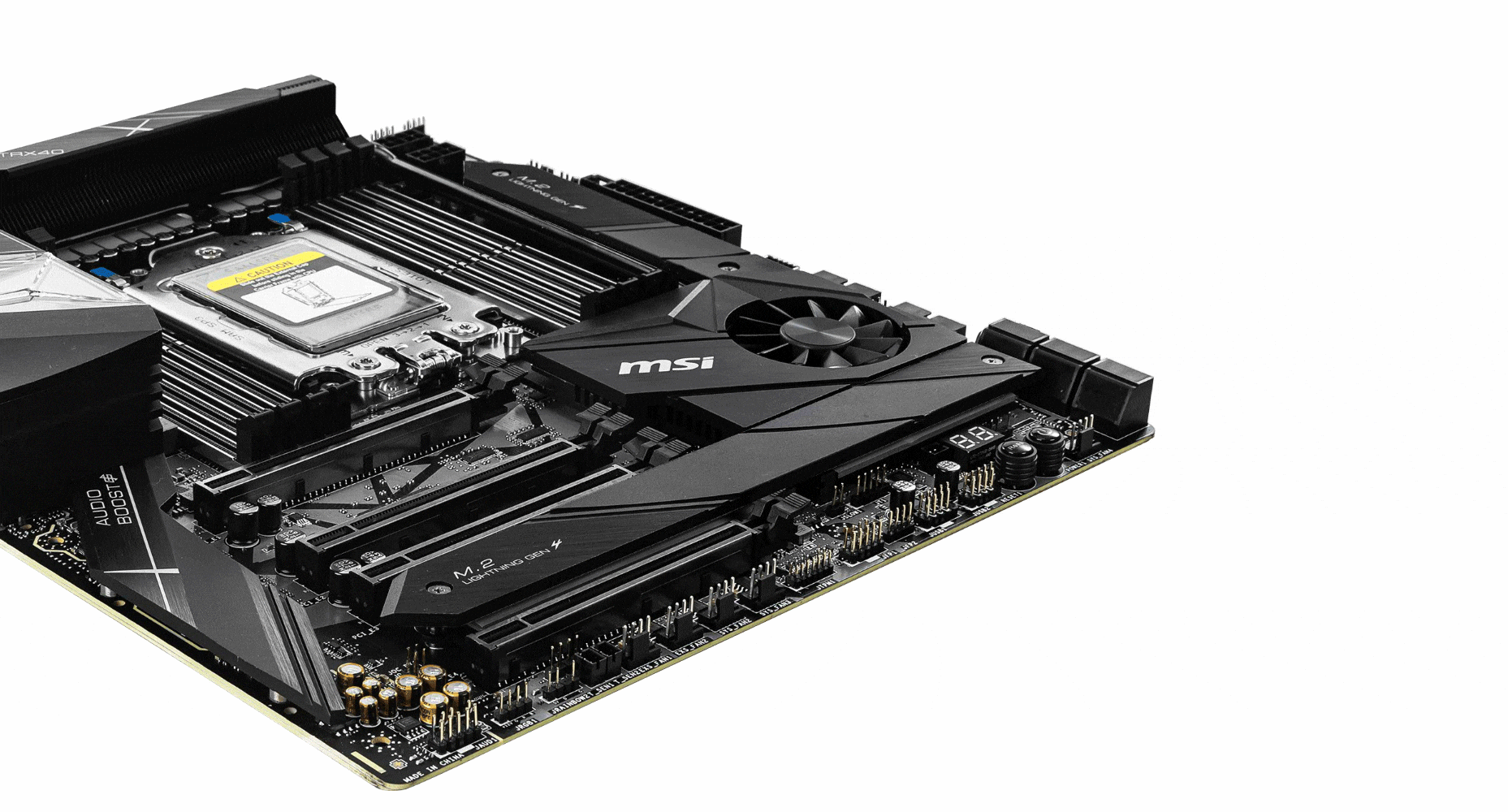

Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD thermal throttling with a double sided thermal design that includes a heat sink that extends across the motherboard.

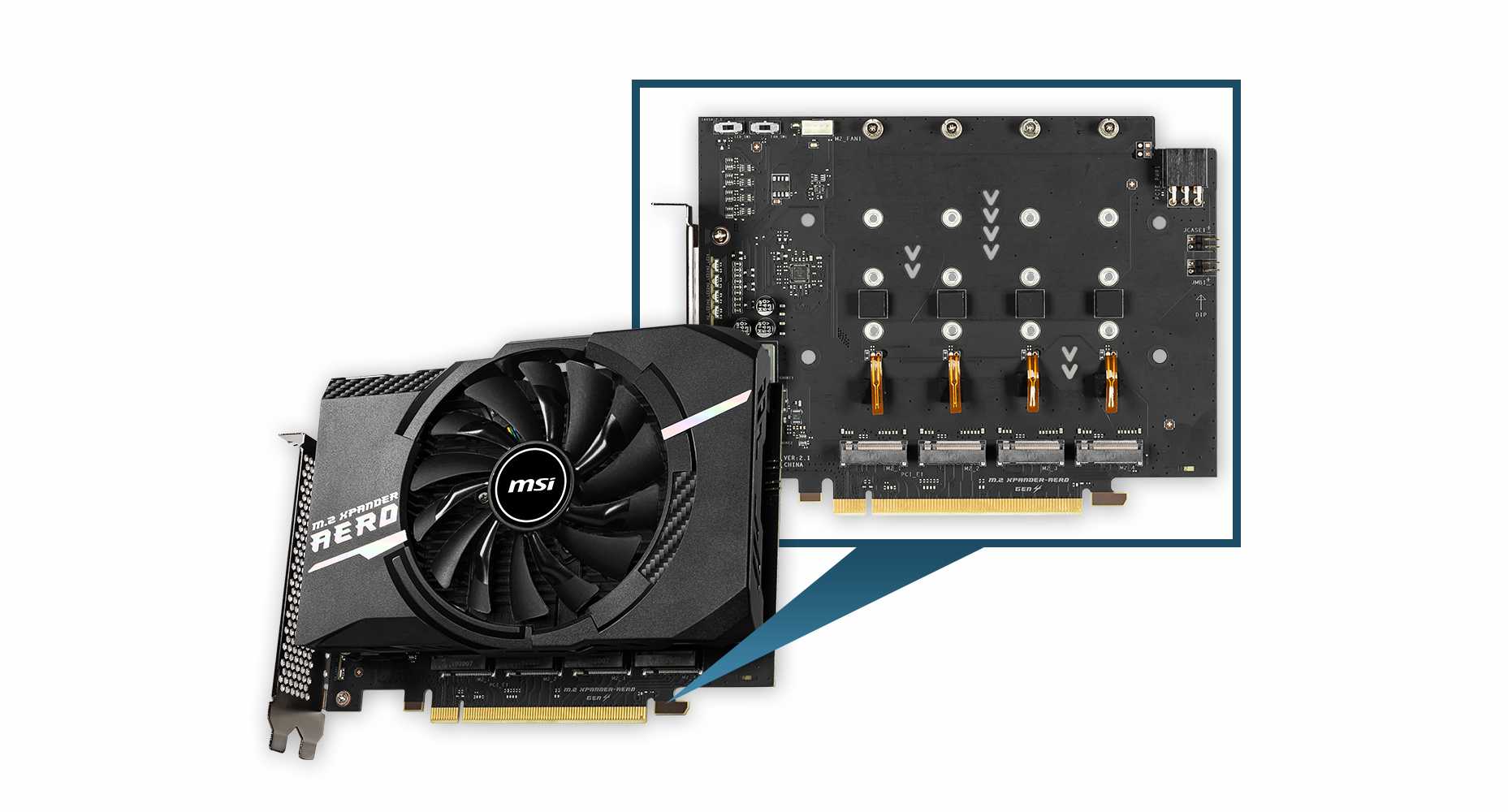

Add four extra Lightning Gen 4 M.2 slots for ultra-fast SSDs with the bundled M.2 XPANDER-AERO GEN4 accessory card.

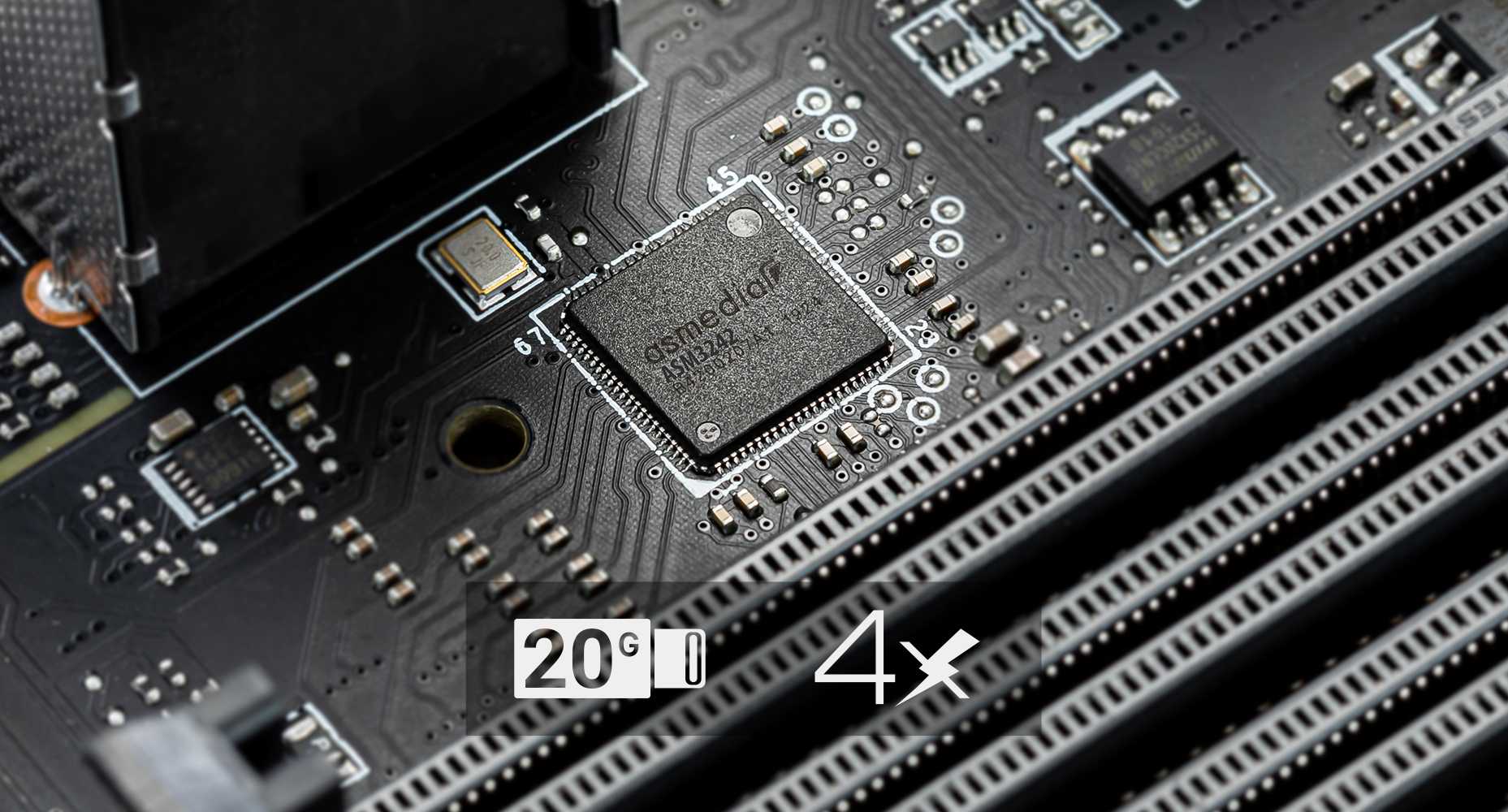

Quickly move large files including uncompressed video, raw images and bulky simulation data, powered by the ASMedia 3242 chip.

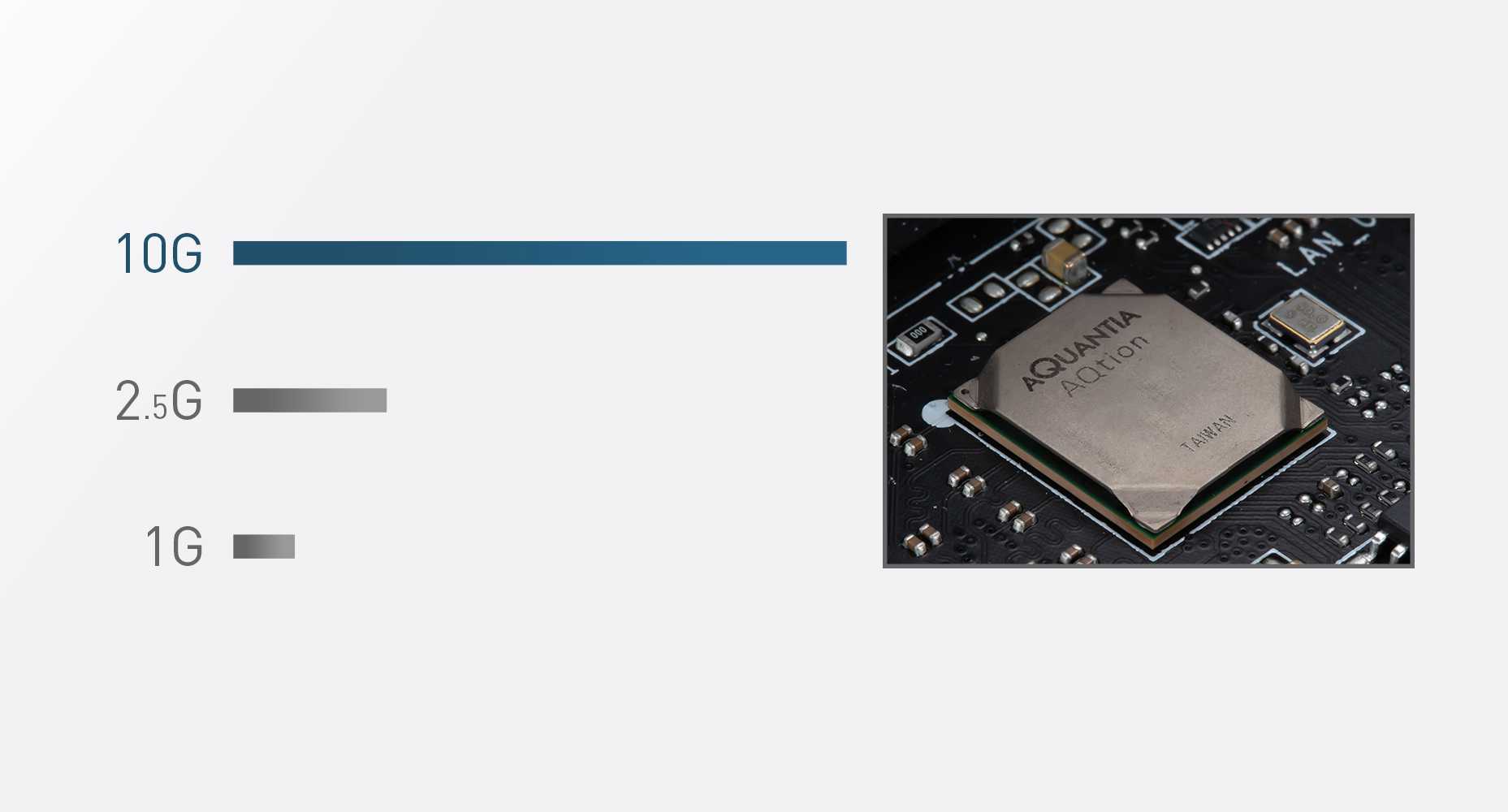

Onboard 10G Super LAN supports high-bandwidth, high-density and low-latency networks. Quickly transfer 4K video, raw images and other large files across a LAN network.

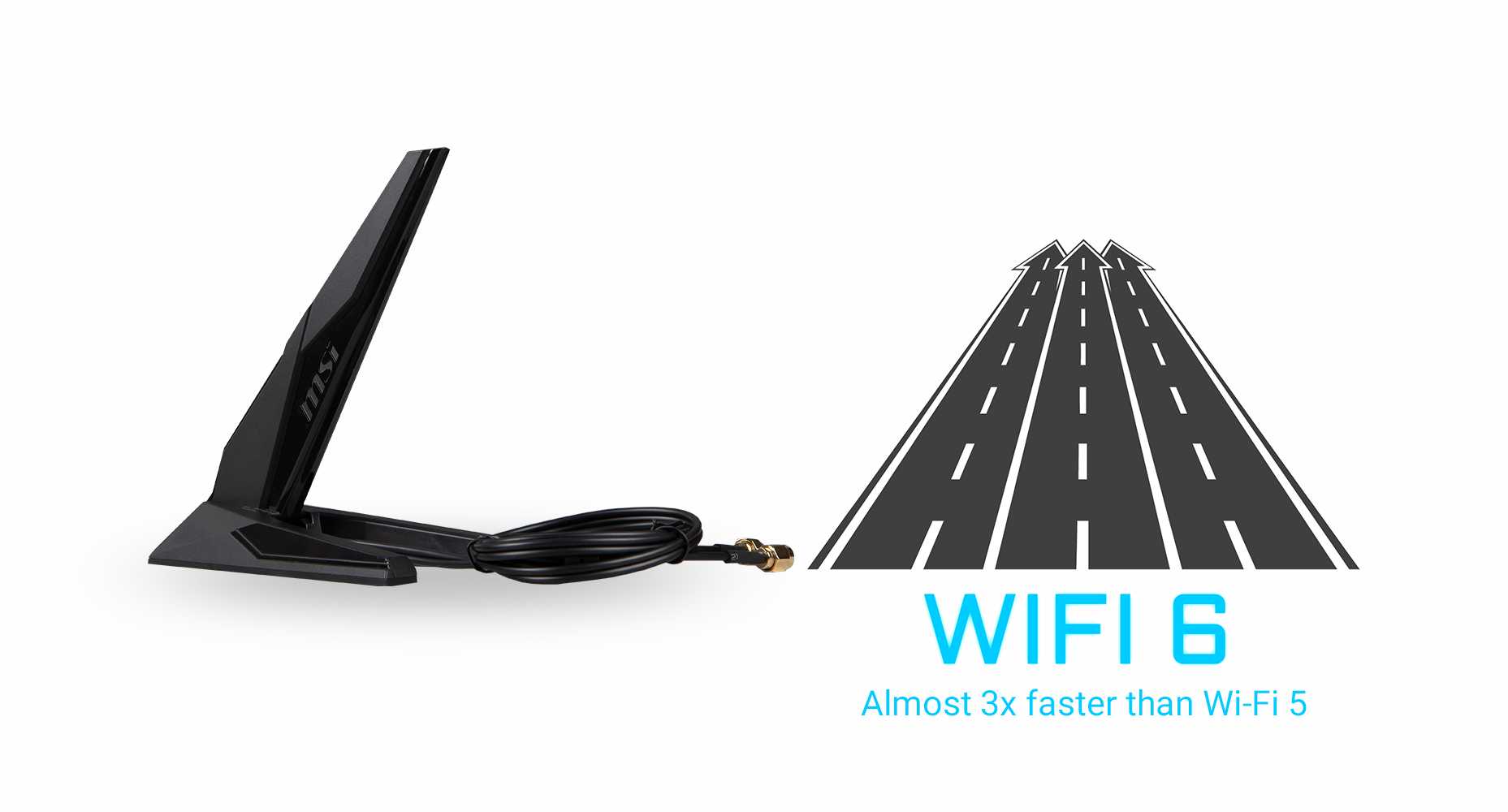

Connect to a high-speed WIFI 6 network with onboard Intel® WiFi 6. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.

Like a dedicated sound card, Audio Boost 4 with Nahimic offers an HD audio processor, dedicated amplifier and high-quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal.
