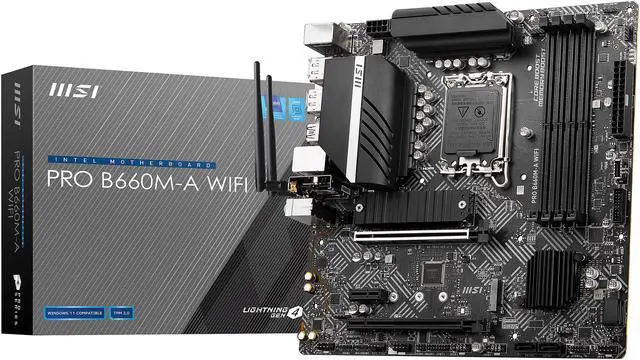

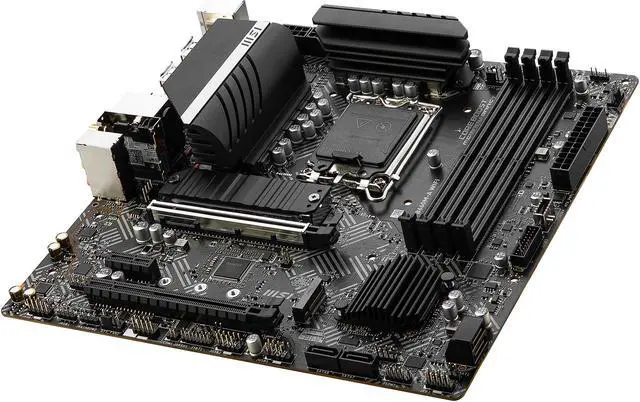

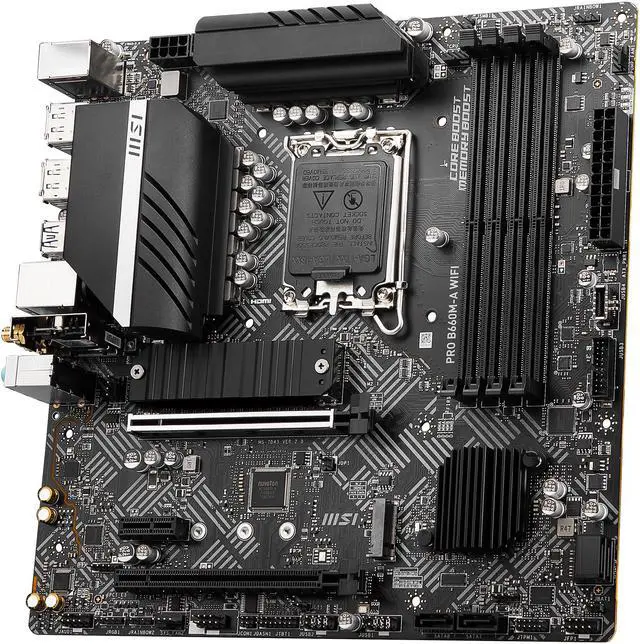

MSI PRO B660M-A WIFI DDR5 LGA 1700 Intel B660 SATA 6Gb/s Micro ATX Intel Motherboard

(215)(21) Write a Review
  • Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors.
  • May require a BIOS update to boot the 13th gen Intel Core desktop.
  • Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
  • M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling.
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • EZ Debug LED: Easiest way to troubleshoot.
  • Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
  • 2.5G Network Solution: Featuring premium 2.5G LAN with LAN manager to deliver better network experience.
  • WIFI 6: The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (215)
See all Q & A
avatar

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the MSI PRO B660M-A WIFI

Model
Brand MSI
Model PRO B660M-A WIFI
Supported CPU
CPU Socket Type LGA 1700

* Dedicated LGA1700 mounting bracket is required.
CPU Type Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
Chipsets
Chipset Intel B660
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 1R 4800 (by JEDEC & POR)

Max overclocking frequency:
1DPC 1R Max speed up to 6200+
1DPC 2R Max speed up to 5200+
2DPC 1R Max speed up to 4000+
2DPC 2R Max speed up to 4000+
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16

* Actual support may vary by CPU.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16

* Support PCIe 3.0 x4.
PCI Express x1 1 x PCI Express 3.0 x1
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 2 x M.2 slots (Key M):

M2_1 slot (From CPU):
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (From B660 chipset):*
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Optane Memory

* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8125BG
Max LAN Speed 2.5Gbps
Wireless LAN Intel WI-FI 6
802.11 a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2

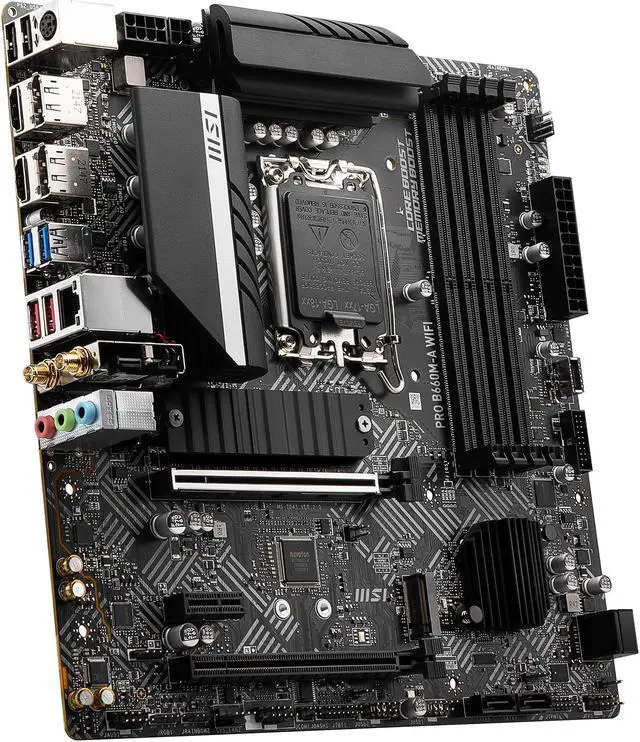

Rear Panel Ports
Back I/O Ports 1 x LAN (RJ45)
2 x Antenna Bracket
2 x DisplayPort
2 x HDMI
1 x PS/2 Keyboard/Mouse Combo
2 x USB 2.0/1.1
2 x USB 3.2 Gen 1 Type-A
2 x USB 3.2 Gen 2 Type-A
3 x Audio Jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
1 x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074), Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2 x USB 2.0 Type-A connectors (From B660 chipset), Supports additional 4 USB 2.0 ports
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Tuning Controller connector
1 x TBT connector (supports RTD3)
1 x Serial port
1 x Clear CMOS jumper
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LED
Software Feature
Windows 11 Supported
Physical Spec
Form Factor Micro ATX
LED Lighting RGB

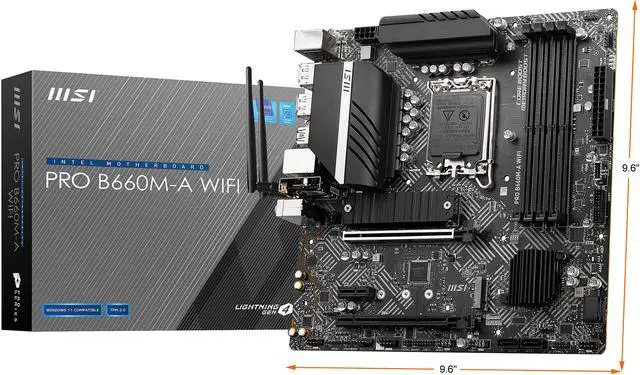

Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Additional Information
First Listed on Newegg April 07, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
