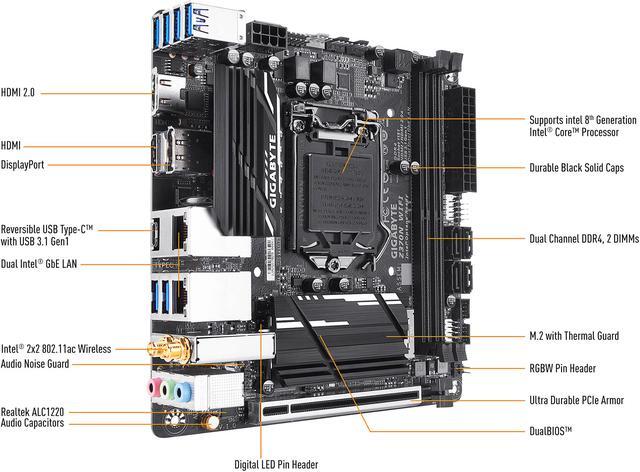

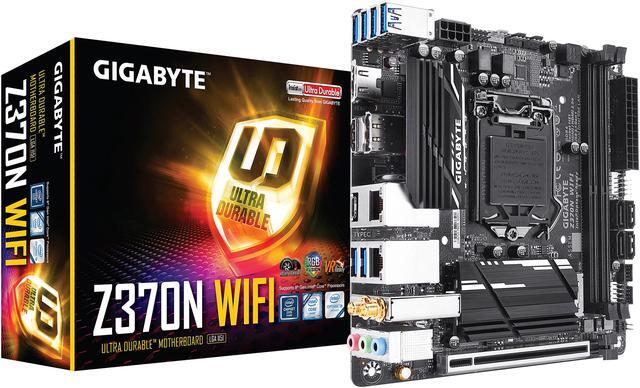

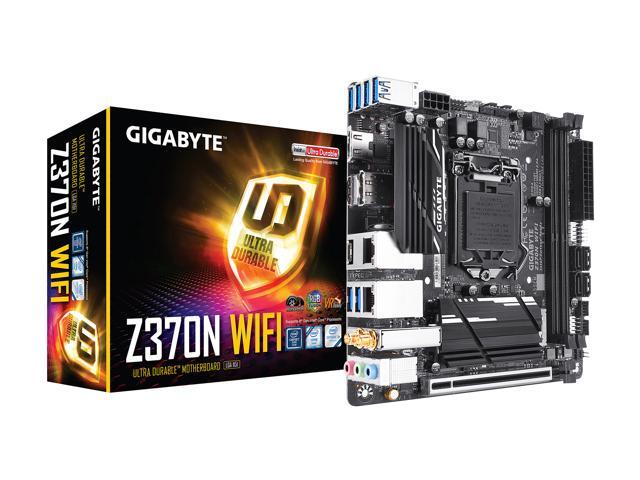

GIGABYTE Z370N WIFI (rev. 1.0) LGA 1151 (300 Series) Intel Z370 HDMI SATA 6Gb/s USB 3.1 Mini ITX Intel Motherboard

OUT OF STOCK.
  • Intel Z370
  • Support for 8th Generation Intel Core i7/i5/i3 processors in the LGA 1151 package
  • * Not backward compatible with older generation of LGA 1151 CPUs
  • DDR4 4400(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
Specs
Reviews

Learn more about the GIGABYTE Z370N WIFI (rev. 1.0)

Model
Brand GIGABYTE
Model Z370N WIFI (rev. 1.0)
Supported CPU
CPU Socket Type LGA 1151 (300 Series)
CPU Type Support for 8th Generation Intel Core i7/i5/i3 processors in the LGA 1151 package
* Not backward compatible with older generation of LGA 1151 CPUs
Chipsets
Chipset Intel Z370
Onboard Video
Onboard Video Chipset Integrated Graphics Processor+MegaChips MCDP2800 chip:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.
(Requires the latest Intel graphics driver from the GIGABYTE website.)

Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz
* Support for HDMI 1.4 version and HDCP 2.2.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz
* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 1GB
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 4400(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G)

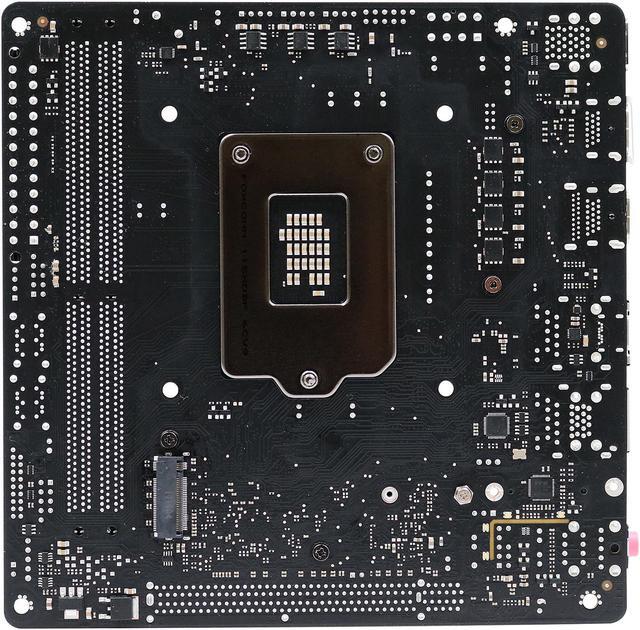

1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2)
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Onboard LAN
LAN Chipset 2 x Intel GbE LAN chips
Max LAN Speed Dual 10/100/1000Mbps
Wireless LAN Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Bluetooth BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Rear Panel Ports
HDMI 2 x HDMI
RJ45 2 x RJ45
DisplayPort 1 x DisplayPort
USB 3.1 6 x USB 3.1 Gen 1 ports
1 x USB Type-C port, with USB 3.1 Gen 1 support
Audio Ports 3 x audio jacks (Line In, Line Out, Mic In)
Antenna Connectors 2 x SMA antenna connectors (2T2R)
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x CPU fan header
2 x system fan headers
1 x digital LED strip header
1 x digital LED strip power select jumper
1 x RGB (RGBW) LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Physical Spec
Form Factor Mini ITX
LED Lighting RGB
Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit
Additional Information
Date First Available October 26, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
