Brand | GIGABYTE |
---|---|

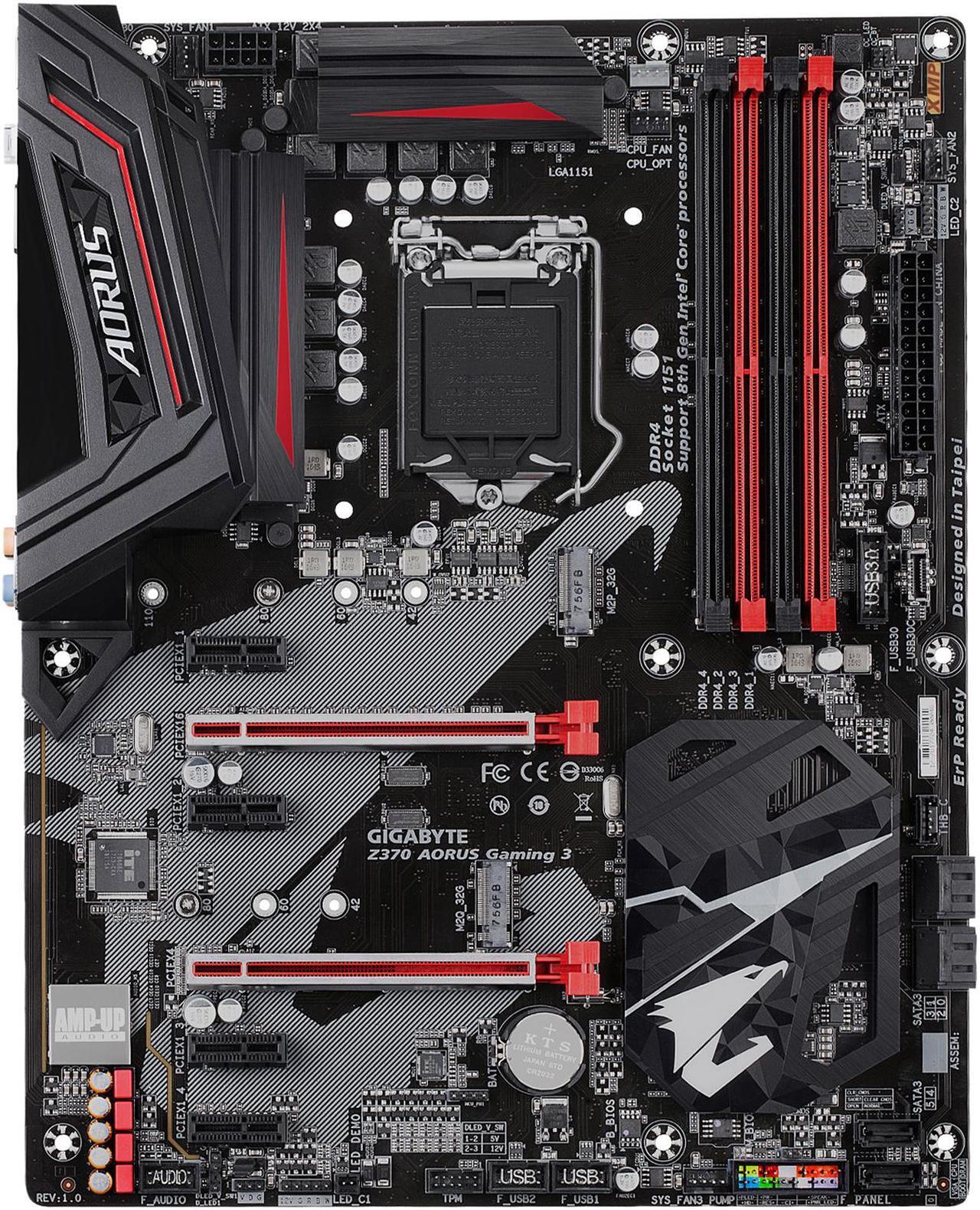

Model | Z370 AORUS Gaming 3 |
CPU Socket Type | LGA 1151 (300 Series) |
---|---|
CPU Type | Support for 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors in the LGA1151 package * Not backward compatible with older generation of LGA 1151 CPUs |
Chipset | Intel Z370 |
---|
Onboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1GB |
---|
Number of Memory Slots | 4x288pin (DDR4) |
---|---|
Memory Standard | DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 |
Maximum Memory Supported | 64GB |
Channel Supported | Dual Channel |
PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
---|---|
PCI Express x1 | 4 x PCI Express x1 slots * The PCIEX4 slot shares bandwidth with the PCIEX1_2, 3, 4 slots. The PCIEX4 slot operates at up to x1 mode when the PCIEX1_2, 3, or 4 slot is populated. (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
Serial ATA (SATA) | 6 x SATA 6Gb/s |
---|---|
M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G) |
SATA RAID | 0/1/5/10 |
Audio Chipset | Realtek ALC1220 |
---|---|
Audio Channels | 2/4/5.1/7.1-channel Support for S/PDIF Out |
LAN Chipset | Rivet Networks Killer E2500 LAN chip |
---|---|
Max LAN Speed | 1Gbps |

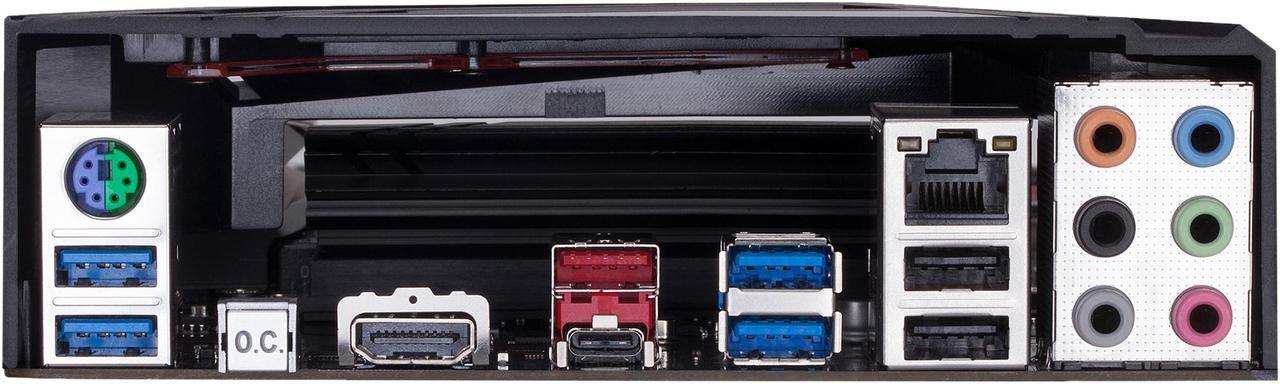

Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-A |
---|---|
PS/2 | 1 x PS/2 keyboard/mouse port |
HDMI | 1 x HDMI |
RJ45 | 1 x RJ45 |
USB 3.1 | 1 x USB Type-C port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 4 x USB 3.1 Gen 1 ports |
USB 1.1/2.0 | 2 x USB 2.0 |
Audio Ports | 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
Onboard USB | 1 x USB Type-C header, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers |
---|---|
Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB (RGBW) LED strip headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt add-in card connector 1 x chassis OC LED header 1 x chassis OC button header 1 x Clear CMOS jumper |
Form Factor | ATX |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software: Norton Internet Security (OEM version) Operating System: Support for Windows 10 64-bit |
---|
Date First Available | October 30, 2024 |
---|
