Question 1

does this board have ARGB headers?

Accepted Answer

Yes, I don't recall how many.

Question 2

Will the M.2B Socket (PCIE Gen. 2.0) on this board accept  the SAMSUNG 970 EVO PLUS M.2 2280 1TB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V7S1T0B/AMconnector? I believe the M.2.A socket is compatible but not sure about the M.2B socket since it is PCIe Gen. 2.

Is the M.2 SSD a good choice to load the operating system and gaming software on or is their a better option.

I purchased both the MB & M.2 card from Newegg for my new build and want to know my best options.
Some of the reviews I read on this MB had issues with the operating system installed on the M.2 card plugged in the M.2A Socket but would work fine in the m.2B socket. Is this really an issue?

Thanks in advance for any response.

Accepted Answer

Hello there,

Thank you for contacting us in regards to your question. The Samsung 970 EVO would be compatible with the M.2B socket. However it would be limited to Gen 2 speeds which still out perform what Sata is capable of. Regarding the issue you have read regarding the M.2A socket, I recommend contacting the manufacturer, GIGABYTE, for more information and possible assistance on this concern. Their contact information is listed under the Warranty & Returns tab.

Hope this helps,
Newegg Support

Question 3

is it have the update for support 3000 the new cpu ???

Accepted Answer

Gigabyte has on their site a Bios version F40 that, from what I understand is for the 3000 series support. I use version F31 having a Ryzen 5 2600x in mine.

Question 4

This is likely a dumb question, but in every photo the lighting is orange, is that changeable to multiple colors?

Accepted Answer

Hello,

Thank you for contacting us in regards to your question.

Yes the colors are changeable.

Thank you and have a nice day!
Newegg Support

Question 5

The GIGABYTE X470 AORUS GAMING 7 WIFI-50 AM4 AMD X470 SATA 6Gb/s ATX AMD Motherboard has two ATX_12Vs (an 8 pin and a 4 pin for CPU power). The manual that comes with the board does not specify if you use only the eight pin or both the eight pin and four pin. So my question is, do you connect power to just the eight pin or just the four pin, or both?

I just finished my build and am not powering it until I have an answer.

Thanks

Accepted Answer

Just the 8 pin is all you need.

Question 6

Is this motherboard going to be shipped ready for Ryzen 3000? I know it's compatible, but I mean is the bios going to be updated out of the box to be ready? I'll be building a Ryzen system from scratch next month so I won't have a current CPU to update the motherboard's BIOS to be Zen 2 ready.

Accepted Answer

Hello Ricardo, There is no guarantee that the board you get will have the updated BIOS nor is there a way for us to guarantee that before shipment. The best you can expect is to buy the board in hopes that it has a sticker or label confirm Ryzen 3rd Gen ready when you receive it. Otherwise you may want to consider contacting AMD to see if they are still doing the loaner CPU kit program where they send you a cheap (but compatible) CPU to install and get the system up and running in order to update the BIOS. Some board manufacturers will also flash the BIOS for you if you send them the board but you would need to contact them directly to see if this can be done, hope this helps! https://www.amd.com/en/support/kb/faq/pa-100 Newegg Support

Question 7

Exactly "when" will you get the new Gigabyte AMD X 570 chip-set motherboards?

Accepted Answer

Hello Joseph,

Unfortunately that is not something we can confirm at this time  as we do not have that information to provide, I imagine they will be available alongside the 3rd Gen Ryzen CPUs when those launch.  My apologies for the inconvenience.

Newegg Support

CPU Socket Type	AM4
CPU Type	AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics* / Athlon with Radeon Vega Graphics* / Ryzen 1st Generation Processors * No display output on this board, please insert a graphics card for display output support.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3600+(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
PCI Express 2.0 x16	1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.
PCI Express x1	2 x PCI Express x1 slots (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET)
SATA RAID	0/1/10

Audio Chipset	Realtek ALC1220-VB * The front panel line out jack supports DSD audio.
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

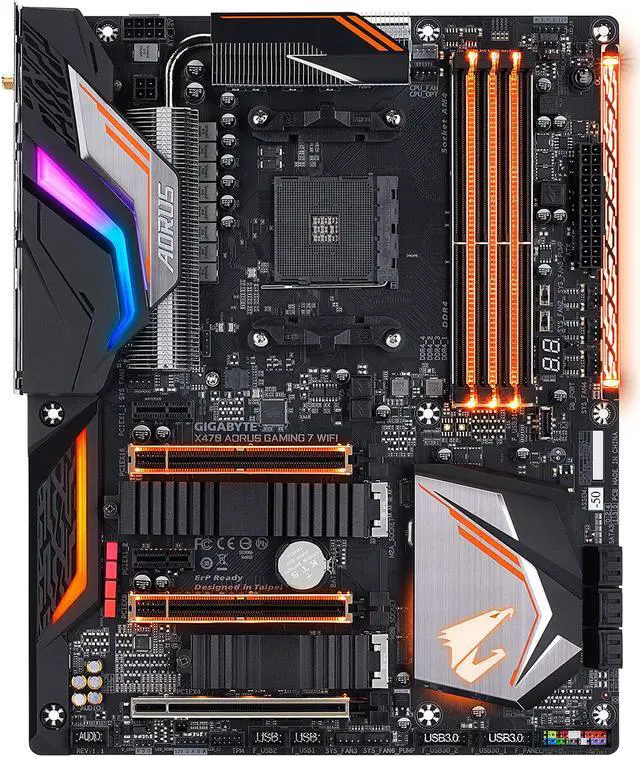

GIGABYTE X470 AORUS GAMING 7 WIFI-50 AM4 AMD X470 ATX AMD Motherboard

Learn more about the GIGABYTE X470 AORUS GAMING 7 WIFI-50

Customer Reviews of the GIGABYTE X470 AORUS GAMING 7 WIFI-50

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

LAN Chipset	Intel GbE LAN chip
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Support for 11 ac 160 MHz wireless standard and up to 1.73 Gbps data rate * Actual data rate may vary depending on environment and equipment. * Intel WIFI driver only support for Win10-64bit.
Bluetooth	BLUETOOTH 5

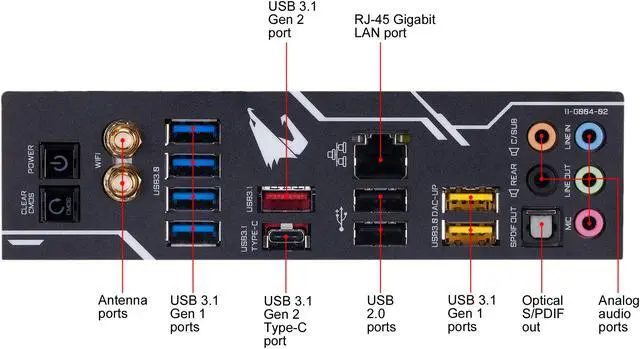

Onboard USB	1 x USB Type-C port, with USB 3.1 Gen 2 support 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers

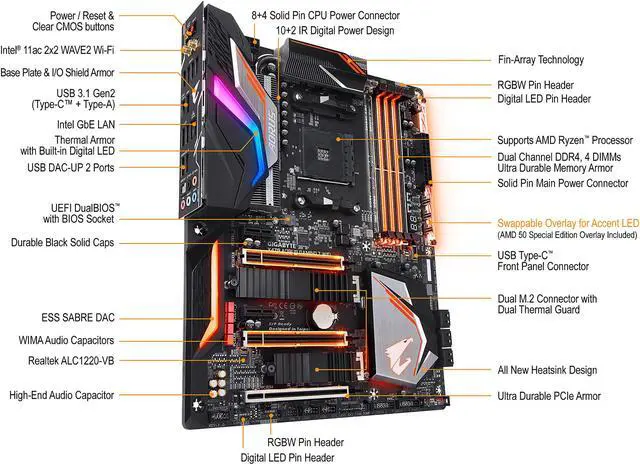

Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x CPU cooler LED strip/RGB LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB (RGBW) LED strip headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x OC button 1 x BIOS switch 1 x DualBIOS switch 2 x temperature sensor headers

Form Factor	ATX
LED Lighting	RGB

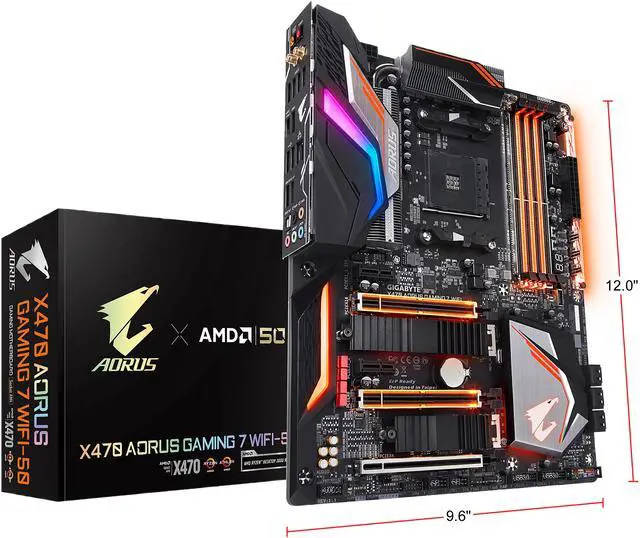

Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Item#: N82E16813145152
