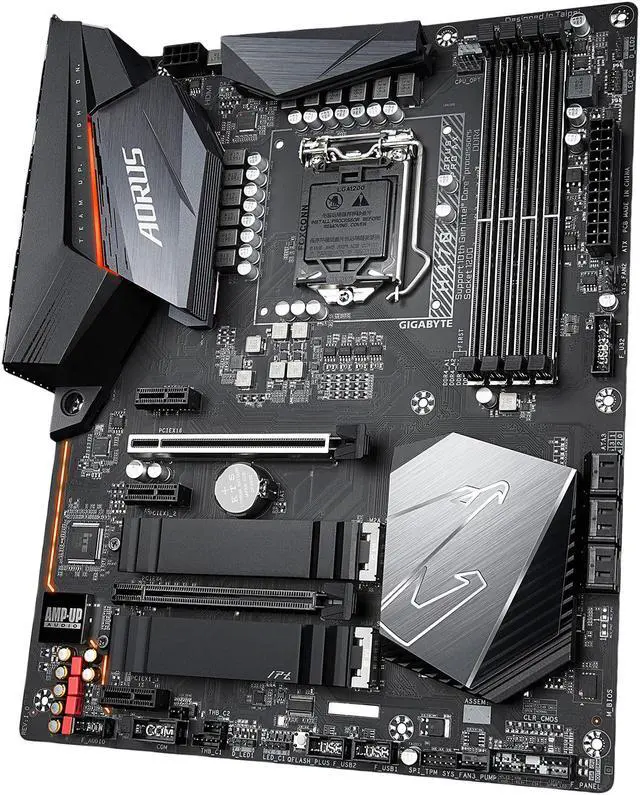

Alt view image 3 of 9 - GIGABYTE H470 AORUS PRO AX LGA 1200 Intel H470 ATX Intel Motherboard

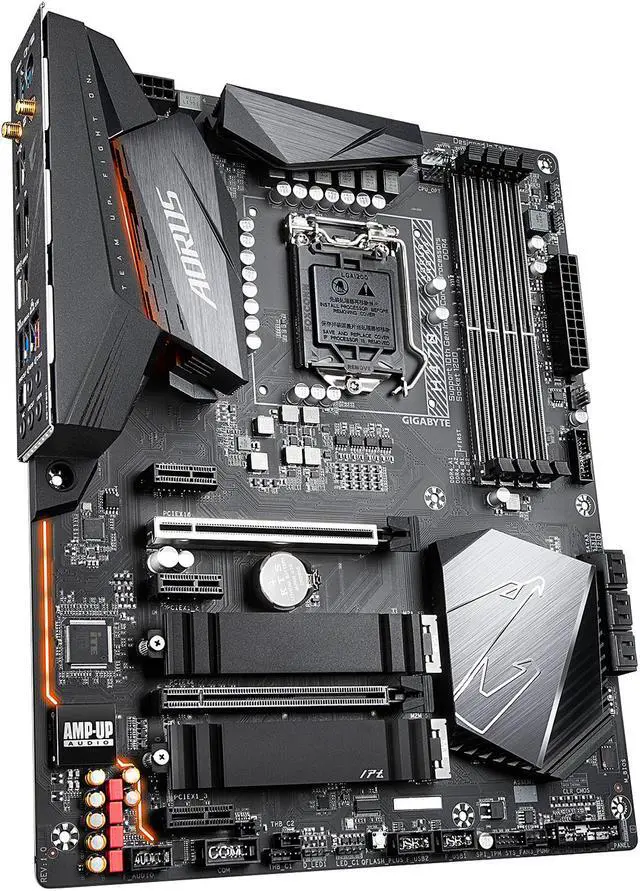

Alt view image 4 of 9 - GIGABYTE H470 AORUS PRO AX LGA 1200 Intel H470 ATX Intel Motherboard

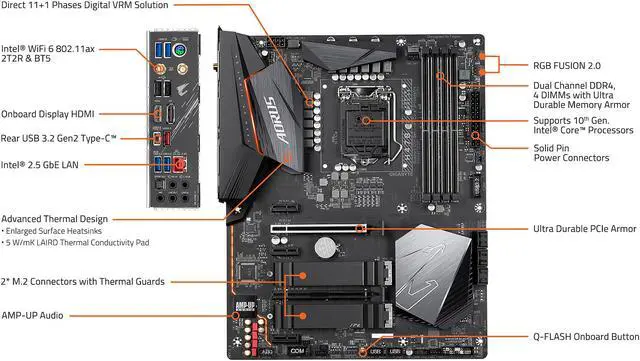

Alt view image 5 of 9 - GIGABYTE H470 AORUS PRO AX LGA 1200 Intel H470 ATX Intel Motherboard

Alt view image 6 of 9 - GIGABYTE H470 AORUS PRO AX LGA 1200 Intel H470 ATX Intel Motherboard

Alt view image 7 of 9 - GIGABYTE H470 AORUS PRO AX LGA 1200 Intel H470 ATX Intel Motherboard

Alt view image 8 of 9 - GIGABYTE H470 AORUS PRO AX LGA 1200 Intel H470 ATX Intel Motherboard

Alt view image 9 of 9 - GIGABYTE H470 AORUS PRO AX LGA 1200 Intel H470 ATX Intel Motherboard

Shop All GIGABYTE Products

GIGABYTE H470 AORUS PRO AX LGA 1200 Intel H470 ATX Intel Motherboard

(11) Write a Review

Intel H470
Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Intel Core i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (11)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	H470 AORUS PRO AX

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package

Chipsets
Chipset	Intel H470

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Maximum shared memory of 512MB

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Intel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x1	3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220-VB codec * The back panel line out jack supports DSD audio.
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

Onboard LAN
LAN Chipset	Intel 2.5GbE LAN chip
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth	BLUETOOTH 5.1

Rear Panel Ports

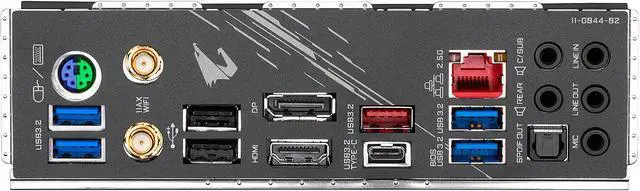

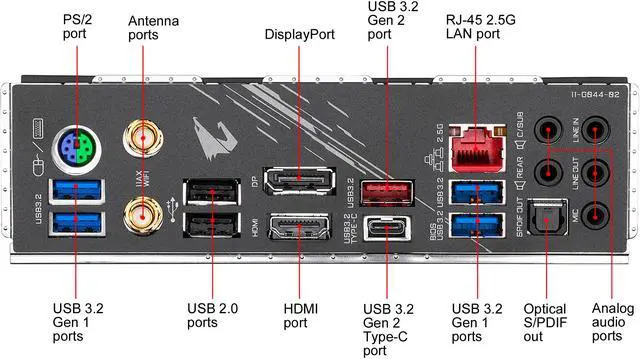

Back I/O Ports	1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Q-Flash Plus button 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper

Physical Spec
Form Factor	ATX
LED Lighting	RGB

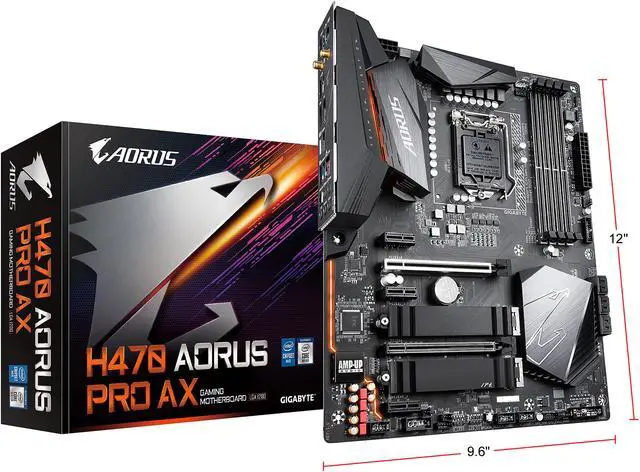

Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit
