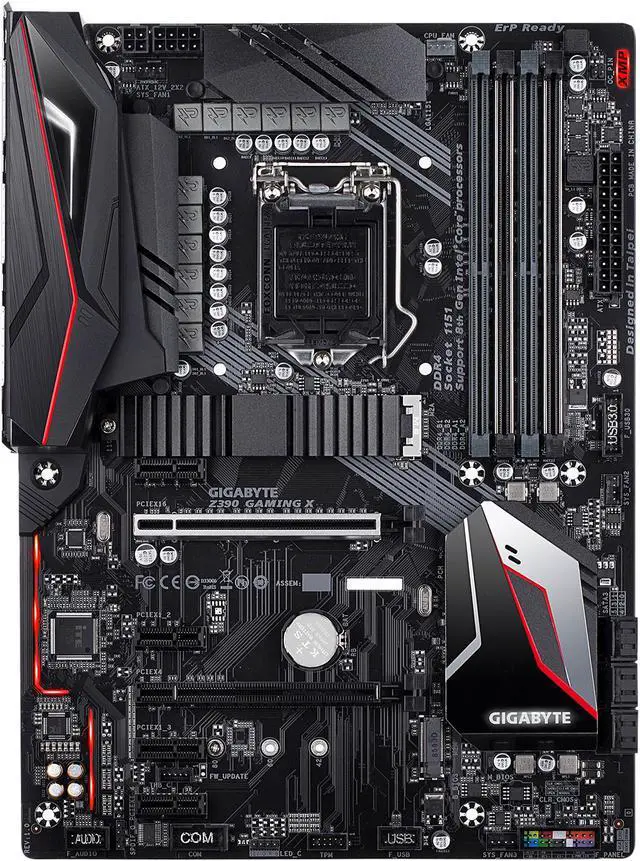

GIGABYTE Z390 GAMING X LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 ATX Intel Motherboard
REFURBISHED Product Type
- Intel Z390
- Support for Intel 9000 Processors and 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package
- * Not backward compatible with older generation of LGA 1151 CPUs
- DDR4 2666/ 2400/ 2133
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE Z390 GAMING X
| Brand | GIGABYTE |
|---|---|
| Model | Z390 GAMING X |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Support for Intel 9000 Processors and 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z390 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1GB |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2666/ 2400/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
|---|---|
| PCI Express x1 | 4 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M) |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN Chipset | Intel GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 2 x USB 2.0/1.1 / 5 x USB 3.1 Gen 1 Type-A / 6 x Audio Jacks |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 1 x USB 3.1 Gen 2 Type-A port (red) 5 x USB 3.1 Gen 1 ports |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header |
|---|---|
| Other Connectors | 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt add-in card connector 1 x serial port header 1 x Clear CMOS jumper |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 8.9" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit |
|---|
| First Listed on Newegg | August 17, 2020 |
|---|
