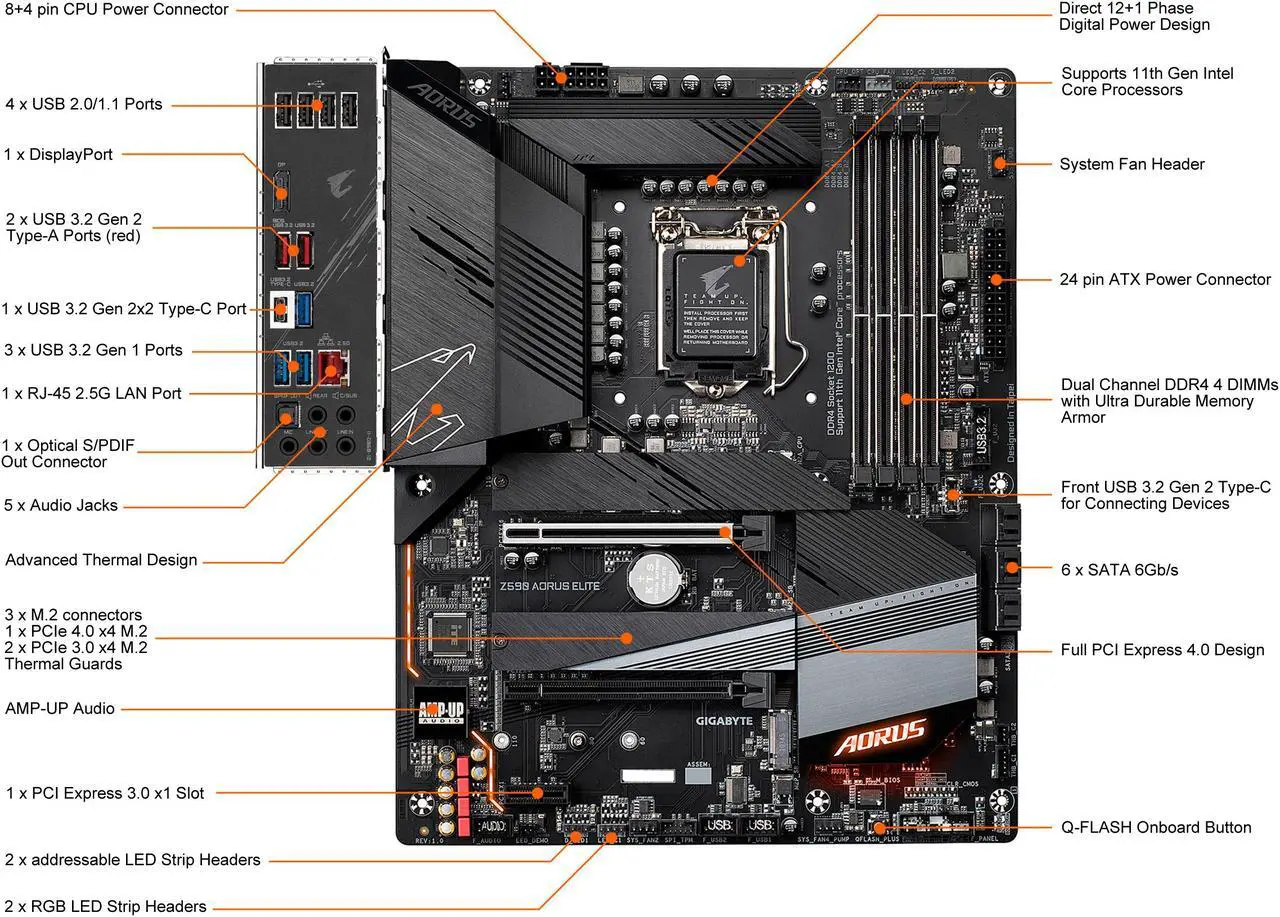

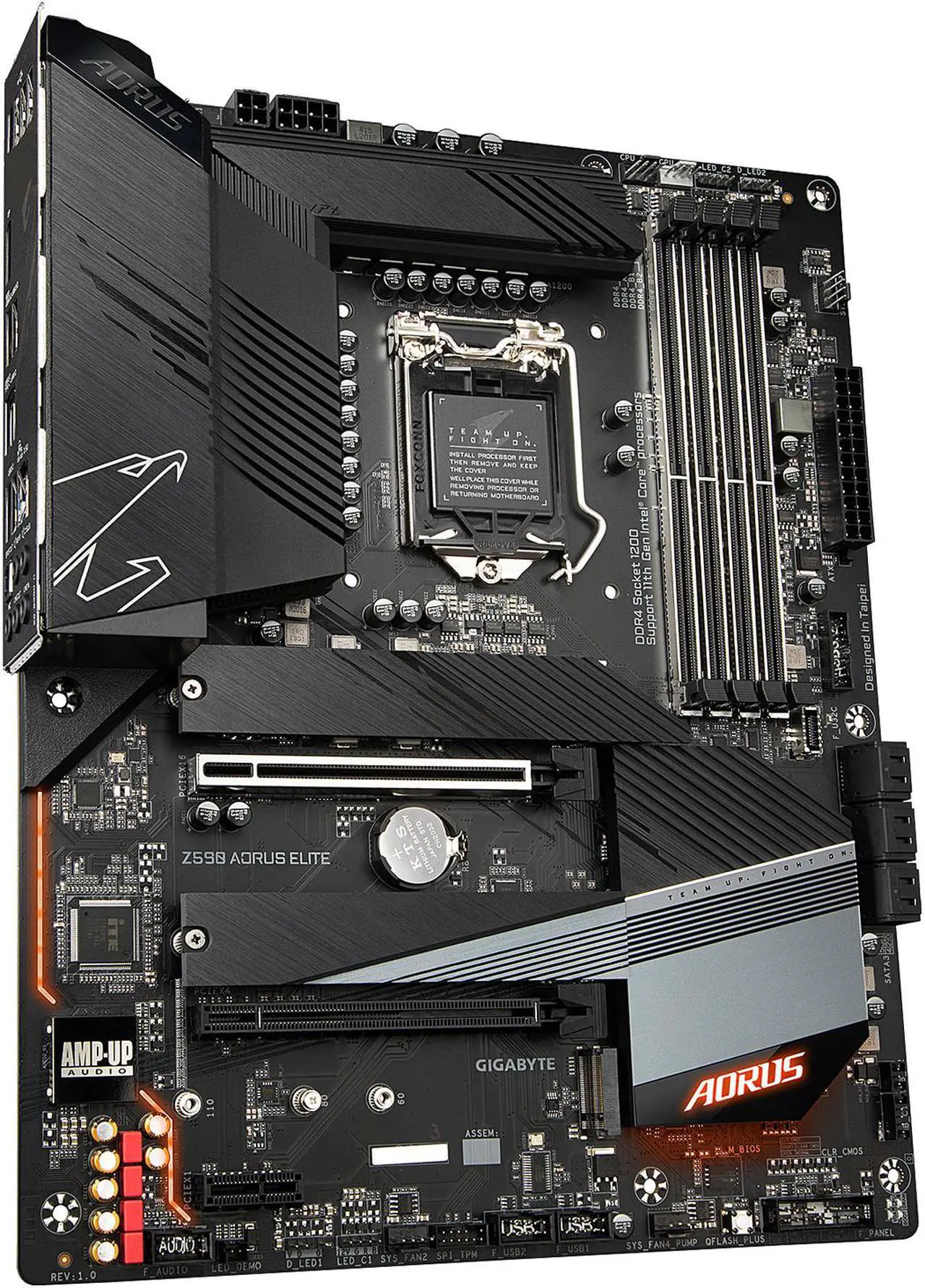

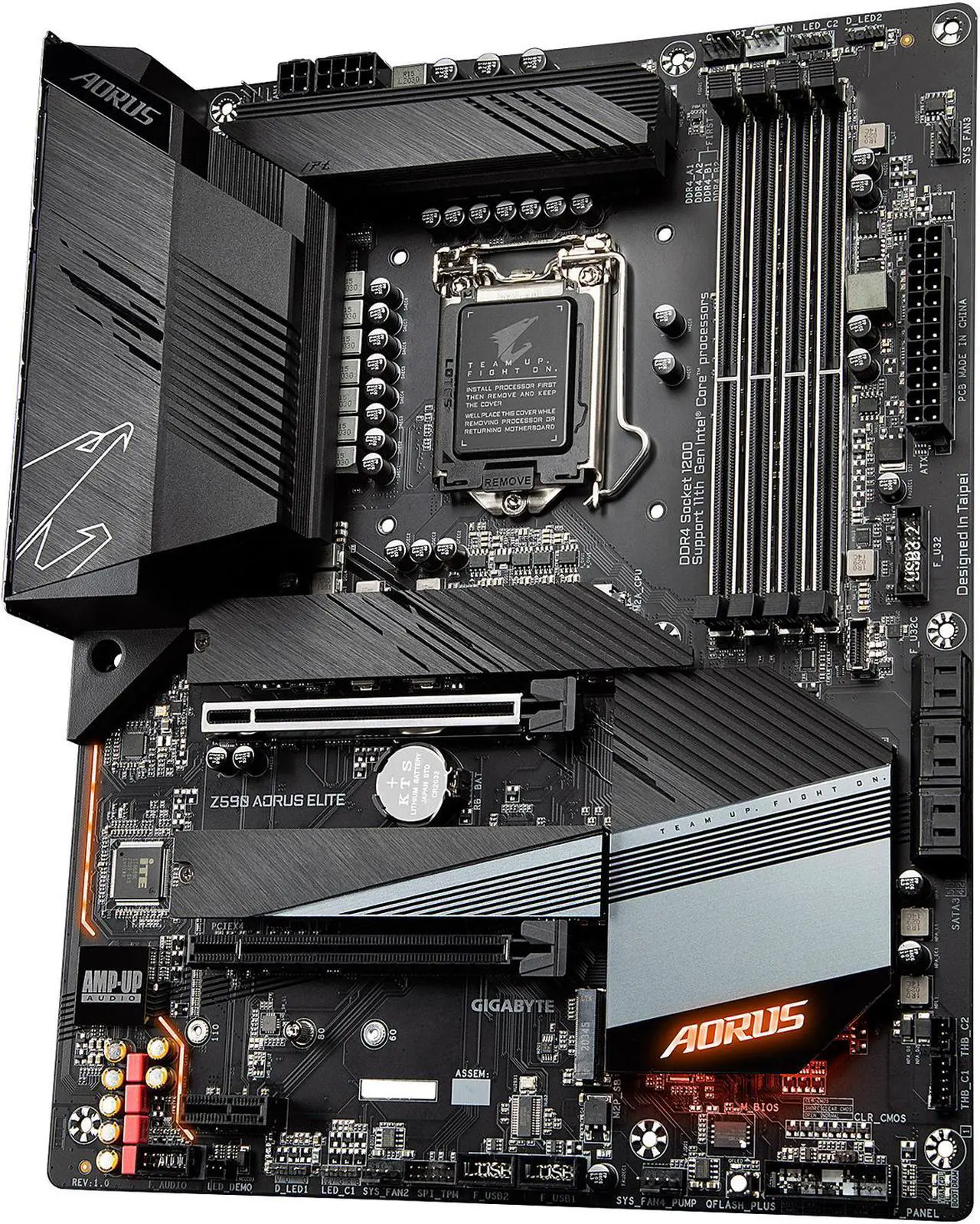

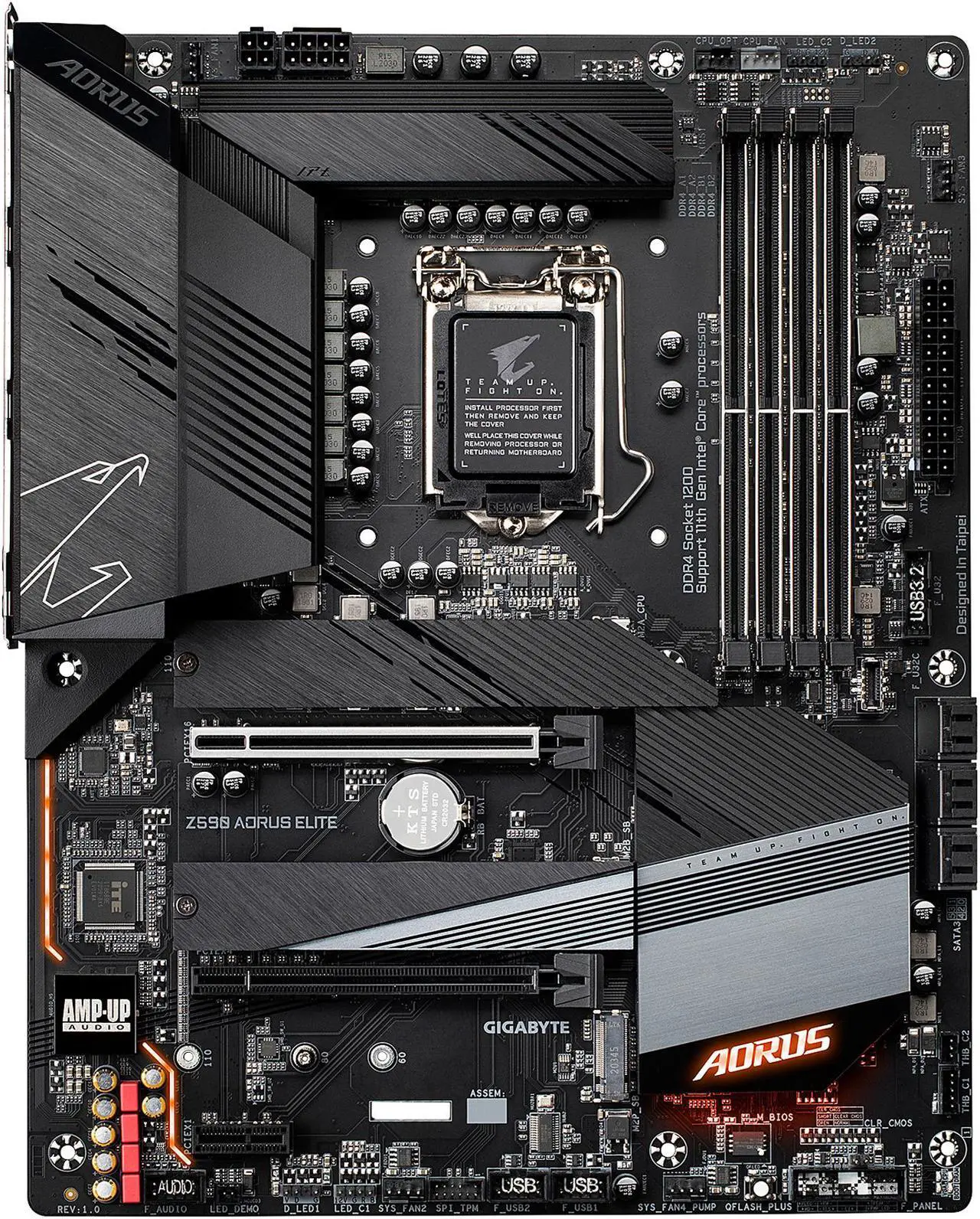

    GIGABYTE Z590 AORUS ELITE LGA 1200 Intel Z590 ATX Motherboard with Triple M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

    (390)(49) Write a Review
    • Z590 AORUS ELITE
    • Z590 AORUS ELITE AX
    • Z590 AORUS MASTER
    • Z590 AORUS PRO AX
    • Z590 AORUS TACHYON
    • Z590 AORUS ULTRA
    • Z590 UD
    • Z590 UD AC
    • Z590 VISION D
    • Z590 VISION G
    • Z590I AORUS ULTRA
    • Supports 11th and 10th Gen Intel Core Series Processors
    • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
    • Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
    • Shielded Memory Routing for Better Memory Overclocking
    • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
    • AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
    • Fast 2.5GbE LAN with Bandwidth Management
    • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
    • SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
    • Pre-installed IO Shield for Easy and Quick Installation
    • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
    • Support Addressable LED & RGB LED Strips
    • Smart Fan 6 Features Multiple Temperature Sensors
    • Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (390)

    Learn more about the GIGABYTE Z590 AORUS ELITE

    Model
    Brand GIGABYTE
    Model Z590 AORUS ELITE
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 11th / 10th Gen Intel Core processors
    Supports Intel Pentium / Celeron processors*

    * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
    Chipsets
    Chipset Intel Z590
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules (11th Gen Intel Core i9 / i7 / i5 processors)

    DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i9 / i7 processors)

    DDR4 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 1 x PCI Express 4.0 x16

    * Actual support may vary by CPU.
    PCI Express 3.0 x16 1 x PCI Express 3.0 x16

    * Actual support may vary by CPU.
    PCI Express x1 1 x PCI Express 3.0 x1
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    M.2 CPU:
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*

    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)

    * Supported by 11th Generation processors only.
    Intel Optane Ready Yes
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC1220-VB

    * The back panel line out jack supports DSD audio.
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek 2.5GbE LAN chip
    Max LAN Speed 2.5Gbps

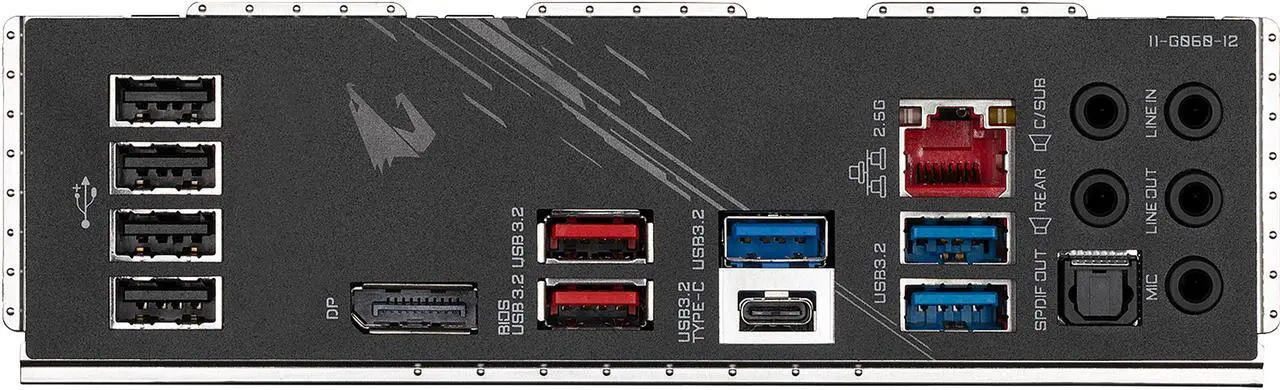

    Rear Panel Ports
    Back I/O Ports 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    3 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x DisplayPort
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    5 x audio jacks
    Internal I/O Connectors
    Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen1 header
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x front panel header
    1 x front panel audio header
    2 x Thunderbolt add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
    1 x Clear CMOS jumper
    1 x Q-Flash Plus button
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor ATX
    LED Lighting RGB

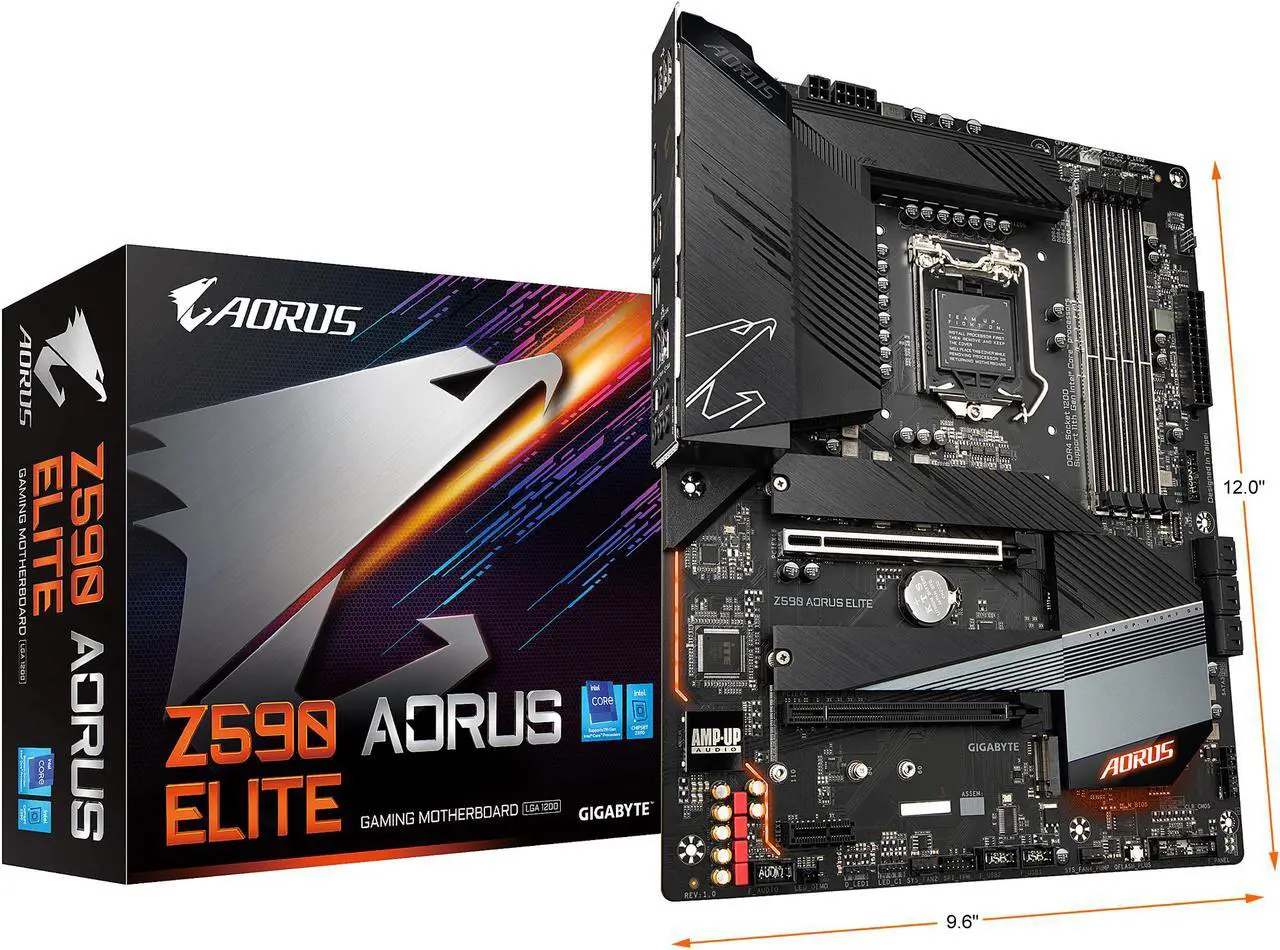

    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    Features
    Features Multi-Graphics Technology:
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

    I/O Controller:
    iTE I/O Controller Chip

    H/W Monitoring:
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.

    BIOS:
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features:
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install

    Bundled Software:
    Norton Internet Security (OEM version)
    Realtek 8125 Gaming LAN Bandwidth Control Utility

    Operating System:
    Support for Windows 10 64-bit
    Additional Information
    Date First Available October 22, 2024
