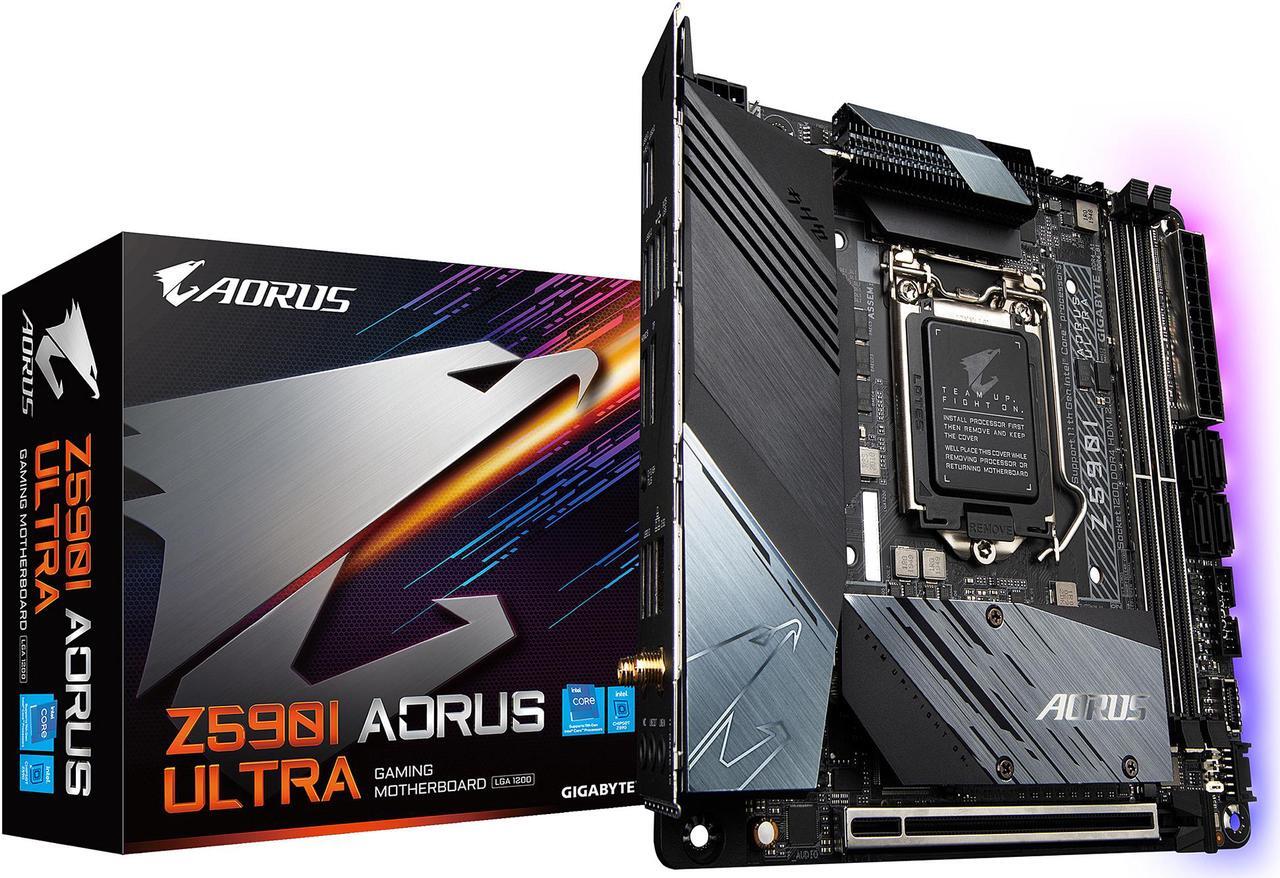

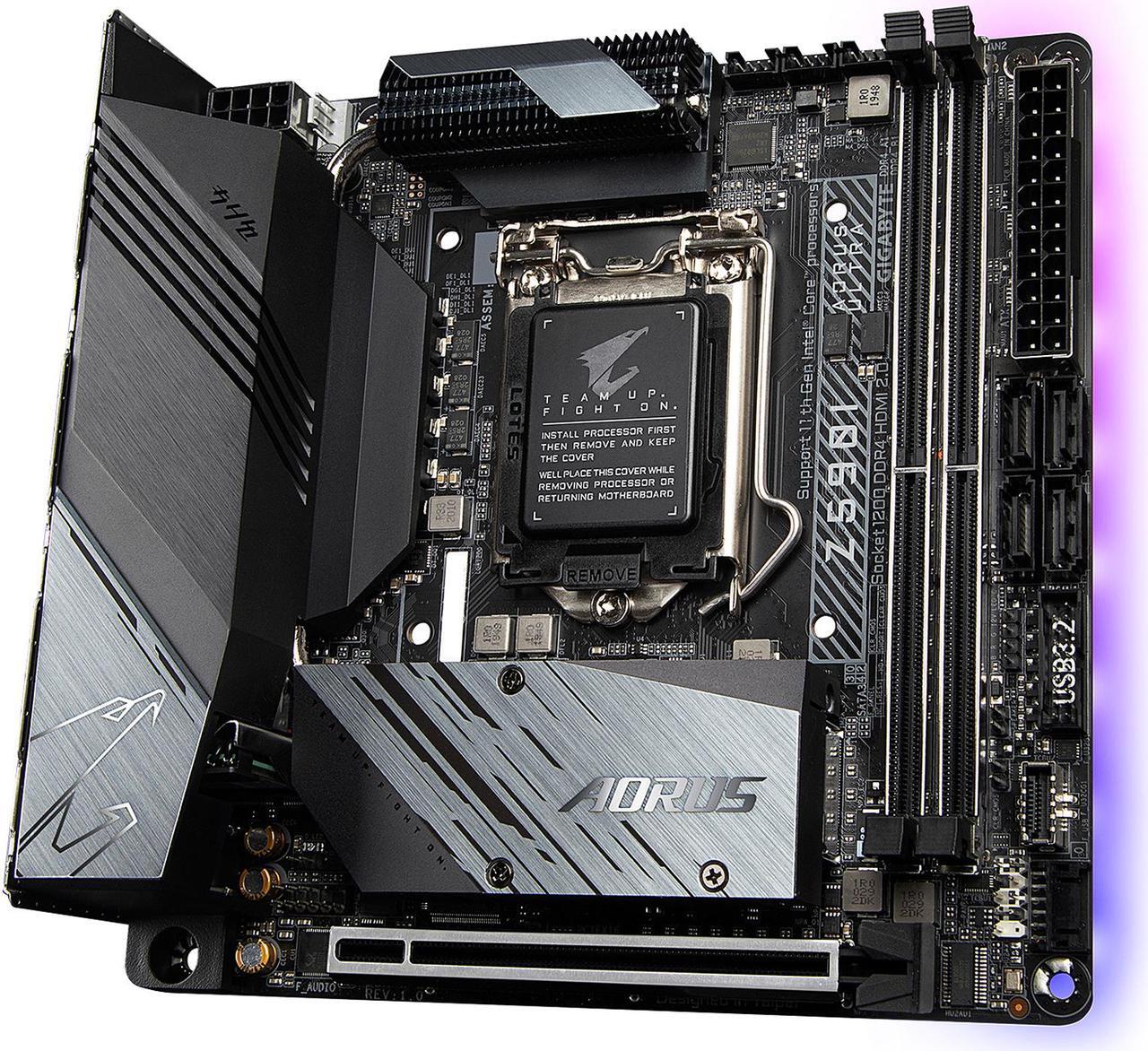

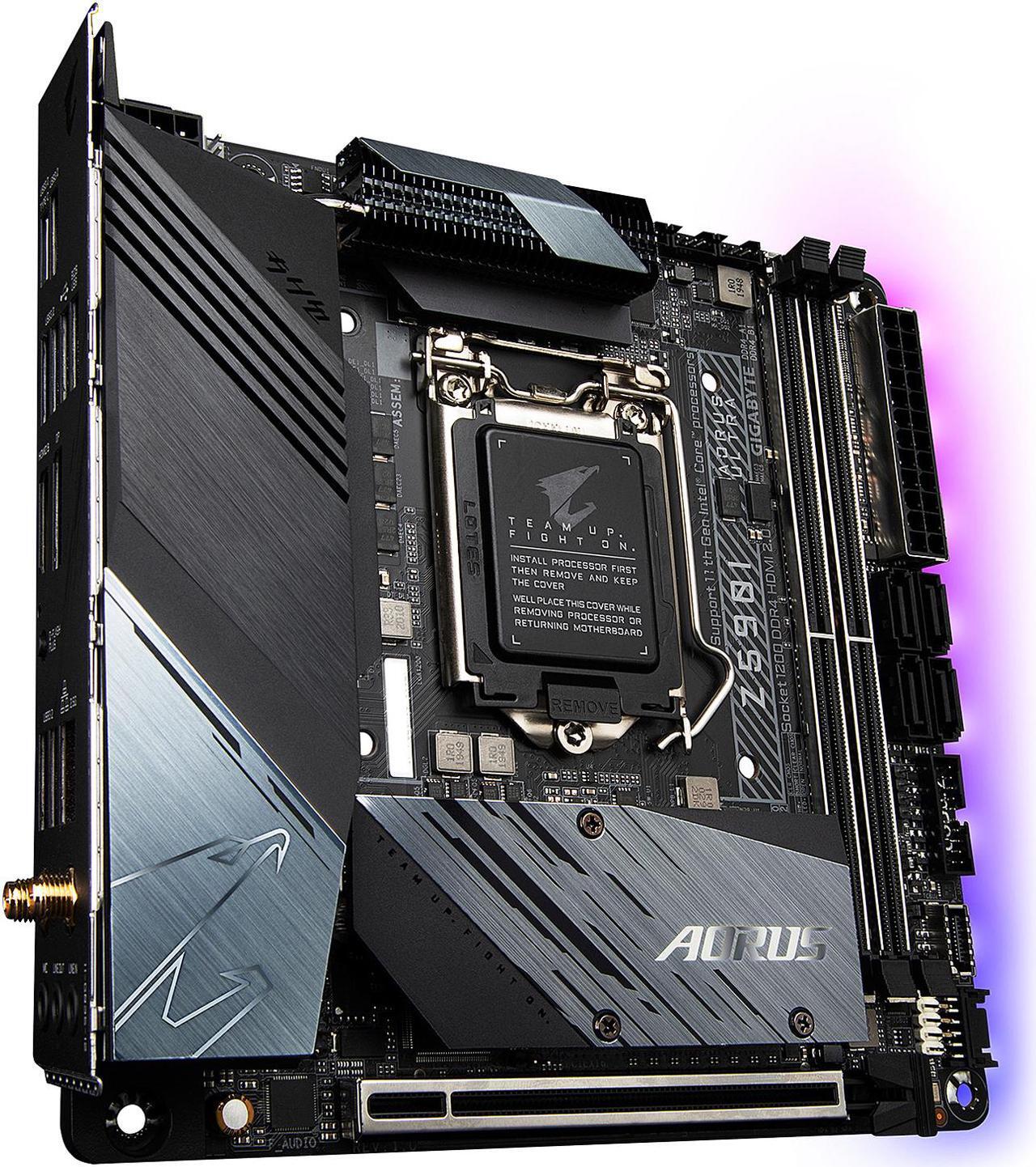

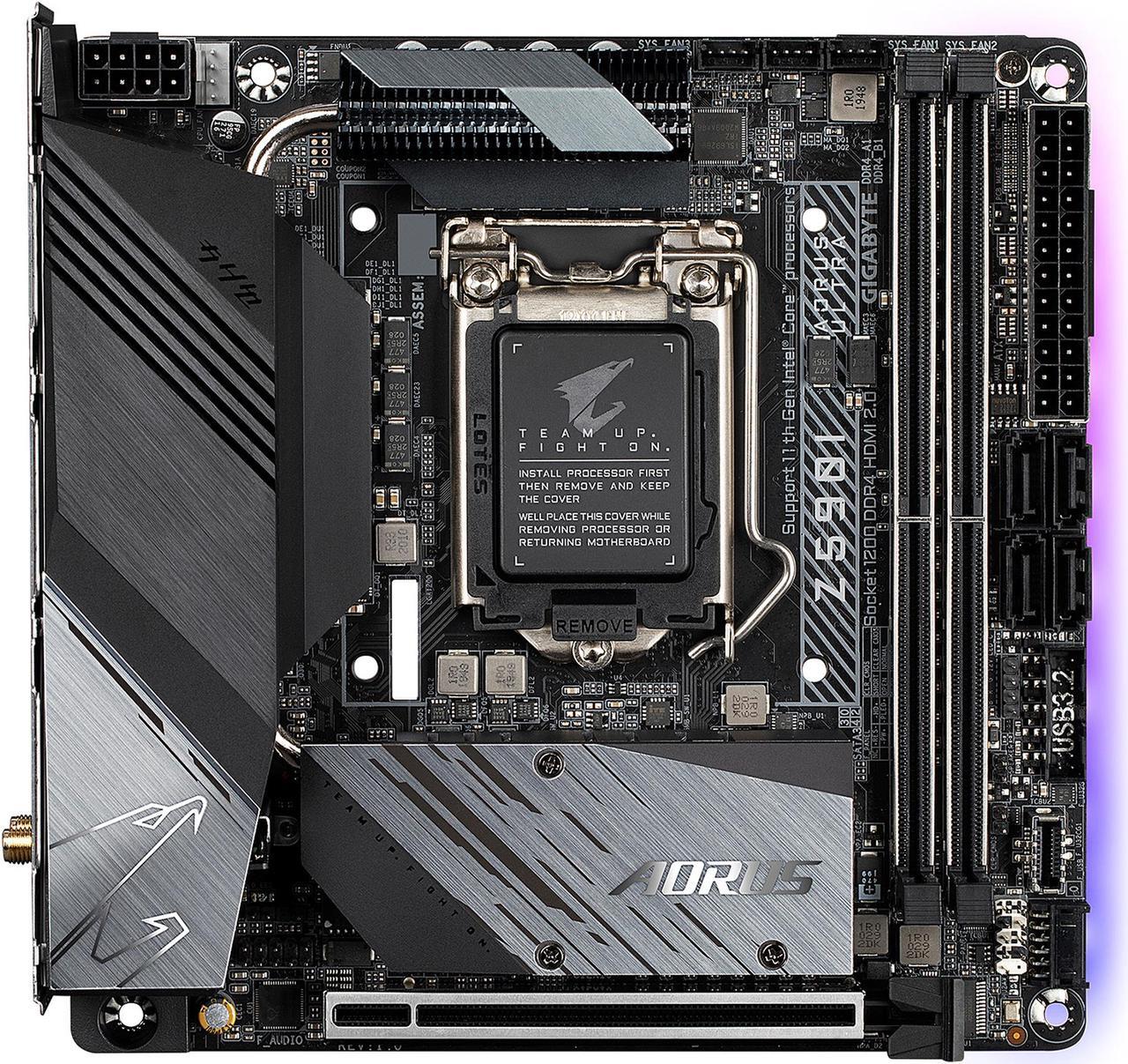

GIGABYTE Z590I AORUS ULTRA LGA 1200 Intel Z590 Mini-ITX Motherboard with Dual M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, Intel WIFI 6, Intel i225V 2.5GbE
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Intel Optane Memory Ready
- Direct 10+1 Phases Digital VRM Solution with 90A Smart Power Stage
- Fins-Array II and Multi-Layered PCH / M.2 Heatsink with Two Heatpipes
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1220 for Rear 120dB SNR
- HDMI 2.0 supports Premium 4K
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
- Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors
- Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU
+
+
Specs
Reviews (390)
Learn more about the GIGABYTE Z590I AORUS ULTRA
| Brand | GIGABYTE |
|---|---|
| Model | Z590I AORUS ULTRA |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium / Celeron processors* * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family. |
| Chipset | Intel Z590 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules (11th Gen Intel Core i9 / i7 / i5 processors) DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i9 / i7 processors) DDR4 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. |
|---|
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) * Supported by 11th Generation processors only. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220-VB * The back panel line out jack supports DSD audio. |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 2.5GbE LAN chip |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6 AX200 |
| Bluetooth | Bluetooth 5.1 |

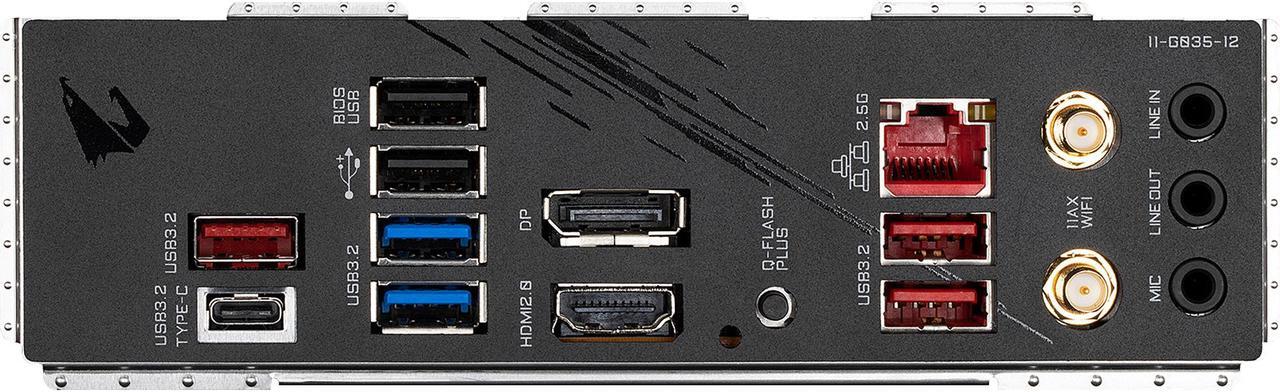

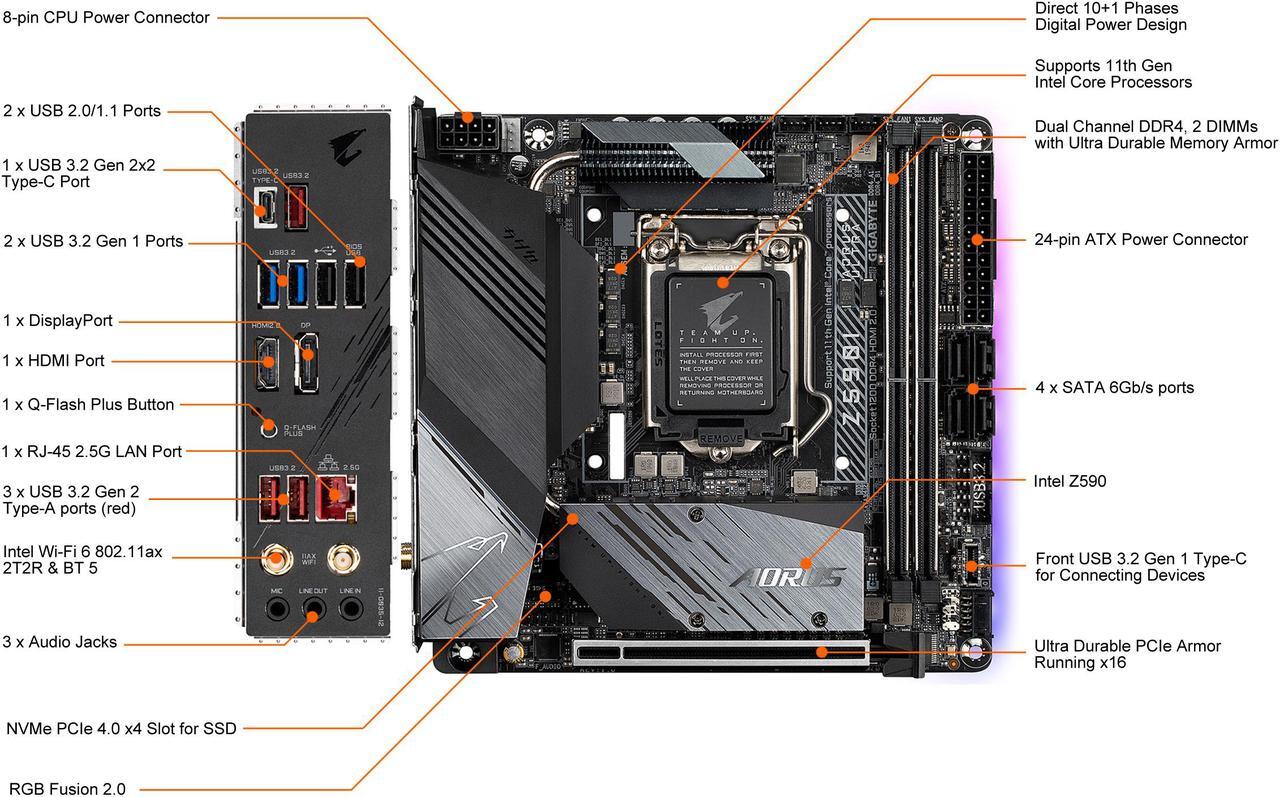

| Back I/O Ports | 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
|---|---|
| Other Connectors | 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Windows 11 | Supported |
|---|
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |

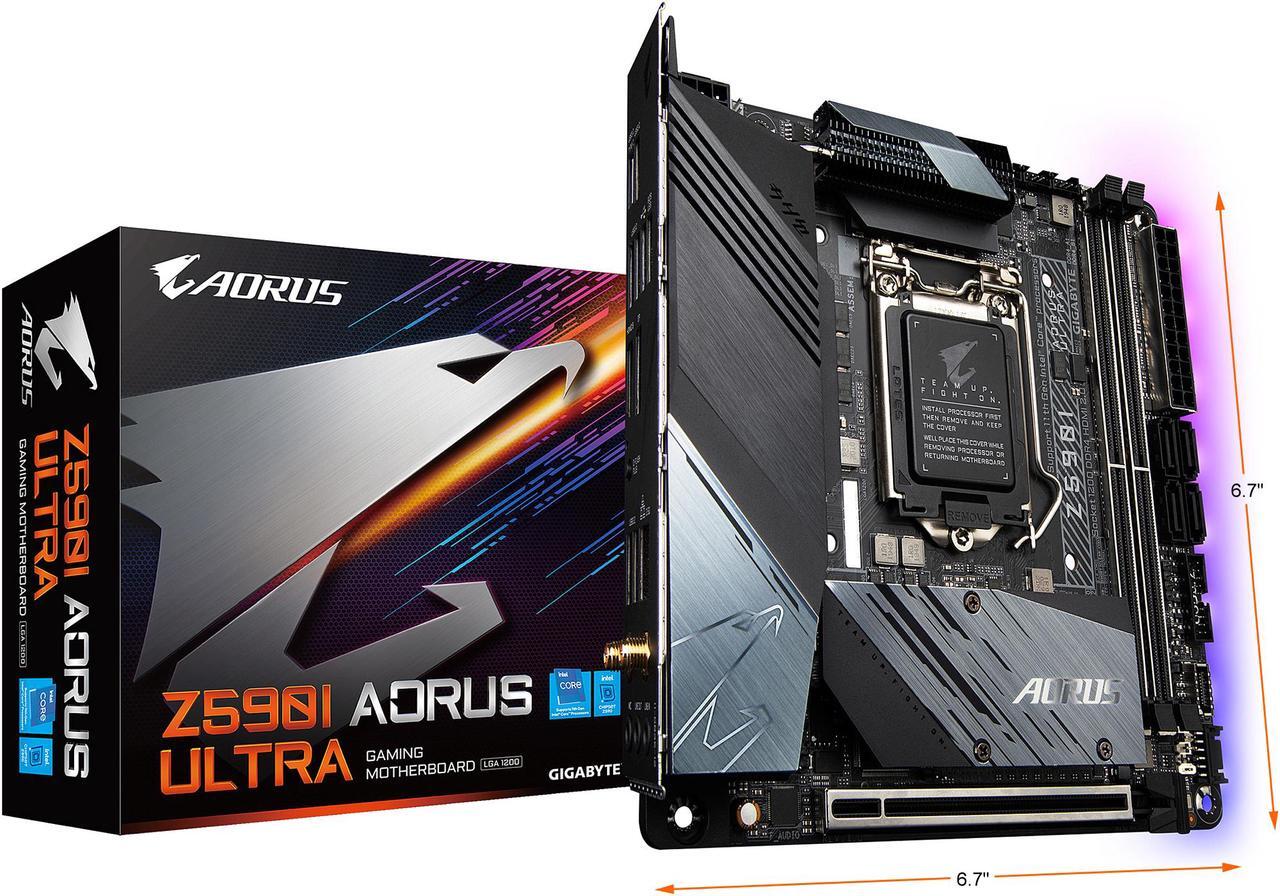

| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit |
|---|
| Date First Available | November 13, 2023 |
|---|
