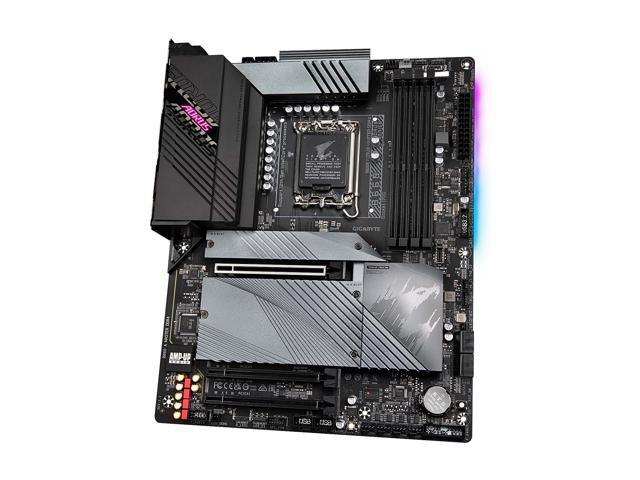

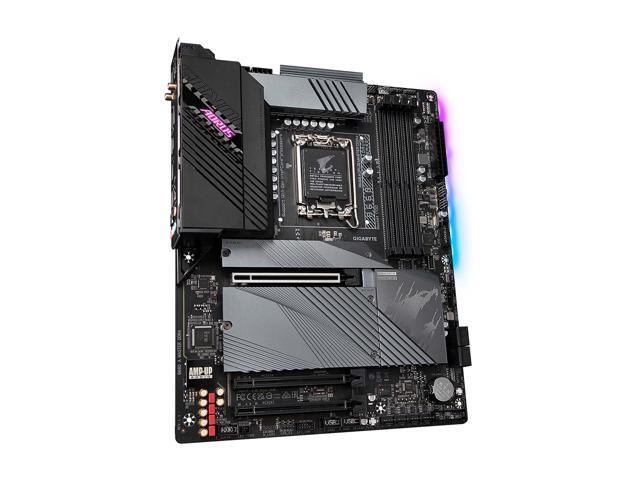

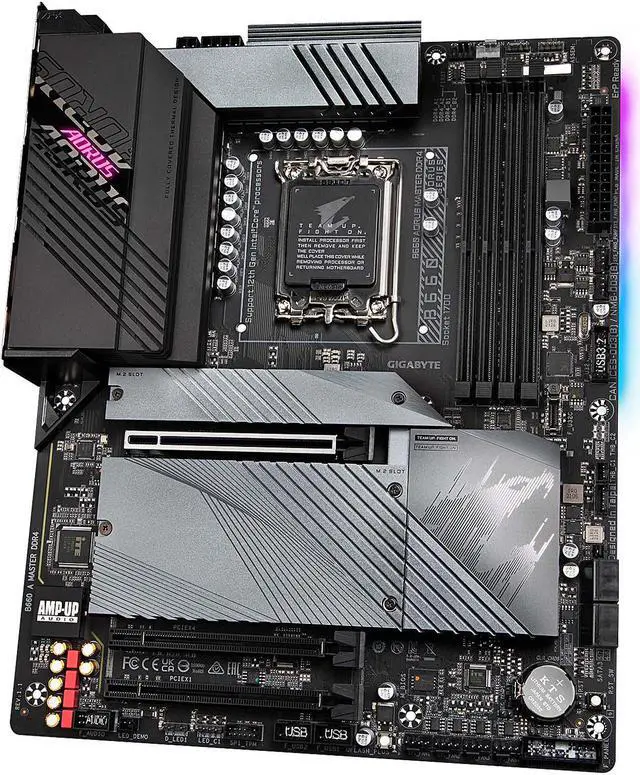

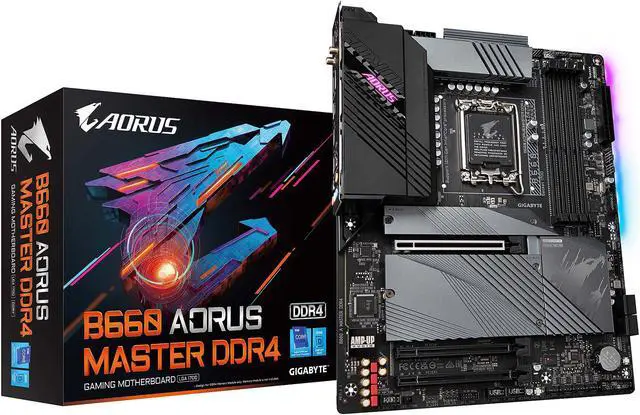

GIGABYTE B660 AORUS MASTER DDR4 B660 Intel LGA 1700 ATX Motherboard with DDR4, Triple M.2, PCIe 4.0, USB 3.2 Gen2 Type-C, WIFI 6 802.11ax, Intel 2.5GbE LAN

In stock. Limit 10 per customer.
Ships from United States.
  • B660 AORUS MASTER DDR4
  • B660M AORUS PRO AX DDR4
  • B660M DS3H DDR4
  • B660M DS3H AX DDR4
  • Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
  • DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Commanding Power Design: 16+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • Cutting-Edge Thermal Design: Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Shielded Memory Routing, Enlarged Thermal Guards

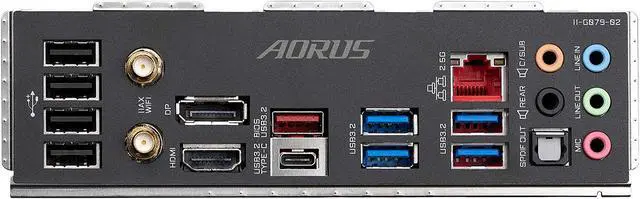

  • Next Gen Connectivity: PCI 4.0, Triple NVMe PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
  • Fast Networking: Intel 2.5GbE LAN, WIFI 6 802.11ax, BT5
  • Dynamic Audio: AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Specs
Reviews

Learn more about the GIGABYTE B660 AORUS MASTER DDR4

Model
Brand GIGABYTE
Model B660 AORUS MASTER DDR4
Supported CPU
CPU Socket Type LGA 1700

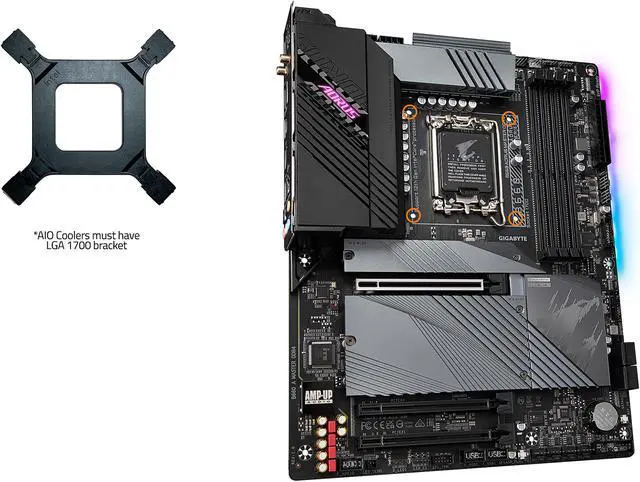

* Dedicated LGA1700 mounting bracket is required.
CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
Chipsets
Chipset Intel B660
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 3200
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2M_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2M_SB connector.
1 x PCI Express x16 slot, running at x1 (PCIEX1)
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 3 x M.2
Onboard Audio
Audio Chipset Realtek ALC1220
Onboard LAN
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Wi-Fi 802.11 ax
Bluetooth Yes
Physical Spec
Form Factor ATX
LED Lighting RGB
Windows Compatibility
Windows 11 Supported
Additional Information
Date First Available January 07, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
