Does this motherboard support 13th gen?

Yes it does. I bought a 13600 for mine. Also, although I had a processor to install bios updates it is supposed to install updates without a cpu so you can upgrade it before you install the cpu, since it needs an update to support 13th gen.

Does this Mother Board support Blue Tooth?

Not without an additional purchase. You can buy a dongle or PCIE card that adds that functionality.

$210^.54

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Sold by FeiJiuJiuDeChongWuShangDian

4 (4 seller ratings)

Shipped by FeiJiuJiuDeChongWuShangDian

Price alert

Add to wish list

Meet Your Seller

FeiJiuJiuDeChongWuShangDian

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

Alt view image 2 of 8 - GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

Alt view image 3 of 8 - GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

Alt view image 4 of 8 - GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

Alt view image 5 of 8 - GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

Alt view image 6 of 8 - GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

Alt view image 7 of 8 - GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

Alt view image 8 of 8 - GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

Customer images

Shop All GIGABYTE Products | Visit FeiJiuJiuDeChongWuShangDian Store

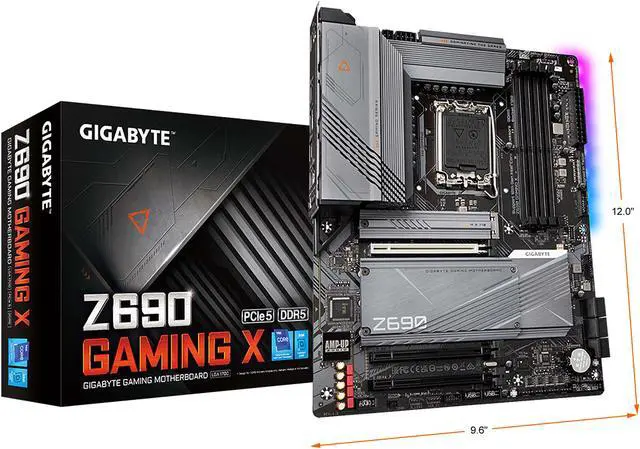

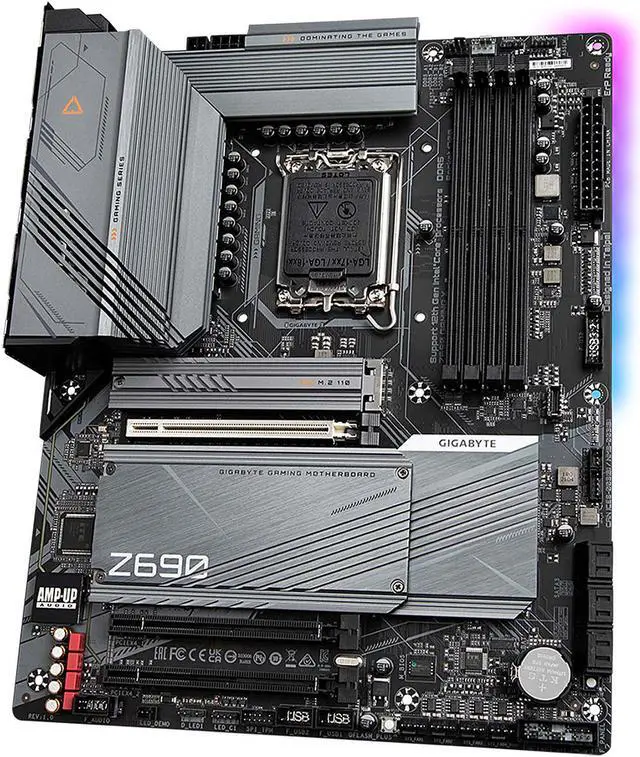

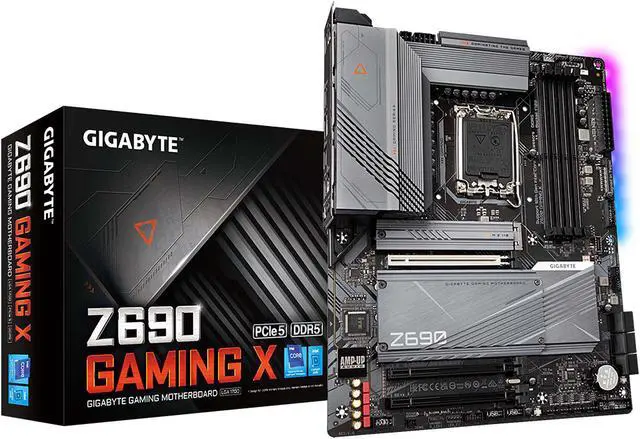

GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN

(424)(45) Write a Review

Option: Z690 GAMING X

Z690 AERO G
Z690 AERO G DDR4
Z690 AORUS ELITE AX
Z690 AORUS ELITE AX DDR4
Z690 AORUS MASTER
Z690 AORUS PRO
Z690 AORUS TACHYON
Z690 AORUS ULTRA
Z690 AORUS XTREME
Z690 GAMING X
Z690 GAMING X DDR4
Z690 UD DDR4
Z690 UD AX DDR4
Z690I AORUS ULTRA LITE
Z690I AORUS ULTRA LITE DDR4

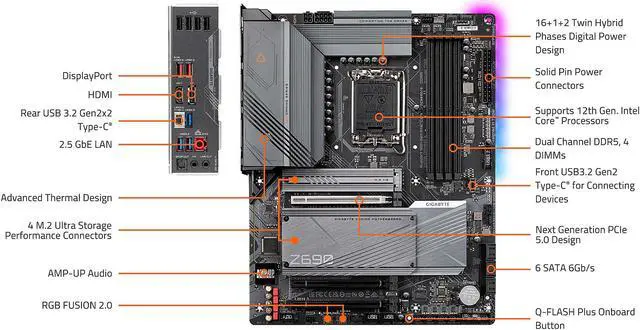

Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
Sturdy Power Design: 16+1+2 Twin Hybrid Digital VRM Design with 60A DrMOS
Comprehensive Thermal Design: Fully Covered Thermal Design and High Coverage MOSFET Heatsinks, Enlarged Thermal Guards
Next Gen Connectivity: PCIe 5.0, Quad NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
Fast Networking: 2.5GbE LAN
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

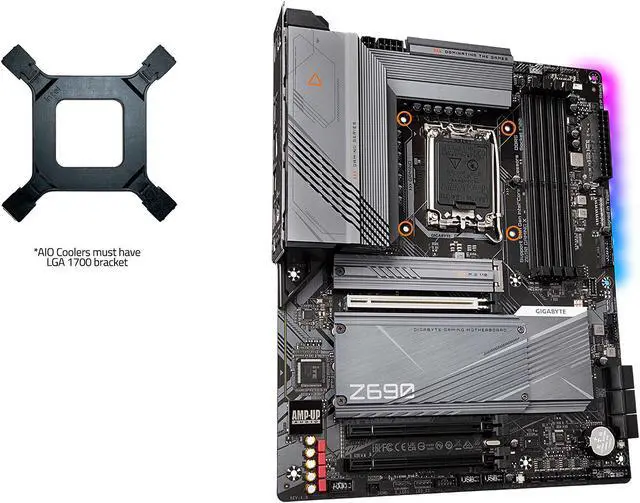

Only Compatible with LGA1700 Cooling Brackets

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (424)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	Z690 GAMING X

Supported CPU
CPU Socket Type	LGA 1700 * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors

Chipsets
Chipset	Intel Z690

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16, running at x4 (PCIEX4_1, PCIEX4_2)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Intel Optane Ready	Yes * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio.
Audio Channels	2-channel analog output 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip
Max LAN Speed	2.5Gbps

Rear Panel Ports

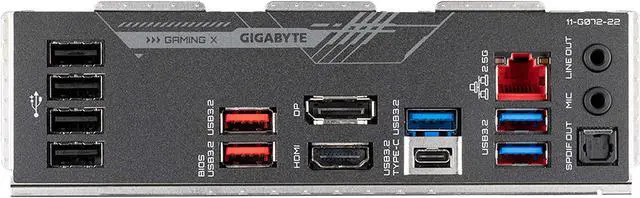

Back I/O Ports	1 x USB Type-C port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Software Feature
Windows 11	Ready

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit

Additional Information
First Listed on Newegg	April 13, 2026
