Is PCIe 4.0 or 3.0 in graphics card and SSD?

according to the product page, the board supports gen 4.0 for the m.2 slots and only PCIe gen 3 on the expansion slot

will this support 13th gen?

You'll have to use q flash to update the bios since these come with an old bios out the box

will this support 13th gen?

You'll have to use q flash to update the bios since these come with an old bios out the box

Maximum power wattage for the CPU?

Very high. Power cascade is expremely potent. Can carry any appropriate CPU

Two m.2 PCIe SSD in RAID?

The motherboard supports two M.2 PCIe 4.0 x4 SSDs, one on the front and one on the back of the GC-Z690I BTB PLUG. However, it does not specify if RAID is supported for these M.2 SSDs.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to wish list(Found on 42 wish lists)

Main image of GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 Mini ITX Intel Motherboard

Alt view image 2 of 8 - GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 Mini ITX Intel Motherboard

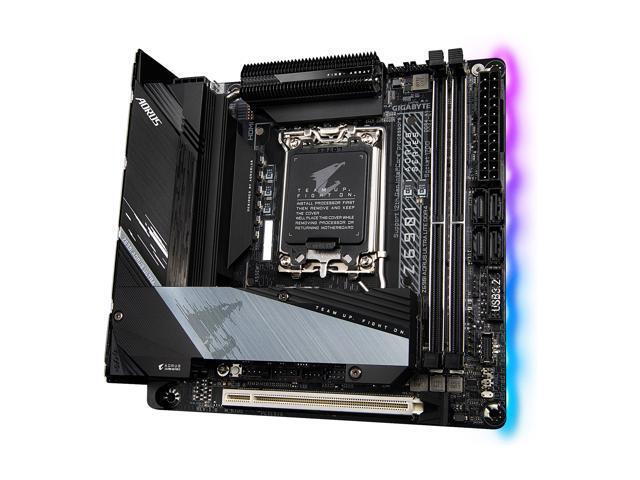

Alt view image 3 of 8 - GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 Mini ITX Intel Motherboard

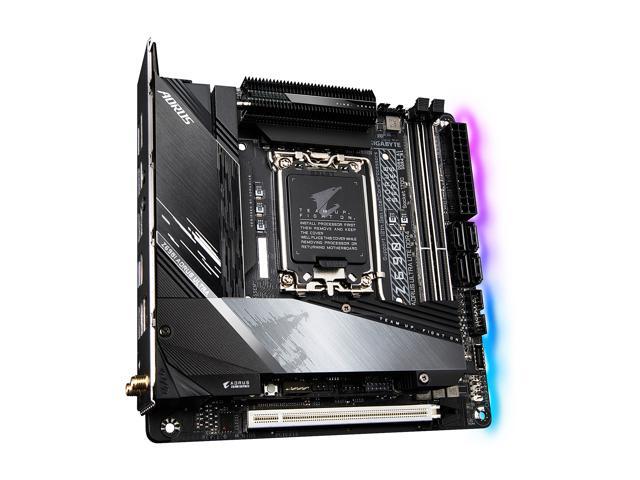

Alt view image 4 of 8 - GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 Mini ITX Intel Motherboard

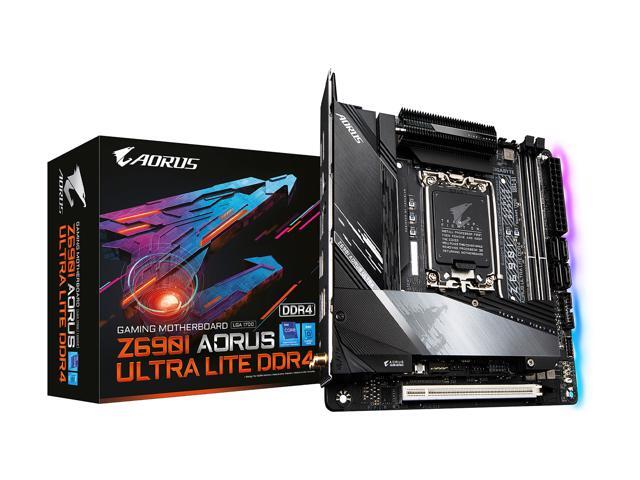

Alt view image 5 of 8 - GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 Mini ITX Intel Motherboard

Alt view image 6 of 8 - GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 Mini ITX Intel Motherboard

Alt view image 7 of 8 - GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 Mini ITX Intel Motherboard

Alt view image 8 of 8 - GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 Mini ITX Intel Motherboard

Customer images

Shop All GIGABYTE Products

GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 Mini ITX Intel Motherboard

(424)(45) Write a Review

Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMS
Commanding Power Design: 10+2+1 Phases Digital VRM Solution with 105A Power Stage, 10-Layer PCB
Cutting-Edge Thermal Design: Advanced Thermal Solution with Fins Array II and Thermal Guards III
Next Gen Connectivity: PCIe 3.0, Dual NVMe PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
Fast Networking: Intel WiFi 6 AX201, Intel 2.5GbE LAN, BT 5.2
Dynamic Audio: AMP-UP Audio with ALC4080 and WIMA
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
Only Compatible with Intel LGA1700 Cooling Brackets

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (424)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	Z690I AORUS ULTRA LITE DDR4 (rev. 1.0)

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets
Chipset	Intel Z690

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Intel Optane Ready	Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	2 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6 AX201 WIFI a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

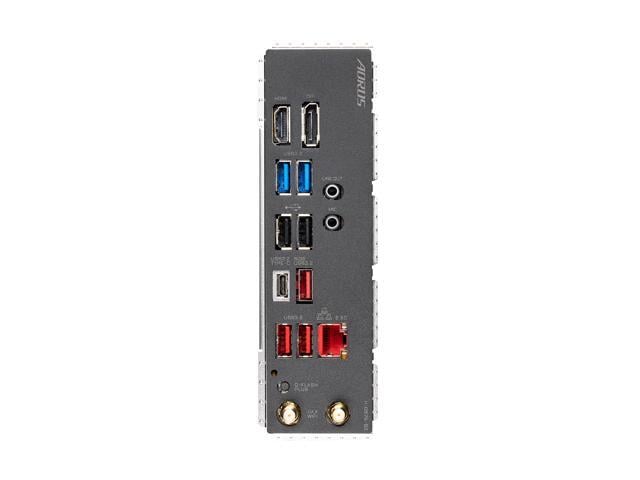

Back I/O Ports	2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header(Note 1) (Note 1) The connector is on the front of GC-Z690I BTB PLUG.
Other Connectors	1 x external power connector(Note 1) 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1)) 1 x addressable LED strip header(Note 1) 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x reset button(Note 1) 1 x reset jumper 1 x Clear CMOS jumper (Note 1) The connector is on the front of GC-Z690I BTB PLUG. * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Software Feature
Windows 11	Ready

Physical Spec
Form Factor	Mini ITX
LED Lighting	RGB
Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Additional Information
First Listed on Newegg	May 23, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
