5 m.2 and 4 sata slots, that's a crazy amount of storage slots, what do everybody use the 9 slots for?

I use this board for a workstation/Lab for work and testing. Have all the SSD slots populated. Run multiple OS's (Win 11 & VMware workstation 17). Have one boot to high end PCIe5 slot, other boot to software raid set, utilizing maximum bandwidth for OSs & Data SSDs. Check details in the manual online. When you use the PCIe5 slot, it lowers speed for the others. Why I disable the raid set drives in BIOS when booting to the uber slot. Its a great board to run a lab with.

Do you have to manually install internet drivers like you do MSI motherboards?

I had to download the wifi driver (from Gigabyte website) and install manually to use wifi. During windows install I used "local" installation option to bypass needing wifi.

Does using the m2c_cpu m.2 slot limit pcie x16 slot to x8

Yes, the PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.

I see a slot for SPI_TPM , it is not included?

The motherboard has a Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), but the module itself is not included.

Does this come with a Wifi6E adapter (the one with the two antennas)? Also, will this board be in stock any time soon? =( Thanks!

Yes, the GIGABYTE Z790 AERO G motherboard comes with a WiFi 6E adapter, as it includes Intel Wi-Fi 6E AX211 and two SMA antenna connectors. However, there is no information available regarding the stock status of this motherboard.

Can you put a soundcard on this board? is it worth the upgrade?

Of course you can put a sound card on this motherboard. You will have to use one of the x4 PCIe slots, since the motherboard doesn't have any x1 slots. Then again, as to if it is worth it? It depends on the sound card you use. Make it a good quality sound card. One that has excellent reviews and good quality sound production. That is the key. Choose the best sound card you can afford.

$533^.75

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by Speed Electronics

4.3 (40 seller ratings)

Shipped by Speed Electronics

Meet Your Seller

Speed Electronics

See Seller Store

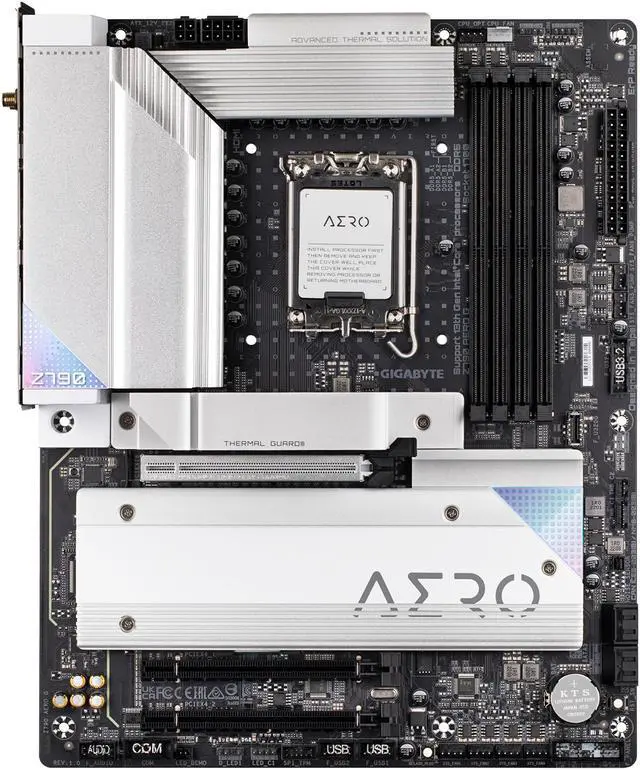

Main image of GIGABYTE Z790 AERO G LGA 1700 Intel Z790 ATX Motherboard with DDR5, 5* 5.0 M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6E, Intel 2.5GbE LAN

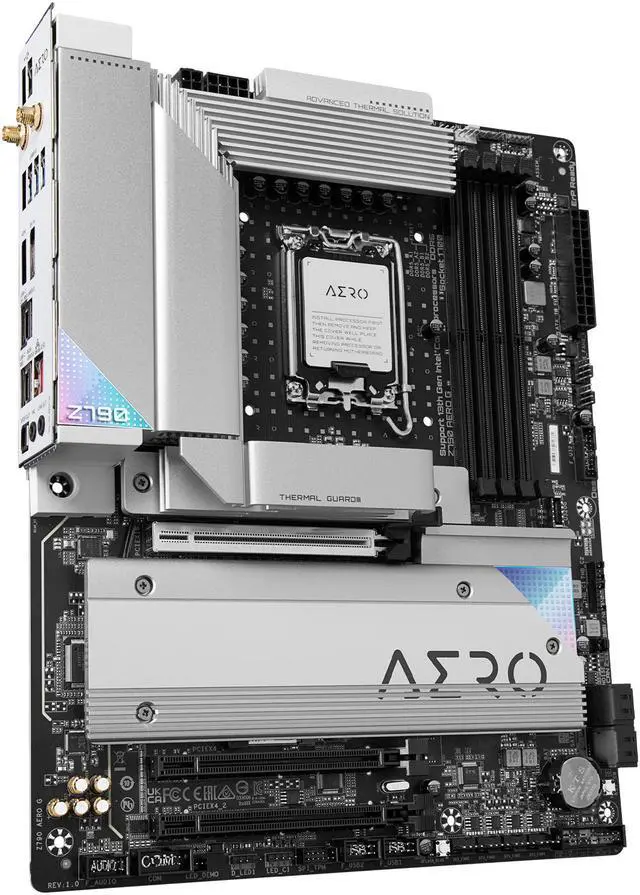

Alt view image 2 of 5 - GIGABYTE Z790 AERO G LGA 1700 Intel Z790 ATX Motherboard with DDR5, 5* 5.0 M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6E, Intel 2.5GbE LAN

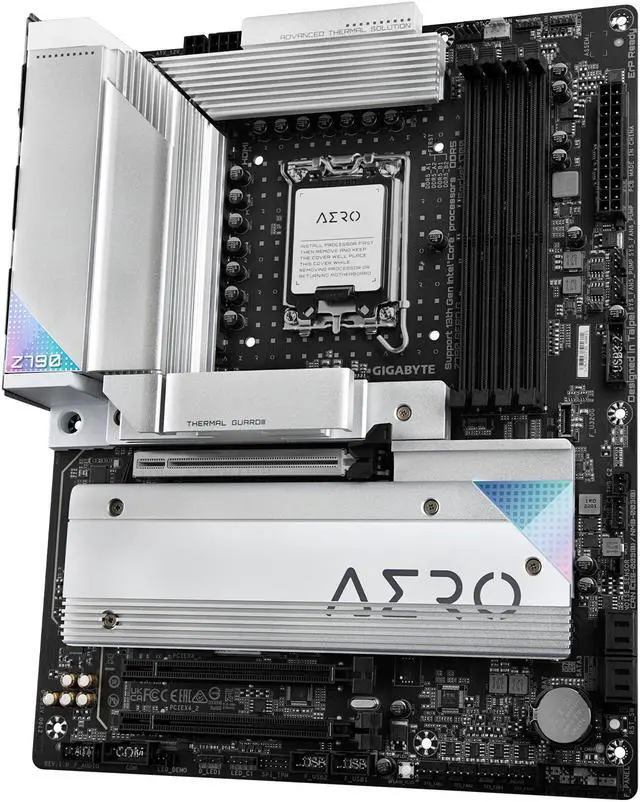

Alt view image 3 of 5 - GIGABYTE Z790 AERO G LGA 1700 Intel Z790 ATX Motherboard with DDR5, 5* 5.0 M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6E, Intel 2.5GbE LAN

Alt view image 4 of 5 - GIGABYTE Z790 AERO G LGA 1700 Intel Z790 ATX Motherboard with DDR5, 5* 5.0 M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6E, Intel 2.5GbE LAN

Alt view image 5 of 5 - GIGABYTE Z790 AERO G LGA 1700 Intel Z790 ATX Motherboard with DDR5, 5* 5.0 M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6E, Intel 2.5GbE LAN

Customer images

Shop All GIGABYTE Products | Visit Speed Electronics Store

GIGABYTE Z790 AERO G LGA 1700 Intel Z790 ATX Motherboard with DDR5, 5* 5.0 M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6E, Intel 2.5GbE LAN

(711)(93) Write a Review

Option: Z790 AERO G

Z790 AORUS MASTER
Z790 AERO G
Z790 AORUS ELITE AX
Z790 AORUS XTREME
Z790 AORUS ELITE AX DDR4
Z790 UD AC
Z790 AORUS TACHYON
Z790 UD AX
Z790 AORUS XTREME X
Z790 AORUS PRO X
Z790 AORUS ELITE X WIFI7
Z790 AORUS ELITE X AX
Z790 AORUS ELITE AX ICE
Z790 AORUS TACHYON X
Z790 AORUS PRO X WIFI7
Z790 EAGLE AX
Z790M AORUS ELITE AX ICE

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
DDR5 Compatible: 4* SMD DIMMs with XMP Memory Module Support
Comprehensive Thermal Design: Advanced Thermal Design, M.2 Thermal Guard III
Next Gen Connectivity: PCIe 5.0, VisionLINK I/O, NVMe PCIe 5.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
Fast Networking: WiFi 6E 802.11ax, Intel 2.5GbE LAN, BT5.3
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU"

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (711)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	Z790 AERO G

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supported	192GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16	2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Onboard Audio
Audio Chipset	Realtek ALC1220-VB CODEC - The back panel line out jack supports DSD audio. High Definition Audio
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E AX211 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth	Bluetooth 5.3

Rear Panel Ports
Back I/O Ports	2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI 2.0 port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Features
Features	BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
